Description
Included in this kit
This bundle includes a Cerwin Vega CAK42 4 Gauge OFC Amp Kit – 100% Oxygen-Free Copper Amplifier Wiring Kit with RCA Cable, Fuse Holder & Power Wire – Up to 1500W RMS, and a Cerwin Vega CVP2700.5 CVP Performance 2700W Max 4-ch Small Chassis 90WX4 + 600WX1@4Ω RMS / 210WX4 + 650WX1@2Ω RMS.
1x Cerwin Vega CAK42 4 Gauge OFC Amp Kit – 100% Oxygen-Free Copper Amplifier Wiring Kit with RCA Cable, Fuse Holder & Power Wire – Up to 1500W RMS (CAK42)
Designed Specifically for Car Audio System up to 1200W. 4 Gauge 2-Channel Amplifier Connection Kits. 17ft, 4 Gauge Matte Red Power Wire with ring terminated. 3ft, 4 Gauge Matte Black Ground Wire with ring terminated. 17ft, 18 Gauge Remote Turn-on wire. 20ft, 16 Gauge Speaker Wire. 17ft, 2-Ch. Vega series RCA interconnect. AGU fuse holder with 100A fuse. All Hardware included. OFC. US Spec.
Specifications
4 Gauge 2-Channel Amplifier Connection Kits
17ft. 4 Gauge Matte Red Power Wire with ring terminated
3ft. 4 Gauge Matte Black Ground Wire with ring terminated
17ft. 18 Gauge remote Turn-on wire
20ft. 16 Gauge Speaker Wire
17ft. 2-Ch. Vega series RCA interconnect
ANL fuse holder with 100A fuse
All Hardware Include
OFC
1x Cerwin Vega CVP2700.5 CVP Performance 2700W Max 4-ch Small Chassis 90WX4 + 600WX1@4Ω RMS / 210WX4 + 650WX1@2Ω RMS (CVP2700.5)

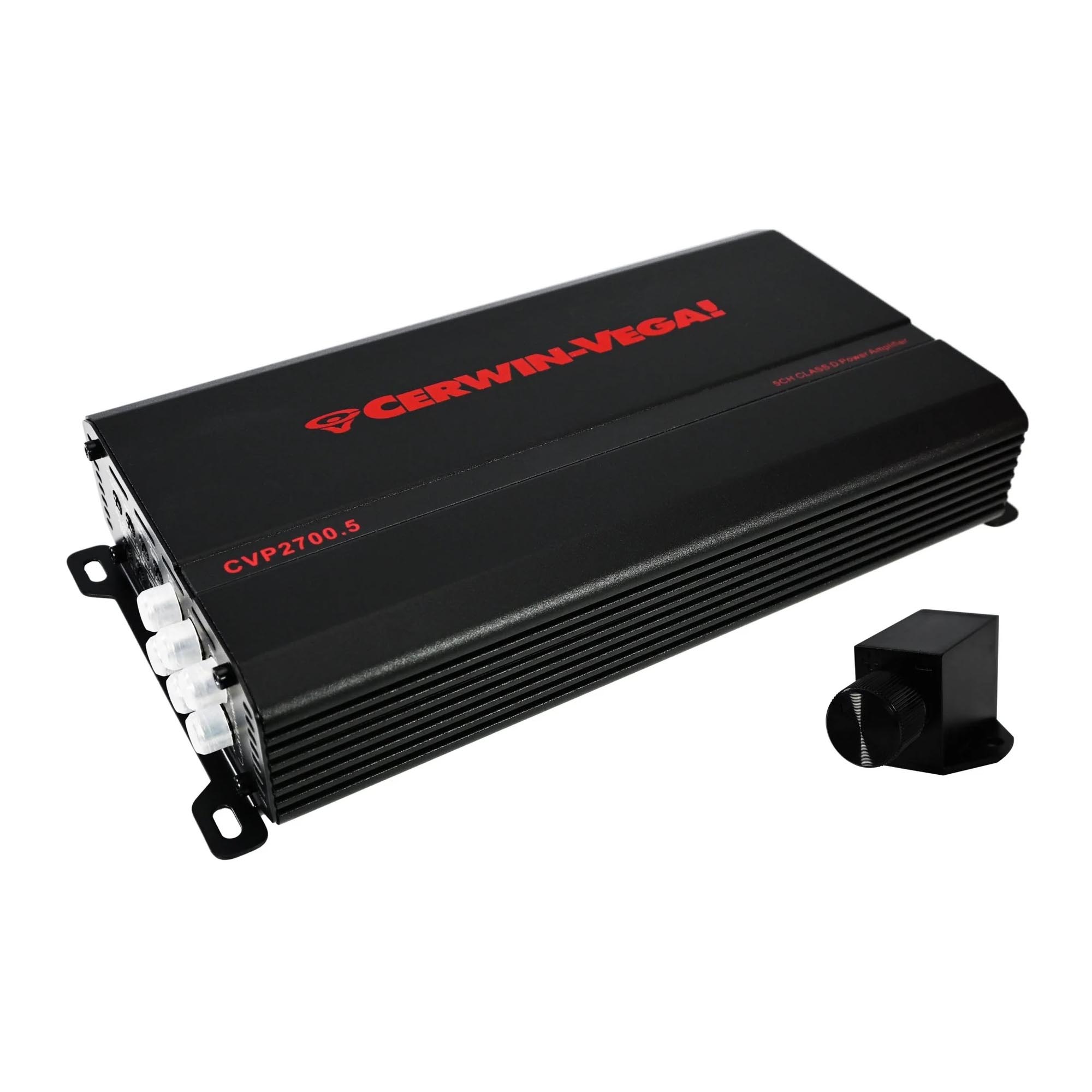

Cerwin-Vega CVP2700.5 CVP Performance 5-Channel Amplifier
The Cerwin-Vega CVP2700.5 is a compact 5-channel amplifier designed to power an entire audio system from a single chassis. Delivering dedicated output for four full-range channels plus a subwoofer channel, it provides flexible system configuration for factory upgrades and aftermarket builds alike.
As part of the CVP Performance Series, the CVP2700.5 combines efficient power delivery, installation-friendly dimensions, and integrated tuning controls to simplify full-system amplification in vehicles with limited space.
Power & Performance
| RMS Power @ 4Ω | 80W x 4 + 220W x 1 |
| RMS Power @ 2Ω | 130W x 4 + 400W x 1 |
| Frequency Response (±3dB) | 10Hz – 30kHz |
| Signal-to-Noise Ratio | ≥90dB |
| Channel Separation | >60dB |
| Input Sensitivity | 250mV – 6V |
Crossover & Control Features
- Adjustable High-Pass Filter: 10Hz – 250Hz (-6dB)
- Adjustable Low-Pass Filter: 52Hz – 400Hz (-12dB)
- 12dB Bass Boost
- High-Level Inputs with Auto Turn-On (4V – 8V)
- Subwoofer Level Remote Control Included
- Power Protection Indicator
Construction & Protection
- Full MOSFET DC-DC PWM Power Supply
- Double-Sided 2-Layer PC Board
- SMD Technology
- Short Circuit Protection
- Low Impedance Protection
- Reverse Polarity Protection
- Overheating Protection
- Fuse Rating: 30A x 3
Dimensions
| Chassis Dimensions (L x W x H) | 9.65" x 4.92" x 1.93" (245mm x 125mm x 49mm) |
