Description
Included in this kit
This bundle includes a Cerwin-Vega RPMRGB8A - RPM RGB Led App Remote Controller, Eight Outputs With Remote Trigger In, and a Cerwin Vega RPM104SL RPM 10” 4-OHM SVC SUBWOOFER SEALED APPLICATION.
1x Cerwin-Vega RPMRGB8A - RPM RGB Led App Remote Controller, Eight Outputs With Remote Trigger In (RPMRGB8A)
Cerwin-Vega's RPMRGB8A LED controller is designed to control your LEDs wirelessly through the EZLED app on your phone. With up to 8 outputs and a wide operating temperature range, this is the perfect option to control your LEDS no matter the shape, size, or location of your vessel.
Controlled from FREE app (EZ LED) on IOS or Android Smart Phones
iPhone App Store
Android App
Specifications
RGB/LED Controller
Control Multiple Functions: Color, Brightness, Speed, Fade and Strobe
8 Outputs With Remote Trigger

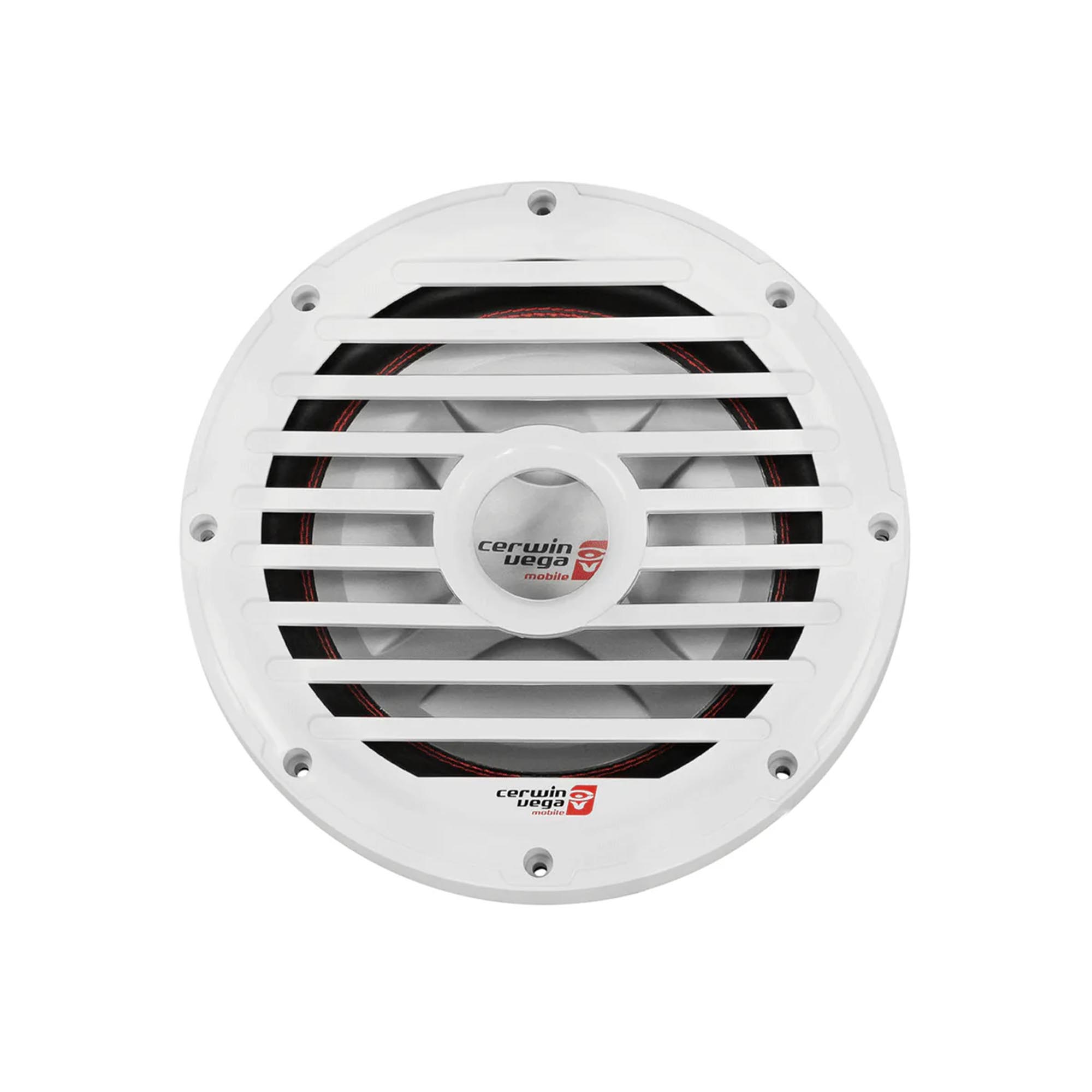

1x Cerwin Vega RPM104SL RPM 10” 4-OHM SVC SUBWOOFER SEALED APPLICATION (RPM104SL)
Key Features:
Speaker Configuration:
200W RMS/400W MAX - 10" Single Voice Coil 4Ω Subwoofer
Waterproof Design: Engineered to withstand harsh marine environments, including exposure to water and salt.
Stamped Basket: Ensures a sturdy and durable structure for the subwoofer.
Nomic Spider: Enhances the subwoofer’s suspension and improves overall performance.
Extended Back Plate: Provides better thermal management and reduces distortion.
Sound Quality Enhancements:
Great for Sealed or Ported Applications: Versatile design allows for use in various types of enclosures, enhancing flexibility in installation.
Built-in RGB LED Lighting: Adds a customizable lighting element for visual appeal.
Convenience and Warranty:
Push Terminals: Simplify wiring and connection processes.
1-Year Manufacturer's Warranty: Provides peace of mind with coverage against manufacturing defects.
Warranty: 1-year manufacturer’s warranty
Specifications
Impedance: 4Ω
Power: 200W RMS/400W MAX
SPL(dB): 87
Re(Ω)[Series]: 3.3
Qms: 2.837
Qes: 0.491
Qts: 0.419
Fs(Hz): 32.94
Vas(L): 45.2
Cms(mm/N): 0.241
Mms(g): 96.674
Sd(m²): 0.036
BL(T*M): 11.591
Xmax (mm) : 12.3
Included: White Grill with LED
LED Controller Sold Separately: RPMRGB8A/RPMRGBLC
Black Grill sold separately: RPM10GRLB
Mounting Diameter: 9.10” (231.0mm)
Mouthing Depth: 4.625” (117.5mm)
Total Diameter: 10.75” (273.0mm)
Sealed Enclosure:
Vb(ft³): 0.75
F3 (Hz)/QTC: 59/.73
Pe(W): 200
Vented Enclosure:
Vb(ft³): 1.75
F3 (Hz)/QTC: 32/29
Port (Dia. x Length): 3" x 8.5"
Pe(W): 200
