Description

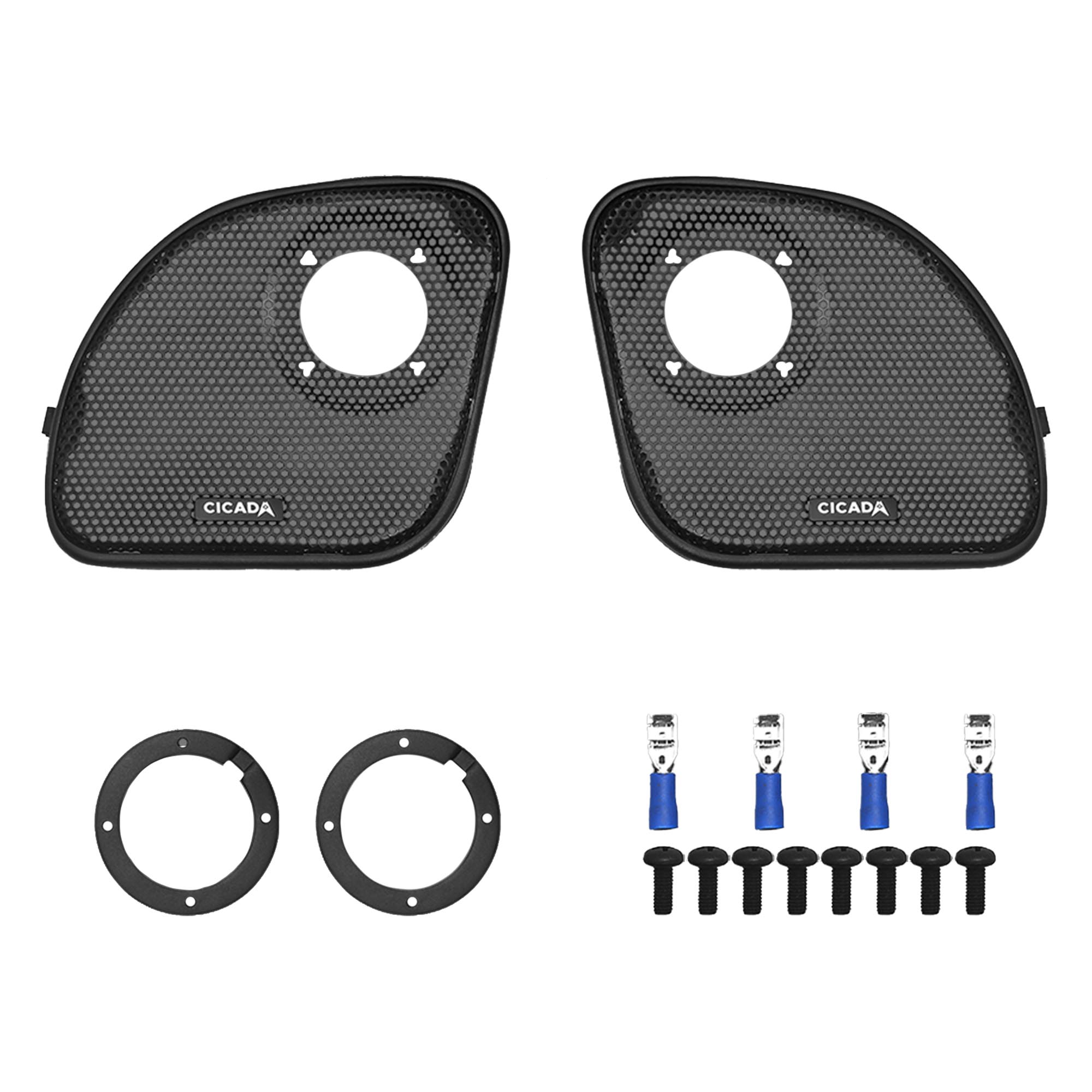

CHDRGGTK – HD ROAD GLIDE “KIDNEY” GRILL W/TWEETER
50 WRMS / 100W MAX Power Handling- per tweeter
Neodymium High Energy / Light Weight N35 Magnet structure
Heavy Duty / Die-cast Aluminum Basket
4 Ohm for increased durability
1.0” Aluminum Diaphragm High-Temp Voice Coil for Tweeter
Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
Frequency Response: 2KHz -20Khz+/-5dB
High Sensitivity: 107dB 1W/1M Average (1W/1M – 2.83V)
12dB Crossover with custom tooled/ Vented crossover case
Custom Punched Road Glide Grills
Mounting Depth: 1.13” / 28.9mm
Mounting Diameter: 2” / 50mm
SOLD IN MATCHED PAIRS
50 WRMS / 100W MAX Power Handling- per tweeter
Neodymium High Energy / Light Weight N35 Magnet structure
Heavy Duty / Die-cast Aluminum Basket
4 Ohm for increased durability
1.0” Aluminum Diaphragm High-Temp Voice Coil for Tweeter
Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
Frequency Response: 2KHz -20Khz+/-5dB
High Sensitivity: 107dB 1W/1M Average (1W/1M – 2.83V)
12dB Crossover with custom tooled/ Vented crossover case
Custom Punched Road Glide Grills
Mounting Depth: 1.13” / 28.9mm
Mounting Diameter: 2” / 50mm
SOLD IN MATCHED PAIRS
