Cicada Audio CH65.2v2 - 1 Pair of High Efficiency 6.5-Inch Horn Coaxial Speakers - 2 Ohm & CXX57.2 - 1 Pair of Pro Coaxial Speakers Bi Ampable 5x7-inch - 2 Ohm with FLX1000.4 - 4 Channel Amplifier

Included in this kit

---

This bundle includes a Cicada Audio CH65.2v2 - High Efficiency 6.5-Inch Horn Coaxial Speakers - 2 Ohm, Pair, a Cicada Audio CXX57.2 - Pro Coaxial Speakers Bi Ampable 5x7-inch - 2 Ohm, Pair, and a Cicada Audio FLX1000.4 - 4 Channel x 225 Watts @ 2 Ohm Amplifier.

1x Cicada Audio CH65.2v2 - High Efficiency 6.5-Inch Horn Coaxial Speakers - 2 Ohm, Pair - (CH65.2v2)

FEATURES
• Designed for 2014+ H-D factory designed locations
• Removable threaded horn flange for easy modification
• Aluminum tweeter diaphragm material
⁃ Brighter sound
⁃ Maximized efficiency
• External 12dB crossover with optional -3/-6 tweeter attenuator
• 1.4-inch OFC copper wire tweeter voice coils offers great sound while generating less heat
• Water resistant treated paper cone
⁃ Lightweight and heavy duty
⁃ Maximized efficiency
• Black CoatTM 2-inch high conductivity, low resistance OFC copper wir
mid-bass voice coil ensures extreme temperature thermal performance
• N35SH Neodymium magnet
• Die cast Aluminum custom tooled basket with Vortex Flow VentingTM
• Two (2) year warranty

SPECIFICATIONS
• 2 ohm 6.5-inch coaxial horn driver
• Power Handling: 250W RMS/500W MAX
• Voice Coil: 2.0-inch/51mm mid-bass and 1.4-inch/36mm tweeter
• Tweeter Dome: Aluminum
• Crossover: 12 dB external custom tooled. vented, encased crossover
• Tweeter Attenuation: -3/-6dB heat sink encased resistor crossover
• Cone: Water resistant treated paper cone
• Magnet: Neodymium
• Sensitivity: 99 dB, 1W/1M
• Frequency Response: 75Hz - 20kHz +/- 3dB
• Mounting Depth: 3.0-inch/76mm
• Mounting Diameter: 5.7-inch/145mm

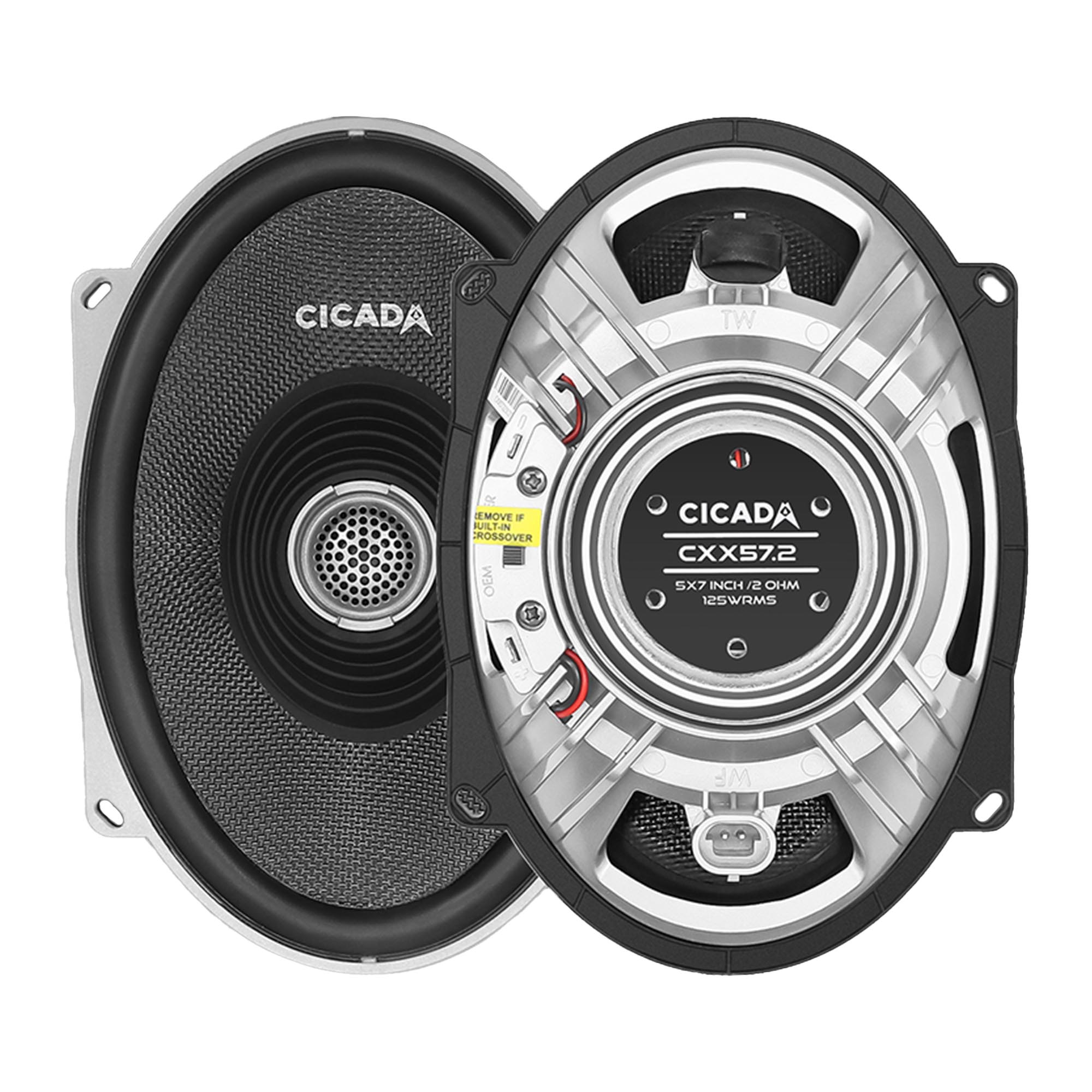

1x Cicada Audio CXX57.2 - Pro Coaxial Speakers Bi Ampable 5x7-inch - 2 Ohm, Pair - (CXX57.2)

New to our mid-line series, the CXX57.2 is a drop-in replacement 5″ x 7″ bag lid speaker featuring 1.4″, 2Ω, voice coil woofer and a 1″ PEI, 4Ω, tweeter. This model can be operated as a coaxial or is bi-ampable for a direct replacement on the Boom 2 system.

FEATURES:
Designed for 1998 to 2023 H-D® factory designed locations
V8™ Dispersion Guide
Exclusive Cicada Design for 360o sound from tweeter
Rain or Shine™ all weather performance design
Bi-Amp ready for OEM Hook up for H-D® Boom 2® System
Switchable built-In 6dB crossover
PEI – (High temp polymer dome) tweeter diaphragm material
Brighter sound
More efficient
Moisture resistant
Kevlar cone
Extremely lightweight and strong
Moisture resistant
Maximized efficiency
N45H Neo Magnets
High temperature resistant Polycarbonate custom tooled basket
UV protection over all surfaces
Two (2) year warranty

SPECIFICATIONS:
2Ω / 5×7-inch high performance coaxial driver
Power handling: 125W RMS/250W MAX
Voice Coils: 1.4-inch/35mm mid-bass and 1-inch/25mm Tweeter
Cone: Kevlar
Tweeter Dome: PEI
Magnet: Neodymium
Sensitivity: 89dB 1W / 1M
Frequency response: 50 Hz – 20 kHz +/- 3dB
Mounting Depth: 2.23-inch/56.8mm
Mounting Diameter: 4.84-inch/123mm X 7.3-inch/185mm

1x Cicada Audio FLX1000.4 - 4 Channel x 225 Watts @ 2 Ohm Amplifier - (FLX1000.4)

4 CHANNEL POWER AMPLIFIER
4 X 150 WRMS into 4 ohms @ 12.5 Vdc
4 X 168 WRMS into 4 ohms @ 14.4 Vdc
4 X 220 WRMS into 2 ohms @ 12.5 Vdc
4 X 254 WRMS into 2 ohms @ 14.4 Vdc

BRIDGED MONO – 2 CHANNEL
2 X 461 WRMS into 4 ohms @ 12.5 Vdc
2 X 530 WRMS into 4 ohms @ 14.4 Vdc
Frequency response – 20-20,000 +/- 3dB THD < 0.5%
Operating Voltage: 8V – 16V
Current Draw (Music): 60 A
Current Draw (Max): 116 A
Recommended Fuse (Music): 120 A
Total Efficiency: 79%
Damping Factor: 200
SNR: 91dB
Crossover LPF/FULL/HPF: 30 TO 300Hz
Slope:12dB per octave
Gain: 0.2V – 12 Vac
Turn-On Configuration: REM/DC
THD + N (10% Rated Power): 0.1%
Product Dimensions (Inches / Millimeters): 6.0 x 4.9 x 2.0 in / 152 x 124 x 51 mm
