Description
Included in this kit
This bundle includes a Cicada Audio CHDLID - H-D 2014-2023 LID KIT/NO Speakers - PR, and a Cicada Audio CHX69.4 - Pro Coaxial Horn Loaded Speakers 6x9-inch - 4 Ohm, Pair.
1x Cicada Audio CHDLID - H-D 2014-2023 LID KIT/NO Speakers - PR - (CHDLID)
Allows for the use of CH69 (Cast Frames) and CX69 (Plastic Frames) mounted into the factory Harley Davidson® bag lids.
Black finish allows for matching to any color bike. No need for additional color match painting.

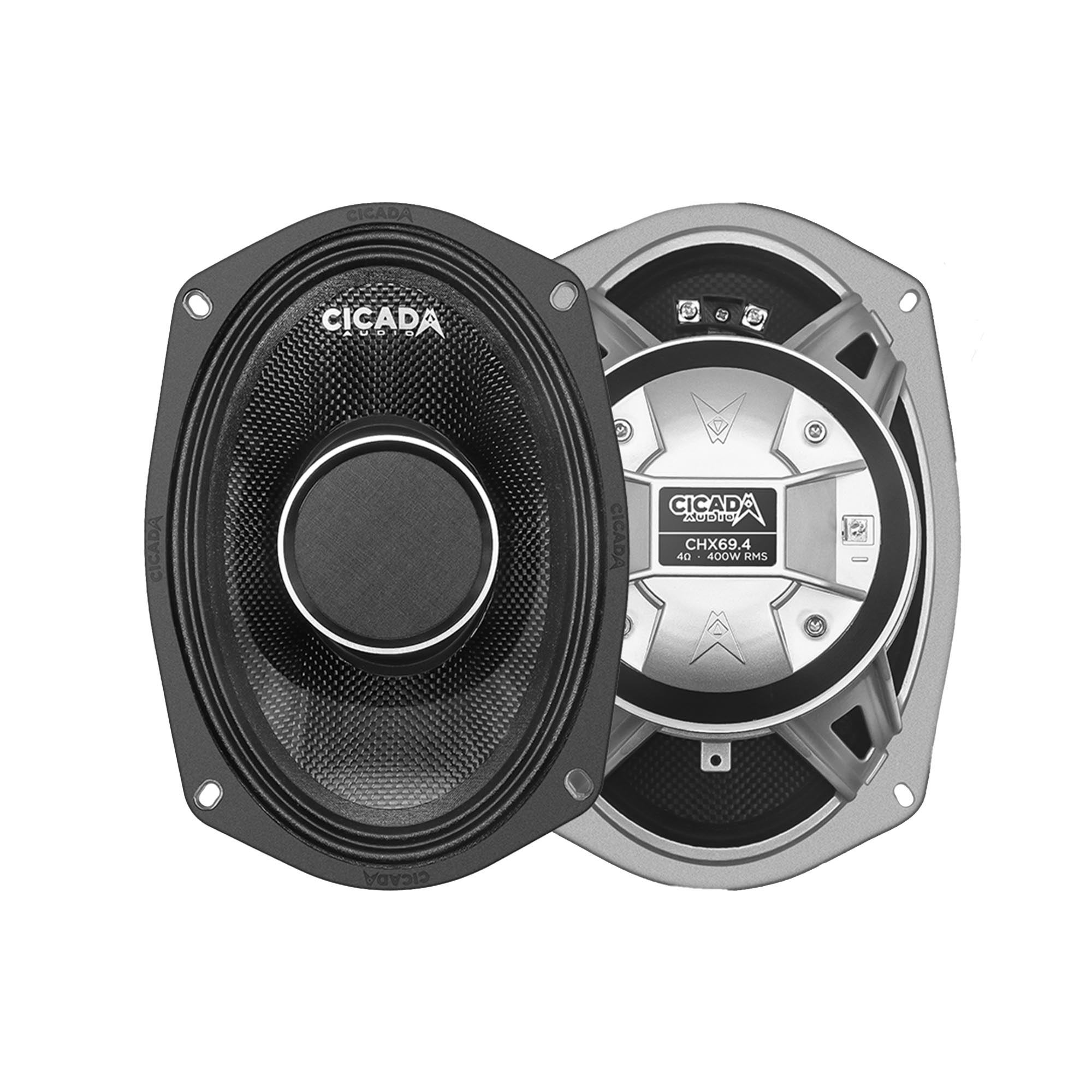

1x Cicada Audio CHX69.4 - Pro Coaxial Horn Loaded Speakers 6x9-inch - 4 Ohm, Pair - (CHX69.4)
FEATURES:
Nanofram™ Horn Cover
Exclusive Cicada All-Weather Design for protection from rain
Rain or Shine™ all weather performance design
Available in 4 or 2Ω versions
Aluminum tweeter diaphragm material
Brighter sound
More efficient
1.75″ OFC copper wire tweeter voice coils offer great sound while generating less heat
External 12dB crossover with optional -3/-6 tweeter resistor attenuator
Carbon Matrix Composite™ (CMC™) cone
Lightweight / rigid / high temp
Maximized efficiency / super strong
Black Coat™ 2.5-inch high conductivity, low resistance OFC copper wire mid-bass voice coil ensures extreme temperature thermal performance
N35SH Neodymium magnet
Die cast Aluminum custom tooled basket with Vortex Flow Venting™
Warranty: 2 years
SPECIFICATIONS:
4Ω – 6X9-inch PRO coaxial horn driver
Power handling: 400W RMS/800W MAX
Voice Coil: 2.5-inch/64mm Mid-bass & 1.75-inch/44mm Tweeter
High temperature design
Tweeter Dome: Aluminum
Crossover: 12dB external custom tooled, vented, encased crossover
Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover
Cone: Carbon Matrix Composite™
Magnet: Neodymium
Sensitivity: 92dB, 1W / 1M
Frequency Response: 46Hz – 20kHz +/- 3dB
Mounting Depth: 3.75-inch/96mm
Mounting Diameter: 5.7-inch/145mm X 8.5-inch/216mm
