Description
Included in this kit
This bundle includes a Cicada Audio FLX1400.4P - DSP 4 x 350 @ 2 Ohm, a Cicada Audio C2C - Waterproof 3-foot USB-C Extension for DSP with 6-foot Data Cable, and a Cicada Audio Waterproof USB C Extension Kit for DSP88v2/DSP600.4D w/90 degree connector - 3 ft.
1x Cicada Audio FLX1400.4P - DSP 4 x 350 @ 2 Ohm - (FLX1400.4P)
4 CHANNEL DSP POWER AMPLIFIER
Requires 4 AWG Power Wire – HDPG4K
4 X 200 WRMS into 4 ohms @ 12.5 Vdc
4 X 225 WRMS into 4 ohms @ 14.4 Vdc
4 X 300 WRMS into 2 ohms @ 12.5 Vdc
4 X 350 WRMS into 2 ohms @ 14.4 Vdc
BRIDGED MONO – 2 CHANNEL
2 X 600 WRMS into 4 ohms @ 12.5 Vdc
2 X 700 WRMS into 4 ohms @ 14.4 Vdc
Frequency response – 20-20,000 +/- 3dB THD < 0.5%
Operating Voltage: 8 V – 16 V
Current Draw (Music): 50 A
Current Draw (Max): 220 A
Recommended Fuse (Music): 120 A
Total Efficiency: 79%
Damping Factor: 200
SNR: 91 dB
Crossover LPF/FULL/HPF: 30 TO 300Hz
Slope:12dB per octave
Gain: 0.2V – 12 Vac
Turn-On Configuration: REM/DC
DSP Crossover HPF/LPF: 0 TO 20kHz
Slope configurable 6/12/18/24/48dB
DSP PEQ – 8 BANDS
Q’s Adjustable from 0.05 – 20
THD + N (10% Rated Power): 0.1%
Product Dimensions (Inches / Millimeters): 7.6 x 4.9 x 2.0 in / 193 x 124 x 51 mm

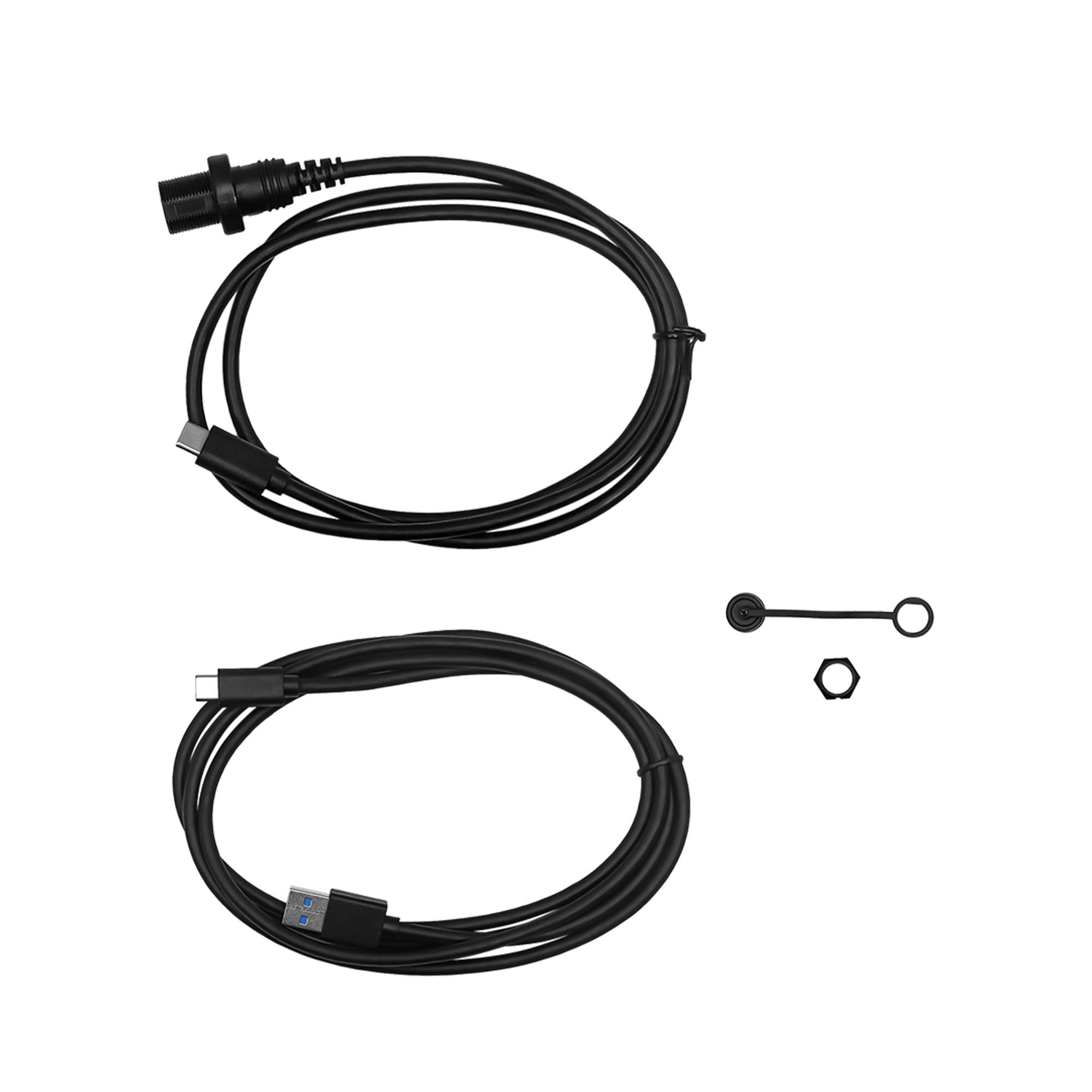

1x Cicada Audio C2C - Waterproof 3-foot USB-C Extension for DSP with 6-foot Data Cable - (C2C)
UBS C Waterproof Extension Data Cable
For use with DSP88v2 and DSP600.4D
Special mount designed to fit within cigarette/12v lighter opening
6ft in length
1x Cicada Audio Waterproof USB C Extension Kit for DSP88v2/DSP600.4D w/90 degree connector - 3 ft - (C2C90)
Waterproof USB C Extension Kit for DSP88v2/DSP600.4D w/90 degree connector - 3 ft
