Description
Included in this kit
This bundle includes a Diamond Audio MSTLINK Motorsport 4-Ch Input With Load Resistor 4-Out T-Harness Kit, a Diamond Audio MICRO84U Microbu 4-Channel / 125W X 4 @ 2Q, B5w X 4 @ 4Q, 250W X 2 @ 4Q Rms Bridged, All-Weather Application, a Diamond Audio MSPRO65 Motorsport Pro Series 6.5" 4-Ohm Midrange Pro Speaker, a Diamond Audio MSMP694LK Motorsport H-D Cut In Speaker Lid Kit With Mp694, and a Diamond Audio MSHD14 - Plug N-Play Digital Media Receiver for 2014-2023 H-D.
1x Diamond Audio MSTLINK Motorsport 4-Ch Input With Load Resistor 4-Out T-Harness Kit - (MSTLINK)
MSTLINK - Harley Davidson Radio T-Harness Kit, 4-CH Inputs with Load Resistor & 4-CH Outputs 2014-2023 (Standard Model)
Plug & Play is the best way to integrate an aftermarket amplifier with the factory radio of any 2014-2023 Harley bagger. This harness gives you all the connections and features you could want, and it works with all variations of Harley stereo systems
Specifications:
- MOTORSPORT 4-CH Input with Load Resistor 4-Out T-Harness Kit
- Aftermarket Replacement Harness Function
- Retained Accessory Power (RAP) Retention
Non-Amplified
1x Diamond Audio MICRO84U Microbu 4-Channel / 125W X 4 @ 2Q, B5w X 4 @ 4Q, 250W X 2 @ 4Q Rms Bridged, All-Weather Application - (MICRO84U)
MICRO84U - MICRO8U Series 4-Channel Full Range Class D Amplifier
Diamond Audio continues to push boundaries with the introduction of the MICRO8U series amplifiers for 2018. Building on the success of the popular MICRO series, the big-brother MICRO8U series amplifiers deliver even more power and performance, setting a new standard in audio excellence.
Engineered from the ground up, these amplifiers not only provide increased power but are also conformal-coated for all-weather applications and outdoor environments. This makes them perfect for a wide range of installations, ensuring durability and reliability no matter the conditions.
All MICRO8U models, except for the MICRO85U and MICRO88U, share the same platform and dimensions, making for a sleek and uniform installation. Their subtle yet elegant design, combined with the signature Diamond Audio aesthetics, ensures that these amplifiers not only perform exceptionally but also look stunning in any setup.
Experience the next level of power, performance, and design with the MICRO8U series amplifiers from Diamond Audio. Upgrade your audio system today and enjoy unparalleled sound quality and durability, whether you're indoors or out.
Specifications:
- 4-CHANNEL
- 250W x 2 @ @ 4Ω RMS BRIDGED
- 125W x 4 @ 2Ω
- 85W x 4 @ 4Ω
- ALL-WEATHER APPLICATION
- Input Sensitivity: 0.2-10 Volt
- Crossover Filter : 40-400Hz, 12dB Per Octave Slope
- Frequency Response: 10-33KHz
- Selectable REM / VOX / DC Turn On Modes
- Selectable 2CH / 4CH Input Modes
- Dimensions: 9.1” x 4.1” x 1.46” / 230.5 x 103 x 37.2 mm
- Disconnected RCA Input & Speaker Output Harness Kits Included

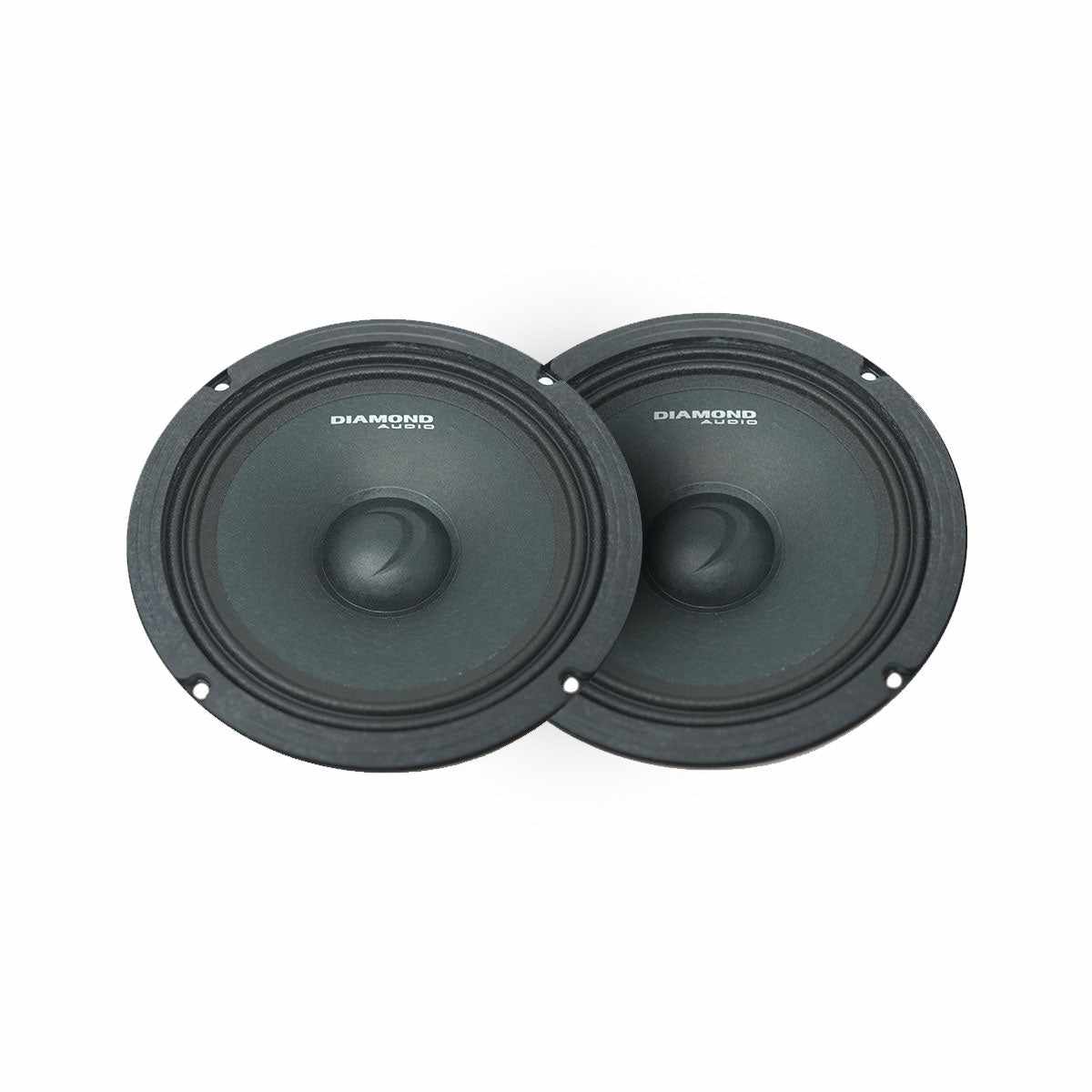

1x Diamond Audio MSPRO65 Motorsport Pro Series 6.5" 4-Ohm Midrange Pro Speaker - (MSPRO65)
MSPRO65 - 6.5" PRO High Output Speakers (Pair)
Elevate your ride with the Diamond Audio MS PRO Series speakers, designed to deliver ultra-efficient, super loud, and reliable performance for the most demanding audio enthusiasts. Tailored specifically for Harley Davidson motorcycles, these speakers offer superior sound quality and durability, making them the perfect companion for your journeys.
The MS PRO Series speakers are engineered for maximum efficiency, ensuring that you get the most out of your audio system with minimal power consumption. Experience super loud sound that cuts through the noise, whether you're cruising down the highway or parked at a rally.
Diamond Audio is synonymous with exceptional sound quality, and the MS PRO Series is no exception. Enjoy crystal-clear highs.
Specifications:
- 200W RMS Power Handling
- Frequency Response: 110 - 10kHz +/- 3dB
- Sensitivity: 97dB 1W/1M
- Manufactured to IP65 Marine Grade Compliant Specifications
- Shorting Ring Utilized In Motor Structure
- For Far-Field Performance
- Thermal Molded Waterproof Paper Cone
- UV-Treated Polycarbonate Cloth Surround
- Nominal Impedance: 4 ohm
- Sensitivity -100dB 1W/1M
- Mounting Depth: 2.4375”
- Cut-out Diameter: 5.625”
- Over-All Diameter: 6.5”
- Over-All Height: 2.625”

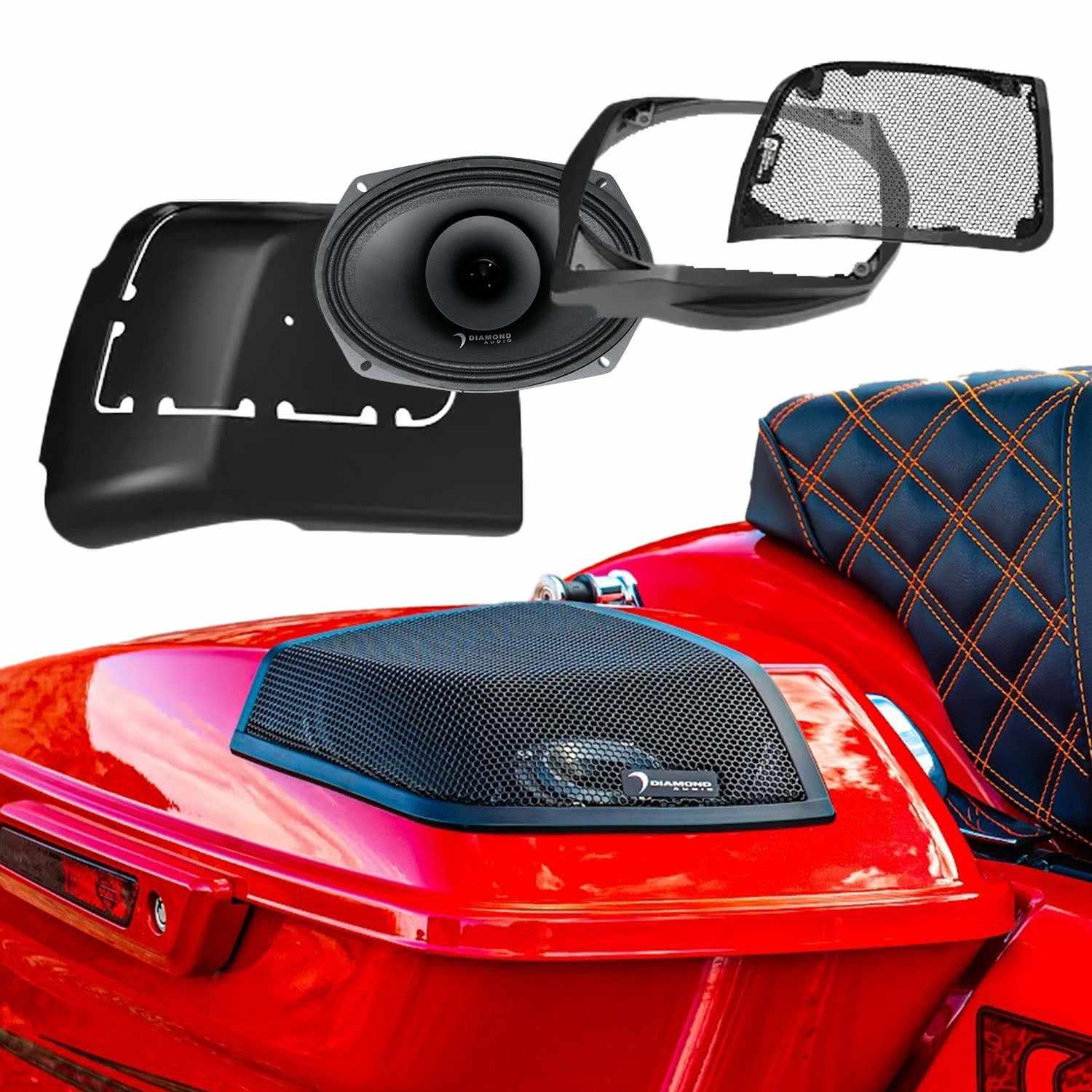

1x Diamond Audio MSMP694LK Motorsport H-D Cut In Speaker Lid Kit With Mp694 - (MSMP694LK)
MSMP694LK - 2014-2023 Harley Davidson® Cut In Lid Kit with MP694 (4Ω) Speaker
Unleash the Ultimate Sound Experience with Diamond Audio's MSM694LK
Elevate your ride with Diamond Audio's MSM694LK Cut-in Lid Kit, custom-engineered for 2014-2023 Harley Davidson motorcycles. This premier audio upgrade brings unparalleled clarity and power to your journey, ensuring every ride is an adventure in sound.
Key Features:
Seamless Integration:
Designed specifically for Harley Davidson® models from 2014-2023, the MSM694LK kit guarantees a perfect fit and a factory-finish appearance, blending effortlessly with your bike's aesthetic.
Superior Sound Quality:
At the heart of this kit are the MP694 Motorsports 6” x 9” Marine Grade Speakers. With their robust 4Ω impedance, these speakers deliver rich, immersive audio, transforming your motorcycle into a mobile concert hall.
Durability:
Crafted to withstand the elements, the marine-grade speakers are designed for optimal performance in all weather conditions, ensuring your audio system remains as rugged as your bike.
Complete Installation Kit:
The package includes everything you need for a hassle-free installation. The included rubber gasket ensures a secure and vibration-free fit, while the plug-n-play wire harness with LED wiring simplifies the process, allowing you to get back on the road with minimal downtime.
Enhanced Ride Experience:
Whether you're cruising down the highway or parked at a rally, the MSM694LK kit will provide the perfect soundtrack to your adventures, enhancing every moment with pristine audio quality.
Why Choose Diamond Audio's MSM694LK?
-
Precision Engineering: Each component is meticulously designed to offer superior performance and longevity.
-
Effortless Installation: The comprehensive kit and user-friendly design make upgrading your audio system a breeze.
-
Premium Sound: Experience music the way it was meant to be heard, with deep bass, clear mids, and crisp highs.
Transform your Harley Davidson into a sound powerhouse with Diamond Audio's MSM694LK Cut-in Lid Kit. Order now and ride the sound wave to a whole new level of audio excellence.
Specifications:
- Includes .5” 6” x 9” Spacer Ring
- Includes MP694 Motor Sports 6” x 9” Marine Grade Speaker. The cone is water-resistant.
- Includes Plug-n-Play Wire Harness W/ DLED Wiring
- 150W RMS/300W MAX Power Handling
- Ferrite Strontium High Temp Magnet structure
- Heavy Duty Die-cast Aluminum Basket
- 1.5" 4 Ohm - Single Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer
- 1.0" 8 Ohm - Single Layer High Temp Voice Coil for Tweeter
- Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
- Frequency Response: 80Hz -18Khz
- High Sensitivity 101dB 1W/1M
- 12dB Crossover
- Mounting Depth: 3.99" / 101.3mm
- Mounting Diameter: 8.86" x 5.98" / 225 x 152mm

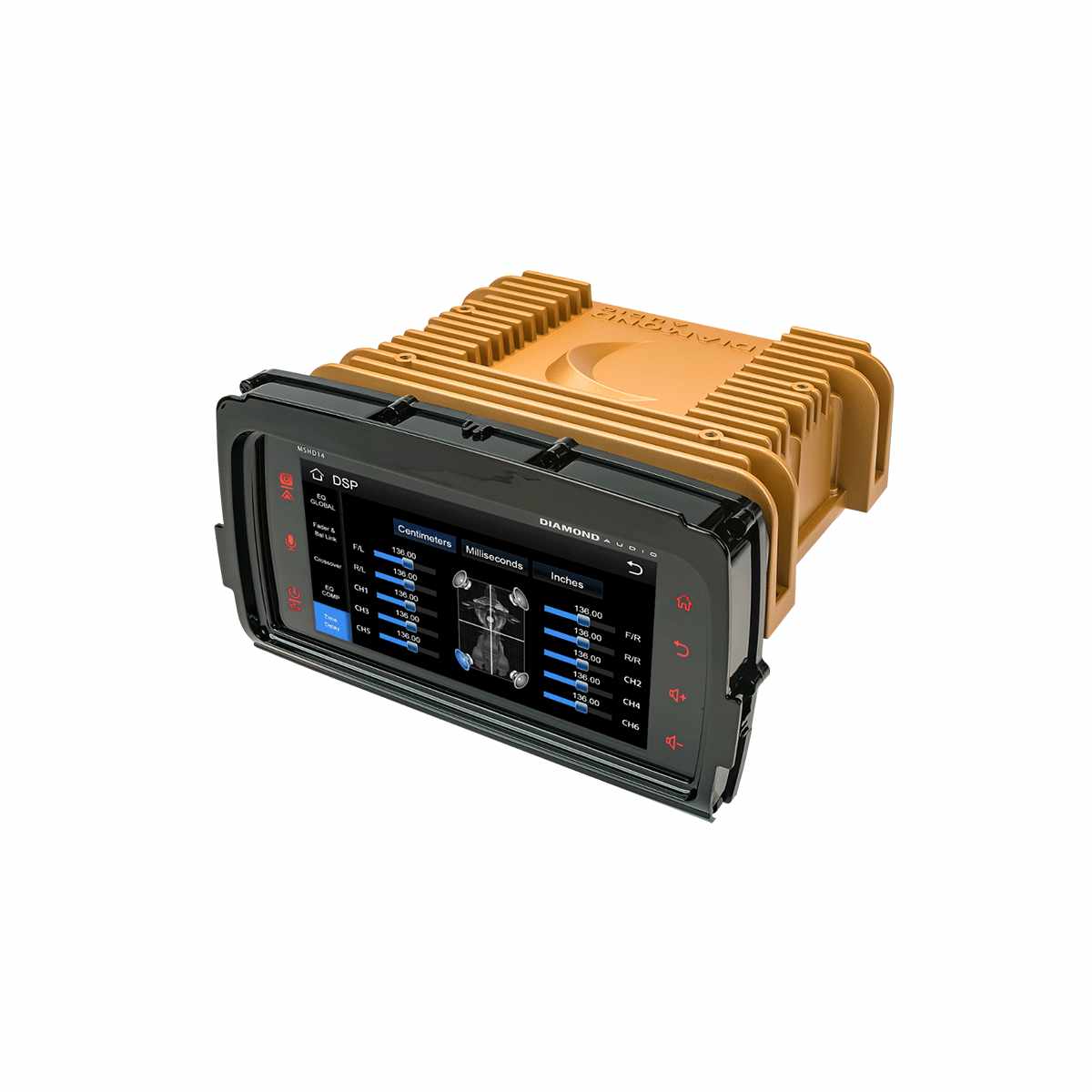

1x Diamond Audio MSHD14 - Plug N-Play Digital Media Receiver for 2014-2023 H-D - (MSHD14)
MSHD14 -Plug N-Play Digital Media Receiver for 2014+ Harley Davidson
Introducing the MSHD14 Plug N-Play Digital Media Receiver for 2014+ Harley Davidson motorcycles – the pinnacle of audio and media performance on the road. Proudly designed in the USA, this high-end Harley radio is engineered to redefine your riding experience with unmatched features and cutting-edge technology. Elevate your ride with the MSHD14 Plug N-Play Digital Media Receiver – where cutting-edge technology meets ultimate convenience and performance. Get ready to experience the very best Harley radio on the market today.
Superior Sound Performance
- 10 Channel - Clip-Free Independent Outputs: Experience the clearest audio with (6) 5V RMS RCA outputs and (4) 50x4@2Ω/25x4@4Ω RMS clip-free outputs.
- Wireless Apple CarPlay: Seamlessly integrate your iPhone with the wireless Apple CarPlay feature, providing you with effortless access to music, navigation, and more.
Advanced Display & Controls
- 7" Ultra-Bright, 1000 NIT LCD Touchscreen: This glove-friendly touchscreen is designed for visibility and ease of use, even under the brightest conditions.
- Internal Maestro RR2 CANBUS Interface: As the world's first of its kind, this interface ensures seamless integration with your Harley’s systems.
Customization & Convenience
- 6 Programmable Auxiliary Triggers: Control your lighting, kickstands, and accessories through the touchscreen, timers, triggers, or handlebar controls.
- Vehicle Data Screens: Monitor essential metrics like speed, oil pressure, voltage, and 0-60 time with user-selectable data screens.
- Retains Handlebar Controls: Reconfigurable through programming for personalized control.
Ultimate Sound Customization
- 6 Independent EQs: One global and five setup EQs allow for the ultimate sound customization, ensuring your audio is tuned to perfection.
- 10CH DSP Features: Includes time delay, HP/LP/BP crossovers with adjustable slopes, with independent channels that can be linked or separated from fader control.
Durability & Compatibility
- IPX6 Water Resistance: Comes with a weatherproof trim gasket, ensuring durability in all riding conditions.
- Media Player & Bluetooth 5.2: Supports a wide range of media formats, including MP3, AAC, WMA, and more, with Bluetooth streaming and hands-free calling.
- USB Media Input/Charger: Equipped with a 2.1A charger to keep your devices powered on the go.
- Backup Camera Input: Enhance your safety with a compatible backup camera input.
- Boom2 Compatible: Designed to work seamlessly with Boom2 systems.
Innovative Features
- Multiple Patented Technologies: Boasting numerous patented features and technologies, the MSHD14 sets a new standard in motorcycle audio systems.
ATTENTION- INTERNAL RR2 MODULE MUST BE PROGRAMMED ON A COMPUTER BEFORE STARTING INSTALL. RADIO WILL NOT POWER UP BEFORE IT IS PROGRAMMED.
SOFTWARE DOWNLOAD 3-20-2025
idata Internal RR2 Programing MSHD14
idata Internal RR2 MPO Programing MSHD14
MSHD14 Setup Android Auto & Apple CarPlay
MSHD14 Setup Bluetooth Line Driver
MSHD14 Setup Compensation EQ's
MSHD14 Setup Bluetooth Pairing
MSHD14 Setup for DSP Crossover
CMA Live Episode 25 In Depth MSHD14
Specifications:
- 10 CHANNEL - CLIP FREE INDEPENDENT OUTPUTS
(6) 5V RMS RCA OUTPUTS + (4) - 50X4@2Ω/25X4@4Ω RMS CLIPFREE
- WIRELESS APPLE CARPLAY
- 7" ULTRA BRIGHT, 1000 NIT LCD TOUCHSCREEN
- GLOVE-FRIENDLY TOUCHSCREEN
- INTERNAL MAESTRO RR2 CANBUS INTERFACE (WORLDS FIRST)
- 6 PROGRAMMABLE AUXILIARY TRIGGERS FOR CONTROLLING LIGHTING, KICKSTANDS AND ACCESSORIES VIA TOUCHSCREEN, TIMERS/TRIGGERS OR HANDLEBAR CONTROLS
- VEHICLE DATA SCREENS, SPEED/OIL PRESSURE/VOLTAGE/0-60 TIME AND MANY OTHERS (USER SELECTABLE)
- RETAINS HANDLEBAR CONTROLS, RECONFIGURABLE THOUGH PROGRAMMING
- 6 INDEPENDENT EQ'S FOR THE ULTIMATE SOUND CUSTOMIZATION (1 GLOBAL, 5 FOR SETUP)
- 10CH DSP FEATURES TIME DELAY, HP/LP/BP CROSSOVERS WITH ADJUSTABLE 6,12,18,24DB SLOPES INDEPENDENT CHANNELS CAN BE LINKED TOGETHER OR SEPERATED FROM FADER CONTROL (DEFAULT)
- IPX6 WATER RESISTANCE / WEATHERPROOF TRIM GASKET INCLUDED
- AM/FM/WEATHERBAND
- MEDIA PLAYER SUPPORTS MP3, AAC, WMA, APE, FLAC, WAV, MPEG4, H.263, H.264, H.265, XVVID, AVI, VP8, VP9
- BLUETOOTH 5.2 STREAMING / HANDS-FREE CALLING (MICROPHONE INCLUDED)
- USB MEDIA INPUT / CHARGER 2.1A
- BACKUP CAMERA INPUT
- BLUETOOTH LINE DRIVER FOR MAXIMUM OUTPUT
- BOOM2 COMPATABLE
- MULTIPLE PATENTED FEATURES AND TECHNOLOGIES
