Description
Included in this kit
This bundle includes 2x Diamond Audio DMD122SH Diamond Shallow 12" Dvc 2Ω 300W Rms / 600W Max Power Handling, and a Diamond Audio DMD500.1D Dmd 1-Ch 500W X 1 @ 2-Ohm, 340W X1 @ 4-Ohm W/Remote.
2x Diamond Audio DMD122SH Diamond Shallow 12" Dvc 2Ω 300W Rms / 600W Max Power Handling - (DMD122SH)

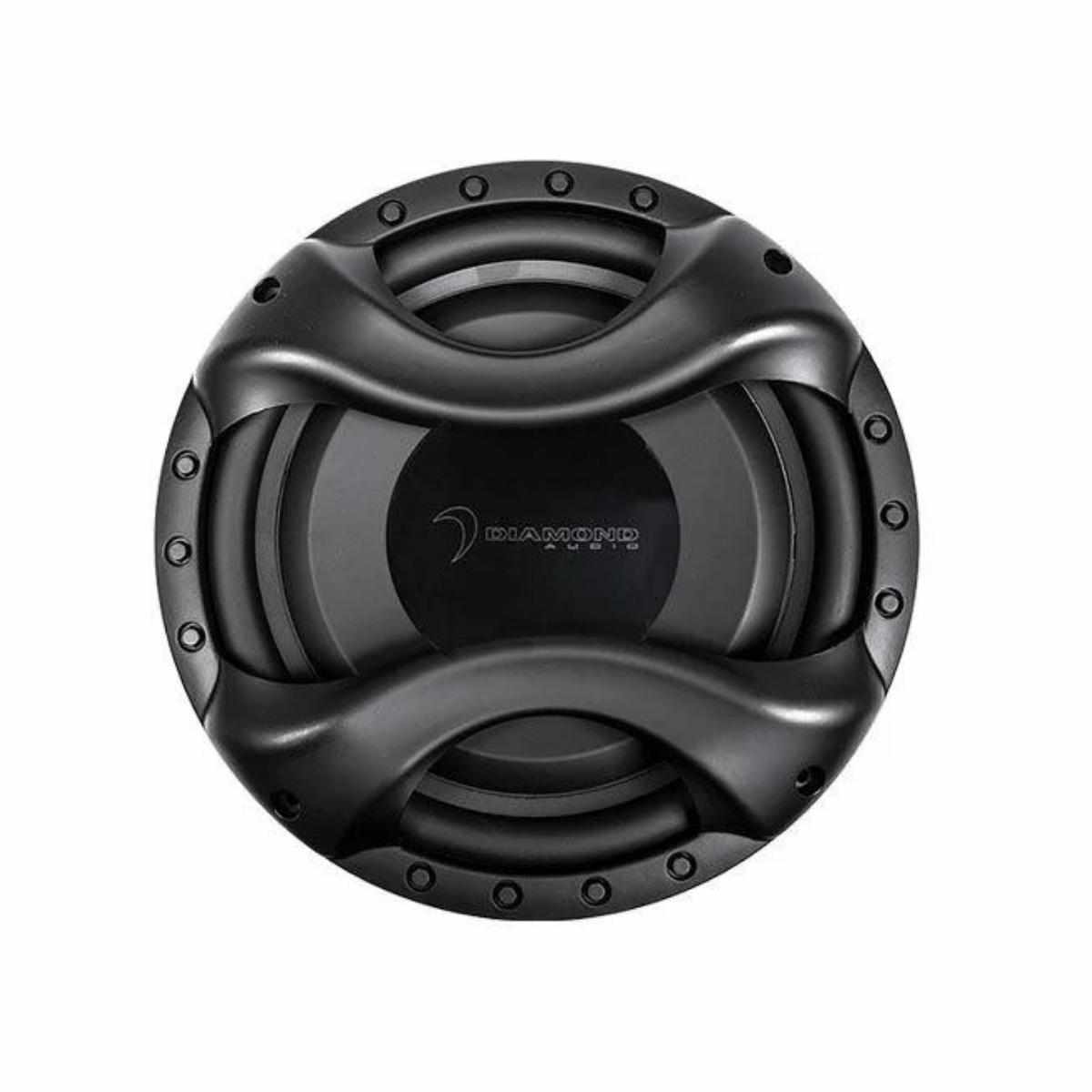

DMD122SH - DMD Series 12" Shallow Dual Voice Coil Subwoofer (2Ω)
Look no further if you are seeking a solution when challenged with space limitations for adding bass to your car audio system. The Diamond DMD shallow series subwoofers measure in with only 3 inches of depth and perform best in sealed enclosures performing just like a conventional full-size subwoofer but taking up less space. For optimum bass response, we recommend using two DMD shallow subwoofers in a narrow 1 cubic foot enclosure. Extremely shallow mounting depth of 3 inches.
Specifications:
- Power: 300W RMS/600W MAX
- SPL(dB): 87.5
- Re(Ω): 3.40
- Qms: 9.0
- Qes: 0.84
- Qts: 0.77
- Fs(Hz): 46.0
- Vas(L): 30.7
- Cms(mm/N): 0.074
- Mms(g): 161.0
- Sd(cm²): 0.0539
- BL(T*M): 13.7
- Xmax(mm): 7.9
1x Diamond Audio DMD500.1D Dmd 1-Ch 500W X 1 @ 2-Ohm, 340W X1 @ 4-Ohm W/Remote - (DMD500.1D)

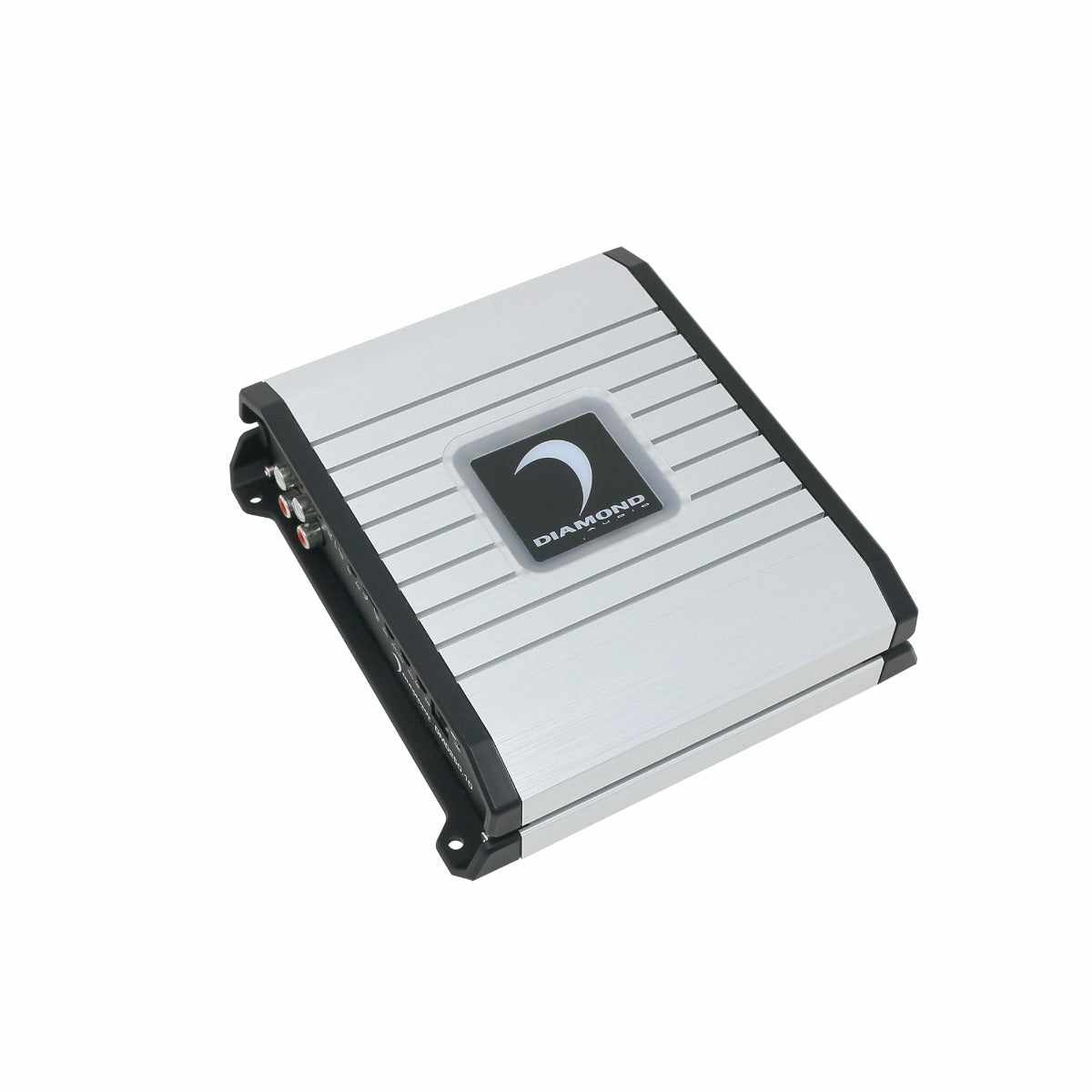

DMD500.1D - DMD 1-Channel Monoblock Digital Amplifier
Introducing the DMD Series Amplifiers from Diamond Audio – delivering best-in-class performance and unbeatable value! Designed with substantial power in a compact heat sink, the DMD Series is the perfect solution for any budget-friendly mobile audio system.
The DMD Series features five amplifier models to choose from: one 4-channel, three mono-channel, and one 6-channel amplifier. Powered by the latest IR chipset technology and utilizing innovative SMD technology and circuit design on 4-layer FR4 PC boards, these amplifiers offer advanced performance in a small footprint.
Enjoy noise-free operation with balanced differential inputs, and take advantage of features like a subsonic filter, bass boost, and an LED-lit logo indicating power/protection status. With audio precision quality control verification, the DMD Series ensures high performance and reliability that competitors can't match.
Upgrade to the DMD Series Amplifiers from Diamond Audio and experience the perfect blend of power, technology, and value. Transform your mobile audio system with these exceptional amplifiers and hear the difference today!
Specifications:
- 500W RMS @ 2Ω
- 340W RMS @ 4Ω
