Description
Included in this kit
This bundle includes a Diamond Audio DMDX65 - DMDX Series 6.5" 2-way Concentric Coaxial Speakers, 2x Stinger RKFR6 Roadkill Fast Rings 6" & 6.5", and a Diamond Audio DMDX65C - DMDX Series 6.5" 2-way Component Speakers.
1x Diamond Audio DMDX65 - DMDX Series 6.5" 2-way Concentric Coaxial Speakers - (DMDX65)
Diamond Audio DMDX 6.5" Concentric Coaxial Speakers
The Diamond Audio DMDX 6.5" Concentric Coaxial Speakers are designed to deliver high-fidelity sound in a compact, installation-friendly format. Engineered for drivers seeking an upgrade over factory audio, the DMDX series balances clean power handling, smooth frequency response, and efficient output in a 6.5-inch platform.
Featuring a concentric coaxial design, these speakers provide detailed high frequencies, articulate midrange, and controlled low-frequency response—making them an ideal solution for OEM replacement or entry-level aftermarket systems.
Performance Highlights
Power Handling
Rated at 45 watts RMS with 135 watts maximum power handling for reliable everyday performance.
Full-Range Response
60Hz–20kHz frequency range supports balanced reproduction across lows, mids, and highs.
Efficient Sensitivity
87dB sensitivity (1W/1M) allows strong output with factory head units or external amplification.
4-Ohm Design
Nominal 4-ohm impedance ensures compatibility with standard automotive audio systems.
Installation & Fitment
Built in a 6.5-inch (165mm) format, the DMDX is well-suited for factory speaker replacement in compatible vehicles. Its shallow mounting depth supports installation in tighter door or rear deck locations.
Mounting Depth
1.77" (45mm)
Cut-Out Diameter
4.84" (123mm)
Overall Diameter
6.26" (159mm)
Overall Height
2.13" (54.1mm)
Specifications
| Nominal Diameter | 6.5" (165mm) |
| Power Handling (RMS) | 45 Watts |
| Power Handling (Max) | 135 Watts |
| Frequency Response | 60Hz – 20kHz |
| Sensitivity (1W/1M) | 87dB |
| Nominal Impedance | 4 Ohms |
| Free-Air Resonance (Fs) | 70Hz |
| Mounting Depth | 1.77" (45mm) |
| Cut-Out Diameter | 4.84" (123mm) |
| Overall Diameter | 6.26" (159mm) |
| Overall Height | 2.13" (54.1mm) |
2x Stinger RKFR6 Roadkill Fast Rings 6" & 6.5" - (RKFR6)
Our 3-piece foam ring speaker enhancement system solves the problem of acoustically coupling aftermarket speakers to factory speaker openings. The RoadKill Fast Rings kit increases speaker output, improves the projection of the audio into the car cabin and reduces unwanted rear reflections that can degrade the sound.
3-piece Foam Ring System fits 6" & 6.5" Speakers
Features:
Reduce panel vibration
Increase mid-bass response
Enhanced audio output efficiency
Minimize destructive wave interference
Help prevent front and rear wave cancellation
Easy installation with peel & stick application
Maximize performance for speaker installations
Sold in pairs
3 Ring DNA
Gasket for speaker mounting to the baffle plate surface
Middle ring to mount around the outer edge of the speaker
Circular foam pad goes behind the speaker to absorb unwanted reflections on hard surfaces, such as inside a car door
1x Diamond Audio DMDX65C - DMDX Series 6.5" 2-way Component Speakers - (DMDX65C)

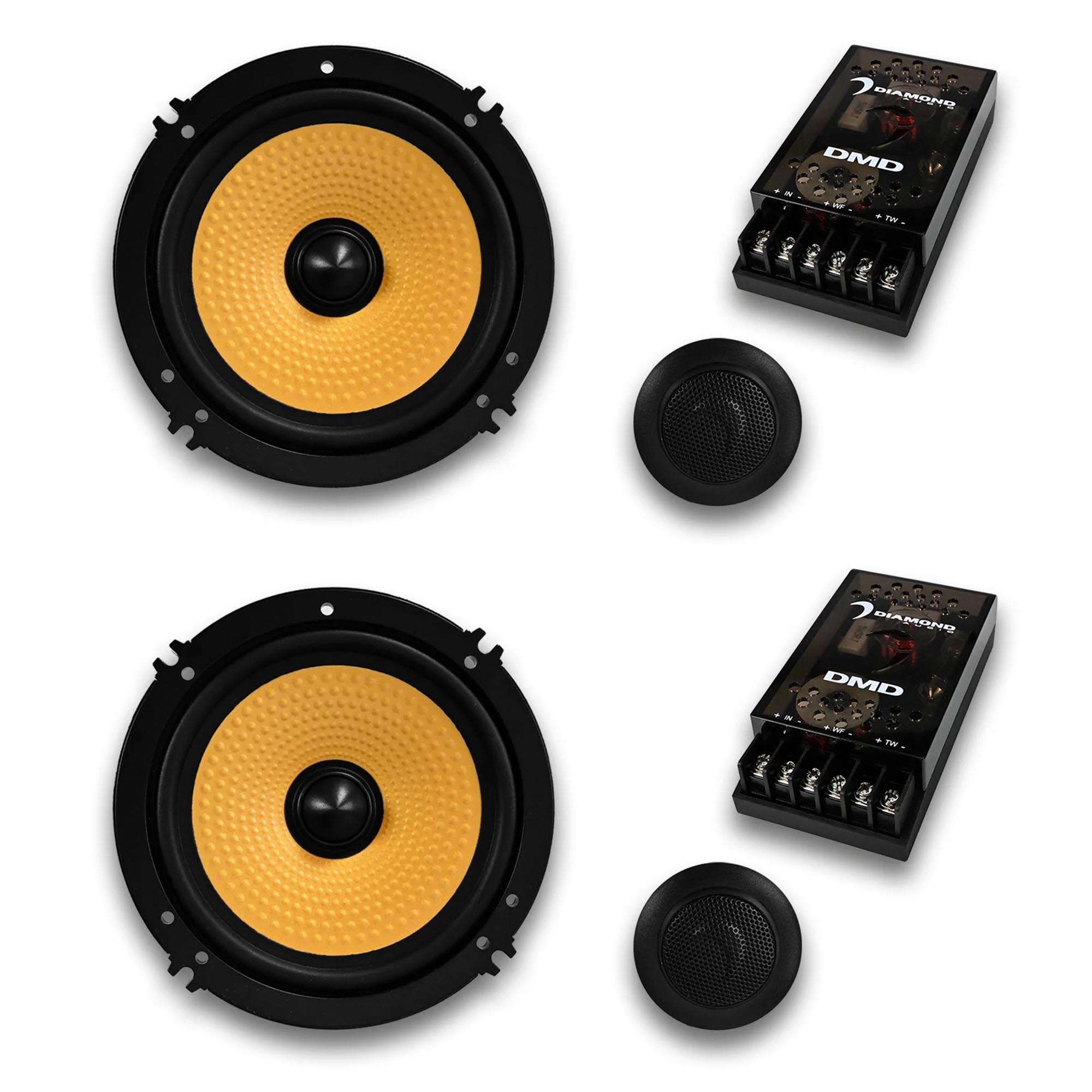

Diamond Audio DMDX 6.5" Component Speaker System
The Diamond Audio DMDX 6.5" Component Speakers are engineered for drivers seeking accurate, high-fidelity sound in an affordable upgrade platform. Featuring a dedicated woofer and separate tweeter configuration, this component system is designed to deliver improved staging, clarity, and tonal balance over factory-installed speakers.
Built for everyday reliability and tuned for balanced performance, the DMDX component set offers clean power handling, efficient sensitivity, and full-range response in a compact 6.5-inch format.
Component System Design
Dedicated Woofer & Tweeter
Separate drivers are designed to improve soundstage width and overall clarity compared to coaxial configurations.
Balanced Full-Range Output
60Hz–20kHz frequency response supports detailed highs, articulate midrange, and controlled low-frequency reproduction.
Efficient Performance
87dB sensitivity (1W/1M) allows strong output with factory head units or external amplification.
4-Ohm Compatibility
Nominal 4-ohm impedance ensures seamless integration with most automotive audio systems.
Installation & Fitment
The 6.5-inch (165mm) woofer is designed for factory replacement applications in compatible vehicles. A shallow 1.77" (45mm) mounting depth supports installation in tighter door locations.
Mounting Depth
1.77" (45mm)
Cut-Out Diameter
4.84" (123mm)
Overall Diameter
6.26" (159mm)
Overall Height
2.13" (54.1mm)
Specifications
| Speaker Type | 6.5" Component System |
| Nominal Diameter | 6.5" (165mm) |
| Power Handling (RMS) | 45 Watts |
| Power Handling (Max) | 135 Watts |
| Frequency Response | 60Hz – 20kHz |
| Sensitivity (1W/1M) | 87dB |
| Nominal Impedance | 4 Ohms |
| Free-Air Resonance (Fs) | 70Hz |
| Mounting Depth | 1.77" (45mm) |
| Cut-Out Diameter | 4.84" (123mm) |
| Overall Diameter | 6.26" (159mm) |
| Overall Height | 2.13" (54.1mm) |
