Description
Included in this kit
This bundle includes a Hertz Venezia V4 - 4-Channel Marine Amplifier 290 W x 4 @ 2-Ohm, and 2x Hertz HTX 8H S-FL-SW-MARINE TOWER HORN 8''FLAT Silver-White Sports Grille, Sold Individually.

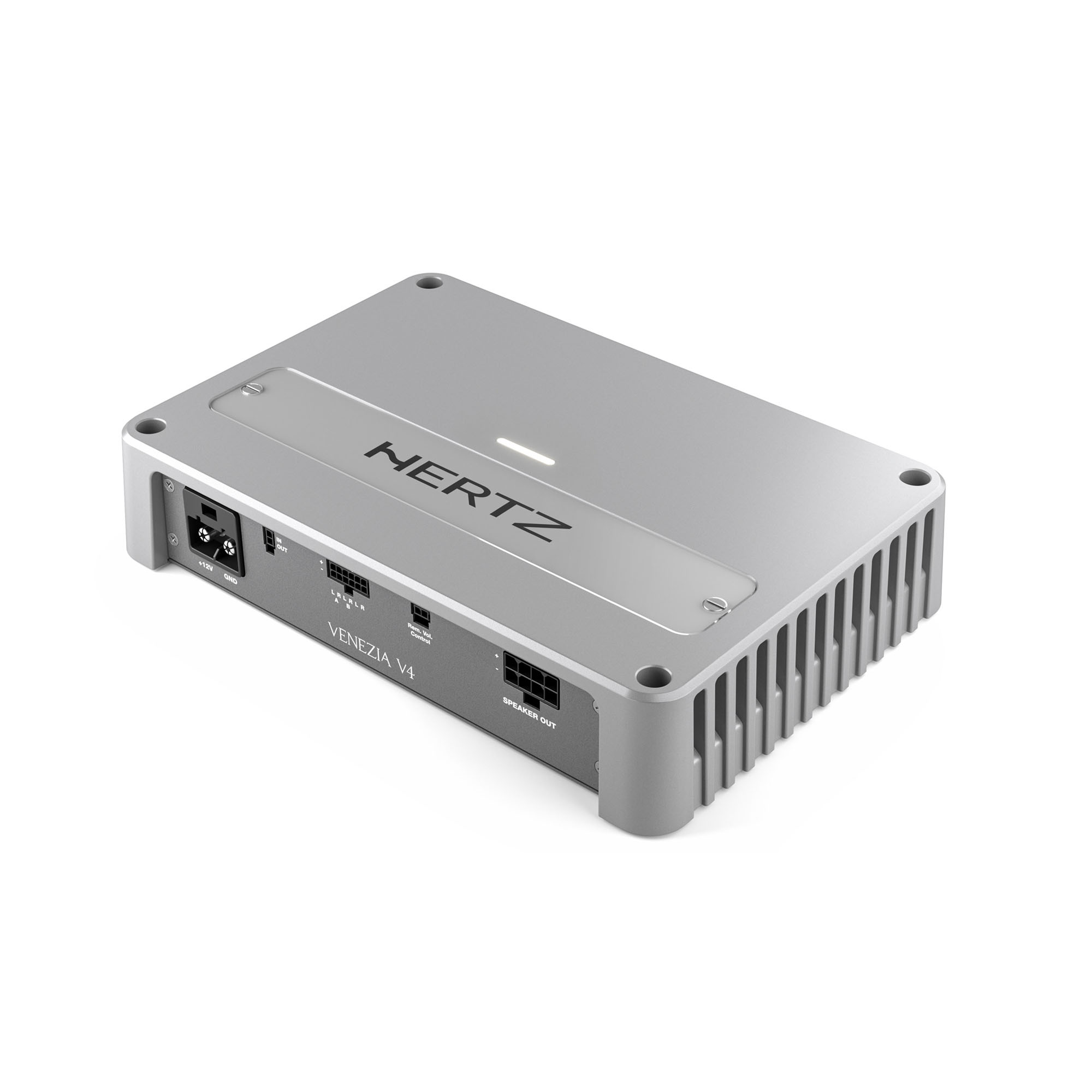

1x Hertz Venezia V4 - 4-Channel Marine Amplifier 290 W x 4 @ 2-Ohm - (Venezia-V4)
Venezia V4 is the most-powerful four-channel Hertz marine amplifier ever, featuring 160 W x 4 (4Ω) and 580 W x 2 (4Ω)! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability deliver the output levels needed in the marine environment. Venezia V4 is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V4 is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.
POWER SUPPLY -
• Power supply voltage: 9 ÷ 16 VDC
• ldling current (power ON/OFF): 1.6A / 0.04 mA
• Consumption@ 1Ω, 14.4 VDC (Max Musical Power): 48 A
• Remote In: 7 ÷ 15 VDC - 1 mA
AMPLIFIER STAGE -
• Distorsion - THD (100Hz @ 4Ω): <0,06%
• Bandwidth: 10 ÷ 42 kHz
• S/N Ratlo (A welghted @ 1 V): 102 dBA
• Damping factor (100Hz @ 4Ω) 130
• Pre-ln sensitivity: 0.2 ÷ 5 VRMS
• Pre-ln impedance: 10kΩ
• Adjustable Crossovers: yes
OUTPUT POWER -
• 4Ch: 160 W x 4 (4Ω)
• 4Ch: 290 W x 4 (2Ω)
• 3Ch: 160 W x 2 (4Ω) + 580 W x 1 (4Ω)
• 3Ch: 290 W x 2 (2Ω) + 580 W x 1 (4Ω)
• 2Ch: 580 W x 2 (4Ω)
• Total Power RMS: 1160 W
2x Hertz HTX 8H S-FL-SW-MARINE TOWER HORN 8''FLAT Silver-White Sports Grille, Sold Individually - (HTX-8H-S-FL-SW)
Introducing the revolutionary Hertz Marine Common Motor Compression Driver Tower Speakers, a groundbreaking addition to the world of marine audio technology. Engineered to perfection and built with uncompromising precision, these speakers redefine the concept of high-performance marine audio systems, delivering an unparalleled listening experience for boating enthusiasts and water sports aficionados. At the heart of these extraordinary tower speakers lies their cutting-edge common motor compression driver technology. The precisely engineered waveguide optimizes the dispersion of sound waves, enabling enhanced sound projection and increased efficiency.
RGB Multicolor -
RGB led lighting for a never-ending color wheel adding a whole new level of personalization and swagger to your set up.
Salt Fog Tested -
To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure complete resistance to corrosion, typical of this atmospheric agent.
UV Resistant -
According to the severe ASTM-D4329 standards for UV resistance, all the materials used for Hertz Marine Towers are designed to face long-term time exposition to UV radiations while cruising on the open sea.
Specifications -
• Component: LED FLAT COMMON MOTOR TOWER
• Size mm (in.): 200 (8)
• Power Handling - Continuous W: 200
• Power Handling - Peak W: 400
• Impedance Ohm: 4
• Depth mm (in.): 288 (11.34)
• Woofer Voice Coil Ø mm (in.): 51 (2)
• Frequency Response Hz: 45 ÷ 25k
• Woofer Magnet size D x d x h mm (in.): 140 x 62 x 22 (5.5 x 2.4 x 0.87)
• Weight of one speaker kg (lb.): 5.7 (12.6)
• Woofer Magnet: High density flux ferrite common motor
• Tweeter Magnet: High density flux ferrite common motor
• Cone: Pressed paper water repellent
• Dome: Polyamide
• Xmech mm (in.): 8.3 (0.32)
