Description
Included in this kit
This bundle includes 4x Hertz HMX 6.5 S-LD-SW - 6.5" 4-Ohm Coaxial Marine Speakers with RGB LEDs, White Sport Grilles, Pair, and a Hertz HMD8 DSP - 8 Channel Marine Amplifier with DSP - 85 WRMS X 8 at 4-Ohm.
4x Hertz HMX 6.5 S-LD-SW - 6.5" 4-Ohm Coaxial Marine Speakers with RGB LEDs, White Sport Grilles, Pair - (HMX-65-S-LD-SW)
The HMX 6.5 S LD hi-performance powersport coaxial speakers with RGB LEDs lighting option is optimized to perform in infinite baffle, with a solid bass and an outstanding output. The HMX tweeters feature an acoustic lens optimized for best off-axis dispersion and maximized SPL. The attractive stainless steel tweeter mesh grille provides perfect high-frequency transfer and a rock-solid protection. The RGB LED lighting circuit is integrated below the tweeter, protected by a Polypropylene transparent cover acting as light diffusion. The UV-resistant polypropylene cone co-molded with Santoprene rubber surround together with the basket and grille injected with a Hi-temperature and UV resistant polymer neutralize water, dust and mud. The aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The high-excursion mobile equipment is driven by a massive magnetic group, to deliver high undistorted sound pressure.
Specifications -
• Component: POWERSPORTS COAX RGB LED
• Size mm (in.): 165 (6.5)
• Power Handling - Continuous W: 75
• Power Handling - Peak W: 150
• Impedance Ohm: 4
• Depth mm (in.): 95,6 (3.76)
• Tweeter diaphragm mm (in.): 36 (1.4)
• Woofer Voice Coil Ø mm (in.): 25 (1)
• Tweeter Voice Coil Ø mm (in.): 20 (0.8)
• Frequency Response Hz 50 ÷ 25k
• Woofer Magnet size D x d x h mm (in.): 78,5 x 32 x 17 (3.09 x 1.26 x 0.67)
• Tweeter Magnet size D x h mm (in.): 19,7 x 3 (0.78 x 0.12)
• Weight of one speaker kg (lb.): 1 (2.2)
• Woofer Magnet: High density flux ferrite
• Tweeter Magnet: Neodymium
• Cone: Polypropylene with UV inhibitors
• Dome: PEI
• Xmech mm (in.): ±6,65 (0.26)
Electro-Acoustic Specifications -
• D mm 125 Xmax mm 3,65
• Re Ohm: 3,5
• Fs Hz: 65
• Le mH: 0,53
• Vas I: 8,8
• Mms g: 14
• Cms mm/N: 0,4
• BL T*m: 5,2
• Qts: 0,7
• Qes: 0,75
• Qms: 11,5
• Spl dB: 89

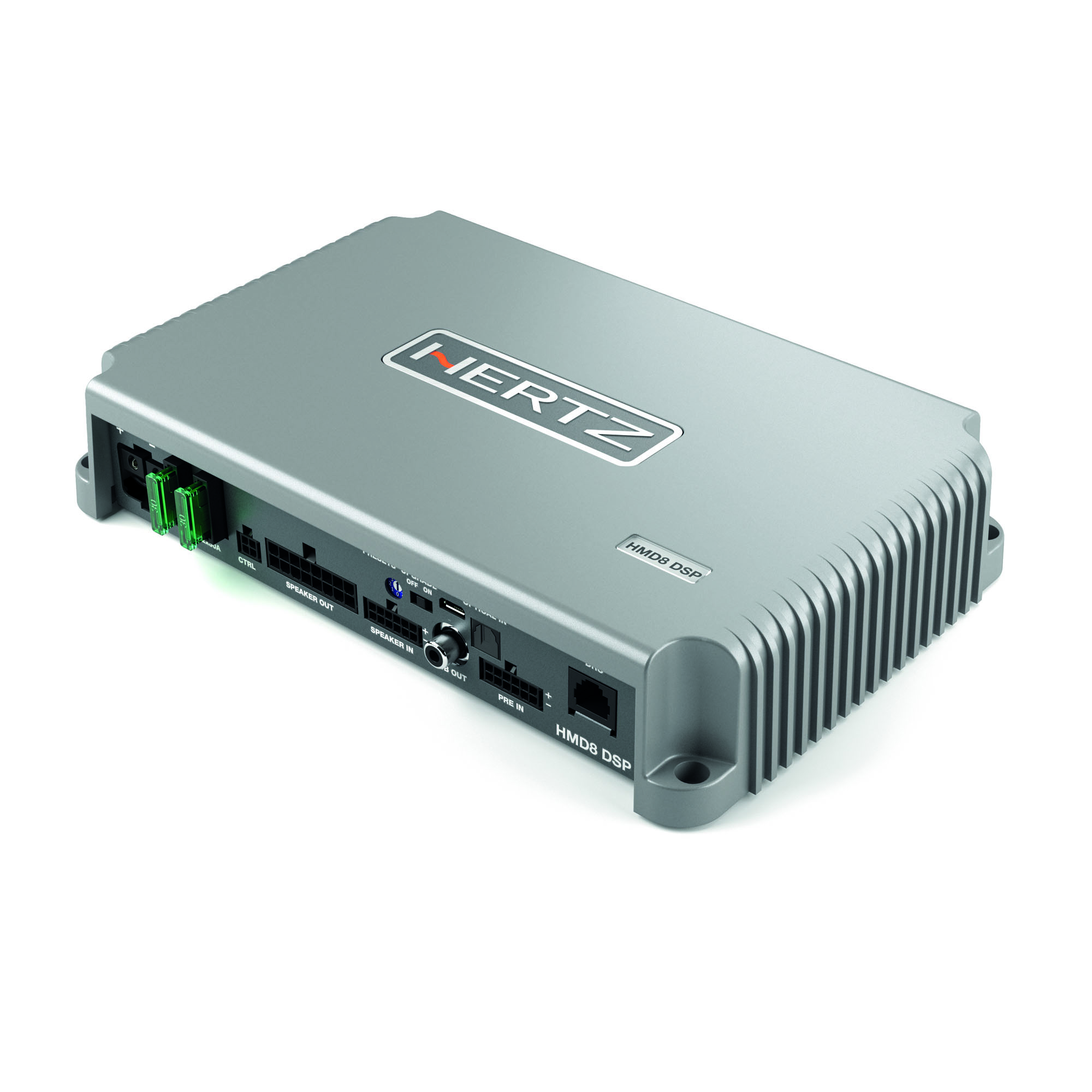

1x Hertz HMD8 DSP - 8 Channel Marine Amplifier with DSP - 85 WRMS X 8 at 4-Ohm - (HMD8-DSP)
The HMD8 DSP, powered by Hertz Marine DSP technology, rich new highs of listening pleasure during navigation. DSP user friendly PC-Software interface make the setup process a breeze, exploiting every single pills of performance from the installed speaker system. The amazing power of 8 * 85 W or 4 * 260 W (RMS@ 4Ω) gives the HMD 8DSP the capability to drive with authority the complete speaker system generating tons of crystal clear SPL up to 3 different zone of the vessel. “Power for the Waves” design philosophy features a sturdy enclosure made of extruded aluminum with an anti-corrosion treated PCB to ensure years of listening pleasure in open water.
Specifications -
• Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power: 0.06 %
• Damping factor @ 1 kHz, 4Ω, 2 VRMS: > 110
• Bandwidth @ -1.5 dB: 10Hz ÷ 22 kHz
• S/N ratio (A weighted @ 1 V Input) Master Input: 100 dBA
• S/N ratio (A weighted @ 1 V Input) Optical Input: 105 dBA
• Input sensitivity Pre-In: 0.6 ÷ 6 VRMS
• Input sensitivity Speaker-In: 2.2 ÷ 22 VRMS
Inputs/Outputs -
• Pre-In Inputs: Ch1 ÷ Ch6 customizable
• Speaker-In Inputs: Ch1 ÷ Ch6 customizable
• Digital IN: 1 x Optical S/PDIF; Max 192 kHz / 24 bit
• Sub Out (RCA Pre Out): 4 VRMS Max
Digital Signal Processor -
• Crossover frequency: 20 ÷ 20k Hz
• Phase control: 0° / 180°
• Time Alignment Distance: 0 ÷ 510 cm / 0 ÷ 200.8 inches
• Time Alignment Delay: 0 ÷ 15 ms
• Time Alignment Step: 1 cm
• Time Alignment Fine SET: 1 sample
