Description
Included in this kit
This bundle includes a Hertz SPL Show Series SV-1651 6.5" 4-Ohm SPL Midrange Speaker Drivers (Pair), and a Hertz SPL Show Series SV-200L 8 in. (200mm) SPL 4-Ohm Woofers (Pair).
1x Hertz SPL Show Series SV-1651 6.5" 4-Ohm SPL Midrange Speaker Drivers (Pair) - (SV-1651)

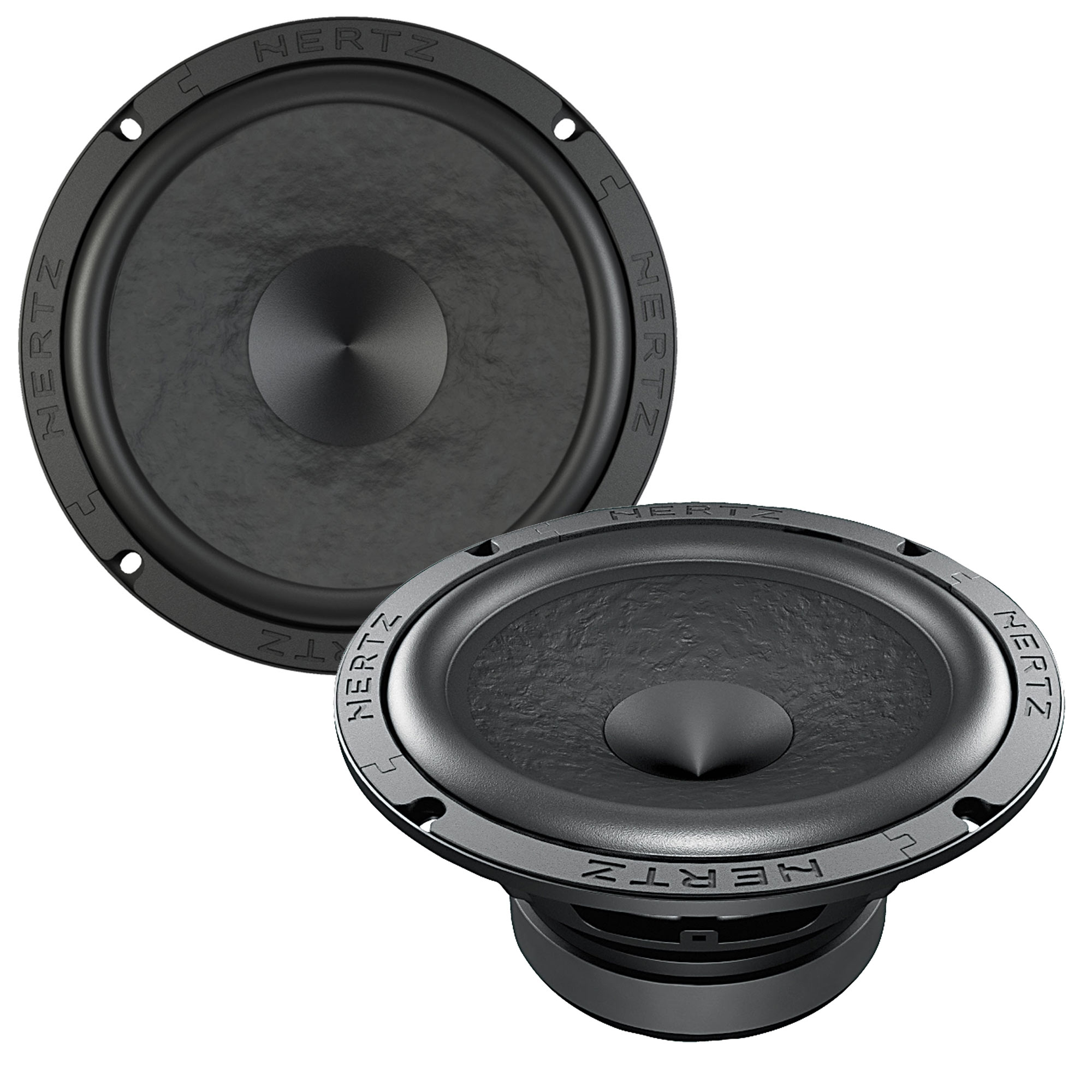

The SV 165.1 car audio midrange can be employed to build systems with tremendous impact. Like the SX subwoofers, the SV 165.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.
Features -
• High magnetic permeability plates provide constant, even flux.
• High density flux ferrite magnet, for top SPL performance.
• Double layer copper voice coil, wound on KSV former; for excellent thermal and mechanical capability.
• High current, tin-plated terminals.
• Damped fabric surround; for maximum lightness and extreme SPL.
• Water-repellent, pressed paper cone.
Specifications -
• Size mm (in.): 165 (6.5)
• Power Handling - Peak W: 400
• Impedance Ω: 4
• Frequency response Hz: 100 ÷ 10k
• Sensitivity dB SPL: 97
• Voice coil Ø mm (in.): 38 (1.5)
• Magnet: High density flux ferrite
• Cone/Dome: Ultra light pressed paper
1x Hertz SPL Show Series SV-200L 8 in. (200mm) SPL 4-Ohm Woofers (Pair) - (SV-200L)
The Hertz SV 200L car audio woofers was designed to offer superior performance in terms of both thermal and mechanical capability. The target has been fully hit since the woofer features a pure copper voice coil wound on KSV former, an oversized magnet and a vented bottom plate. The SV 200L employs the proprietary V-cone technology with the cone constructed from pulp with cotton fibre as well as Lossless Polymer Rubber Surround, offering a powerful low frequency response as well as the best off-axis dispersion.
Features -
• High magnetic permeability plates provide constant, even flux.
• High density flux ferrite magnet, for top SPL performance.
• Double layer copper voice coil, wound on KSV former; for excellent thermal and mechanical capability.
• Vented bottom plate; improves linearity and thermal dissipation.
• High current, tin-plated terminals.
• Pulp cone mixed with cotton fibre; for powerful low frequency response.
• V-cone®; for the best off-axis dispersion and mid frequency detail.
• Lossless polymer rubber surround; for long throw and maximum damping.
Specifications -
• Size mm (in.): 200 (8)
• Power Handling - Peak W: 500
• Power Handling - Continuous W: 250
• Impedance Ω: 4
• Frequency response Hz: 45 ÷ 4,5k
• Sensitivity dB SPL: 94,5
• Voice coil Ø mm (in.): 50 (2)
• Magnet: High density flux ferrite
• Cone/Dome: Ultra light, non pressed paper
