Description
Included in this kit
This bundle includes a Hertz SPL Show Series SV-1651 6.5" 4-Ohm SPL Midrange Speaker Drivers (Pair), and a Hertz SPL Show Series SV-2001 8 in. (200mm) SPL 4-Ohm Midrange Speakers (Pair).
1x Hertz SPL Show Series SV-1651 6.5" 4-Ohm SPL Midrange Speaker Drivers (Pair) - (SV-1651)
The SV 165.1 car audio midrange can be employed to build systems with tremendous impact. Like the SX subwoofers, the SV 165.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.
Features -
• High magnetic permeability plates provide constant, even flux.
• High density flux ferrite magnet, for top SPL performance.
• Double layer copper voice coil, wound on KSV former; for excellent thermal and mechanical capability.
• High current, tin-plated terminals.
• Damped fabric surround; for maximum lightness and extreme SPL.
• Water-repellent, pressed paper cone.
Specifications -
• Size mm (in.): 165 (6.5)
• Power Handling - Peak W: 400
• Impedance Ω: 4
• Frequency response Hz: 100 ÷ 10k
• Sensitivity dB SPL: 97
• Voice coil Ø mm (in.): 38 (1.5)
• Magnet: High density flux ferrite
• Cone/Dome: Ultra light pressed paper

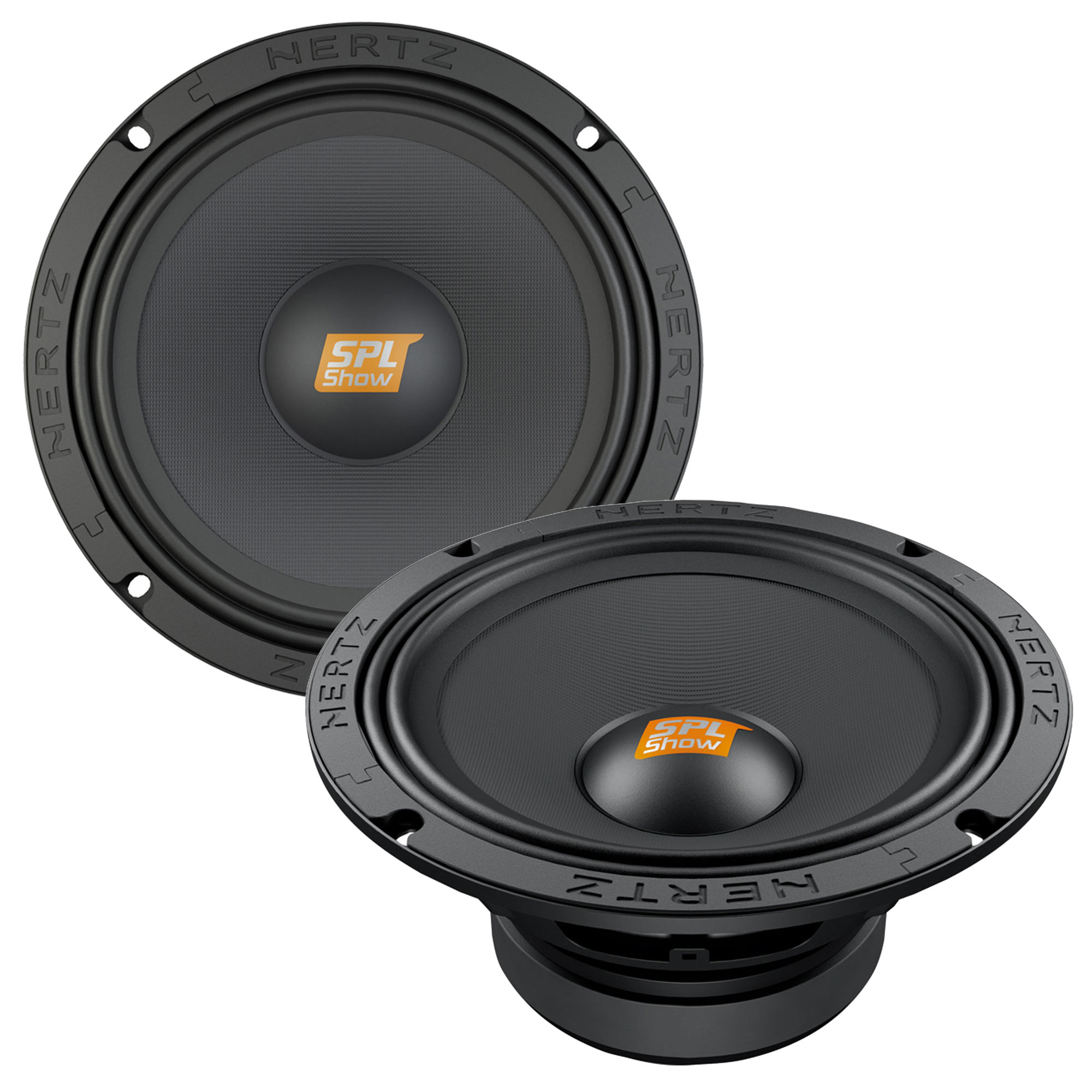

1x Hertz SPL Show Series SV-2001 8 in. (200mm) SPL 4-Ohm Midrange Speakers (Pair) - (SV-2001)
The SV 200.1 car audio midrange is the 200 mm (8 in.) midrange designed for SPL competitions. Like the SX subwoofers, the SV 200.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.
Features -
• High magnetic permeability plates provide constant, even flux.
• High density flux ferrite magnet, for top SPL performance.
• Double layer copper voice coil, wound on KSV former; for excellent thermal and mechanical capability.
• High current, tin-plated terminals.
• Damped fabric surround; for maximum lightness and extreme SPL.
• Water-repellent, pressed paper cone.
Specifications -
• Size mm (in.): 200 (8)
• Power Handling - Peak W: 500
• Impedance Ω: 4
• Frequency response Hz: 100 ÷ 9k
• Sensitivity dB SPL: 100
• Voice coil Ø mm (in.): 38 (1.5)
• Magnet: High density flux ferrite
• Cone/Dome: Ultra light pressed paper
