Hertz SPL Stage 4 System with SP-4.900 4 Ch Amplifier plus SX165 Neo Fairing Coax & SV-165 Neo Midrange Tour-Pak Speakers, SX690 H 6x9 and HD24H Lid Cut Kit with Plug-n-Play Integration and Amp Kit into a 24+ H.D. Skyline system

Included in this kit

---

This bundle includes a Nav-TV NTV-KIT1021 ZEN-H | Harley-Davidson A2B Audio Interface, 2x Memphis Audio ETP-3 3-Foot 2 -Channel Audio Interconnect Cables, a HDPG8K - 8 Gauge Power/Ground Kit, a Hertz SPL Show SP 4.900 D-Class 4 Channel Amplifier 250 WRMS x 4 at 2Ω (IP55 rated), a Hertz SPL Show Series SX-165-NEO 6.5" Two-Way SPL Coaxial Speakers with Neo Magnets and UV/Waterproofing, a Hertz SPL Show Series SV-165-NEO 6.5" 4-Ohm SPL Midrange Speaker Drivers (Pair) with Neo Magnets and UV/Waterproofing, a Hertz SX 690 H 6X9" Drop-in 3-Way Speakers Designed Specifically for 2024 HD Bag Lids, and a Hertz HD24H 2024 and Lid Kit with Speaker Harness (No Speakers).

1x Nav-TV NTV-KIT1021 ZEN-H | Harley-Davidson A2B Audio Interface - (NTV-KIT1021)

NAV-TV’s ZEN-H processor seamlessly allows aftermarket amplifiers to be added to the factory Harley-Davidson headunit via its low level (8 channel) analog RCAs @5V RMS. This plug & play kit integrates with various OEM data networks to retain chimes, volume control, fader/balance, and EQ Presets (for true OEM integration).

Tech Specs:
- 24 Bit 48khz Output
- 8 x 5v RMS RCA outputs
- 113db SNR
- Burr Brown DAC
- 7 - 20v input voltage range
- <250mA idle current draw

Model
2024-2025 Harley Davidson/CVO
2024-2025 Harley Davidson/Road Glide
2024-2025 Harley Davidson/Street Glide

ZEN-H Technical Specifications
Hardware & Software
Current HW version: --1r1--
Current SW version: ZEN-H-1.2.8.ntv
Compatible SW (update) OS: Windows, macOS

INPUT
Digital Input A2B

OUTPUT
Digital Outputs: None
Digital Outputs supported: 24bit/48kHz
Frequency Response (digital): 18Hz – 24kHz
Analog Outputs: 8 channels (RCA)
Output Voltage Peak: 13.8v
Output Voltage RMS: 5v
Analog Output Type: Single-Ended
S/N Ratio (analog): 113dB
Frequency Response (analog): 18Hz – 24kHz
THD+N @ -1dBFS -94dB
DAC 192kHz 24bit
DSP 32bit Fixed Point

Power Supply
Current Consumption Stand-by <1 mA
Current Consumption Operational 250 mA MAX
Operational Voltage 7V – 20V DC
Amp Turn-On Output Automatic
Amp Turn-On Voltage V-batt
Amp Turn-On Current Limitation 500mA

Other
Dimensions: 4”x4”x1 1/2”
Weight: 5 oz'

2x Memphis Audio ETP-3 3-Foot 2 -Channel Audio Interconnect Cables - (ETP-3)

ETP RCA connections provide a sound connection for all of your audio equipment. These connectors feature molded color matched ends, flexible PVC jacket and twisted pair wires for noise rejection. Your system performance relies heavily on the connections you use. Don’t sacrifice your vehicles audio quality, use only the best connection available from Memphis Audio.

Molded color matched ends
Clear flexible PVC jacket
Twisted pair design for excellent noise rejection
End 1: 2 Male RCA
End 2: 2 Male RCA
CHANNELS: 2
LENGTH: 3ft

1x HDPG8K - 8 Gauge Power/Ground Kit - (HDPG8K)

HD 8 Gauge Power Harness Kit

1x Hertz SPL Show SP 4.900 D-Class 4 Channel Amplifier 250 WRMS x 4 at 2Ω (IP55 rated) - (SP-4.900)

Features -
• Up to 85% efficiency thanks to ADC (Advanced D-Class) output stage
• USS (Universal Speakers Simulators) allows SP 4.900 to work with head units
featuring the “speaker load detection” circuit
• 160 x 4 (4Ω) with ultra-compact size (211,6 x 130 mm)
• IP55 aluminum chassis for maximum protection against humidity and external agents
• No cooling fan to prevent internal accumulation of dirt
• Sealed power cord, line inputs, and speaker outputs to prevent oxidation
• Crossovers filters and controls on a single side to facilitate calibration when the product is installed

General Specifications -
• Channels: 4 - 3 - 2
• Nominal power supply voltage: 11 ÷ 15 VDC
• Pulse Operating voltage: 6 ÷ 16 VDC
• Idling current: 1.1 A
• Idling current when off: 0.03 mA
• Consumption @ 14.4 VDC, MIN load impedance (Max Musical Power): 50 A
• Remote IN: 6 ÷ 15 VDC (9 mA)
• DC-REM - Remote Turn on by SPK DC from OUTPUT BTL speakers: 3.5 ÷ 7 VDC
• Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power: 0.02%
• Damping factor @ 1 kHz, 4Ω, 2 VRMS: 200
• Bandwidth @ -3 dB: 10 Hz ÷35 kHz
• S/N ratio (A weighted @ 1 V Input): 105 dBA
• Pre-In sensitivity: 0.6 ÷ 6 VRMS
• Speaker-In sensitivity: 2.2 ÷ 22 VRMS

Output Power -
• Output Nominal Power (RMS) @ 14.4 VDC, THD 1%:
• 4 Ch: 160 W x 4 (4Ω)
• 4 Ch: 250 W x 4 (2Ω)
• 3 Ch: 160 W x 2 (4Ω) + 500 W x 1 (4Ω)
• 3 Ch: 250 W x 2 (2Ω) + 500 W x 1 (4Ω)
• 2 Ch: 500 W x 2 (4Ω)

1x Hertz SPL Show Series SX-165-NEO 6.5" Two-Way SPL Coaxial Speakers with Neo Magnets and UV/Waterproofing - (SX-165-NEO)

Totally new NEO SPL coaxial SX 165 NEO cone is made with nature-proof high stiffness pressed-paper featuring innovative water/humidity resistant and anti-UV treatments. The double layer copper voice coil, wound on polyamide former ensures unparalleled power handling. New motors units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance. SX 165 NEO features a large Hi-SPL 1.4” PEI dome tweeter with resettable solid-state protection circuit and a protective rubber gasket for high SPL and a safe outdoor use.

Features -
• Nature-proof high stiffness pressed-paper cone featuring innovative water/humidity resistant and anti-UV treatments.
• Durable Extreme SPL performance in a compact size & light-weight thanks to the N38 H Neodymium grade magnet.
• Unparalleled power handling delivered by the double layer copper voice coil, wound on polyamide former.
• Hi-SPL 1.4” Neodymium magnet PEI dome tweeter with resettable solid-state tweeter protection circuit.
• Double faston terminals allow daisy-chaining of multiple units and provide compatibility with most common motorcycle connections.

Specifications -
• Power Handling - Peak W: 200
• Power Handling - Continuous W: 100
• Impedance Ω: 4
• Frequency response Hz: 100 ÷ 20k
• Sensitivity dB SPL: 96,5
• Woofer size mm (in.): 165 (6.5)
• Midwoofer size mm (in.) -
• Tweeter size mm (in.): 35 (1.4)
• Supertweeter size mm (in.) -
• Woofer Voice Coil Ø mm (in.): 38 (1.5)
• Tweeter voice coil Ø mm (in.): 28 (1.1)

1x Hertz SPL Show Series SV-165-NEO 6.5" 4-Ohm SPL Midrange Speaker Drivers (Pair) with Neo Magnets and UV/Waterproofing - (SV-165-NEO)

1New SV 165 NEO features compact dimensions and light weight preserving excellent performance thanks to the use of Neodymium N38 H for the motor units. To allow a safe outdoor use without discoloration over time, cones has waterproofing and anti-UV treatment and motor units is painted with cataphoresis with insulated lead-wires to avoid oxidation. The terminals and mounting holes are compatible for installation on Harley-Davidson motorbikes!

Features -
• Compact dimensions and light weight preserving excellent performance thanks to the use of Neodymium N38 H for the motor units
• Cones waterproofing and anti-UV treatment to allow safe outdoor use without discoloration over time
• Motor units treated with cataphoresis and insulated lead-wires to avoid oxidation
• Terminals and mounting holes compatible for installation on Harley-Davidson motorbikes
Specifications -
• Size mm (in.): 165 (6.5)
• Power Handling - Peak W: 400
• Power Handling - Continuous W: 150
• Impedance Ω: 4
• Frequency response Hz: 100 ÷ 10k
• Sensitivity dB SPL: 97
• Voice coil Ø mm (in.): 38,6 (1.5)

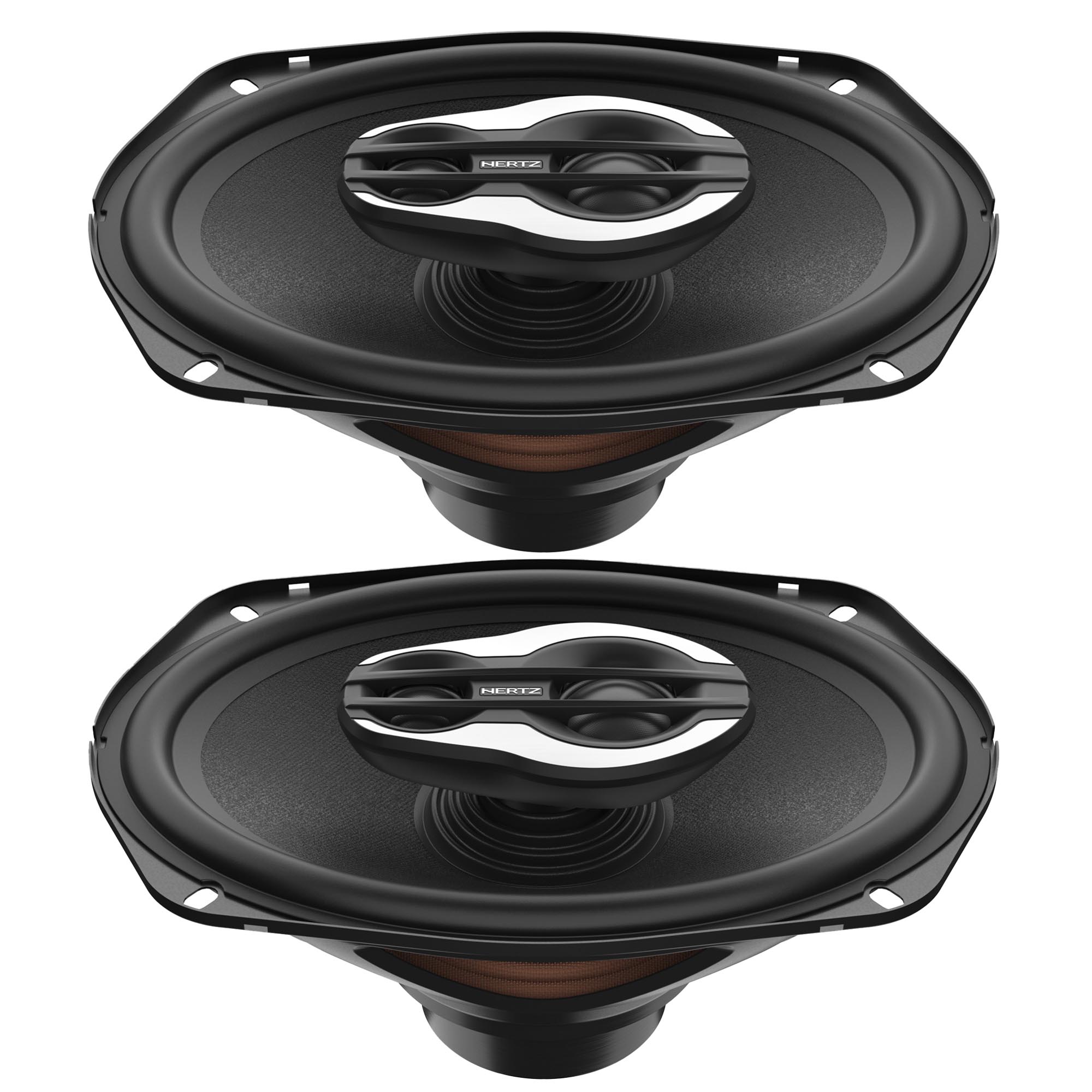

1x Hertz SX 690 H 6X9" Drop-in 3-Way Speakers Designed Specifically for 2024 HD Bag Lids - (SX-690-H)

SX 690 H coaxial for 2024 Harley is a real beast with a Hi-SPL Mid-Hi unit based on a 1.4” dome tweeter and 1” dome super tweeter with a resettable solid-state protection circuit. The cone is made with nature-proof high-stiffness pressed paper featuring innovative water/humidity resistance and anti-UV treatments. The double-layer copper voice coil wound on polyimide former ensures unparalleled power handling. New motor units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance.

Technical Specs
Component: SPL COAXIAL
Size mm (in.): in. 6 x 9
Power Handling - Continuous W: 130
Power Handling - Peak W: 260
Impedance Ohm: 4
Tweeter diaphragm mm (in.): 29 (1.14)
Woofer Voice Coil Ø mm (in.): 38 (1.5)
Tweeter Voice Coil Ø mm (in.): 25 (1)
Frequency Response Hz: 65 ÷ 24k
Woofer Magnet size D x d x h mm (in.): 110 x 45 x 20 (4.33 x 1.77 x 0.79)
Tweeter Magnet size D x h mm (in.): 24,5 x 6 x 3,5 (0.96 x 0.24 x 0.14)
Weight of one speaker kg (lb.): 1,69 (3.73)
Woofer Magnet: Special Neodymium N38 H
Tweeter Magnet: Special Neodymium N38 H
Cone: Water repellent pressed paper
Dome: Tetolon

Electro-acoustic Specs
D mm: 169
Xmax mm: 5,5
Re Ohm: 3
Fs Hz: 65
Le mH: 0,4
Vas I: 11,29
Mms g: 36,1
Cms mm/N: 0,16
BL T*m: 7,665
Qts: 0,62
Qes: 0,78
Qms: 2,9
Spl dB: 94

1x Hertz HD24H 2024 and Lid Kit with Speaker Harness (No Speakers) - (HD24H)

Hertz HD24H Saddle Bag Lid Kit with Speaker Harness includes: HD24 Saddlebag Lid Kit and HBH24 Speaker Harness (Speakers not included)

Includes: speaker grilles and mounting equipment compatible with 6x9 speakers, plus a wiring harness
