Description
Included in this kit
This bundle includes a Hertz CP-1.700 Monoblock Car Audio Amplifier, a Hertz Mille Pro Shallow MPS 250 S4 Shallow 10 in. (250mm) 4Ω SVC Subwoofer incl. grille, a Wavtech linkDQ - 2-Channel Line Output Converter & Line Driver with PEQ and remote capable, and a Stinger SS600XS 8GA Copper 600W Complete Wiring Kit, Blue.

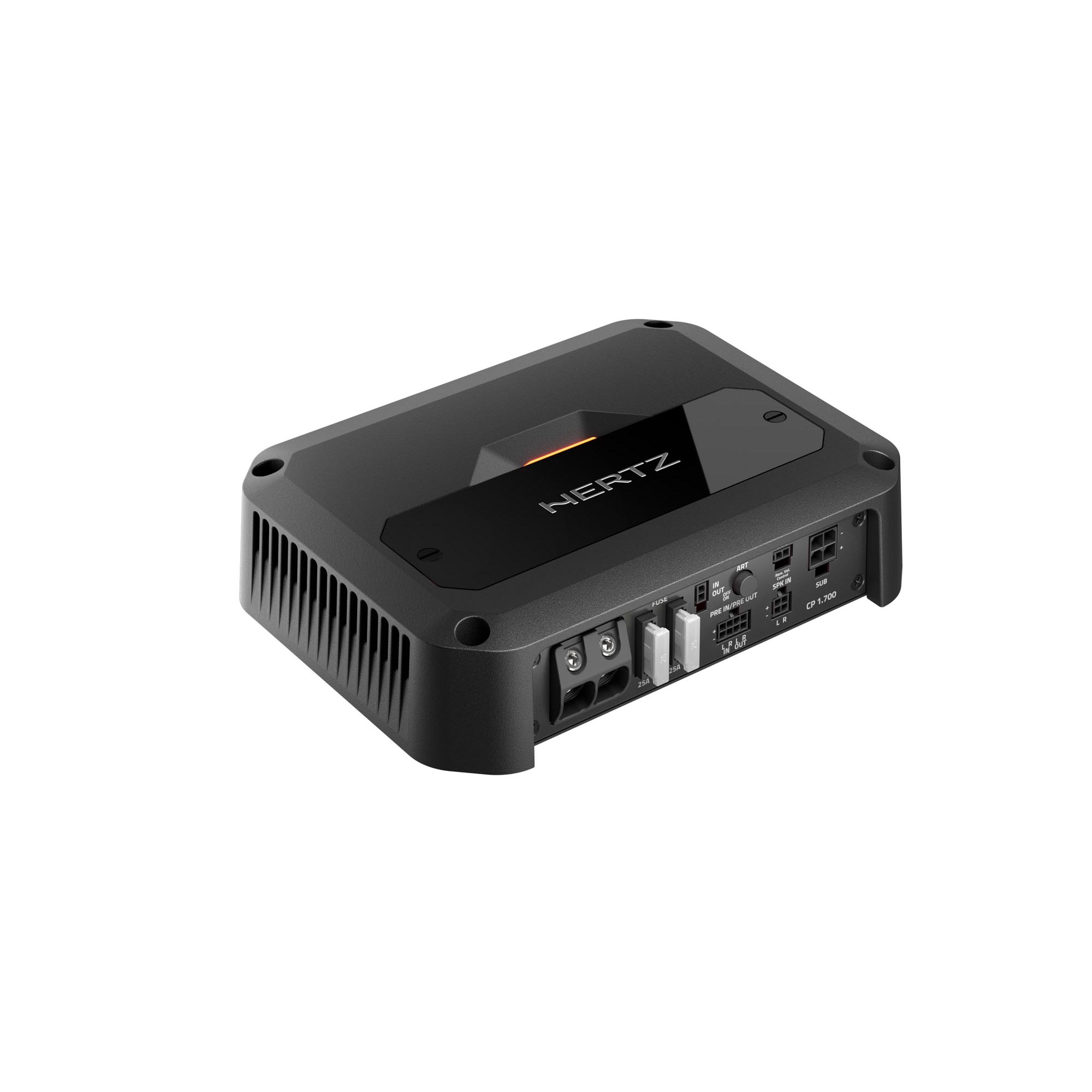

1x Hertz CP-1.700 Monoblock Car Audio Amplifier - (CP-1.700)
Enhance your audio system with the Hertz CENTO POWER CP 1.700, a mono amplifier that combines superior power handling and sophisticated sound control technologies. Boasting a superior power-to-size ratio with an efficiency of over 89%, this amplifier accommodates a broad voltage range, suitable for both conventional and electric vehicles. The CP 1.700 steps up with additional sound customization features, including a variable phase control to fine-tune the audio output to your preferences. Its high-noise rejection and balanced input circuitry maintain the integrity of the sound, while the inclusion of a full-range pre-out ensures flexible system expansion. Designed for durability and performance, the CP 1.700's elegant design and accessible top panel controls make it a top choice for audiophiles looking to push the limits of their car's audio system.
Optimal Power-to-Size Ratio: Encased in a compact aluminum diecast body, this monophonic ADC (Advanced Class-D) amplifier provides high efficiency over 89%, while being fully bridgeable. Ready to Play Connections: Designed for easy installation with durable long-term Molex connections. Accessible Top Controls: Ensures all adjustments are easily reachable, even after installation.
General Specs
Channels: 1
Amp class: D
POWER SUPPLY
Nominal power supply voltage (fuse): 11 ÷ 15 VDC (2 x 25 A)
Operating power supply voltage: 9 ÷ 18 VDC
Idling current: 1.10 A
Standby current draw: 4.5 uA
Consumption, MIN load impedance (Max Musical Power): 33 A
Remote IN: 4 ÷ 17 VDC (1 mA)
ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only): 1.5 VDC
Efficiency: 89%
AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 70% Rated Power: 0,01 %
Damping factor @ 1 kHz, 1W: 350
Bandwidth @ -3 dB: 10 Hz ÷ 500 Hz
S/N ratio (A-weighted @ 1 V Input): 113 dBA
Minimum load impedance @ 1 Ch: 2 Ω
Adjustable Crossovers: yes
Output Power
Output power (RMS) @ 1% THD:
1Ch @ 4Ω: 400 W x 1
1Ch @ 2Ω: 700 W x 1
Total Power: 700 W

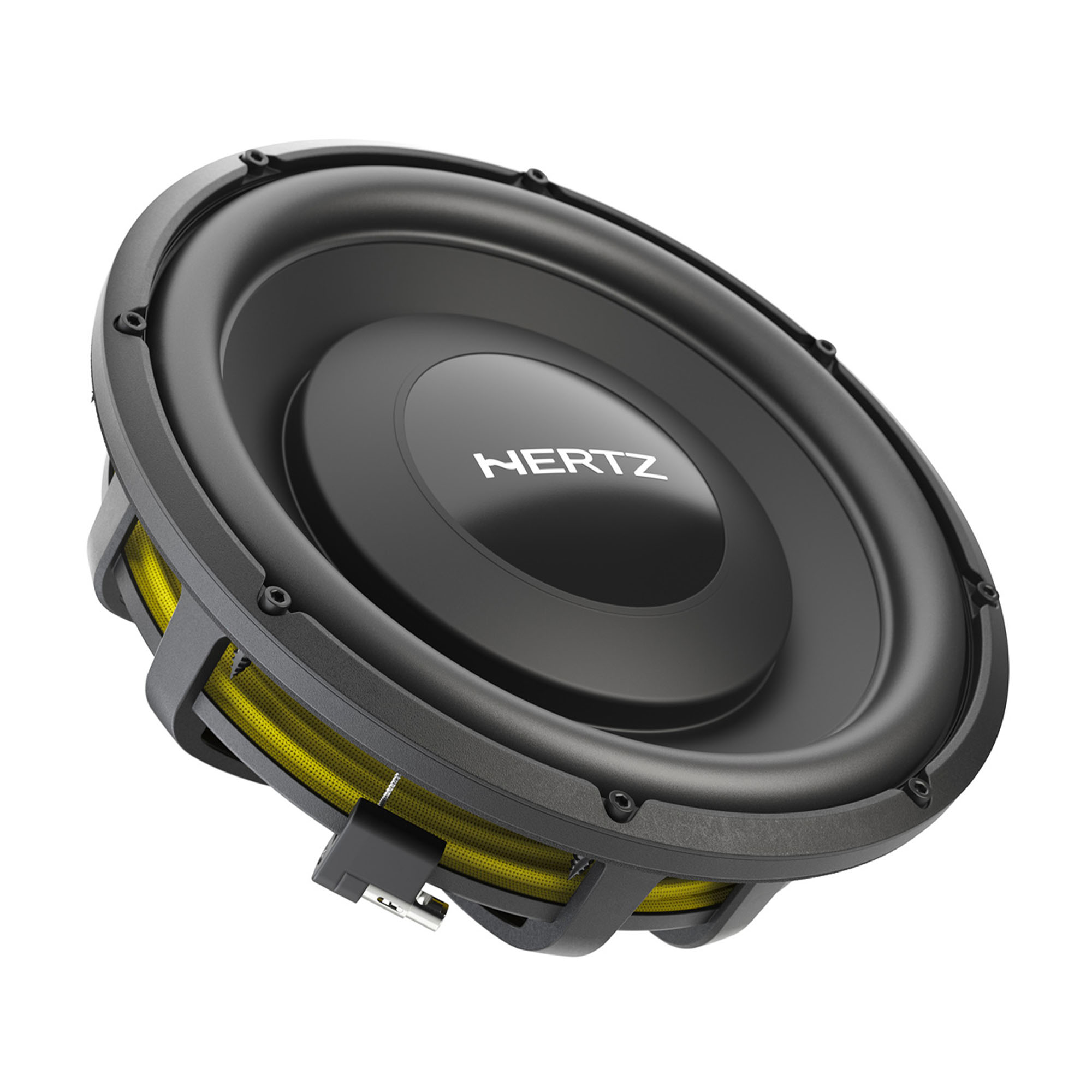

1x Hertz Mille Pro Shallow MPS 250 S4 Shallow 10 in. (250mm) 4Ω SVC Subwoofer incl. grille - (MPS-250-S4)
Mille PRO shallow subwoofers have been designed to achieve exceptional performance even when there is very little space available to install the subwoofer box.
MPS 250 S4 is optimized to work in ultra-compact sealed boxesstarting from only 14 Lt (0.49 Cf). A typical example is a subwoofer enclosure under the rear bench of pickup trucks, where the space - and the height - are limited.
Mille PRO subwoofer have a depth/performance ratio never achieved before thanks to the impressive cone excursion capacity which is 20% higher than a traditional design.
This exceptional target has been achieved thanks to the ingenious suspension group design featuring a dedicated support structure for spider and coil. This solution has allowed to move the magnetic group inwards, reducing the depth and at the same time maximizing cone linear excursion.
Provided with MPS 250 there is a full metal sturdy structure composed by a solid cast aluminium ring and a steel mesh black grille featuring an elegant diamond-cut Hertz Logo
Technical Specifications -
• Size mm (in.): 250 (10)
• Power Handling - Continuous W: 500
• Power Handling - Peak W: 1000
• Impedance Ohm: 4
• Depth mm (in.): 82,6 (3.25)
• Voice Coil Type: single
• No Filter Component: Subwoofers
• Voice Coil Ø: 38 (1.5)
• Frequency Response Hz: 25 - 400
• Magnet size D x d x h mm (in.): 134 x 55 x 36 (6.28 x 2.17 x 1.42)
• Weight of one component kg (lb.): 5,11 (11.27)
• Magnet: High density flux ferrite
• Cone: Polypropylene
• Xmech mm (in.): 20 (0.79)
1x Wavtech linkDQ - 2-Channel Line Output Converter & Line Driver with PEQ and remote capable - (linkDQ)
How do you replace the best multifunction LOC and line driver on the market? That was the question our product development team was tasked with. It is even more challenging when you are actually replacing 3 models with 1. We took the best features of the linkD, the linkQ and the bassFREQ, and combined them. Welcome to the linkDQ.
The linkDQ has the same class leading LOC and line driver that are the core DNA of all Wāvtech products. The linkDQ features an adjustable parametric EQ with narrow or wide range selection, allowing corrections to any low frequency deficiency that may be present in a factory audio system. It features auto turn-on via DC-offset or Audio Signal Detect, either of which can be easily defeated by the convenient jumpers on the end panel.
We’ve also added an RJ45 port for easily upgrading to a remote level control (sold separately). This allows for fine tuning the systems bass output from the front of the vehicle.
linkDQ Features
2-Channel Line Driver or Line Output Converter (LOC)
Adjustable Parametric EQ
Selectable Narrow or Wide
Frequency Range 30Hz to 80Hz
Remote Level Control Ready (Sold Separately)
Differential Balanced Inputs
Low Impedance Outputs
Variable Gain Adjustment w/Clip LED
Auto Turn-On via DC-Offset or Audio Signal Detect
Generated +12V Remote Output
OEM Load Detect Compatible
Locking Detachable Power/Speaker Terminals
Professional Grade Panel Mount RCA’s
Compact Aluminum Chassis w/Detachable Mounting Tabs
linkDQ Specifications
Output Voltage (Max): >10Vrms
Output Impedance: <50Ω
Input Sensitivity
SPK: 2-20Vrms, 4-40Vrms
RCA: 0.5-5Vrms
Max Input Voltage (SPK): 40Vrms
Frequency Response: <10Hz to > 100kHz
THD+N (SPK/RCA): <0.04% / <0.04%
S/N (SPK/RCA): >115dBA / >116dBA
Parametric EQ (Boost/Freq): 0 to +12dB / 30-80Hz
Turn-On Trigger: +12V, DC-offset & Audio Detect
Generated +12V Output: >500mA
Chassis Dimensions: 1.1”x2.9”x3.5” (29x75x89.5mm)
1x Stinger SS600XS 8GA Copper 600W Complete Wiring Kit, Blue - (SS600XS)
Featuring full copper construction for excellent current transfer to power-hungry amplifiers. Quality twisted pair interconnects for noise-free signal transfer. Also includes ultra-flexible speaker wire, remote turn-on, water-resistant high current fuse holder and terminals for a complete installation package. All the necessary parts for installing your next 2 channel amplifier.
Includes:
17FT Translucent Blue Power Wire
3FT Translucent Silver Ground Wire
17FT Translucent Blue Twisted Pair RCA Interconnects
3FT Black flex loom tubing
16FT Blue Remote Turn-on Wire
20FT Translucent Speaker Wire
1pc AGU Fuseholder
