Description
Included in this kit
This bundle includes a Hertz HMR 15 Media Receiver AM/FM/USB Bluetooth, and a Hertz HEX Series HEX-65-S-LD-G 6.5" 4-Ohm Marine Coax Set with RGB LEDs.

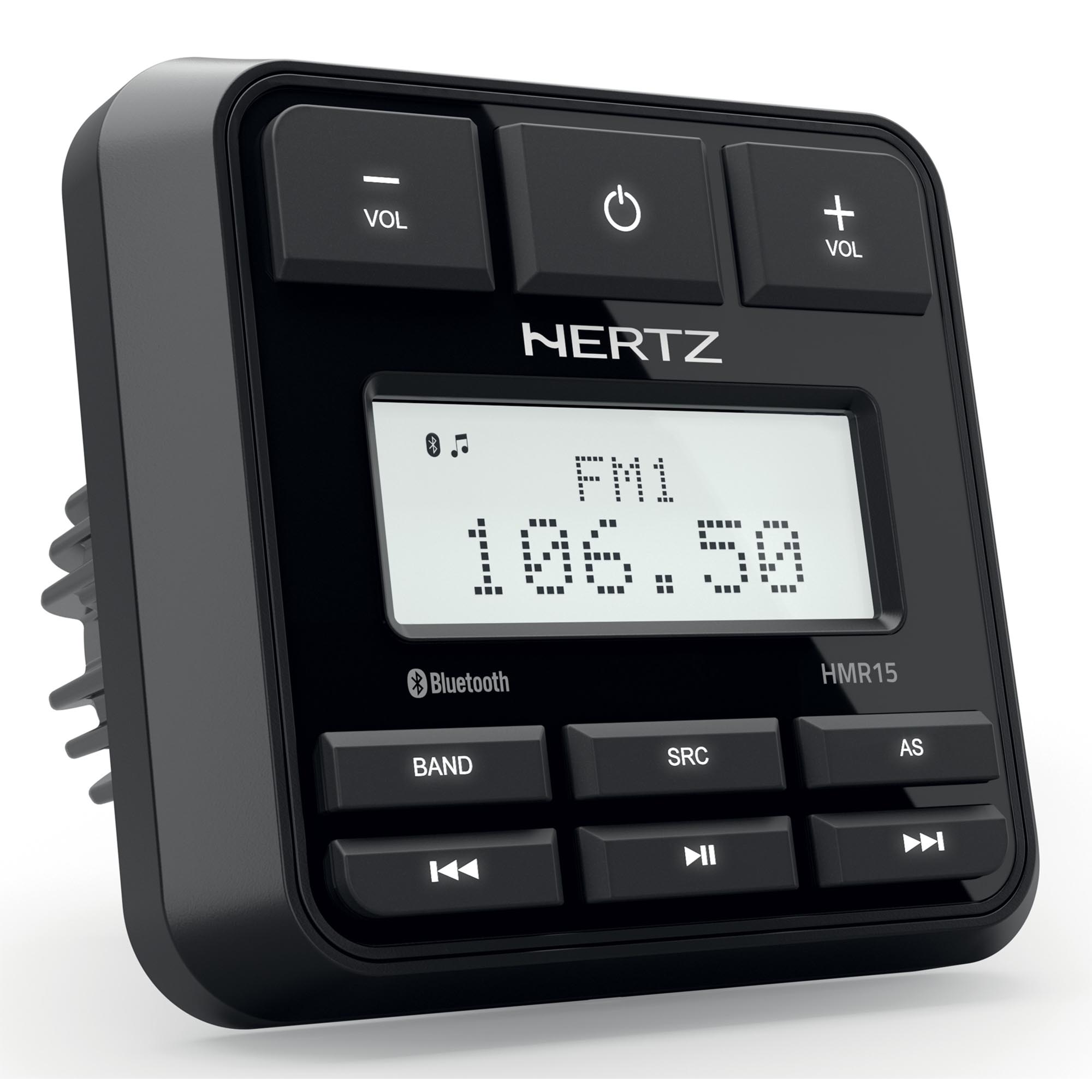

1x Hertz HMR 15 Media Receiver AM/FM/USB Bluetooth - (HMR-15)
The new Hertz source features a minimalist square-shaped design, perfectly in line with the latest trends in the most prestigious navigation instruments. The centerpiece is a generous display with the large marine-grade pushbutton panel symmetrically distributed in the lower and upper parts. Thanks to BluetoothĀ® 5.0 you can stream high-quality audio from your favorite mobile device, maximizing open water fun!
Specification
DISPLAY: 2.8ā DOT Matrix display
PEAK POWER @ 4 Ī©: 4 x 50 W
FRONT PANEL IP RATING: IP66
LINE OUTS: 2x L+R (Front and Rear)
SUBWOOFER OUT (RCA): 1x L+R (LPF: 80, 120,160 Hz)
AUX INPUT (RCA): 1x L+R
EQUALIZER: BASS-TREBLE
EQ. PRESET: 3
Sources
TUNER: AM/FM (EU/US)
USB: Yes (1A)
BLUETOOTH: 5.0 Audio streaming
REMOTE CONTROL: HMC U1 (up to 3)
Size & Mounting
Unit Size mm (in.): W 126 (4.960) x H 114 (4.488) x D 96.5 (3.799)
Mounting Hole size mm (in.): Ć 89,5 (3.52)
Mounting Depth mm (in.): 72 (2.83)
Mounting Method: Panel mount (4 screws); U-Bracket
1x Hertz HEX Series HEX-65-S-LD-G 6.5" 4-Ohm Marine Coax Set with RGB LEDs - (HEX-65-S-LD-G)
SPORT option grille HEX coaxial with RGB LEDs lighting option always provide the perfect style for your boat, giving you years of pure fun while cruising, being over engineered and tested for Marine applications. The compact 6.5ā speaker, with a depth of only 2.36 in. delivers a detailed and dynamic sound, making every outing memorable. HEX sport grille can be easily removed to be painted with a custom color perfect for your boat.
Features -
⢠Hertz Pure Marine Certified Product Stamp Featuring the IP65 Protection Grade, ASTM-D4329 Standards for UV Resistance and ASTM-B117 for Salt Fog Operability.
⢠High Efficiency Tweeter Designed with FEM Simulation to Maximize Off-Axis Emission, Typical of In-Boat Installation.
⢠Sound Transparent Mesh Grille with Twist and Lock Locking System, Providing and Elegant Style and a Rock-Solid Protection.
⢠Woofer with 25mm (1") Voice Coil Fine-Tuned for Infinite Baffel Application Featuring Silicone Insulated Lead-Wire for Durability.
Specification -
⢠Power Handling: 100W Peak
⢠Impedance: 4 Ohms
⢠Frequency Response: 50-23kHz
⢠Magnet: Ferrite
⢠Tweeter: Neodymium
⢠Cone: Polypropylene with UV Inhibitors
⢠Dome: PEI
Electro-Acoustic Parameters -
⢠D: 125mm
⢠Xmax: 3,4mm
⢠Re: 3,3 Ohms
⢠Fs: 78Hz
⢠Le: 0,109mH
⢠Vas: 6,52L
⢠Mms: 13,5g
