Description
Included in this kit
This bundle includes a Hertz Dieci Series DSK-1703 Component Speaker Kit 6.75" 2-Way: DV 170.3 + DT 24.3 + DX 300 + Grilles, and a Hertz Dieci Series DCX-1703 6.75" Two-Way Coaxial Speakers - Pair.

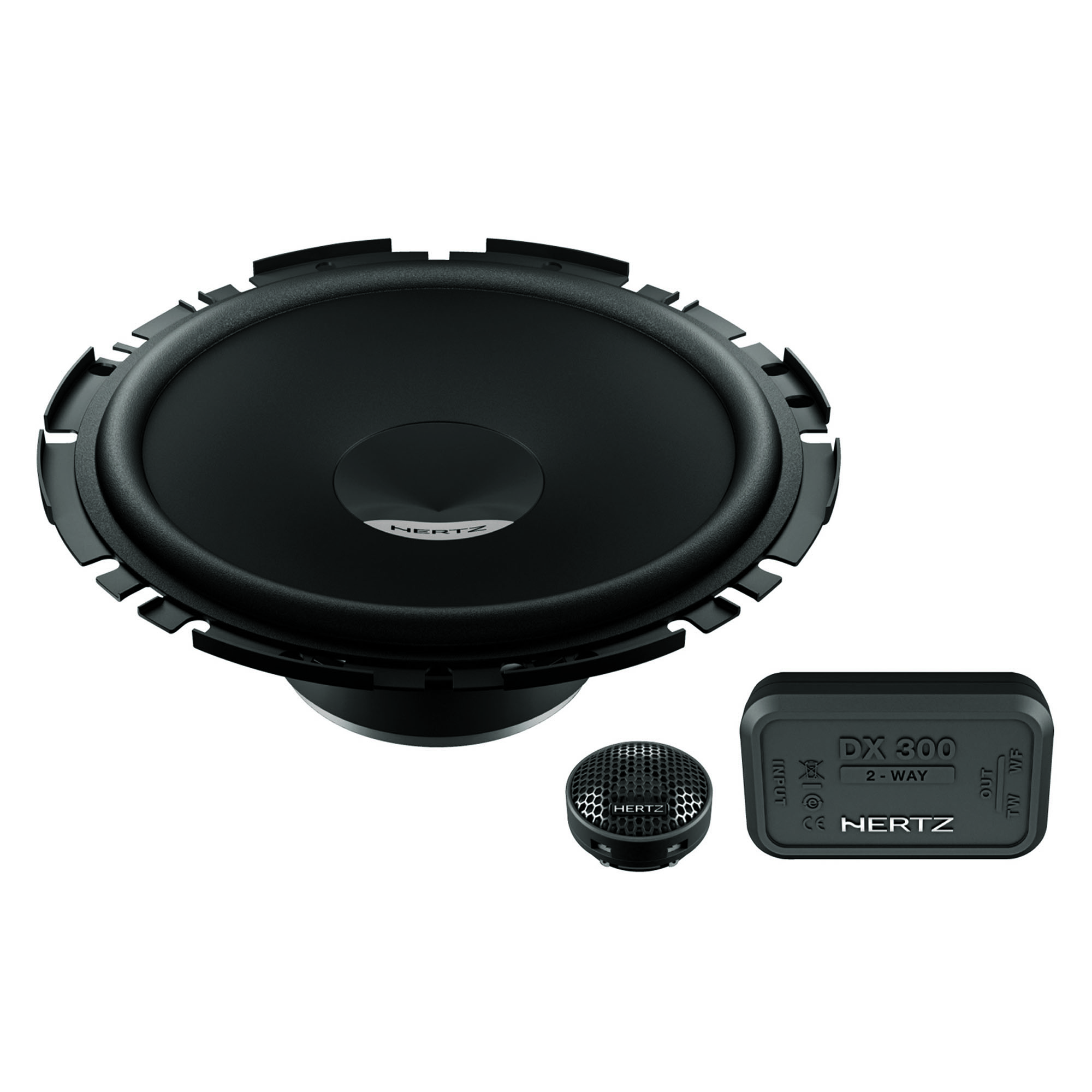

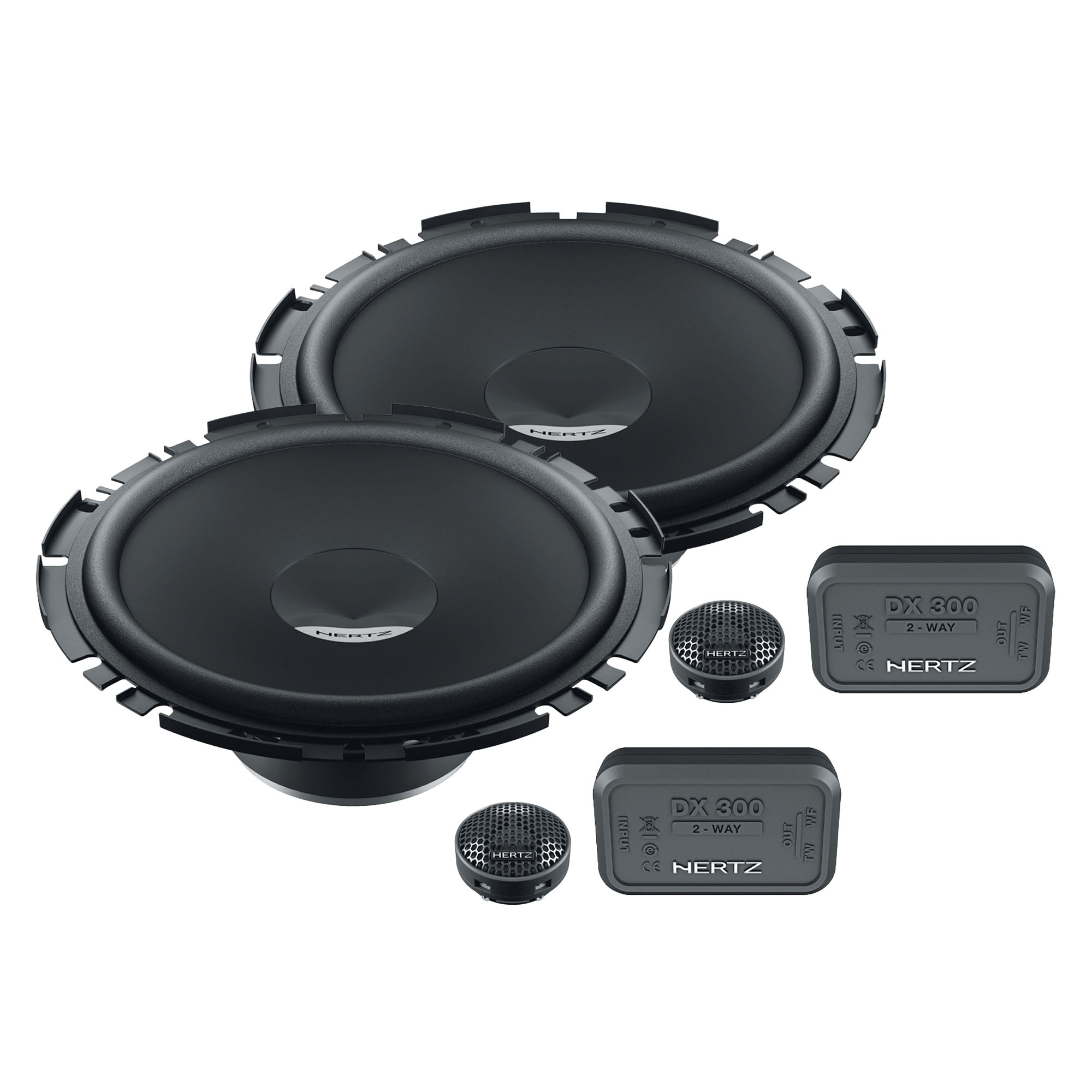

1x Hertz Dieci Series DSK-1703 Component Speaker Kit 6.75" 2-Way: DV 170.3 + DT 24.3 + DX 300 + Grilles - (DSK-1703)
Dieci car audio systems let you realize a high quality audio system with the utmost in simplicity. The woofers employ the exclusive V-cone® profile for amazing off-axis response and detailed mid-high range. The TPU (Thermoplastic polyurethane) surround ensures linearity and reduction of unwanted resonance, even at high excursion. High-performance materials, such as the neodymium motor assembly and the PEI membrane, ensure an extended high frequency range. The passive filters are found directly on the supplied connection cables, along with a rich array of accessories increasing the install-friendliness and installation time.
Features -
• 24 mm PEI dome-cone tweeter.
• High efficiency annular acoustic lens.
• Large motor assembly for mobile voice coil control.
• Pure copper voice coil, wound on conex former, for maximum lightness.
• V-cone® for best off-axis response, clear mid-high frequency detail and powerful bass.
• TPU surround, for wide excursion and resonance damping.
• DIN size basket protected by abrasion-proof dust paint.
Specifications -
• Power Handling - Peak W: 160
• Power Handling - Continuous W: 80
• Impedance Ω: 4
• Frequency response Hz: 50 ÷ 23k
• Sensitivity dB SPL: 93
• Woofer size mm (in.): 170 (6.7)
• Tweeter size mm (in.): 24 (0.9)
• Woofer Voice Coil Ø mm (in.): 25 (1.0)

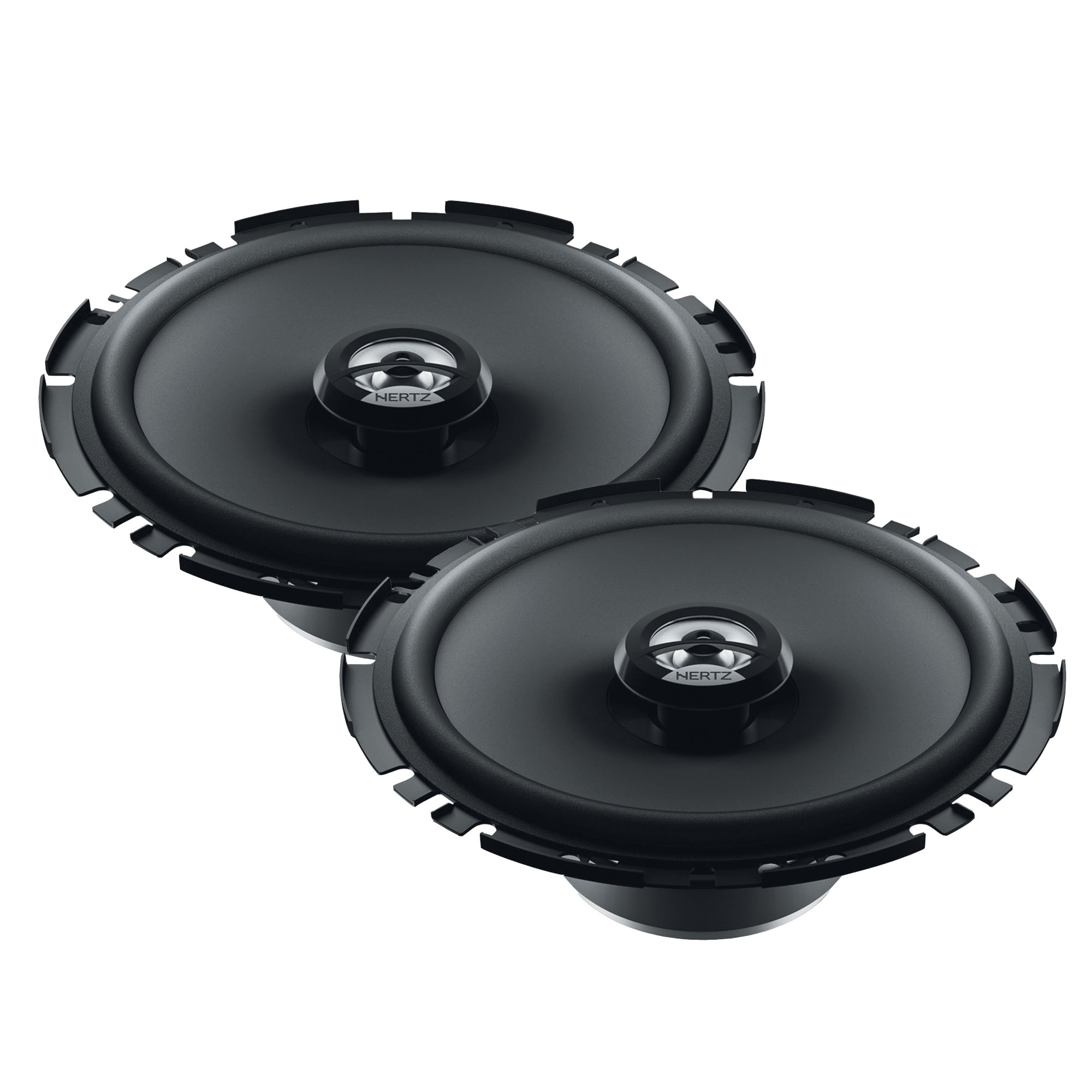

1x Hertz Dieci Series DCX-1703 6.75" Two-Way Coaxial Speakers - Pair - (DCX-1703)
With its 51 mm (2,0 in.) maximum depth the DCX 170.3, is a “flat” car audio coaxials optimized for installation in a vehicle’s door and/or other reduced spaces, without giving up on acoustic reproduction quality. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround, a copper voice coil wound on a conex former and painstaking care in its build ensures performance surpassing other components within the same category.
Features -
• Shallow profile for an easy replacement of factory speakers.
• Pure copper voice coil, wound on conex former, for maximum lightness.
• Water-repellent treated paper cone.
• TPU surround, for wide excursion and resonance damping.
• Neodymium tweeter with PEI dome, for compactness and energy at high frequencies.
• DIN size basket protected by abrasion-proof dust paint.
• Tin-plated, high current terminals.
Specifications -
• Power Handling - Peak W: 100
• Power Handling - Continuous W: 50
• Impedance Ω: 4
• Frequency response Hz: 60 ÷ 21k
• Sensitivity dB SPL: 93
• Woofer size mm (in.): 170 (6.7)
• Tweeter size mm (in.): 15 (0.6)
• Woofer Voice Coil Ø mm (in.): 25 (1.0)
