Description
Included in this kit
This bundle includes a Hertz Venezia Compact V5C - 5-Channel Compact Marine Amplifier 115W x 4 + 550W x 1 @ 2-Ohm, 2x Hertz HEX Series HEX-65-C-W 6.5" 4-Ohm Marine Classic Coax Set - White, and a Hertz HMS 10 B2-LD-W - 10" 2-Ohm Marine Subwoofer with RGB LEDs, White Classic Marine Grille.
1x Hertz Venezia Compact V5C - 5-Channel Compact Marine Amplifier 115W x 4 + 550W x 1 @ 2-Ohm - (Venezia-Compact-V5C)
Venezia V5C is the compact five channels marine amplifier, featuring 80 W x 4 (4Ω) plus 330 W (4Ω) for the subwoofer! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability deliver the output levels needed in the marine environment. Venezia V5C is engineered and tested for marine applications and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. Last but not least, Venezia V5C is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.
General Specs
Channels: 5 - 3
POWER SUPPLY
Power supply voltage: 9 ÷ 16 VDC
ldling current (power ON/OFF): 1.7 A / 0.05 mA
Consumption@ 1Ω, 14.4 VDC (Max Musical Power): 47 A
Remote In:: 7 ÷ 15 VDC - 1 mA
AMPLIFIER STAGE
Distorsion - THD (100Hz @ 4Ω): <0,05%
Bandwidth: 10 ÷ 42 kHz
S/N Ratlo (A welghted @ 1 V): 100 dB
Damping factor (100Hz @ 4Ω): >130
Pre-ln sensitivity: 0.2 ÷ 5 VRMS
Pre-ln impedance: 10 kΩ
Load impedance (MIN)
@5Ch: 2Ω
@3Ch: 4Ω + 4Ω + 2Ω
Weight (kg/lb): 3.72 / 8.2
Adjustable Crossovers: yes
Output Power
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%
5Ch: 80 W x 4 (4Ω) + 330 x 1 (4Ω)
5Ch: 115 W x 4 (2Ω) + 550 W x 1 (2Ω)
3Ch: 230 W x 2 (4Ω) + 330 W x 1 (4Ω)
3Ch: 230 W x 2 (4Ω) + 550 W x 1 (2Ω)
Total Power RMS: 1010 W
INPUTS / FILTERS
Inputs: A Ch. Pre in, B Ch. Pre in, Sub Ch. Pre in
Pre Out: No
A Ch. filters: Yes
By-Pass Yes
Hi-Pass : 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
B Ch. filters:
By-pass: Yes
Hi-Pass: 50 ÷ 500 Hz @ 12 dB/Oct
Band-Pass: 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
Sub Ch. filters:
By-pass: No
Low-Pass: 50 ÷ 250 Hz @ 24 dB/Oct
Phase (adjust°): (0 ÷ 180°)
Subsonic: 25 Hz @ 24 dB/Oct
Boost 50 Hz (adjust): (0 ÷ 12) dB
2x Hertz HEX Series HEX-65-C-W 6.5" 4-Ohm Marine Classic Coax Set - White - (HEX-65-C-W)
HEX 6.5 C-W marine coaxial features classic grilles will give you years of pure fun while cruising, being over engineered and tested for Marine applications. The compact 6.5” speaker, with a depth of only 2.36 in. delivers a detailed and dynamic sound, making every outing memorable.
Features -
• Hertz Pure Marine Certified Product Stamp Featuring the IP65 Protection Grade, ASTM-D4329 Standards for UV Resistance and ASTM-B117 for Salt Fog Operability.
• High Efficiency Tweeter Designed with FEM Simulation to Maximize Off-Axis Emission, Typical of In-Boat Installation.
• Sound Transparent Mesh Grille with Twist and Lock Locking System, Providing and Elegant Style and a Rock-Solid Protection.
• Woofer with 25mm (1") Voice Coil Fine-Tuned for Infinite Baffel Application Featuring Silicone Insulated Lead-Wire for Durability.
Specification -
• Power Handling: 100W Peak
• Impedance: 4 Ohms
• Frequency Response: 50-23kHz
• Magnet: Ferrite
• Tweeter: Neodymium
• Cone: Polypropylene with UV Inhibitors
• Dome: PEI
Electro-Acoustic Parameters -
• D: 125mm
• Xmax: 3,4mm
• Re: 3,3 Ohms
• Fs: 78Hz
• Le: 0,109mH
• Vas: 6,52L
• Mms: 13,5g

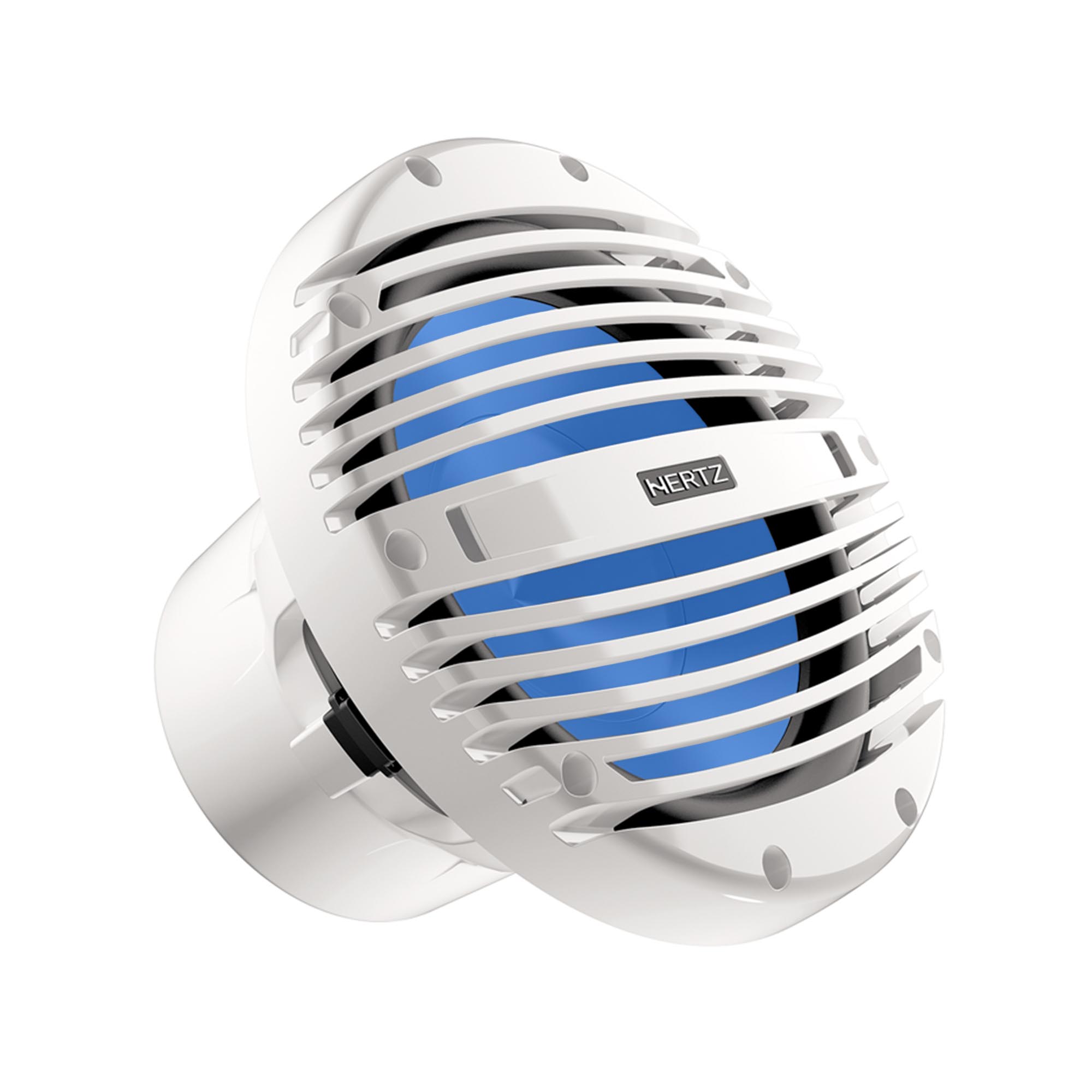

1x Hertz HMS 10 B2-LD-W - 10" 2-Ohm Marine Subwoofer with RGB LEDs, White Classic Marine Grille - (HMS-10-B2-LD-W)
The HMS 10 B2-LD-W long throw 10” marine subwoofers are engineered for infinite baffle application. The 2 Ohm configuration makes the most of the amplifier power. It relieves the main speakers from the hard work of reproducing the lowest frequency range, adding bass output and punch to maximize the overall system performance. The FEM optimized high-excursion mobile equipment of HMS 10 B with a 50 mm (2”) voice coil is driven by a massive magnetic group, to obtain a perfect control also at very high level SPL. Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust ) HMS 10 B2-LD-W is nature-proof. The progressive design aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The gold-plated corrosion resistant brass connection terminals with silicone cap protect the leadwire junction point.
Technical Specs Size mm (in.): 250 (10)
Power Handling - Continuous W: 300
Power Handling - Peak W: 600
Impedance Ohm: 2
Depth mm (in.): 191 (7.52)
Voice Coil Type: single
No Filter Component: 2Ω SUBWOOFER
Voice Coil Ø: 50 (2)
Magnet size D x d x h mm (in.): 140 x 60 x 30 (5.51 x 2.36 x 1.18)
Weight of one component kg (lb.): 5,1 (11.24)
Magnet: Ferrite
Cone: Polypropylene with UV inhibitors
Xmech mm (in.): ±16,3 (0.64)
Electro-acoustic Specs
D mm: 210
Xmax mm: 12,3
Re Ohm: 2,1
Fs Hz: 43
Le mH: 0.46
Vas I: 30,46
Mms g: 75.6
Cms mm/N: 0.18
BL T*m: 8.3
Qts: 0,6
Qes: 0,63
Qms: 12,3
Spl dB: 88,5
