Description
Included in this kit

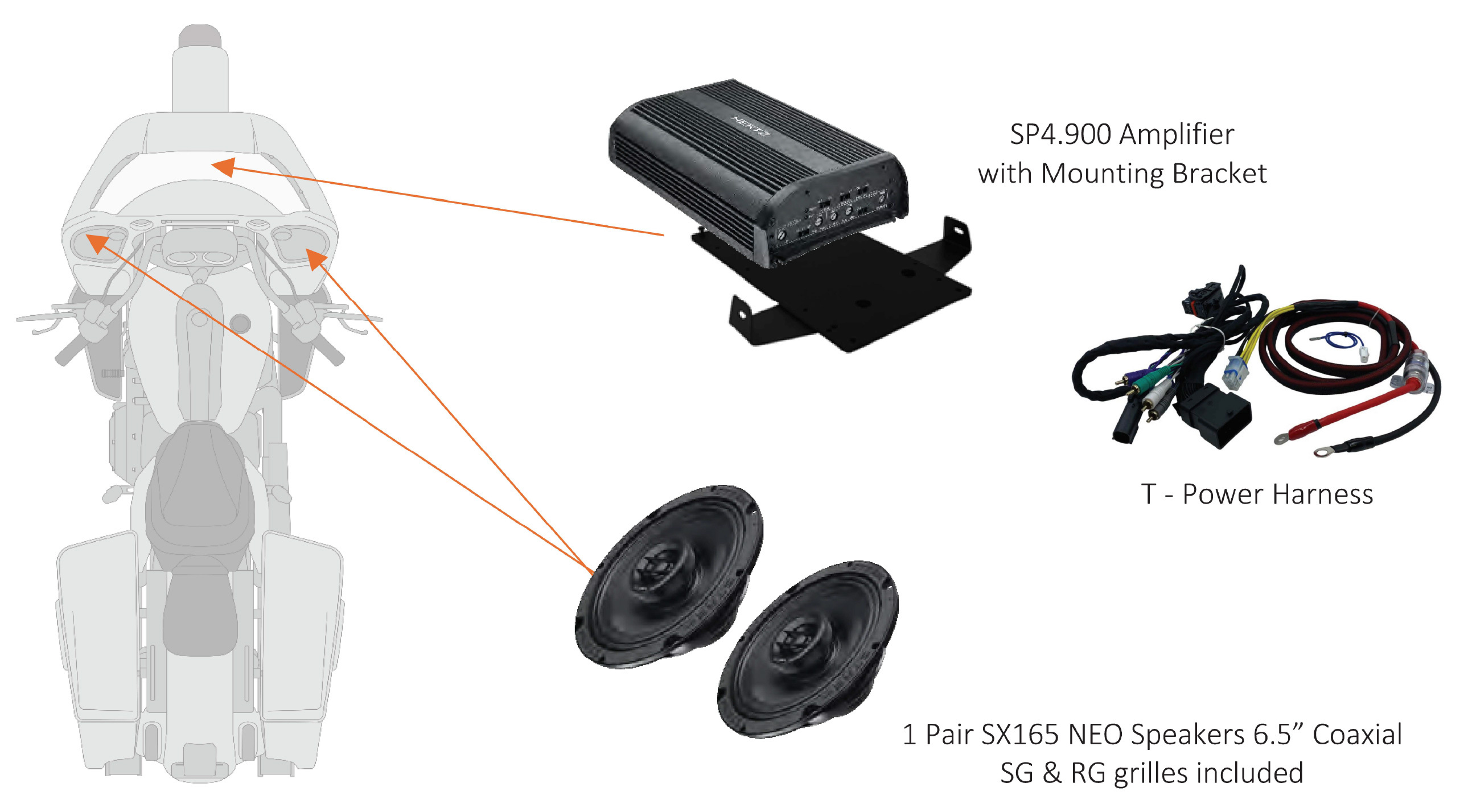

Hertz HSP1-14 Plug and Play Front Speaker Kit with SP4.900 amp, SX 165 NEO Coax Speakers, HTHP14 T-Power Harness and amplifier HD14MAP mounting bracket Compatible With 2014-2023 HD Motorcycles - Includes the Hertz SPL Show SP 4.900 D-Class 4 Channel Amplifier 250 WRMS x 4 at 2Ω (IP55 rated), Hertz SPL Show Series SX-165-NEO 6.5" Two-Way SPL Coaxial Speakers with Neo Magnets and UV/Waterproofing (Pair), HD14MAP amplifier mounting bracket, and Hertz HTHP14 T-Power Harness.
Hertz SPL Show SP 4.900 D-Class 4 Channel Amplifier 250 WRMS x 4 at 2Ω (IP55 rated)
General Specifications -
• Channels: 4 - 3 - 2
• Nominal power supply voltage: 11 ÷ 15 VDC
• Pulse Operating voltage: 6 ÷ 16 VDC
• Idling current: 1.1 A
• Idling current when off: 0.03 mA
• Consumption @ 14.4 VDC, MIN load impedance (Max Musical Power): 50 A
• Remote IN: 6 ÷ 15 VDC (9 mA)
• DC-REM - Remote Turn on by SPK DC from OUTPUT BTL speakers: 3.5 ÷ 7 VDC
• Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power: 0.02%
• Damping factor @ 1 kHz, 4Ω, 2 VRMS: 200
• Bandwidth @ -3 dB: 10 Hz ÷35 kHz
• S/N ratio (A weighted @ 1 V Input): 105 dBA
• Pre-In sensitivity: 0.6 ÷ 6 VRMS
• Speaker-In sensitivity: 2.2 ÷ 22 VRMS
Hertz SPL Show Series SX-165-NEO 6.5" Two-Way SPL Coaxial Speakers with Neo Magnets and UV/Waterproofing
Specifications -
• Power Handling - Peak W: 200
• Power Handling - Continuous W: 100
• Impedance Ω: 4
• Frequency response Hz: 100 ÷ 20k
• Sensitivity dB SPL: 96,5
• Woofer size mm (in.): 165 (6.5)
• Midwoofer size mm (in.) -
• Tweeter size mm (in.): 35 (1.4)
• Supertweeter size mm (in.) -
• Woofer Voice Coil Ø mm (in.): 38 (1.5)
• Tweeter voice coil Ø mm (in.): 28 (1.1)
Includes: Hertz HTHP14 T-Power Harness and HD13MAP amplifier mounting bracket
