Description
Included in this kit
This bundle includes an Infinity Reference-6001A Reference Series Mono, 600w X 1 Amplifier With Bass Knob, an Infinity REFERENCE1200SSL SINGLE 12" THIN enclosure with Passive Radiator, and a Stinger SS1200XS 4GA Copper 1200W Complete Wiring Kit.
1x Infinity Reference-6001A Reference Series Mono, 600w X 1 Amplifier With Bass Knob - (Reference-6001A)
Infinity REFERENCE 6001A - High performance 600-Watt Mono Subwoofer amplifier.
Infinity's Reference 6001A mono subwoofer amplifier will add some bass muscle to your music without breaking a sweat, and it'll look good doing it. This powerhouse delivers 600-Watts RMS to your subwoofer, and its Class D design ensures the amp's high output will put minimal strain your vehicle's electrical system. Speaker-level inputs allow this amplifier to work in almost any system, even if you're hanging on to your factory radio. You can use the low-pass filter and variable bass boost to maximize the performance of your subwoofer and enclosure, while a phase switch ensures that the bass will blend well with your full-range speakers.
RBC wired remote
The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver's seat.
High and low level input
Speaker-level and low-level inputs allow the Reference 6001A to integrate with both aftermarket and factory car stereo systems.
Compact size
The Infinity Reference 6001A amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.
Full on-board protection
On-board circuitry protects the Reference 6001A from shorts, high-temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.
General Specifications - • 350 watts RMS x 1 at 4 ohms (600 watts RMS x 1 at 2 ohms)
• Class D amp technology
• frequency response, 10-320 Hz
• variable low-pass filter (32-320 Hz, 12 dB/octave)
• variable bass boost (0-12dB at 45Hz)
• phase switch (0, 180 degrees)
• wired remote level control included
• preamp inputs and outputs
• speaker-level inputs (speaker wire-to-RCA adapters included)
• 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
• fuse rating: 30A x 3
• WxHxD=220mm x 55.5mm x 180mm
• WxHxD=8-11/16” x 2-3/16" x 7-1/8”

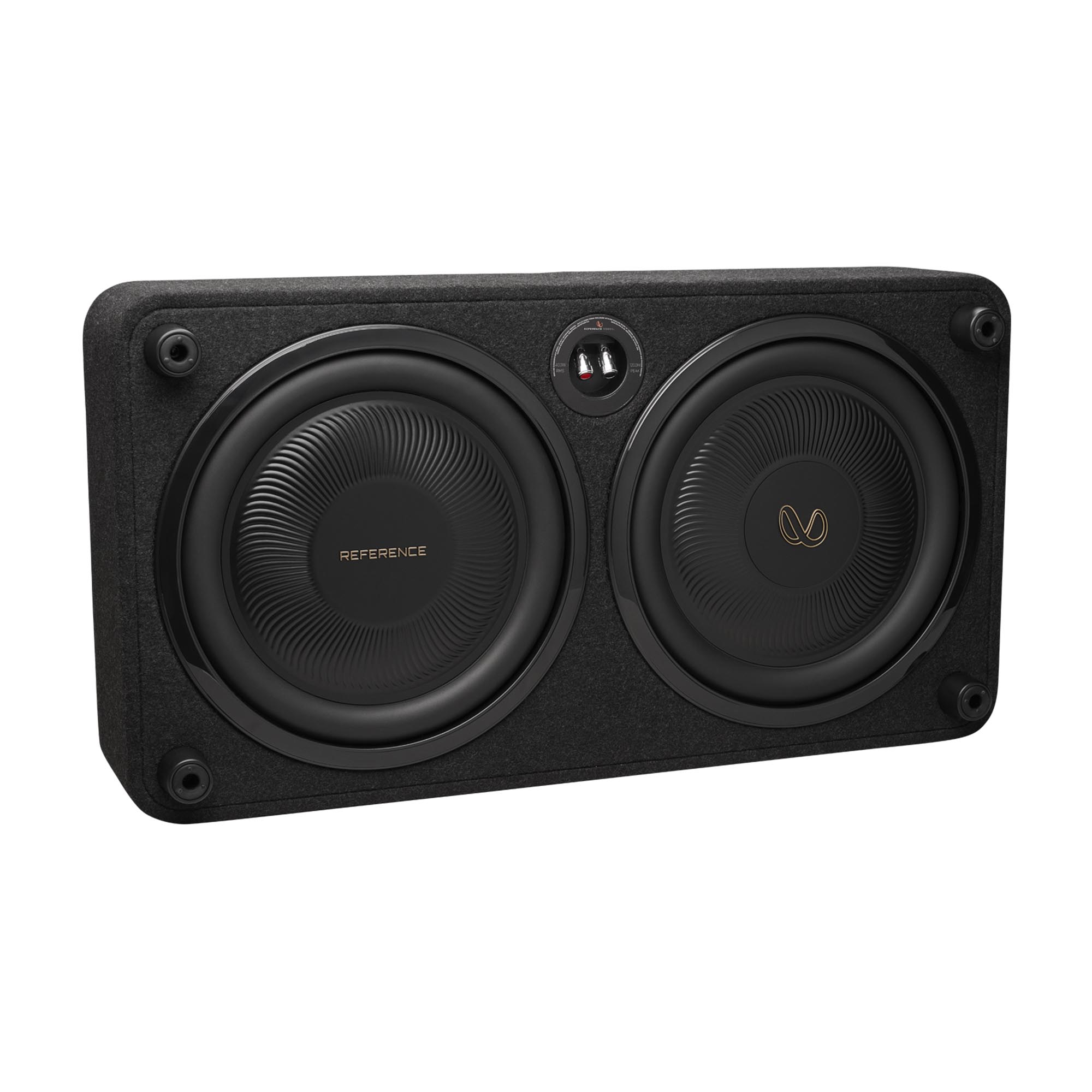

1x Infinity REFERENCE1200SSL SINGLE 12" THIN enclosure with Passive Radiator - (REFERENCE1200SSL)
Down-Firing Sealed Enclosure with a Passive Radiator
Reference shallow enclosures are engineered with sealed, down-firing type and loaded with a passive radiator subwoofer and new Reference shallow subwoofers. Such a design brings tighter, more accurate bass and takes up little space.
Removable Feet
Reference shallow enclosures are designed with removable feet which allows for flexible placement direction to get best performance and optimize space per vehicle type.
Removable Logo Badge
Reference shallow enclosures are designed with a removable logo badge so you can put anywhere you like.
Built Tough
Reference shallow enclosures are designed with sturdy medium-density fiberboard construction and rugged black carpet covering to resist stacking weight and take a beating.
General Specifications
Subwoofer: 12" (300mm) Aluminum Driver
Power Handling: 400W RMS, 1200W peak
Sensitivity (1W/1m): 85dB
Frequency Response (-6dB): 30Hz – 400Hz
Nominal Impedance: 2 ohms
Voice Coil Diameter: 2" (50mm)
Enclosure dimensions: 370mmD x 700mmW x 125mmH14-5/8"D x 27-5/8"W x 4-7/8"H
Enclosure materials: 3/4" (18mm) MDF with black carpet covering
What's in The Box?
1x Subwoofer Enclosure
1x Infinity Logo Badge
4x Plastic Feet
4x Screw Washer
4x Hexalobular Socket Head M6*25 Screws
1x Quick Start Guide
2x Steel Plate + 8x M5*15 Screws
1x Stinger SS1200XS 4GA Copper 1200W Complete Wiring Kit - (SS1200XS)
Featuring full copper construction for excellent current transfer to power-hungry amplifiers. Quality twisted pair interconnects for noise-free signal transfer. Also includes ultra-flexible speaker wire, remote turn-on, water-resistant high current fuse holder, and terminals for a complete installation package. All the necessary parts for installing your next 2 channel amplifier.
Includes:
17FT Translucent Blue Power Wire
3FT Translucent Silver Ground Wire
17FT Translucent Blue Twisted Pair RCA interconnects
3FT Black flex loom tubing
16FT Blue Remote Turn-on Wire
20FT Translucent Speaker Wire
1pc Mini-ANL/AFS Fuseholder & Fuse
