Description
Included in this kit
This bundle includes an Infinity REF697CF Reference Series 6”x9” Two-way Component System W/ Crossover, and an Infinity REF697CF-GRILLE Woofer grilles for Infinity Reference REF697CF 6"x9" component speakers (pair).
1x Infinity REF697CF Reference Series 6”x9” Two-way Component System W/ Crossover - (REF697CF)
New Reference speakers are designed to deliver Infinity’s signature sound in more vehicles. They feature edge-driven textile tweeters for smooth, clear highs and the larger models offer an adjustable tweeter output level control for high-frequency optimization based on installation location or the listener's preference. Oversized Plus One™ woofers offer more surface area for higher bass output and enhanced midrange performance. Plus our newly engineered baskets are optimized to fit most factory speaker locations. Available in a range of standard sizes, they’re the perfect upgrade from factory speakers.
Features and Benefits
Edge-driven, textile tweeters
The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels.
Adjustable tweeter output level
The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener's preference.
Plus One™ woofer cone architecture
Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class - the result is higher sensitivity, increased low-frequency output and accurate music reproduction.
Optimized frame size
Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today
Technical Specifications
Power Handling: 100W RMS, 300W peak
Sensitivity (@ 2.83V): 94dB
Frequency Response: 46Hz – 20kHz
Impedance: 3.0 ohms
What’s in the box
1 pair of woofers
1 pair of tweeters
1 pair of crossovers
1 pair of woofer adapter rings
1 pair of tweeter surface mount accessories
1 pair of tweeter flush mount accessories
1 pair of tweeter nuts
1 pair of tweeter flat washers
6 tweeter mounting screws
8 woofer mounting screws
8 crossover mounting screws
8 speed clips
1 pair of spacers
Foam mounting tape
Owner’s manual

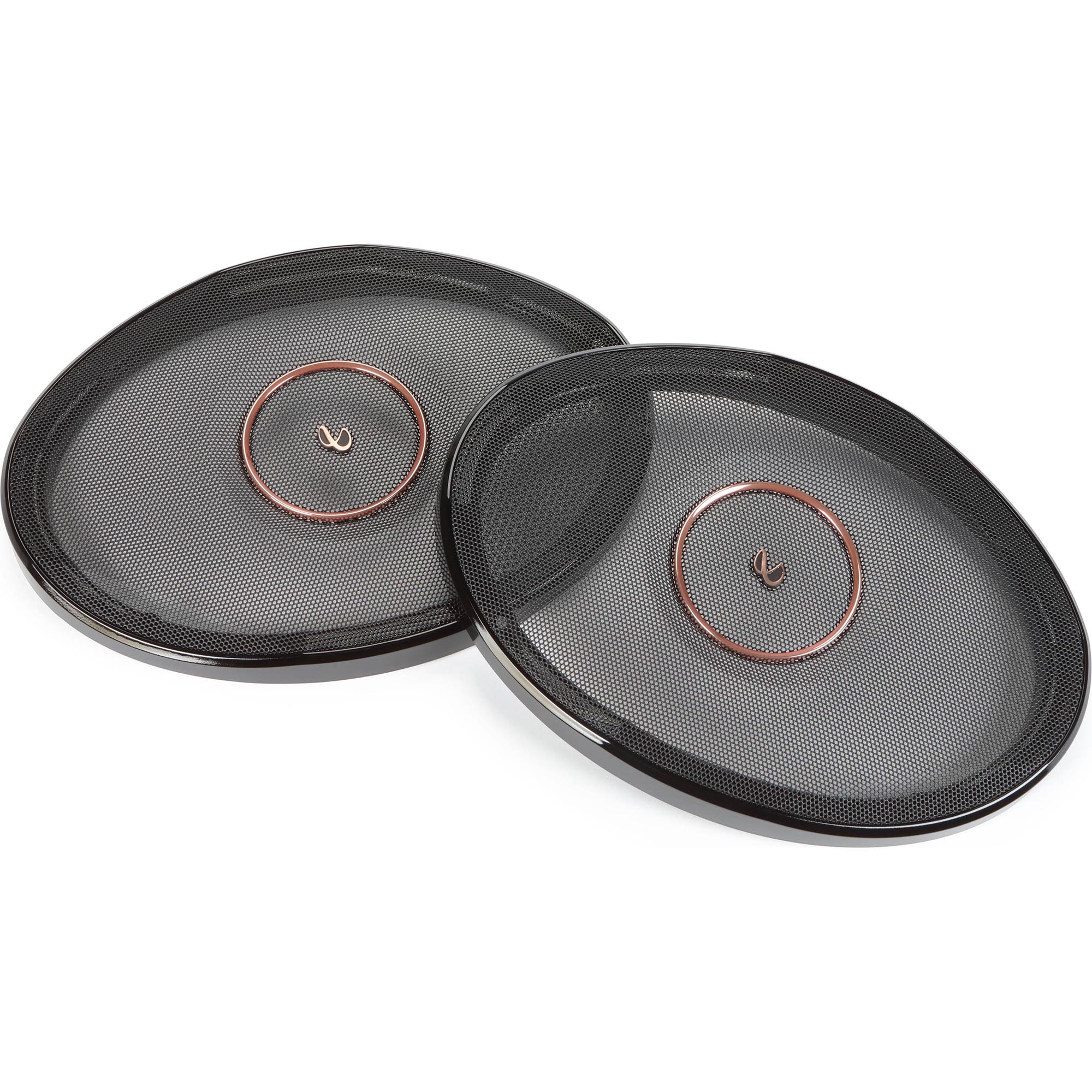

1x Infinity REF697CF-GRILLE Woofer grilles for Infinity Reference REF697CF 6"x9" component speakers (pair) - (REF697CF-GRILLE)
Woofer grilles for Infinity Reference REF697CF 6"x9" component speakers (pair)
