Description
Included in this kit

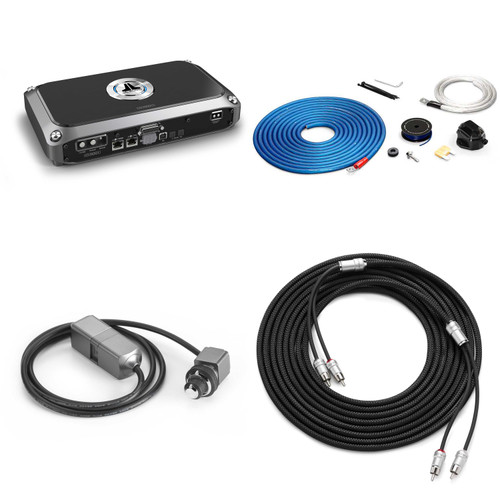

This bundle includes a JL Audio XD-PCS4-1B:Premium 4 AWG 12 V Power Connection Kit Single Amplifier, a JL Audio XE-BLKAIC2-18 2-Channel Twisted-Pair RCA Audio Interconnect w/ Machined Connectors - 18 ft. / 5.49 m, a JL Audio VX1000/1i Class D Subwoofer Amplifier with integrated DSP, 1000 Watts @ 2 ohm / 600 Watts @ 4 ohm, and a JL Audio DRC-205 Digital Remote Controller for JLID-equipped products - FiX, TwK processors and VXi Amplifiers.
1x JL Audio XD-PCS4-1B:Premium 4 AWG 12 V Power Connection Kit Single Amplifier - (XD-PCS4-1B)
JL Audio XD-PCS4-1B: Premium 4 AWG 12 V Power Connection Kit Single Amplifier
Premium 4 AWG 12V Power Connection System for One Amplifier
Everything you need to make secure, high-integrity power connections to a single amplifier with up to a 100A fuse rating. Our compact Maxi® Master Fuse Block is easy to install and allows you to accurately fuse your amplifier. A beefy self-tapping ground screw is also included to help you achieve a solid ground. As with all our Premium kits, the power wire is true AWG-spec, pure OFC copper.
What's in the kit?
XD-MFBW-MAXI Fuse Holder with Genuine 80A Maxi® Fuse
19 ft. (5.8 m) Blue 4 AWG Premium Power Wire, terminated with ring
3 ft. (0.9 m) Clear 4 AWG Premium Ground Wire, terminated with ring
20 ft. (6.1 m) Blue Remote Turn-On Lead Wire
Self-Tapping Ground Screw
Rubber Firewall Grommet
Nylon Wire Ties
Hex Wrench for Fuse Holder
Bonus: Additional 1-year warranty on JL Audio amplifier when installed by authorized dealer with this Power Connection System!
This kit is appropriate for single amplifiers with fuse ratings from 40A to 100A. Depending on the specific fuse rating of your amplifier, you may need to purchase an appropriate Maxi® fuse separately.
1x JL Audio XE-BLKAIC2-18 2-Channel Twisted-Pair RCA Audio Interconnect w/ Machined Connectors - 18 ft. / 5.49 m - (XE-BLKAIC2-18)
JL Audio XE-BLKAIC2-18 2-Channel Twisted-Pair Audio Interconnect w/ Machined Connectors - 18 ft. / 5.49 m
ECS premium audio interconnect cables begin with small diameter silver-plated OFC copper conductors with Teflon® dielectrics constructed in a tight twisted-pair arrangement for optimum noise rejection. An overmolded strain-relief secures the silver-soldered connections inside the machined brass connector ends and splitters for maximum durability.The RCA plug barrels are short by design to facilitate installation in tight spaces while an extremely supple cable, protected by braided black outer jacket, provides a sleek look in any installation.
• Twisted-Pair Construction to Reject Noise
• Silver-Plated, pure OFC Copper Conductors with Teflon® Dielectrics
• Silver-Soldered Connections with overmolded strain-relief
• Machined Brass Connector Bodies and Cable-Splitter with Marine-rated corrosion-resistant plating
• Braided black outer jacket for protection from abrasion
• Compact connector design for installation in tight spaces
1x JL Audio VX1000/1i Class D Subwoofer Amplifier with integrated DSP, 1000 Watts @ 2 ohm / 600 Watts @ 4 ohm - (VX1000/1i)
Designed to simplify great audio, every VXi amplifier combines our advanced NexD2 switching amplifier technology with an integrated, full-featured digital signal processor.
The VX1000/1i monoblocks subwoofer amplifier outputs up to 600W into 4 ohms, or a jaw-dropping 1000 watts into 2 ohms. A specialized , low-frequency version of our NexD2 amplifier technology delivers rock-solid bass performance and fidelity, with outstanding efficiency. Compact dimensions with all connections placed on one side, via mating plugs, greatly simplify installation into tight spaces.
Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TuN Software application installed.
Rated Continous Power -
• @ 4 Ω: 600 W RMS x 1
• @ 3 Ω: 800 W RMS x 1
• @ 2 Ω: 1000 W RMS x 1
• @ 1.5 Ω: N/A
Specifications -
• Frequency Response: 12 Hz - 500 Hz (+0, -1dB)
• S/N Ratio, referred to highest rated power (Analog Inputs): 87 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W (Analog Inputs): 60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to highest rated power (Digital Inputs): 87 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W (Digital Inputs): 56 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Damping Factor @ 4 Ω: >400 / 50 Hz
• Damping Factor @ 2 Ω: >300 / 50 Hz
• THD+N @ Rated Power: <1% @ 2 Ω per Ch.
• Input Voltage Range @ RCA Inputs: 200 mV - 16 V RMS
• Min.Copper Power / Ground Wire Gauge: 4 AWG wire
• Fuse Rating: 80 A (AFS, AGU or MaxiFuse™)
1x JL Audio DRC-205 Digital Remote Controller for JLID-equipped products - FiX, TwK processors and VXi Amplifiers - (DRC-205)
DRC-205
Digital Remote Control for JLid™ compatible products
The DRC-205 is a panel-mount, wired digital remote controller designed to connect to the JLid™ port of compatible JL Audio electronics.
Functions:
Dual-concentric rotary controls with stops
Push-button mode selector
Status indicator (RGB LED)
Common uses include:
Master Volume
Subwoofer Volume
Preset or Mode Selection
The specific audio functionality of the DRC-205 controller will be determined by the device it is connected to.
The DRC-205 is compatible with the following JL Audio products:
FiX™ OEM Integration DSP: All models
TwK™ System Tuning DSP: All models
VXi-Series Amplifiers: All models
