ERROR: SKU(s) M6-770ETXv3-Gw-S-GwGw not found on the descriptions sheet or missing title/description. This bundle includes a JL Audio MV600/2i 2-channel Class D Full-Range Amplifier with integrated DSP, 300 W x 2 @ 2 ohm/180W x 2 @ 4 ohm - 14.4V.

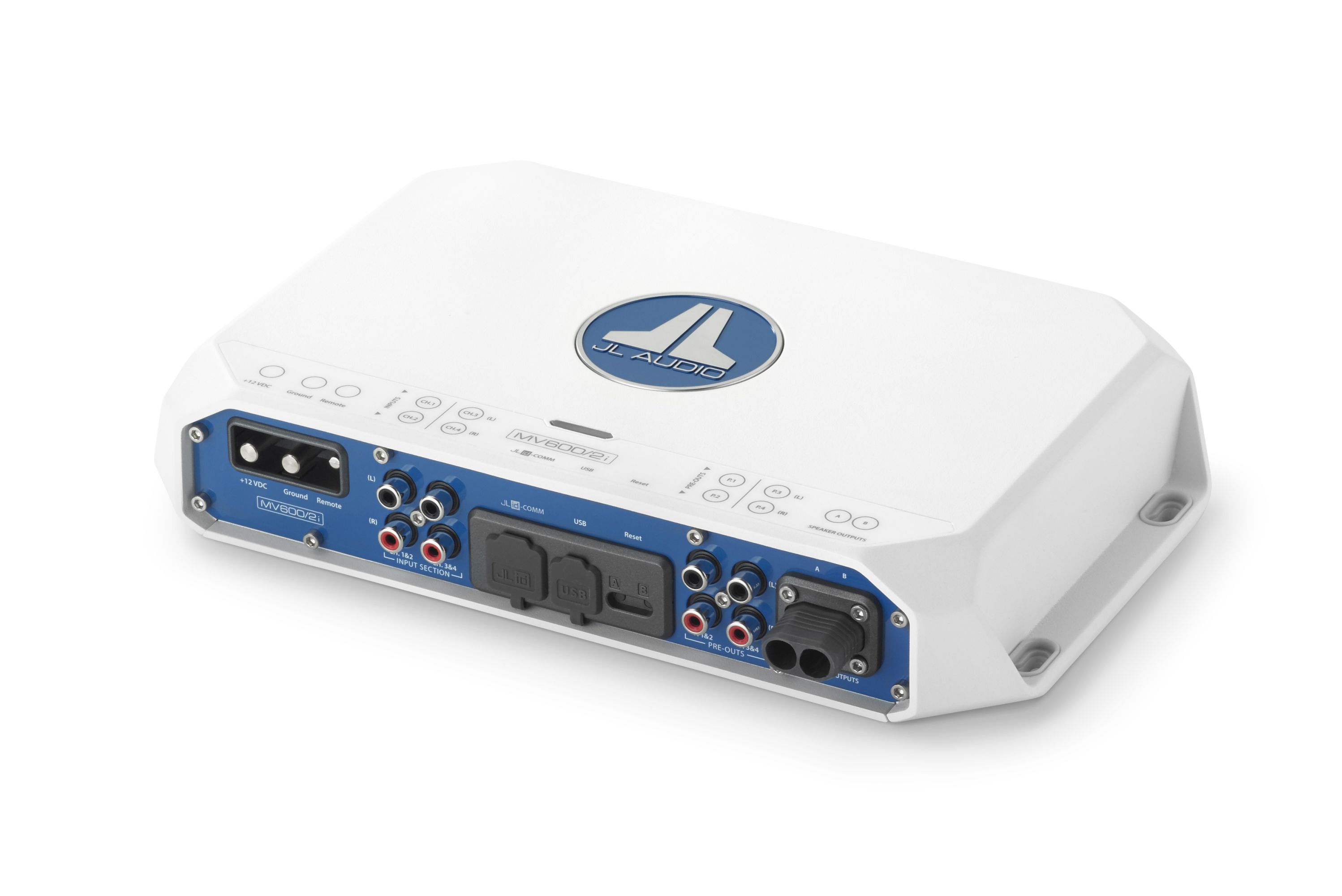

1x JL Audio MV600/2i 2-channel Class D Full-Range Amplifier with integrated DSP, 300 W x 2 @ 2 ohm/180W x 2 @ 4 ohm - 14.4V - (MV600/2i)
JL Audio MV600/2i 2-channel Class D Full-Range Amplifier with integrated DSP, 300 W x 2 @ 2 ohm/180W x 2 @ 4 ohm - 14.4V
2-Channel Class D Full-Range Amplifier with Integrated DSP, 300 W x 2 @ 2 Ω / 180 W x 2 @ 4 Ω - 14.4V
Designed to simplify great audio, every MVi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.
With our second-generation NexD2™ technology, the MV600/2i full-range amplifier outputs up to 180 watts per channel into 4 ohms, or a powerful 300 watts into 2 ohms. It can also be bridged into 4 ohms to generate a stunning 600 W x 1.
The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.
Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.
Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, 6 ft A/B USB Cable
Features
Unprecedented, Onboard DSP Tuning Power!
PC or Mac®, via USB wired connection iOS® & Android® Devices, via Bluetooth® (with optional VXi-BTC).
2nd-Gen NexD2™ Switching Amplifier Technology
- DSP-synchronized power supply and output channels produce world-class sound quality with very low noise and distortion.
- Latest generation of DirectFET® MOSFET Output Devices
Compact Footprint
- Designed to fit in tight spaces
- Cast alloy chassis with marine-grade speaker connections and keyhole mounting design
- A perfect pairing with Subwoofer MVi amplifiers
Versatile, Differential-Balanced Analog Inputs
- Differential-Balanced Analog Inputs accept a wide range of signal levels (up to 16V RMS), and offer outstanding noise rejection for clean, clear audio.
- Depending on specific model, 4 or 6-Channels of Analog Pre-Outs, with fully independent DSP processing allow sharing DSP capabilities with other amplifiers in the system!
JLid™ System Command with Networking Capabilities (sold separately)
Proprietary JL Audio protocol provides control interface and all communication for MVi amplifiers and optional JLid™ accessories, including:
- VXi-BTC Bluetooth® Communicator: Adds wireless connectivity for a compatible iOS® or Android® device, permitting amplifier setup from these devices. (Functionality varies by model.)
- M-DRC-50 Controller:Push-button control with RGB indicator allows preset selection from the helm.
- MVi-HUB JLid-COMM and Network Bridge Hub: Provides network connectivity for up to six MVi amplifiers (one master and five slave amplifiers) for full-system DRC control and Preset selection.
Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ω | 180 W RMS x 2 |
| @ 2 Ω | 300 W RMS x 2 |
| Bridged @ 4Ω | 600 W RMS x 1 |
Rated Continuous (RMS) Power @ 12.5 V
| @ 4 Ω | 140 W RMS x 2 |
| @ 2 Ω | 225 W RMS x 2 |
| Bridged @ 4Ω | 450 W RMS x 1 |
General Specifications
| Frequency Response | 12 Hz - 24 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power (Analog Inputs) |
99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Analog Inputs) |
76 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to highest rated power (Digital Inputs) |
100 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Digital Inputs) |
78 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >100 / 50 Hz |
| Damping Factor @ 2 Ω | >50 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | 200 mV - 16 V RMS |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 50 A (AFS, AGU or MaxiFuse™) |
Physical Specifications
| Height (H) | 2.05 in / 52 mm |
| Width (W) | 11.20 in / 285 mm |
| Depth (D) | 6.93 in / 176 mm |
