Description
Included in this kit
This bundle includes a JL Audio OEM M6-VeX 6.5" Enclosed Speaker System for Marine & Powersports, Satin Black and Satin Black- M6-650VEX-Mb-S-GmTi, and a Clarion XC2410 300 Watt 4-Channel Class-D Marine Amplifier.

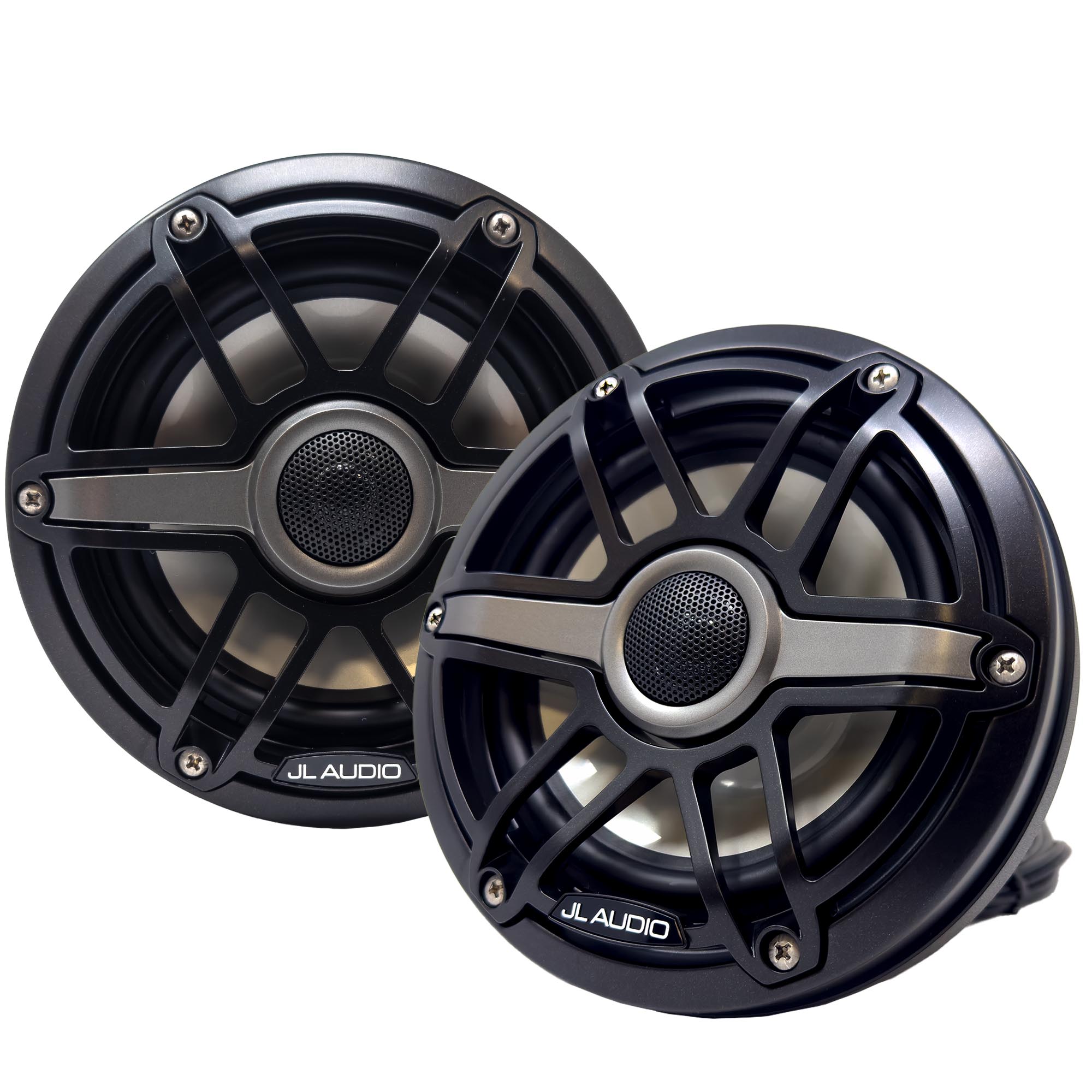

1x JL Audio OEM M6-VeX 6.5" Enclosed Speaker System for Marine & Powersports, Satin Black and Satin Black- M6-650VEX-Mb-S-GmTi - (O-M6-650VeX-Mb-S-SbSb)
JL Audio OEM O-M6-650VeX-Mb-S-SbSb
M6 Series Enclosed Coaxial Speaker System, 6.5" Satin Black Enclosures, Satin Black Trim (75 W, 4 Ī©), Sold as a pair
VeX Meets M6 - a new level of performance and sound geared towards smaller footprint applications on Boats, Side-By-Sides, Motorcycles and anywhere you need the music to move with you.
Ideal for powersports, marine and off-road vehicle applications, these enclosed speaker systems include high-performance, marine-grade coaxial speakers with silk dome tweeters housed in rugged, injection-molded enclosures to deliver clean, loud audio.
A rotating clamp receiver is included with each VeXā¢ pod to mate with an appropriate mounting fixture (sold separately, click here to view) for mounting to a roll-cage, tower or tube structure, allowing precise aiming for optimum sound. Mounting fixtures (sold separately, click here to view) are available in a variety of sizes to fit a wide range of pipe diameters.
M6 Loudspeakers fulfill JL Audioās commitment to raise the bar with each product generation. The JL Audio engineering team has completely reinvented the premium marine loudspeaker, with major improvements in performance, precision and durability. Offered in multiple sizes and cosmetic options, most models are also available with a brilliant, new lighting technology.
Coaxial Speaker Technology
Every M6 coaxial loudspeaker starts with a long-excursion woofer designed with JL Audioās proprietary motor, suspension and cone modeling systems to yield superior frequency response, smooth mid-range dispersion and linear performance at all listening levels. JL Audioās acoustics laboratory in Miramar, Florida performs extensive testing on multiple generations of prototypes to refine every design and extract maximum performance.
Matching Silk-Dome Tweeters
Since the different size woofers in the M6 coaxials have different upper frequency response limits, each size pairs with its own specially designed, matching silk dome tweeter (0.8, 1.0, or 1.25-inch diameter). Each of these tweeters is precisely tuned via a rear cavity that optimizes its mid-range extension to seamlessly transition with its matching woofer. The result is smooth, evenly dispersed sound throughout the critical crossover region, making the overall sonic presentation clean and clear.
Advanced Built-In Crossover Networks
Crossover networks are a critical part of the M6 coaxial speakersā acoustic design and are considerably more sophisticated than those used in most marine coaxial speakers. The M6-650X employs a 1st order low-pass and 2nd order high-pass filter, while the M6-770X and M6-880X apply a 2nd order low-pass and 3rd order high-pass filter. Each crossover network also employs an electronic tweeter protection circuit to minimize the possibility of tweeter failure.
The multiple components required inthese crossovers are laid out on a ring-shaped circuit board that is built into each speakerās terminal assembly, ensuring that the crossover is secure and protected from the elements.
Like all JL Audio marine speakers, this system is weatherproof and built to deliver years of listening enjoyment.
Sold as a pair and come in a plain brown box.
General Specifications
| Continuous Power Handling (RMS) | 75 W |
| Recommended Amplifier Power (RMS) | 25 - 150 W / Ch. |
| System Efficiency | 89.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ī© |
| System Frequency Response | 100 Hz - 25 KHz Ā± 3 dB |
Physical Specifications
| Enclosure Diameter (A) | 7.03 in / 179 mm |
| Enclosure Depth (B) | 6.17 in / 156 mm |
| Height including Mounting Clamp Receiver* (C) | 7.27 in / 185 mm |
| Mounting Clamp Receiver / Enclosure Offset (D) | 0.20 in / 5 mm |
1x Clarion XC2410 300 Watt 4-Channel Class-D Marine Amplifier - (XC2410)
Clarion amplifiers feature uncompromising resistance to magnetic noise, thereby minimizing distortion, as well as high quality terminals to offer low electrical and contact resistance. Easy subwoofer system configuration is possible with the embedded high pass filters. The result is high quality sound you can enjoy in a variety of systems. By utilizing corrosion resistant RCA and Connectors, XC series amplifiers offer improved durability and reliability in harsh environments. The XC series amplifiers are true marine amplifiers with efficient aluminum heatsinks and locking power terminals for the harsh marine conditions. Thereā s only one way for Clarionā s main units to deliver unyielding power output and linearity: MOS-FET amplification, or Metal Oxide Semiconductor Field Effect Transistor amplification. Smaller and more efficient than conventional power supplies, a MOS-FET amplification circuit delivers power with less distortion and zero On/Off switching noise. This means you can crank up the volume or set it to easy listening. Either way, your sound will be crystal clear.
Specifications:
400 Watts of Maximum Power Output
50 Watts Ć 4 Continuous @ 4-Ohms
75 Watts Ć 4 Continuous @ 2-Ohms
150 Watts Ć 2 Continuous @ 4-Ohms Bridged
Double Side Conformal Coated PCB Assembly
MOS-FET Power Supply
12dB/Oct. High Pass Electronic Crossover. Variable 15 - 250Hz (FR/RR)
Variable Gain Control
Turn-On/Off Muting Circuitry (Soft Mute)
Ground Loop Isolation Input Circuit
Corrosion Resistant Nickel Plated RCA, Power, and Speaker Connections
RCA and High Level Speaker Inputs
