Description
Included in this kit
This bundle includes a JL Audio 10-Inch M6 Marine Infinite Baffle Subwoofer, Gloss White, Sport Grille - SKU: M6-10IB-S-GwGw-4, a JL Audio MX500/1 500 watt mono Marine/Power Sports grade amplifier, a Metra MLAK8-20 4GA Marine Amp Kit 20ft w/50A Waterproof/Protected Breaker, and a JL Audio XMD-WHTAIC2-6:2-Channel 6 ft (1.83 m) Marine Audio Interconnect.
1x JL Audio 10-Inch M6 Marine Infinite Baffle Subwoofer, Gloss White, Sport Grille - SKU: M6-10IB-S-GwGw-4 - (M6-10IB-S-GwGw-4-K)
JL Audio M6-10IB-S-GwGw-4
JL Audio 10-Inch M6 Marine Infinite Baffle Subwoofer, Gloss White, Sport Grille - SKU: M6-10IB-S-GwGw-4
M6 Loudspeakers fulfill JL Audioās commitment to raise the bar with each product generation. The JL Audio engineering team has completely reinvented the premium marine loudspeaker, with major improvements in performance, precision and durability. Offered in multiple sizes and cosmetic options, most models are also available with a brilliant, new lighting technology.
Advanced Subwoofer Technologies
Offered in 8-inch and 10-inch diameters, M6 subwoofers continue JL Audioās tradition of building low-frequency drivers that impress, not only with their output capability, but also with the quality and balance of their sound. FEA-optimized motor and suspension designs are optimized for infinite-baffle installation (IB models), or for installation into small sealed enclosures (W models). Choose the right one for your application and it will reward you with powerful, low-distortion sub-bass that takes your marine audio experience to a higher level.
Physical Specifications
| Nominal Diameter | 10 in / 250 mm |
| Outer Diameter | 10.75 in / 273 mm |
| Bolt Hole Circle | 9.7 in / 247 mm |
| Frontal Grille Protrusion | 1.66-Inches for Classic Grille, 1.66-Inches for Sport Grille |
| Mounting Hole Diameter | 8.875 in / 225 mm |
| Net Weight | 12.6 lbs / 5.7 kg |
| Driver Displacement | .052 ft^3 / 1.47 liters |
Subwoofer Parameters
| Free Air Resonance (Fs) | 43.76 Hz |
| Electrical āQā (Qes) | 0.907 |
| Mechanical āQā (Qms) | 11.315 |
| Total Speaker āQā (Qts) | 0.840 |
| Equivalent Compliance (Vas) | 0.98 ft3 / 27.75 litres |
| One-way, Linear Excursion (Xmax) | 0.52 in / 13.2 mm |
| Efficiency (1W/1m) | 86.1 dB SPL |
| Effective Piston Area (Sd) | 50.11 inĀ² / 0.0323 mĀ² |
| DC Resistance (Re) | 4.543 ohm |
| Nominal Impedance | 4 Ohm |
| Infinite Baffle Use | Yes |
| Enclosure Use | Yes (Sealed & Ported) |
| Power Handling (continuous) | 250W |
1x JL Audio MX500/1 500 watt mono Marine/Power Sports grade amplifier - (MX500/1)
JL Audio MX500/1
Engineered specifically for powersports applications, the MX500/1 monoblock amplifier employs our high-speed NexDā¢ switching design to pack a serious audio punch, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATVās or other utility vehicles.
With a robust 500W of clean power into a 2-ohm load (14.4V, 1% THD), use one to drive a subwoofer, or grab a pair to deliver stunning output to a subwoofer system. The MX500/1 also features an adjustable low-pass crossover, a bass boost EQ, variable infrasonic filter and output polarity switch.
Its dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. With the addition of an M-RBC-1 remote level control (sold separately), subwoofer output can be directly controlled from the driverās seat.
Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ī© | 300 W RMS x 1 |
| @ 3 Ī© | 400 W RMS x 1 |
| @ 2 Ī© | 500 W RMS x 1 |
| @ 1.5 Ī© | N/A |
Rated Continuous (RMS) Power @ 12.5 V
| @ 4 Ī© | 250 W RMS x 1 |
| @ 3 Ī© | 300 W RMS x 1 |
| @ 2 Ī© | 400 W RMS x 1 |
| @ 1.5 Ī© | N/A |
General Specifications
| Frequency Response | 20 Hz - 12 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >97 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >70 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ī© | >115 / 50 Hz |
| Damping Factor @ 2 Ī© | >54 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ī© |
| Input Voltage Range @ RCA Inputs | Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 50 A (AFS, AGU or MaxiFuseā¢) |
Signal Processing
| Filter Mode(s) | Low-Pass only |
| Filter Slope(s) | 24 dB/octave |
| Filter Frequency Range | 40 Hz - 400 Hz |
| Detented, Calibrated Filter Freq. Potentiometer | Yes |
| Filter Defeat Function | Yes |
| Infrasonic Filter | 20 Hz - 40 Hz, variable |
| Bass Boost EQ | 0 to +12 dB @ 43 Hz |
| Output Polarity Switch | Yes |
| Remote Subwoofer Level Control | Optional (M-RBC-1) |
| Remote Bass EQ Boost Control | No |
| Pass-Through Preamp Output | None |
Physical Specifications
| Height (H) | 1.77 in / 45 mm |
| Width (W) | 9.33 in / 237 mm |
| Depth (D) | 4.50 in / 115 mm |
1x Metra MLAK8-20 4GA Marine Amp Kit 20ft w/50A Waterproof/Protected Breaker - (MLAK8-20)
Power your marine amplifier with a wiring kit that can withstand the harsh environment and still deliver full sound performance. Fully tinned wiring ensures that these amp kits wonāt corrode or oxidize and turn green after a season on the water. Oxygen-free copper provides a reliable connection with maximum conductivity. By using 100% virgin copper the tin wonāt flake off, something commonly seen when using recycled copper materials. While it is also common to tin just the tips of the wire for cost savings, this practice does not actually provide any benefits. Metraās amp kits use fully tinned copper wire from top to bottom that can withstand a harsh marine environment and salty air. The ignition-protected 50-amp circuit breaker is IP67 rated with stainless steel connection points for corrosion resistance
Marine compliant amplifier wiring kit
Fully tinned 100% virgin copper wire
BC5W2 marine compliant jacket
50-amp marine circuit breaker is rated IP67 with stainless steel connection points for corrosion resistance
Easy to solder tinned wiring
Connectors, ring terminals, and wire ties included
Whatās in the box:
(1) 8-gauge tinned oxygen-free copper side-by-side red power and yellow ground wire (20ft.)
(1) 18-gauge tinned oxygen-free copper blue remote turn-on wire (18ft.)
(2) 8-gauge ring terminal with shrink tube and logo, pre-terminated on each end of the 2ft. red wire
(1) 8-gauge ring terminal with shrink tube and logo, pre-terminated on 18ft. red wire
(1) 8-gauge ring terminal with shrink tube and logo, pre-terminated on yellow wire
(1) Ignition protected circuit breaker (50-amp)

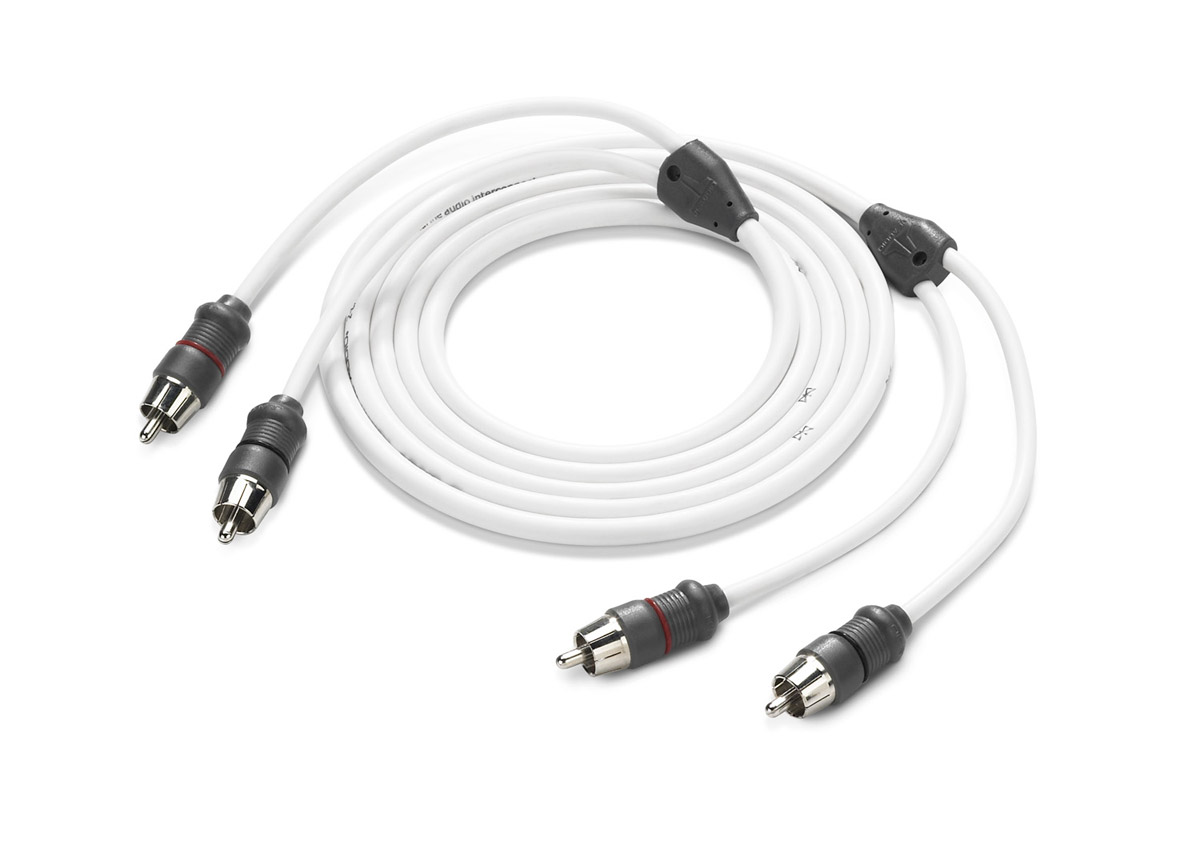

1x JL Audio XMD-WHTAIC2-6:2-Channel 6 ft (1.83 m) Marine Audio Interconnect - (XMD-WHTAIC2-6)
JL Audio XMD-WHTAIC2-6:Ā 2-Channel 6 ft (1.83 m) Marine Audio Interconnect
2-channel Marine Audio Interconnect Cable - 6 ft. (1.83 m)
Twisted-Pair Construction to Reject Noise
Pure OFC Copper Conductors with Polyethylene Dielectrics
Molded Connector Bodies
Machined Brass Connector Elements
