Description
Included in this kit
This bundle includes 4x JL Audio MC-7CSC5-4-TW 7.7" M-Series Cockpit Component Woofer White Classic Grille, OEM brown box packaged - Sold Individually, and 2x JL Audio M6-100CT-CS-GwGm M6 Series 1-Inch Marine Component Tweeters, Pair, Gloss White & Gray Metallic.
4x JL Audio MC-7CSC5-4-TW 7.7" M-Series Cockpit Component Woofer White Classic Grille, OEM brown box packaged - Sold Individually - (MC-7CSC5-4-TW)
JL Audio MC-7CSC5-4-TW
JL Audio MC-7CSC5-4-TW 7.7" M-Series Cockpit Component Woofer White Classic Grille, OEM brown box packaged - Sold Individually
This product comes in a plain brown box with no branding and is for OEM installations.
Purpose-engineered and built for real marine duty, M-Series coaxial systems deliver maximum audio performance in any open-air boating environment.
The oversized 7.7-inch design of the M770-CCS component woofer results in increased efficiency (more output for a given amount of power). Combine that advantage with long excursion and excellent power handling and you have a speaker system truly capable of playing loud and clear in a powerboat at speed. The M770-CCS component woofer is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 57 l). If you need a system with a 7.7-inch component woofer that operates in a small sealed enclosure, select our M770-TCS, instead.
A 1-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. Silk has been chosen for its lightness, excellent damping properties and smooth response characteristics. You will appreciate the clean, articulate high-frequency response of the M-Series dome tweeter, especially at higher volume levels.
Although M770-CCS Component Systems can be used with as little as 40 W per channel, for best audio performance we recommend amplifiers capable of between 75-150W of continuous power per channel.
Sold as a pair.
General Specifications
| Continuous Power Handling (RMS) | 100 W |
| Peak Music Power | 225 W |
| Recommended Amplifier Power (RMS) | 40 - 175 W / Ch. |
| System Efficiency | 91.0 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 45 Hz - 25 KHz ± 3 dB |
Woofer Physical Specifications
| Frame Outer Diameter (A) | 7.70 in / 196 mm |
| Bolt Hole Circle Diameter (B) | 6.92 in / 176 mm |
| Motor Outer Diameter (C) | 4.41 in / 112 mm |
| Frontal Grille Protrusion* (D) | 0.99 in / 25 mm |
| Mounting Hole Diameter (E) | 6.25 in / 159 mm |
| Mounting Depth (F) | 3.15 in / 80 mm |
Tweeter Physical Specifications
| Flush Mount Fixture Diameter (A) | 2.38 in / 60 mm |
| Flush Mount Mounting Hole Diameter (B) | 1.875 in / 48 mm |
| Flush Mount Mounting Depth (C) | 0.70 in / 18 mm |
| Surface Mount Mounting Hole Diameter (D) | 2.44 in / 62 mm |
| Surface Mount Protrusion (E) | 1.02 in / 26 mm |

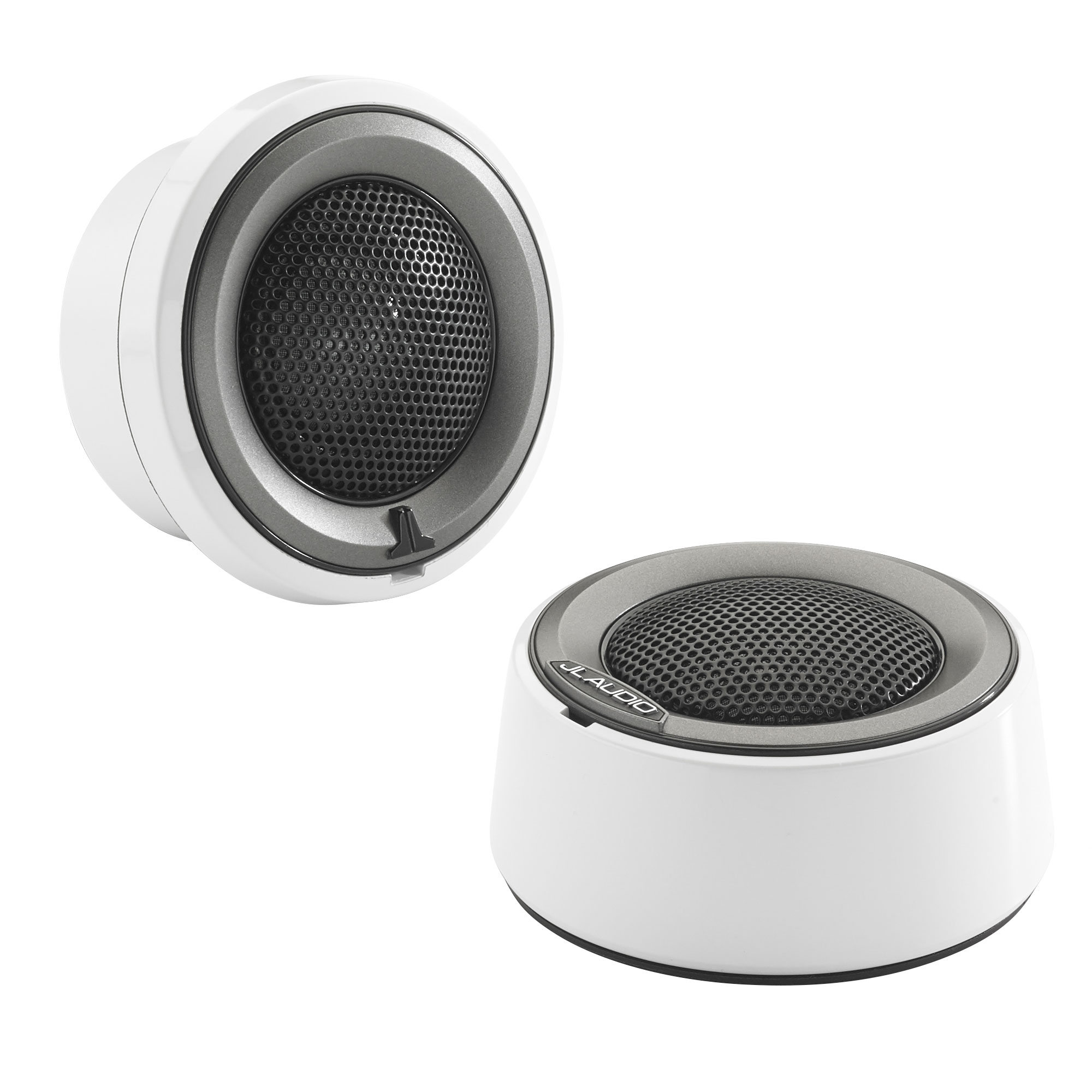

2x JL Audio M6-100CT-CS-GwGm M6 Series 1-Inch Marine Component Tweeters, Pair, Gloss White & Gray Metallic - (M6-100CT-CS-GwGm)
JL Audio M6-100CT-CS-GwGm
M6 Series 1-Inch Marine Component Tweeters, Pair, Gloss White & Gray Metallic - Includes Classic & Sport Grille Trim Rings
The reference in high-frequency, marine audio performance, with beautiful styling and comprehensive mounting options.
Engineered for Real Marine Duty
- Corrosion and UV-resistant materials used throughout; specially formulated dome diaphragm exceeds industry standards for salt-fog and UV exposure. These are saltwater-rated products that you can use with confidence.
World-Class Sound Quality
- High-efficiency design with neodymium motor system produces powerful, smooth sound in real-world, open-air, marine environments.
- 1.00-inch (25 mm) silk dome diaphragm delivers high output, wide dispersion and sparkling high frequency detail
- Designed to operate with quality amplification, such as the JL Audio marine amplifiers; also operates with head unit power
Advanced Crossover Networks with Electronic Tweeter Protection
- Outboard, 3rd order, high-pass filter optimized for superior output and high-frequency detail
- Automatic, solid-state circuit monitors tweeter current to minimize the possibility of tweeter failure
Choose Your Looks
- Available in three finishes: All Gloss White, Gloss White/Gray Metallic and Gray Metallic/Titanium
- Includes “Classic” and “Sport” badge trim rings
- Includes flush-mount and surface-mount fixtures
Sold as a pair.
General Specifications
| Continuous Power Handling (RMS) | 75 W |
| Peak Music Power* | 225 W |
| Recommended Amplifier Power (RMS) | 10 - 75 W / Ch. |
| System Efficiency | 91.0 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 4.8 kHz - 25 KHz ± 3 dB |
Tweeter Physical Specifications
| Flush Mount Fixture Diameter (A) | 2.61 in / 66 mm |
| Flush Mount Mounting Hole Diameter (B) | 2.125 in / 54 mm |
| Flush Mount Mounting Depth (C) | 0.80 in / 20 mm |
| Surface Mount Mounting Hole Diameter (D) | 2.67 in / 68 mm |
| Surface Mount Protrusion (E) | 1.27 in / 32 mm |
