Description
Included in this kit
This bundle includes an iDatalink ACC-HU-KEN1 Head Unit Adapter 22 Pin Harness For Kenwood Radios, a JVC KW-Z800AW Direct Replacement Digital Media Receiver featuring 8.0" HD Screen / Apple CarPlay® (Wireless, Wired) / Android Auto™ (Wireless, Wired) / HDMI Input / 4-Cam Input / HD Camera Input / High-Resolution Audio / iDatalink Maestro Ready, an Idatalink Maestro ADS-MRR2 Maestro RR - Universal Radio Replacement and Steering Wheel Interface, and an iDatalink APX-S8-FO2 APX 8" Radio Installation Kit For Select Older Ford Vehicles.
1x iDatalink ACC-HU-KEN1 Head Unit Adapter 22 Pin Harness For Kenwood Radios - (ACC-HU-KEN1)
Head unit adapter that allows a plug n play connection between select Kenwood and JVC radios and a compatible Maestro T Harnesses.

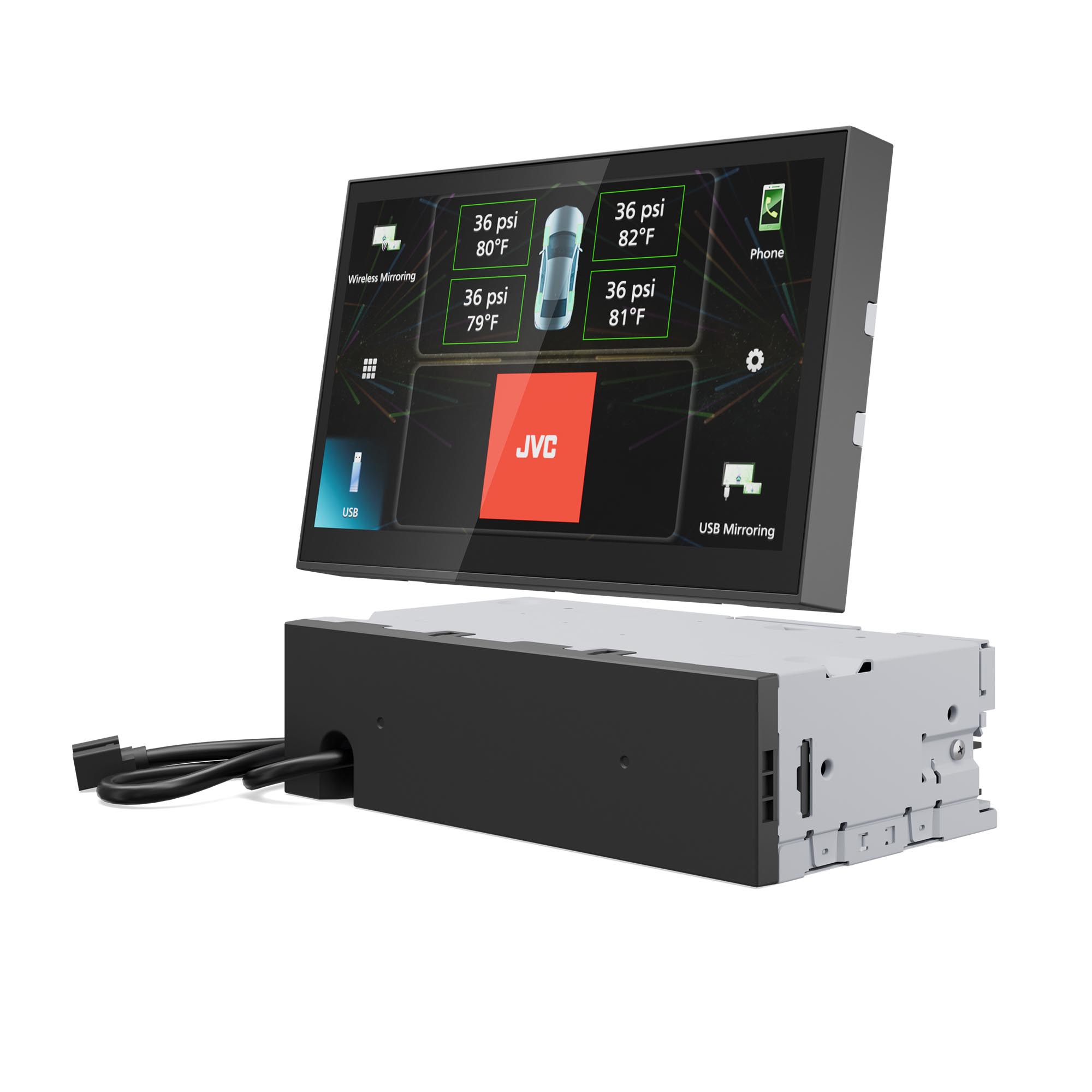

1x JVC KW-Z800AW Direct Replacement Digital Media Receiver featuring 8.0" HD Screen / Apple CarPlay® (Wireless, Wired) / Android Auto™ (Wireless, Wired) / HDMI Input / 4-Cam Input / HD Camera Input / High-Resolution Audio / iDatalink Maestro Ready - (KW-Z800AW)
Monitor
High Definition Monitor: Yes
Screen Size: 8.0"W HD Screen
Touch Panel: Capacitive
Gesture Touch Control: Yes
Dimmer: Yes
Multilingual Display: Yes
Live Wallpaper: Yes
Bluetooth Control
Built-in Bluetooth: Yes (Version 5.2, Wired-Mic included)
Hands Free Call: Yes (HFP1.7)
2 Phones Full-Time Connection: Yes
Audio Streaming & Control (A2DP, AVRCP): Yes
Supported Audio Formats: AAC / SBC
5 BT-Audio Connection: Yes
Voice Dialing (voice recognition compatible mobile phone required): Yes
Phone Book Access Profile (PBAP): Yes
Alphabetical Search for Phone Book: Yes
Android Control
Android Auto: Yes (via Wi-Fi or USB)
Mirroring for Android: Yes (via WiFi)
iPod/iPhone Control
CarPlay: Yes (via Wi-Fi or USB)
Audio
Maximum Power Output (Front & Rear): 50Wx4
Full Bandwidth Power (Front & Rear): 22W x 4 (Full Bandwidth Power, at less than 1% THD)
EQ: Yes (13-Band Graphic EQ)
Preset EQ: Yes (8 Preset + 4 user)
Bass Boost: Yes
High-Pass Filter/Low-Pass Filter: Yes/Yes
3-Way X'over: Yes
High-Resolution Audio: Yes
K2 Technology: Yes
Space Enhancement: Yes
Sound Response: Yes
Sound Lift: Yes
Volume Link EQ: Yes
Time Alignment: Yes
Inputs and Outputs
AV Input: RCA (AV-IN or Camera Input switchable)
Video Out: RCA
HDMI Terminal: Yes
Camera Input: Max 4 inputs (including AV- IN's assignable input)
Line Output Terminals: 3 Pairs (Front + Rear + Subwoofer)
Pre-output Level/Impedance: 4V
Subwoofer Output with Level/Frequency Control: Yes
General
iDatalink Maestro Ready: Yes
JVC Portal App: Yes
Remote Control Application: Yes
Face Type
Viewing Angle Adjustment: Yes (0 - 20 degree, default : 0 degree) 4 steps
Wireless Remote Control: Yes (Included)
Steering Remote Control Ready: Yes
Dimensions (W x H x D)
Installation Size: Chassis: 7" x 2" x 4-1/8" (178 x 50 x 105 mm) Monitor: 7-1/2" x 4-3/4" x 1-1/8" (190 x 120 x 28 mm)
Weight: 3.1 lbs.(1.4kg)
Unit weight in individual package: 2.1kg
1x Idatalink Maestro ADS-MRR2 Maestro RR - Universal Radio Replacement and Steering Wheel Interface - (ADS-MRR2)
Advanced radio replacement interface compatible with over 3000 vehicles 2003 and up. Maestro RR2 offers the same exclusive infotainment retention and exclusive screens as the Maestro RR while adding support for additional vehicles and enabling Bluetooth programming directly from your iOS and Android mobile device. Basic radio retention features are also available with non-iDatalink-compatible radios. Some accessories and aftermarket radio are required and sold separately.
1x iDatalink APX-S8-FO2 APX 8" Radio Installation Kit For Select Older Ford Vehicles - (APX-S8-FO2)
APX 8" radio installation kit for select Ford vehicles
Vehicle coverage
Works with 8" screen
F150 2009-2012
Flex 2009-2012
Fusion 2010-2012
Mustang 2010-2014
MKS 2009-2012
MKT 2010-2012
MKZ 2010-2012
Works with 10.1" screen
F150 2009-2012
Flex 2009-2012
Fusion 2010-2012
Mustang 2010-2014
MKS 2009-2012
MKT 2010-2012
MKZ 2010-2012
