Description
Included in this kit
This bundle includes 2x Kenwood CA-121G Subwoofer grille for KFC-W3041, a Kenwood XR1001-1 Reference Fit Mono Power Amplifier with 1000W x 1 output at 2 ohms, 2000W maximum power, Bass Knob Included, Speaker level Inputs and Signal Sensing Turn On, and 2x Kenwood KFC-XW1241HP 12" Subwoofer, High Power Class, 2000W Max Power.

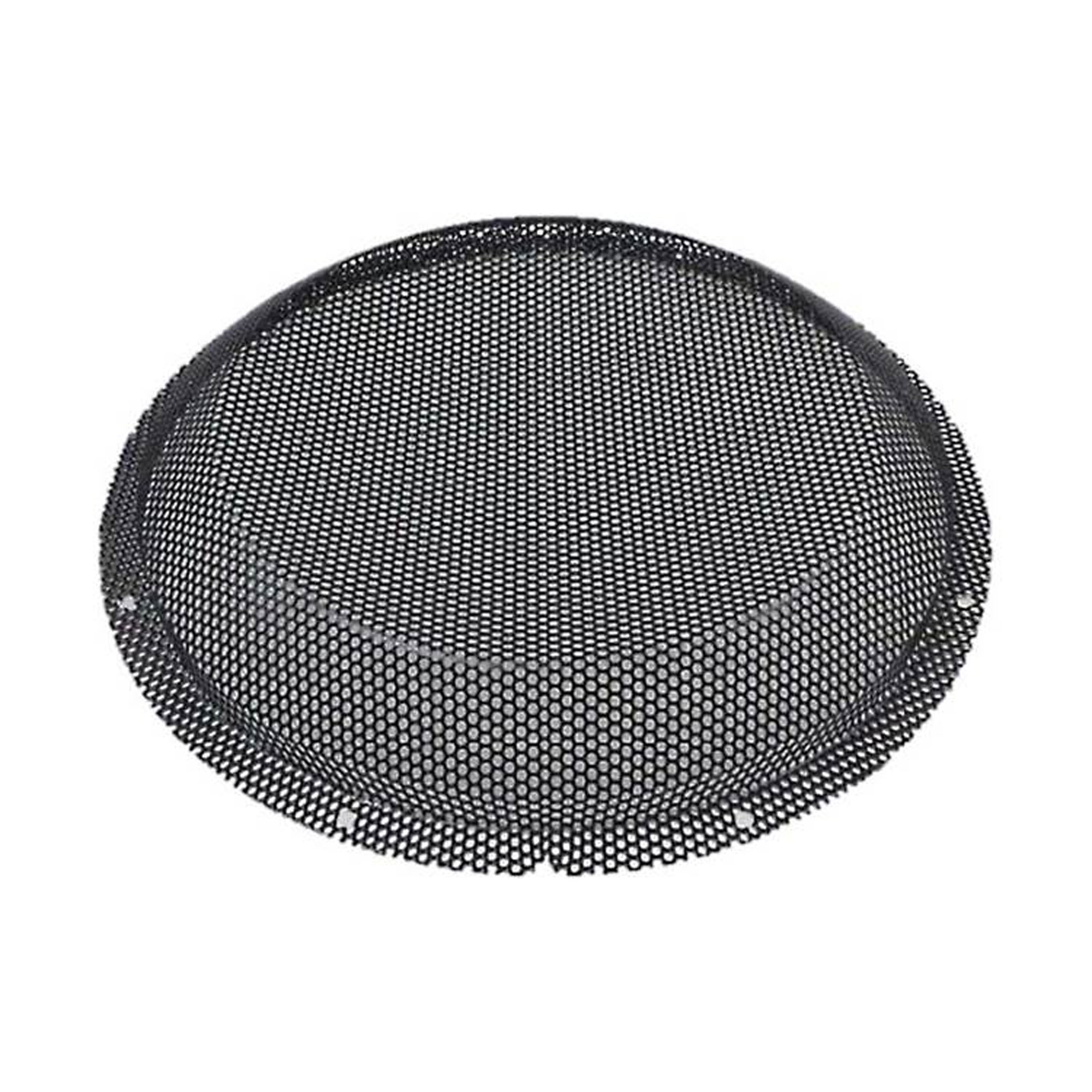

2x Kenwood CA-121G Subwoofer grille for KFC-W3041 - (CA-121G)
Grill for Kenwood's KFC-W3041, KFC-XW1241HP, KFC-XW1221HP, or KFC-XW1241 12" subwoofers
1x Kenwood XR1001-1 Reference Fit Mono Power Amplifier with 1000W x 1 output at 2 ohms, 2000W maximum power, Bass Knob Included, Speaker level Inputs and Signal Sensing Turn On - (XR1001-1)
Kenwood's Excelon Reference Series XR1001-1 mono amplifier can power your subwoofer with up to 1,000 watts RMS. (That's a real world rating, not that inflated number you find printed on some amps.) An advanced circuit design and upgraded components virtually eliminate noise and maximize sound quality. Even better, the XR1001-1 can fit into many different places in your car because of its incredibly low profile — it's only 2" tall.
Features -
• Class D
• Dual Σdrive
• Speaker Level Input
• Signal Sensing Turn-on
• Terminal Cover
• Cooling Fan
• Power MOS-FET Switching Power Supply
• Extruded Aluminum Heat Sink Design
• Line Output Terminals for Extension
Specifications -
• Signal to Noise Ratio 100dB (Reference: Rated Power into 4Ohms at 14.4V)
• Frequency Response 20Hz-200Hz (+0dB, -3dB)
• Input Impedance 10k ohm
• Speaker Impedance Bridged connection 4Ω (2Ω to 8Ω allowable)
Audio Section -
• Low-Pass Filter Built in Variable Low-Pass Filter (50Hz-200Hz, -12/-24dB/oct)
• Infrasonic Filter Built in Variable Infrasonic Filter (15Hz-40Hz, -24dB/oct)
• Bass Boost Built in Bass Boost Control (40Hz, 0dB-+18dB)
• RCA Input Sensitivity 0.2[V] - 5.0[V]
• Speaker Level Input Sensitivity 4.0[V] - 12.0[V]

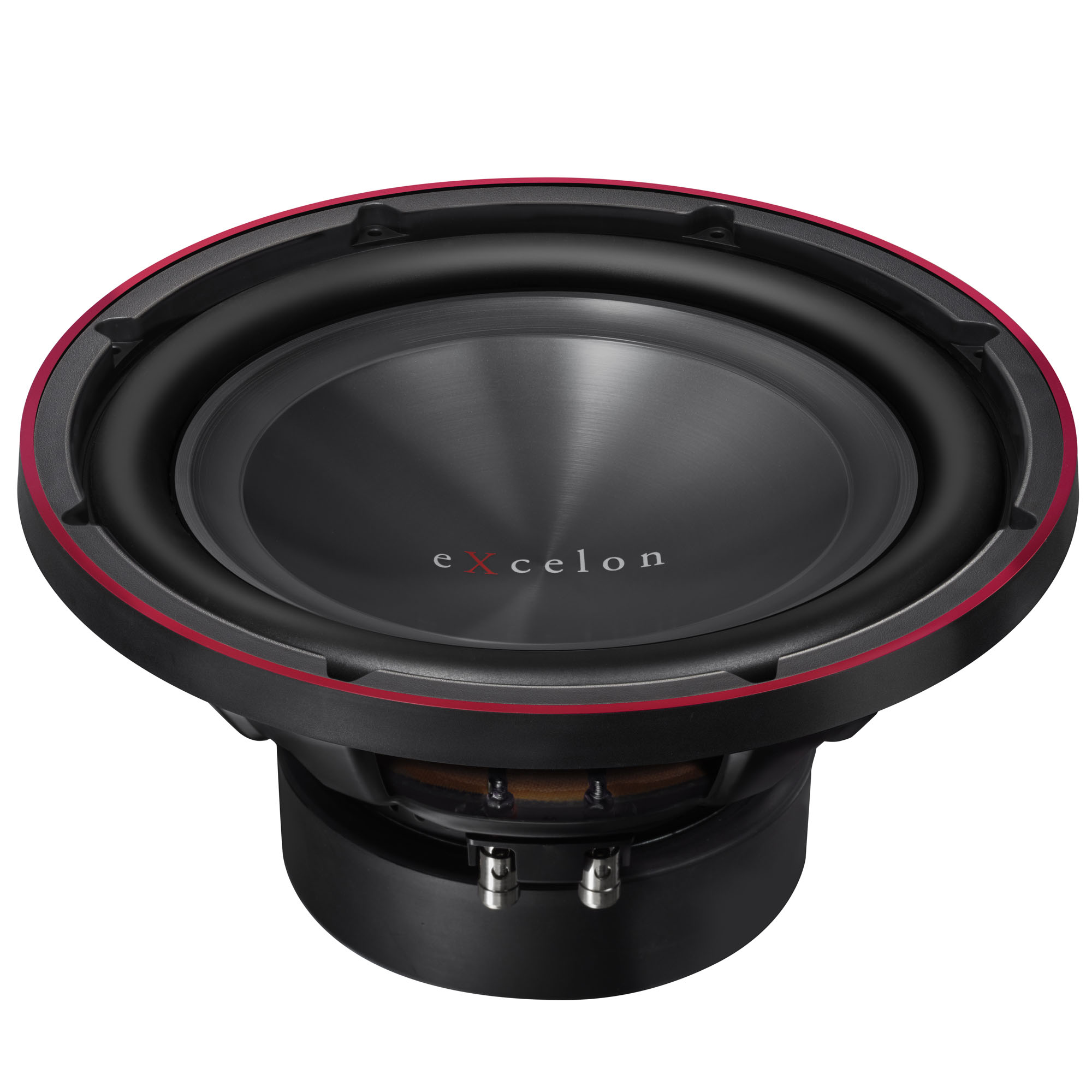

2x Kenwood KFC-XW1241HP 12" Subwoofer, High Power Class, 2000W Max Power - (KFC-XW1241HP)
The KFC-XW1241HP sub features a two-piece polypropylene cone with the rigidity you need to minimize distortion for maximum impact. This 4-ohm sub handles up to 500 watts RMS, so it's a perfect match for the Kenwood Excelon XR1001-1 mono amp. This speaker works in enclosures as small as 1.25 cubic feet, and you can install it in either sealed or ported boxes. The CA-121G steel-mesh grille (sold separately) protects your sub from accidental damage. When you're looking for the impact you need for all kinds of music, this sub is ready to rock.
Features -
• Peak Power 2000W
• PP Dual Area Cone
• Closed Yoke with Advanced Airflow Control
• Stress Controlled Spider
• Robust Thermal Management System
• Impedance (Ω): 4
• Peak Input Power (W): 2000
• RMS Power (W): 500
• Sensitivity (dB at 1m): 83
• Frequency Response (Hz): 26 ~ 300
Accessory -
• Tapping Screw Φ4 x 35, 8pcs
• Polyethylene Foam 1000 x 13 mm
• Instruction Manual
• Warranty Card
