Description
Included in this kit
This bundle includes a Kenwood X503-1 eXcelon Class D Mono Power Amp, 500Wx1 @ 2 ohms, 2x Kenwood KFC-XW1041 10" Subwoofer, Oversized Cone 600W Max Power, a Wavtech linkDQ - 2-Channel Line Output Converter & Line Driver with PEQ and remote capable, and a Stinger SS600XS 8GA Copper 600W Complete Wiring Kit, Blue.
1x Kenwood X503-1 eXcelon Class D Mono Power Amp, 500Wx1 @ 2 ohms - (X503-1)
Kenwood X503-1 Class D Mono Power Amplifier
The Kenwood X503-1 is a powerful and efficient mono amplifier designed to deliver precise and impactful bass. Compact and loaded with advanced features, this amplifier enhances your audio system with clean, powerful sound and versatile control options.
Key Features and Specifications
Power Output:
RMS Power: 300W @ 4Ω, 500W @ 2Ω
Max Power: 1000W
Compact Design:
Dimensions: 8-3/8" (W) x 2-1/16" (H) x 5-7/8" (D)
Weight: 3.3 lbs (1.5 kg)
Advanced Filters:
Variable Low Pass Filter for precise bass tuning.
Infrasonic Filter cuts off frequencies below 25Hz, improving amplifier efficiency and delivering clean bass output.
Bass Boost Control:
Adjustable bass boost for enhancing low-frequency impact.
High-Quality Components:
Output Coil with Magnetic Shield reduces noise and improves sound clarity.
PMLCAP (Polymer Multi-Layer Capacitors) minimize distortion, ensuring true-to-life sound.
User-Friendly Features:
Speaker Level Input Harness for seamless connection to factory-installed receivers.
Gauge-Style Terminals with set screws for secure and reliable wiring.
One-Side Connection design for easy installation and a clean look.
Wired Remote Included for convenient subwoofer volume adjustments.
Controls and Inputs
Input sensitivity control.
Infrasonic filter switch.
Bass boost level control.
Low Pass Filter (LPF) frequency control.
Speaker level input and line-in terminals for versatile connectivity.
The Kenwood X503-1 Class D Mono Power Amplifier delivers high-efficiency power and clean bass performance in a compact design. Ideal for enhancing any audio system, it offers precise control, advanced filtering, and durable components to ensure exceptional sound quality. Perfect for those who demand powerful, clear, and responsive bass.

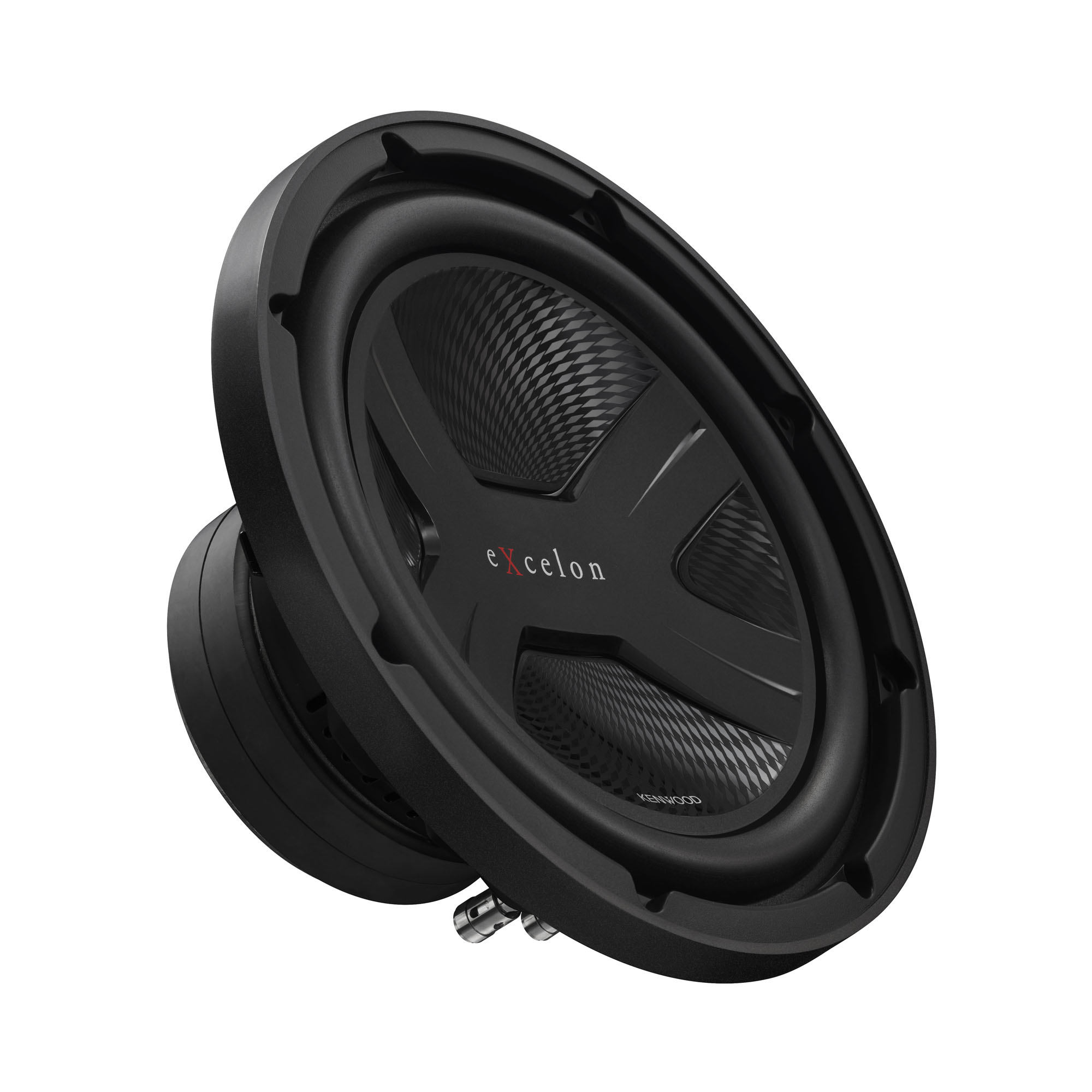

2x Kenwood KFC-XW1041 10" Subwoofer, Oversized Cone 600W Max Power - (KFC-XW1041)
The KFC-XW1041 sub features a two-piece polypropylene cone with Kenwood's X-Motif design and patterned surface for added rigidity, so you'll get maximum performance with minimal distortion. The sub handles up to 300 watts RMS and works in sealed or ported enclosures as small as 0.65 cubic feet. The CA-101G steel-mesh grille (sold separately) protects your speaker from accidental damage. When you're looking for the impact you need for all kinds of music, this sub is ready to rock.
Features -
• Peak Power 1300W
• PP X-motif Cone with Diamond Array Pattern
• Closed Yoke with Advanced Airflow Control
• Stress Controlled Spider
• Robust Thermal Management System
• Impedance (Ω): 4
• Peak Input Power (W): 1300
• RMS Power (W): 300
• Sensitivity (dB at 1m): 84
• Frequency Response (Hz): 33 ~ 300
Accessory -
• Instruction Manual
• Warranty Card
1x Wavtech linkDQ - 2-Channel Line Output Converter & Line Driver with PEQ and remote capable - (linkDQ)
How do you replace the best multifunction LOC and line driver on the market? That was the question our product development team was tasked with. It is even more challenging when you are actually replacing 3 models with 1. We took the best features of the linkD, the linkQ and the bassFREQ, and combined them. Welcome to the linkDQ.
The linkDQ has the same class leading LOC and line driver that are the core DNA of all Wāvtech products. The linkDQ features an adjustable parametric EQ with narrow or wide range selection, allowing corrections to any low frequency deficiency that may be present in a factory audio system. It features auto turn-on via DC-offset or Audio Signal Detect, either of which can be easily defeated by the convenient jumpers on the end panel.
We’ve also added an RJ45 port for easily upgrading to a remote level control (sold separately). This allows for fine tuning the systems bass output from the front of the vehicle.
linkDQ Features
2-Channel Line Driver or Line Output Converter (LOC)
Adjustable Parametric EQ
Selectable Narrow or Wide
Frequency Range 30Hz to 80Hz
Remote Level Control Ready (Sold Separately)
Differential Balanced Inputs
Low Impedance Outputs
Variable Gain Adjustment w/Clip LED
Auto Turn-On via DC-Offset or Audio Signal Detect
Generated +12V Remote Output
OEM Load Detect Compatible
Locking Detachable Power/Speaker Terminals
Professional Grade Panel Mount RCA’s
Compact Aluminum Chassis w/Detachable Mounting Tabs
linkDQ Specifications
Output Voltage (Max): >10Vrms
Output Impedance: <50Ω
Input Sensitivity
SPK: 2-20Vrms, 4-40Vrms
RCA: 0.5-5Vrms
Max Input Voltage (SPK): 40Vrms
Frequency Response: <10Hz to > 100kHz
THD+N (SPK/RCA): <0.04% / <0.04%
S/N (SPK/RCA): >115dBA / >116dBA
Parametric EQ (Boost/Freq): 0 to +12dB / 30-80Hz
Turn-On Trigger: +12V, DC-offset & Audio Detect
Generated +12V Output: >500mA
Chassis Dimensions: 1.1”x2.9”x3.5” (29x75x89.5mm)
1x Stinger SS600XS 8GA Copper 600W Complete Wiring Kit, Blue - (SS600XS)
Featuring full copper construction for excellent current transfer to power-hungry amplifiers. Quality twisted pair interconnects for noise-free signal transfer. Also includes ultra-flexible speaker wire, remote turn-on, water-resistant high current fuse holder and terminals for a complete installation package. All the necessary parts for installing your next 2 channel amplifier.
Includes:
17FT Translucent Blue Power Wire
3FT Translucent Silver Ground Wire
17FT Translucent Blue Twisted Pair RCA Interconnects
3FT Black flex loom tubing
16FT Blue Remote Turn-on Wire
20FT Translucent Speaker Wire
1pc AGU Fuseholder
