Description
Included in this kit
This bundle includes a Kicker 50CVX152 CompVX 15-Inch Subwoofer, Dual 2-Ohm, and a Kicker LX1250.1 1250w Mono Class-D Subwoofer Amplifier with Smart Bass (51LX12501).

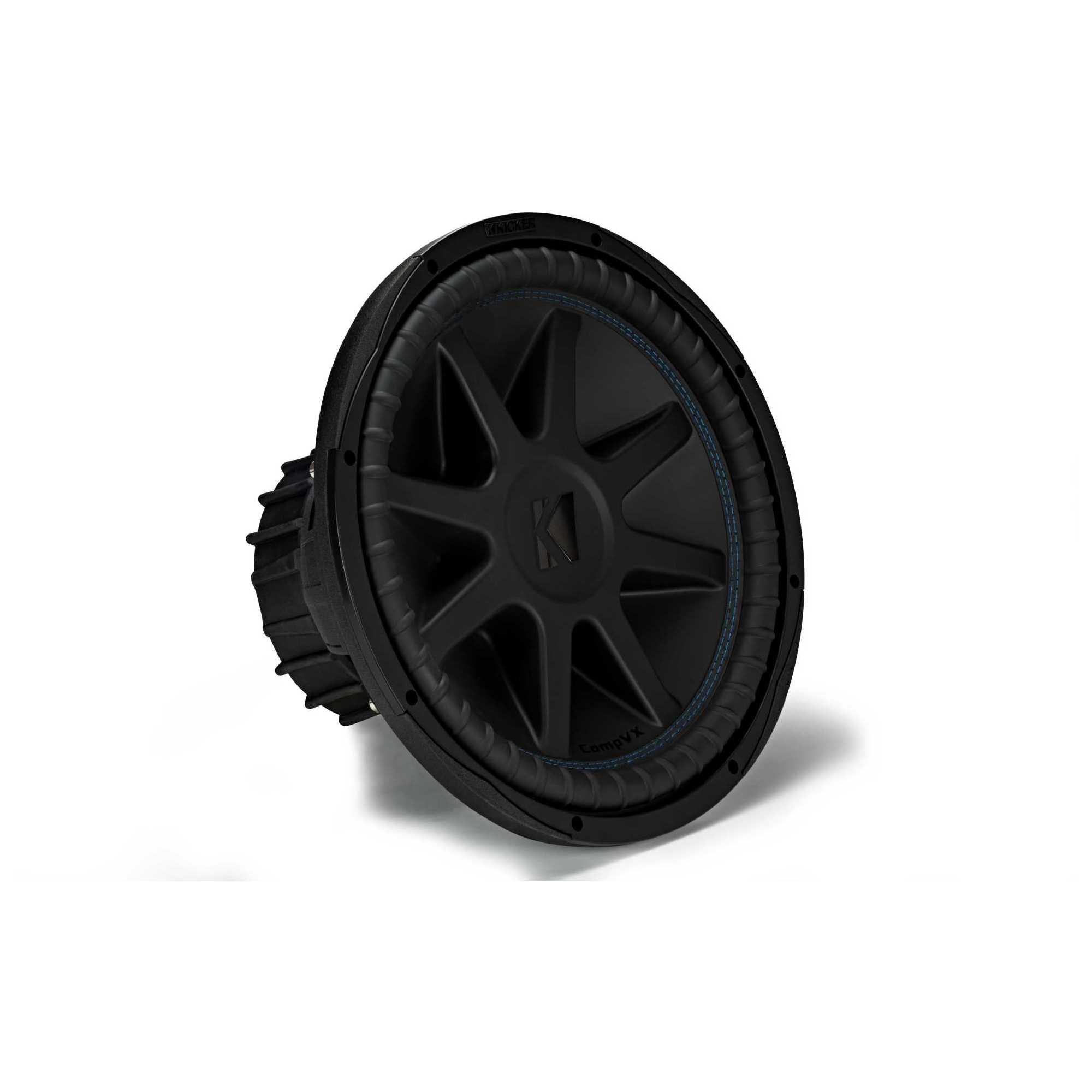

1x Kicker 50CVX152 CompVX 15-Inch Subwoofer, Dual 2-Ohm - (50CVX152)
High-temp dual voice coils deliver the power, while a solid pole piece provides more mass to subdue additional heat. A T-cut top plate creates a wider magnetic field for stronger bass response, and better sound. It all comes together to form a super-reliable motor structure found only in a KICKER subwoofer.
Features:
Dual Two-Ohm Voice Coils
Thick Polypropylene Cone
Signature Double Blue Surround Stitching
Ribbed SantopreneĀ® Surround
SoloKonā¢ Cone Reinforcement
Oversized Suspension System
High-Strength Insulated Tinsel Leads
High Temp Voice Coil
Perimeter Venting for Thermal Management
Massive Ceramic Magnet
UniPlateā¢ Extended Pole Piece & Backplate For Superior Heat Dissipation
Cast Aluminum Basket
Satin Nickel Spring-Loaded Speaker Terminals
Specifcations:
Size (IN.,CM): 15, 38
Impedance (OHMS): 2 DVC
Recommended Amplifier Power (watts RMS): 1000
Peak Power (watts, per ANSI/CTA-2031-A): 2000
Sensitivity (dB 1w/1m): 91.6
Frequency Response (Hz): 18-500
Mounting Depth (in, cm): 8-1/2, 21.5
Mounting Cutout (in, cm): 13-13/16, 35
Min Sealed Box Vol (cu. ft, L): 1.8, 51.0
Max Sealed Box Vol (cu. ft, L): 5.2, 147.0
Min Vented Box Vol (cu. ft, L): 3.0, 85.0
Max Vented Box Vol (cu. ft, L): 5.0, 142.0
What's in the box?
one 15-inch subwoofer, one owner's manual, two stickers
Thiele/Small Parameters
Re: 4.23 Ohm
Krm: 0.0151 Ohm WRIGHT inductance mode
Erm: 0.86 WRIGHT inductance mode
Kxm: 0.0657 Ohm WRIGHT inductance mode
Exm: 0.75 WRIGHT inductance mode
Cmes: 476.03 ĀµF
Lces: 78.73 mH
Res: 173.17 Ohm
fs: 26 Hz
Mms: 334.978 g
Mmd: 307.223 g
Rms: 4.064 kg/s
Cms: 0.112 mm/N
Kms: 8.94 N/mm
Bl: 26.527 Tm
Lambda: 0.006
Qtp: 0.408
Qms: 13.465
Qes: 0.329
Qts: 0.321
Vas: 113.052 I
n0: 0.581
Lm: 89.84 dB
Lnom: 89.6
rmse Z: 4.1 rmse Hx: 1.91
Sd: 844.96 cmĀ²
Xmax: 20.65 mm
1x Kicker LX1250.1 1250w Mono Class-D Subwoofer Amplifier with Smart Bass (51LX12501) - (51LX12501)
KICKER LX1250.1 Mono Amplifier
The KICKER LX1250.1 is built for those who demand deep, powerful bass with total control and efficiency. Designed from the ground up as part of the high-performance LX-Series, this monoblock amplifier delivers SQL-level precision with high-output power and cutting-edge features. Whether you're looking for tight, accurate bass or ground-shaking low frequencies, the LX1250.1 provides the power and customization needed to fine-tune your system.
Key Features:
- LX Remote Control (LXRC) included for fingertip bass level adjustment, real-time battery voltage monitoring, and SHOCwave2.0ā¢ digital bass restoration
- Class-D design for efficient power consumption, longer playtimes, lower heat generation, and reliable performance
- Gain-match LEDs ensure perfect gain settings for distortion-free sound and optimal system tuning
- KickEQ+ā¢ parametric bass boost with adjustable 0ā6dB gain, center frequency, and bandwidth for total bass customization
- FIT+ā¢ technology eliminates unwanted noise and accepts low- and high-level signals up to 40V for superior signal clarity
- Customizable appearance with a reversible center panel and 11 RGB LED accent colors to match any setup
Specifications:
- RMS Power @ 14.4V: 1250W @ 1Ī©, 750W @ 2Ī©, 400W @ 4Ī©
- Dynamic Power: 1600W
- Frequency Response: 10Hz - 160Hz (+0/-1dB)
- Signal-to-Noise Ratio: >95dB (rated power), >75dB (1W output)
- Variable Electronic Crossover: LP 40Hz - 160Hz, 24dB/octave Linkwitz-Riley
- Variable Subsonic Filter: 24dB/octave Linkwitz-Riley, adjustable 10Hz - 80Hz
- KickEQ+ā¢ Parametric Bass Boost: 0 - 6dB, variable center 20Hz - 80Hz, variable bandwidth 1 - 5
- Input Sensitivity: High level 1V - 40V, Low level 125mV - 5V
- Dimensions: Height 2-3/8", Width 8-7/16", Length 9-7/16"
The KICKER LX1250.1 Mono Amplifier is the ideal solution for those who want precision tuning, powerful bass, and advanced system control. With high-efficiency performance and premium features, this amplifier delivers deep, controlled low-end frequencies with unmatched clarity and impact.
