Description
Included in this kit
This bundle includes a Kicker LX3000.1 3000w Mono Class-D Subwoofer Amplifier with Smart Bass (51LX30001), and a Kicker 50CVX154 CompVX 15-Inch Subwoofer, Dual 4-Ohm.
1x Kicker LX3000.1 3000w Mono Class-D Subwoofer Amplifier with Smart Bass (51LX30001) - (51LX30001)
The KICKER LX3000.1 Mono Amplifier is built for those who demand extreme power and precision bass control. Designed as part of the high-performance LX-Series, this amplifier delivers SQL-level performance with high-efficiency Class-D technology. With 3000 watts of RMS power at 1Ī© and advanced tuning options, it provides unmatched low-end output while maintaining clarity and reliability. Whether you're looking for deep, clean bass or ground-shaking power, the LX3000.1 is engineered to meet your needs.
**Key Features:**
- LX Remote Control (LXRC) included for fingertip bass level adjustment, SHOCwave2.0ā¢ bass restoration, and real-time battery voltage monitoring
- Class-D design for maximum efficiency, lower heat output, and extended play times
- Gain-match LEDs ensure accurate gain settings for distortion-free performance and optimal system tuning
- KickEQ+ā¢ parametric bass boost with adjustable 0ā6dB gain, center frequency, and bandwidth for complete bass customization
- FIT+ā¢ technology eliminates unwanted noise and accepts low- and high-level signals up to 40V for superior signal clarity
- Customizable appearance with a reversible center panel and 11 RGB LED accent colors for a personalized look
**Specifications:**
- RMS Power @ 14.4V: 3000W @ 1Ī©, 2000W @ 2Ī©, 1100W @ 4Ī©
- Dynamic Power: 3800W
- Frequency Response: 10Hz - 160Hz (+0/-1dB)
- Signal-to-Noise Ratio: >95dB (rated power), >75dB (1W output)
- Variable Electronic Crossover: LP 40Hz - 160Hz, 24dB/octave Linkwitz-Riley
- Variable Subsonic Filter: 24dB/octave Linkwitz-Riley, adjustable 10Hz - 80Hz
- KickEQ+ā¢ Parametric Bass Boost: 0 - 6dB, variable center 20Hz - 80Hz, variable bandwidth 1 - 5
- Input Sensitivity: High level 1V - 40V, Low level 125mV - 5V
- Dimensions: Height 2-3/8", Width 8-7/16", Length 12-5/8"
The KICKER LX3000.1 Mono Amplifier is the ultimate choice for those seeking high-powered, distortion-free bass with advanced control options. Built for efficiency, reliability, and customization, this amplifier delivers deep, hard-hitting low frequencies with unparalleled clarity and impact.

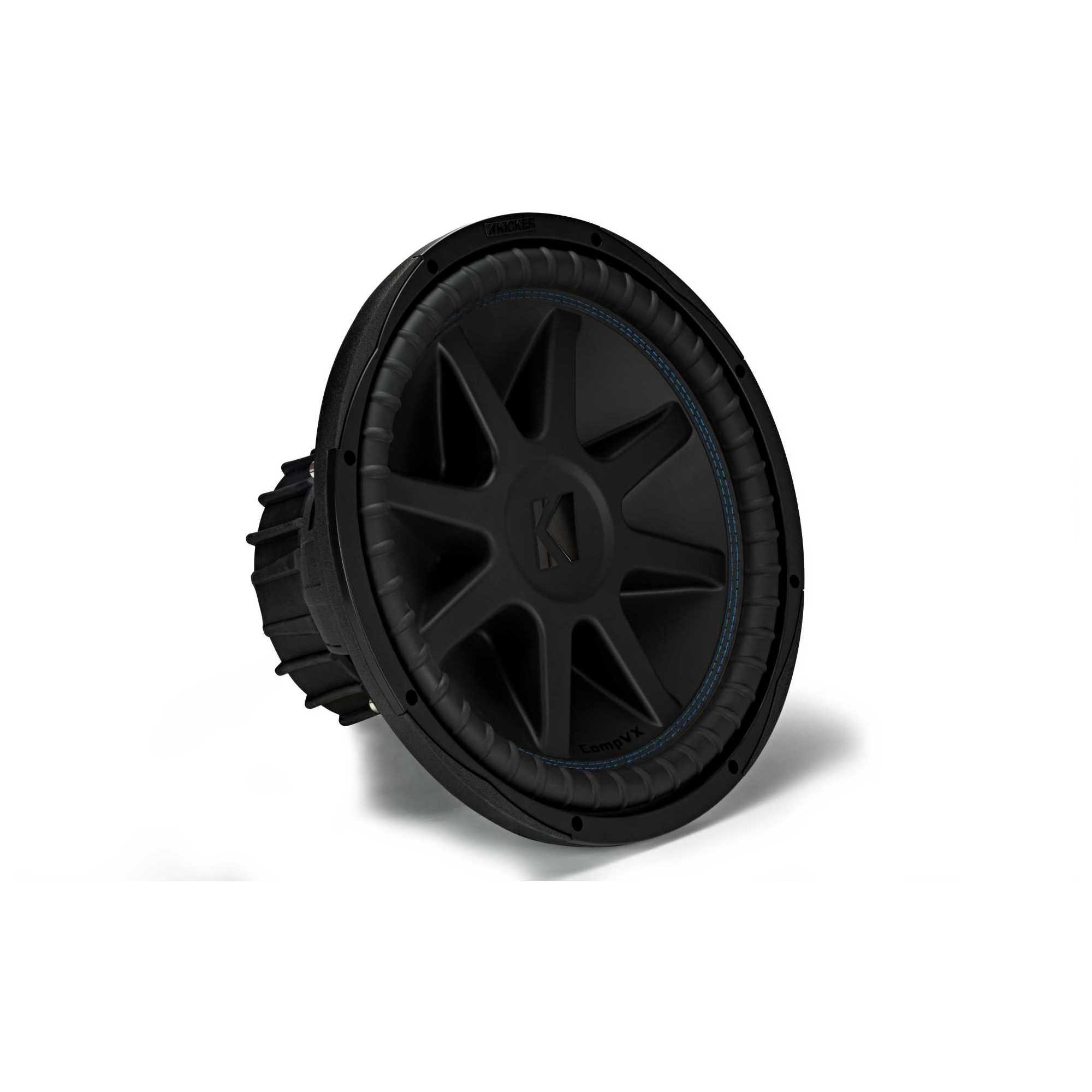

1x Kicker 50CVX154 CompVX 15-Inch Subwoofer, Dual 4-Ohm - (50CVX154)
High-temp dual voice coils deliver the power, while a solid pole piece provides more mass to subdue additional heat. A T-cut top plate creates a wider magnetic field for stronger bass response, and better sound. It all comes together to form a super-reliable motor structure found only in a KICKER subwoofer.
Features:
Dual Two-Ohm Voice Coils
Thick Polypropylene Cone
Signature Double Blue Surround Stitching
Ribbed SantopreneĀ® Surround
SoloKonā¢ Cone Reinforcement
Oversized Suspension System
High-Strength Insulated Tinsel Leads
High Temp Voice Coil
Perimeter Venting for Thermal Management
Massive Ceramic Magnet
UniPlateā¢ Extended Pole Piece & Backplate For Superior Heat Dissipation
Cast Aluminum Basket
Satin Nickel Spring-Loaded Speaker Terminals
Specifcations:
Size (IN.,CM): 15, 38
Impedance (OHMS): 4 DVC
Recommended Amplifier Power (watts RMS): 1000
Peak Power (watts, per ANSI/CTA-2031-A): 2000
Sensitivity (dB 1w/1m): 91.6
Frequency Response (Hz): 18-500
Mounting Depth (in, cm): 8-1/2, 21.5
Mounting Cutout (in, cm): 13-13/16, 35
Min Sealed Box Vol (cu. ft, L): 1.8, 51.0
Max Sealed Box Vol (cu. ft, L): 5.2, 147.0
Min Vented Box Vol (cu. ft, L): 3.0, 85.0
Max Vented Box Vol (cu. ft, L): 5.0, 142.0
What's in the box?
one 15-inch subwoofer, one owner's manual, two stickers
Thiele/Small Parameters
Re: 7.595 Ohm
Krm: 0.0271 Ohm WRIGHT inductance mode
Erm: 0.835 WRIGHT inductance mode
Kxm: 0.1218 Ohm WRIGHT inductance mode
Exm: 0.715 WRIGHT inductance mode
Cmes: 289.76 ĀµF
Lces: 123.895 mH
Res: 299.325 Ohm
fs: 26.6 Hz
Mms: 306.2285 g
Mmd: 278.474 g
Rms: 3.531 kg/s
Cms: 0.117 mm/N
Kms: 8.54 N/mm
Bl: 32.51 Tm
Lambda: 0.0215
Qtp: 0.444
Qms: 14.483
Qes: 0.3675
Qts: 0.3585
Vas: 118.41785 I
n0: 0.581
Lm: 89.84 dB
Lnom: 90.075
rmse Z: 3.535
rmse Hx: 2.11
Sd: 844.96 cmĀ²
Xmax: 20.65 mm
