Description
Included in this kit
This bundle includes a Kicker VL7S122 L7S 12" Subwoofer in Vented Enclosure 2-Ohm, a Kicker 46CXA12001 CXA12001 1200-watt Mono Class D Subwoofer Amp, and a Kicker 46CXARC CXARC Remote Control for Kicker 46CX Series Amps.

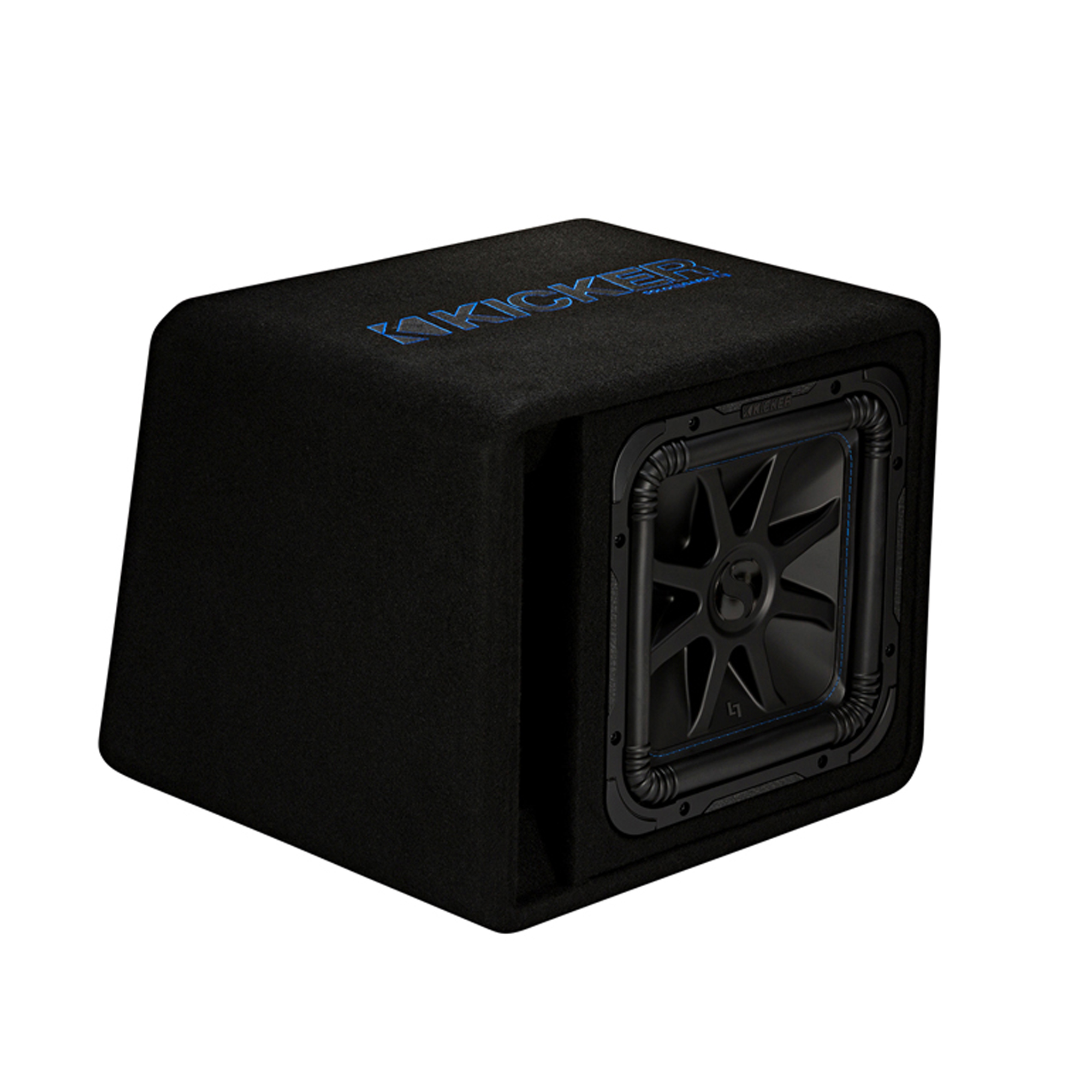

1x Kicker VL7S122 L7S 12" Subwoofer in Vented Enclosure 2-Ohm - (44VL7S122)
Kicker 44VL7S122 Single 12" Solo-Baric L7S 2 Ohm Enclosure
Made from thick, solid wood and brandishing a custom terminal/port combination, this loaded sub box is all bass ā and all KICKER!
Features:
- Genuine Solo-BaricĀ® L7Sā¢ Subwoofer Included
- Custom Engineered Port Design
- Heavy Internal Bracing
- Single 2-Ohm Terminal
- Easy To Install And Wire
- Thick Black Carpeting
- Rounded Corners
- Embroidered KICKER Logo
- Thick MDF Construction
The Solo-Baric L7S 12-Inch Subwoofer Enclosure works best with 750 watts of recommended power. See below for more details.
Specifications
| Type |
| single |
| Woofer [in, cm] |
| Solo-Baric L7 12" 2Ī© |
| Impedance [Ohms] |
| 2 |
| Power Watts [peak/RMS] |
| 1500/750 |
| SENSITIVITY [dB 1w/1m] |
| 86.9 |
| Box Top Depth (in, cm): |
| 14-3/4, 37.4 |
| Box Bottom Depth (in, cm): |
| 17-7/8, 45.5 |
| Box Height (in, cm): |
| 16, 40.6 |
| Box Width (in, cm): |
| 18-3/4, 47.6 |
| What's in the box? |
| one loaded enclosure with one 12-inch subwoofer; mounting hardware (4 - black brackets, 4 - #10 black wood screws x 20mm, 8 - #8 black wood screws 20mm long); one owner's manual; two stickers |
L7S Enclosure Family
Solo-Baric L7S
Available in a dual sub enclosure, a single sub model and a thin-profile enclosure made especially for tight installs, the Solo-BaricĀ® L7Sā¢ never fails to provide the biggest KICKERĀ® bass in a ready-made custom enclosure.
SOLO POWER
Inside every enclosure is our patented Solo-baric L7S square sub. With an average of 20% more cone area than a similarly sized circular sub, the L7S moves more air to create more bass with every note it plays!
BEAT ON IT
KICKER sub boxes take tons of power. Starting at 600 watts, and rocketing all the way up to 1,500 blistering watts of RMS power, your volume knob will break before your subs box does!
PORTED POWER
Engineered specifically for each subwoofer and box combination, all L7S enclosures are designed with optimized ports for ultimate volume.
BUILT LIKE A BEAST
A reinforced front baffle is the face of the newest KICKER sub box. Designed with sturdy MDF and full-coverage internal bracing, you get some of the sturdiest sub boxes available. Drastically rounded corners and thick, durable black carpet give your sub box make it look as good as it sounds!
1x Kicker 46CXA12001 CXA12001 1200-watt Mono Class D Subwoofer Amp - (46CXA12001)
Kicker 46CXA12001 CX1200.1 1200 Watt RMS 1-Ohm Stable Mono Amplifier
Using a Class-D power plant, the CXA1200.1 features a variable bass boost with KickEQā¢, giving you as much as a 6dB of extra bump.
CX-Series Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality.
This CX.1 Amplifier delivers as much as 1,200 watts into one bass channel. See below for more details.
Features:
ā¢ Efficient Class-D amplifier
ā¢ Three-second turn-on/off delay to eliminate unwanted interference
ā¢ Variable 12dB crossovers provides control to dial in perfect sound
ā¢ KickEQā¢ 6dB variable bass boost for those additional low frequencies
ā¢ 24dB subsonic filter for protection from potentially damaging frequencies
ā¢ FIT+ā¢ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
ā¢ Accepts up to 40-volt input signal
ā¢ Small footprint for easier installation
ā¢ Compatible with CXARC Remote Bass Control
ā¢ Vertical mounting hardware included for another unique look
Specifications:
ā¢ MODEL - CXA1200.1
ā¢ Power (watts/ch) 4 Ohm - 600x1
ā¢ Power (watts/ch) 2 Ohm - 1200x1
ā¢ Power (watts/ch) 1 Ohm - 1200x1 +/-10%
ā¢ CXRC Remote Bass Capable (sold sep.) - yes
ā¢ Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17W x ...L) - 12, 30.6
ā¢ Frequency Response (Hz): - 25-200Hz
ā¢ Input Sensitivity: - 250mV-10V (Low Level), 1V-40V (High Level)
ā¢ Signal-to-Noise Ratio: - 95dB
ā¢ Active Crossover: - Variable Lo-pass 50Hzā200Hz, 12dB/octave
ā¢ Subsonic Filter: - 25Hz @24dB/octave
ā¢ KickEQā¢ Boost - Variable 0-6dB @40Hz
1x Kicker 46CXARC CXARC Remote Control for Kicker 46CX Series Amps - (46CXARCt)
Kicker 46CXARC Remote / Bass Knob
CX-Series mono amps offer an optional remote level control to adjust your bass right from the dash. Dial it up the way you want to hear it.
CXARC Remote
Customize your bass, right from your front seat.
The CXARC is a remote bass controller, compatible with any CX, DX or PX KICKER amplifier equipped with a REMOTE BASS jack on its end.
