Description
Included in this kit

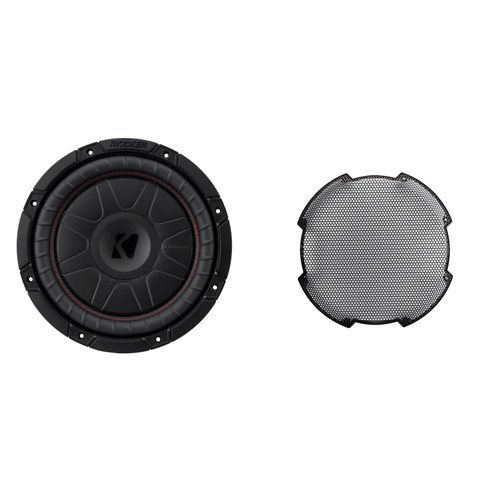

This bundle includes a Kicker 52GR10 10 Inch Speaker Grille, and a Kicker 52CVT104 CVT10 CompVT 10-Inch (24cm) Subwoofer, 4 Ohm SVC.
1x Kicker 52GR10 10 Inch Speaker Grille - (52GR10)
Steel Mesh
Try this refined, clean look on all sizes of your square or round subs. Use them also with CompQ or SoloX L7X subwoofers, 3-D printing the necessary spacers using the provided template files.
(fits L7T, CompR, CompRT, CompVR, CompVT and CompC; also fits L7S, L7R, CompVX and Comp with some cosmetic concessions.)
Round Mesh
Protect your KICKER subs with tough steel mesh.
1x Kicker 52CVT104 CVT10 CompVT 10-Inch (24cm) Subwoofer, 4 Ohm SVC - (52CVT104)
The CompVT 10-Inch Subwoofer is available as a 4Ω slimline driver.
New and improved, precise KICKER engineering allows the CompVT to pound with limited space. A proprietary four-layer voice coil collaborating with SoloKon™ cone technology, provides the ability to work with serious amounts of power without the bulk of a standard subwoofer.
The CompVT Subwoofer works best with a sealed or ported enclosure for its substantial power handling.
Specifications
SIZE [in, cm]: 10, 25
IMPEDANCE [Ohms]: 4 SVC
Recommended Amplifier Power (watts RMS) 180-375
Peak Power (watts, per ANSI/CTA-2031-A) 750
SENSITIVITY [dB 1w/1m]: 87.2
MOUNTING DEPTH [in, cm]: 4-1/4, 10.8
MOUNTING DIAMETER [in, cm]: 9-3/16, 23.3
MIN SEALED BOX VOL [cu. ft, L]: 0.8, 22.5
MAX SEALED BOX VOL [cu. ft, L]: 3, 85
MIN VENTED BOX VOL [cu. ft, L]: 1.25, 35.4
MAX VENTED BOX VOL [cu. ft, L]: 1.75, 49.6
Thiele/Small Parameters
Re: 3.675 Ohm
Krm: 0.00185 Ohm
Erm: 0.995
Kxm: 0.02575 Ohm
Exm: 0.78
Cmes: 849.94
Lces: 20.055
Res: 37.375 Ohm
fs: 38.6 Hz
Mms: 144.4155 g
Mmd (Sd): 136.4885 g
Rms: 4.5485 kg/s
Cms: 0.118 mm/N
Kms: 8.485 N/mm
Bl: 13.0385 Tm
Qtp: 0.764 total Q-factor considering all losses
Qms: 7.6925 mechanical Q-factor of driver in free air considering Rms only
Qes: 0.7565 electrical Q-factor of driver in free air considering Re only
Qts: 0.689 total Q-factor considering Re and Rms only
Vas: 22.4299 I
n0: 0.1635 reference efficiency (2 pi-radiation using Re)
Lm: 84.33 dB characteristic sound pressure level (SPL at 1m for 1W @ Re)
Lnom: 84.7 dB nominal sensitivity (SPL at 1m for 1W @ Zn)
Sd: 366.44 cm² diaphragm area
Xmax: 13 mm
