Description
Included in this kit
This bundle includes a Kicker 46CXA12001 CXA12001 1200-watt Mono Class D Subwoofer Amp, 2x Kicker CompQ12 Q-Class 12-Inch (30cm) Subwoofer, Dual Voice Coil 2-Ohm, and a Kicker CXARC Remote Control for KICKER CX-Series Amplifiers.
1x Kicker 46CXA12001 CXA12001 1200-watt Mono Class D Subwoofer Amp - (46CXA12001T)
Kicker 46CXA12001 CX1200.1 1200 Watt RMS 1-Ohm Stable Mono Amplifier
Using a Class-D power plant, the CXA1200.1 features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump.
CX-Series Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality.
This CX.1 Amplifier delivers as much as 1,200 watts into one bass channel. See below for more details.
Features:
• Efficient Class-D amplifier
• Three-second turn-on/off delay to eliminate unwanted interference
• Variable 12dB crossovers provides control to dial in perfect sound
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• 24dB subsonic filter for protection from potentially damaging frequencies
• FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
• Accepts up to 40-volt input signal
• Small footprint for easier installation
• Compatible with CXARC Remote Bass Control
• Vertical mounting hardware included for another unique look
Specifications:
• MODEL - CXA1200.1
• Power (watts/ch) 4 Ohm - 600x1
• Power (watts/ch) 2 Ohm - 1200x1
• Power (watts/ch) 1 Ohm - 1200x1 +/-10%
• CXRC Remote Bass Capable (sold sep.) - yes
• Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17W x ...L) - 12, 30.6
• Frequency Response (Hz): - 25-200Hz
• Input Sensitivity: - 250mV-10V (Low Level), 1V-40V (High Level)
• Signal-to-Noise Ratio: - 95dB
• Active Crossover: - Variable Lo-pass 50Hz–200Hz, 12dB/octave
• Subsonic Filter: - 25Hz @24dB/octave
• KickEQ™ Boost - Variable 0-6dB @40Hz
2x Kicker CompQ12 Q-Class 12-Inch (30cm) Subwoofer, Dual Voice Coil 2-Ohm - (42CWQ122)
Kicker Q-Class CompQ 12-inch Subwoofer, Dual 2-Ohm
Experience every nuance of your bass. Thanks to outstanding power handling, next-level structural stability and a unique power plant, the CompQ™ discovers every note with miraculous detail. All with the highest RMS power rating Kicker has ever achieved in a round subwoofer.
Stabilize
KICKER’s unique cone bracing technology ensures perfectly linear cone movement while the Blue Lace™ spider adds even more stability to the sub. You get unrivaled sonic accuracy and extraordinary volume.
Take the Power
A ceramic magnet and computer-optimized voice coil provide outstanding power handling, while the UniPlate™ pole piece & backplate ensure the CompQ stays cool, even under extreme power loads.
Massive Motor
Extreme power handling needs a motor worthy of the KICKER name. Oversized magnets and an aluminum voice coil allow every drop of power to get from the sub to your ears.
Join Forces
Spring-loaded copper terminals hold as much as an 8-gauge speaker wire, while extra thick tinsel leads bring all that music directly to the voice coil. You get every watt of power right where you want it.
Loud and Clear
An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent – all without a hint of distortion.
General Specifications
| Rated Impedance [Ω] | 2 |
| Fs [Hz] | 37 |
| Sensitivity [1W, 1m] | 86.2 |
| Qts | 0.546 |
| Qms | 8.878 |
| Qes | 0.582 |
| Re [Ω] | 5.94 |
| Vas [ft³, L] | .91 ,26 |

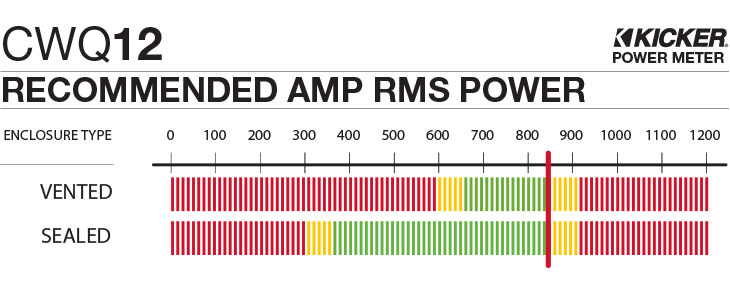

| Continuous Power Handling [Watts RMS] | 850 |
| Outer Frame Dimension [in, cm] | 12-1/2, 31.8 |
| Mounting Depth [in, cm] | 7-1/8, 18.1 |
| Mounting Cutout [in, cm] | 11-1/16, 28.1 |
| Frequency Response [Hz] | 20 - 100 |
| Minimum Sealed Volume ft3 (L) | .88 (24.92) |
| Sealed Power Handling | 850W RMS |
| Maximum Sealed Volume ft3 (L) | 2 (56.64) |
| Box Volume [ft³, L] | .88 (24.92)) |
| Panel A [in, cm] | 13.5x13.5, 34.3x34.3 |
| Panel B [in, cm] | 13.5x10.5, 34.3x26.7 |
| Panel C [in, cm] | 12x10.5, 30.5x26.7 |
| Vented | Minimum |
| Box Volume, ft³ (L) + port displacement | 1.75, 49.6 |
| Port Opening Size, in x in (cm x cm) | 2.5x13.25, 6.4x34 |
| Port Length, in (cm) | 22.5, 57 |
| Power Handling, RMS | 850 |
| Vented | Maximum |
| Box Volume, ft³ (L) + port displacement | 3.25, 92 |
| Port Opening Size, in x in (cm x cm) | 3x13.25, 7.6x34 |
| Port Length, in (cm) | 14.5, 37 |
| Power Handling, RMS | 850 |
Video
Cross Section
1x Kicker CXARC Remote Control for KICKER CX-Series Amplifiers - (43CXARC)
CXARC Remote
Customize your bass, right from your front seat.
The CXARC is a remote bass controller, compatible with any CX or PX KICKER amplifier equipped with a REMOTE BASS jack on its end.
