Description
Included in this kit

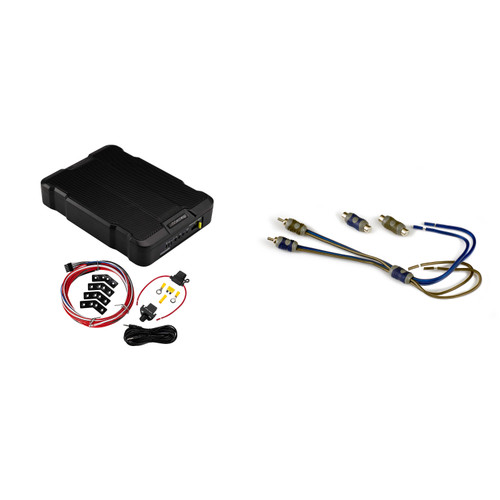

This bundle includes a Kicker 51HS12 Hideaway Compact Powered Subwoofer, 12-Inch, and a Kicker 46KISL K-Series Interconnect, Speaker Wire To RCA Adapter.
1x Kicker 51HS12 Hideaway Compact Powered Subwoofer, 12-Inch - (51HS12)
51HS12 – Hideaway™ HS12 Compact Powered 12" Subwoofer (230W RMS)
The Hideaway HS12 is a compact powered 12-inch subwoofer that delivers surprising low frequency impact in a tough, all-aluminum frame. Designed to fit under the seat, it combines an integrated amplifier with flexible input compatibility and onboard tuning controls for easy system upgrades.
Overview
Big Bass Impact in a Compact Powered Package
The HS12 delivers low-frequency output from a robust 12-inch powered enclosure engineered for tight installs. Its all-aluminum frame is built for durability, while the integrated amplifier and onboard controls make it easy to dial in clean, controlled bass.
- Compact powered 12" subwoofer enclosure designed to fit under the seat.
- 230 watts RMS amplifier power for strong low-frequency impact.
- Frequency response rated at 25–120 Hz.
The HS12 is designed to provide more power and a bigger impact than the 10-inch or 8-inch versions, while still fitting under the seat.
Integration
FIT+™ Wide-Range Inputs for Modern Vehicles
KICKER’s FIT+™ (Fail-safe Integration Technology PLUS) accepts input signals from 0.25V up to 40V (400 watts at 4Ω) and is compatible with newer vehicles using start/stop systems, helping the HS12 integrate with a wide range of factory and aftermarket systems without the added expense of a line output converter.
- Low-level input sensitivity: 250mV–10V.
- High-level input sensitivity: 1V–40V.
- Compatible with vehicles using start/stop systems.
Feature Highlights
Control, Tuning & Everyday Convenience
Installation
Compact Dimensions for Under-Seat Fit
The low-profile enclosure is sized for tight spaces while maintaining the output advantages of a 12-inch platform.
- Box Height: 3-1/2" (8.8 cm)
- Box Depth: 17-1/8" (43.5 cm)
- Box Width: 12-1/8" (30.8 cm)
- Weight: 17.5 lb (7.92 kg)
17' power input / 8' speaker-level input / 2' ground / 2' remote turn-on
Expandability
Run Two HS12s for More Output
For even more bass response, run two HS12s. If you’re using two mono amps or powered subwoofers, the KICKER DBRC Dual-Amp Bass Remote can control both from the same knob.
- Remote bass control included for single-HS12 level adjustment.
- DBRC Dual-Amp Bass Remote supports controlling two mono amps or powered subs from one knob.
| Model | 51HS12 |
| Subwoofer | 12" (30 cm) |
| RMS Power | 230 watts |
| Frequency Response | 25–120 Hz |
| Crossover | 12 dB/octave Lowpass 50–120 Hz; 24 dB/octave Highpass @ 25 Hz |
| Phase Switch | 0° / 180° |
| Input Sensitivity (Low Level) | 250 mV – 10 V |
| Input Sensitivity (High Level) | 1 V – 40 V |
| KickEQ Boost | Variable to +6 dB @ 40 Hz |
| Remote Bass | Included |
| Box Depth | 17-1/8" (43.5 cm) |
| Box Height | 3-1/2" (8.8 cm) |
| Box Width | 12-1/8" (30.8 cm) |
| Weight | 17.5 lb (7.92 kg) |
| Wiring Harness | 17' power input / 8' speaker-level input / 2' ground / 2' remote turn-on |
1x Kicker 46KISL K-Series Interconnect, Speaker Wire To RCA Adapter - (46KISL)
Kicker 46KISL 2 Channel Speaker Wire to RCA Converter.
K Series Interconnects feature split-pin RCAs with silver-tinned, OFC wire for superior bass response and signal clarity. The K-Grip dual-mold connectors offer sure grip and ergonomic shape for slip-free installation, and a union that’s ultra-slim for snag-free cable routing in tight places.
KISL 2-ch speaker-to-RCA converter, no LOC
KISL features 16ga speaker wire-to-RCAs and includes Female to Female adapters.
Don’t have an aftermarket radio? KICKER amplifiers accept a wide range of factory speaker signal. Use the KISL to easily connect factory speaker wires right to your amplifier. No line out converter needed!
