Description
Included in this kit
This bundle includes a Kicker 53PL7TDF10 PL7TDF Powered Down-Firing 10" Enclosure, a Kicker 46CK8 K-Series Complete 8-AWG Amplifier Connection Kit W/ 2-Channel RCA Interconnects, and a Kicker 46KISL K-Series Interconnect, Speaker Wire To RCA Adapter.

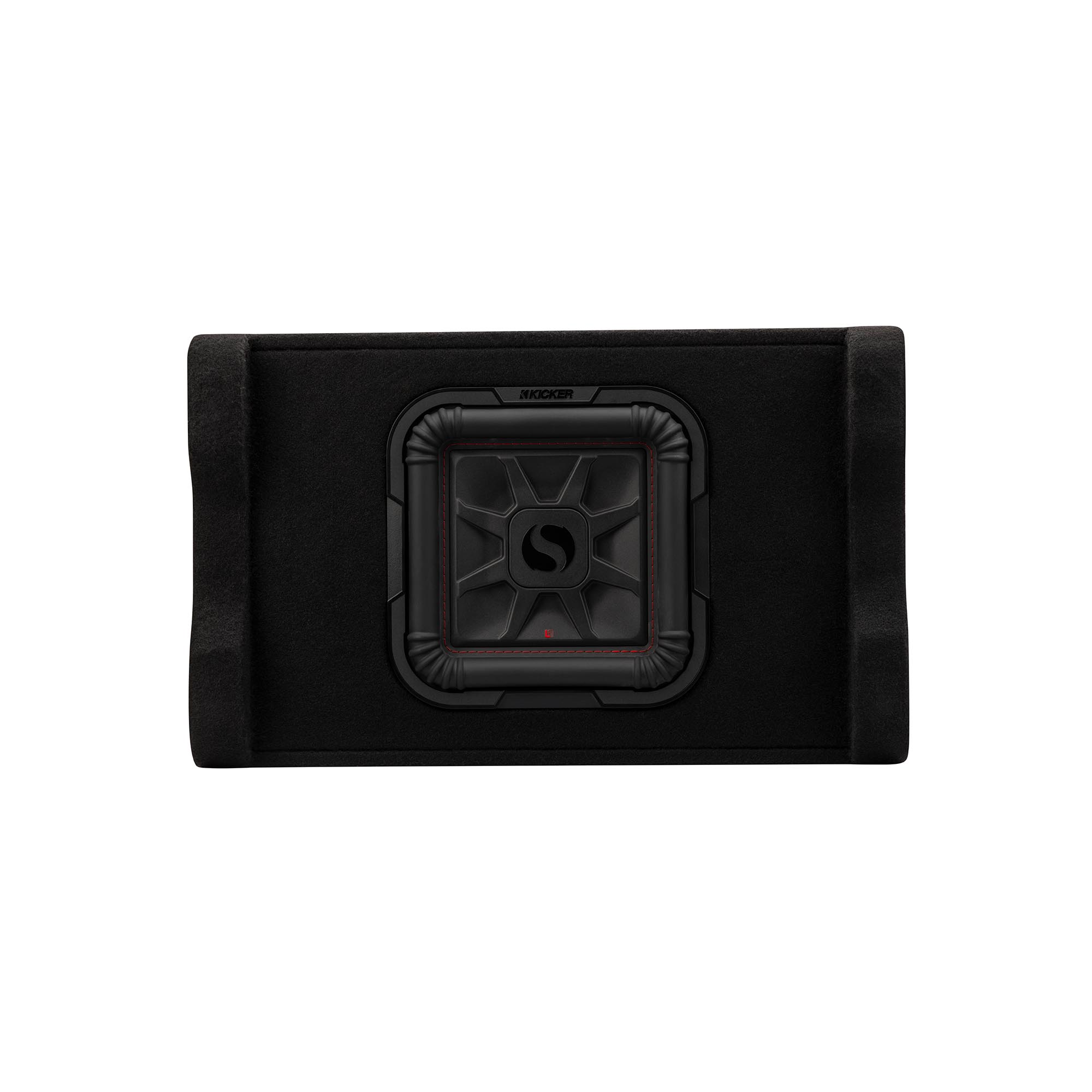

1x Kicker 53PL7TDF10 PL7TDF Powered Down-Firing 10" Enclosure (53PL7TDF10)
All-in-One Powered Bass Solution
This powered down-firing subwoofer system combines KICKER’s Solo-Baric L7 square subwoofer technology with a built-in, power-matched amplifier in a compact, factory-tuned enclosure. Designed for tight installations, it delivers strong, consistent bass performance while maintaining a low-profile footprint ideal for trucks and SUVs.
Key Features
- 10" Solo-Baric L7 square subwoofer for increased air movement and output
- Integrated 500W RMS amplifier for optimized system performance
- Down-firing enclosure design for added woofer protection
- Compact, vehicle-friendly enclosure for tight installation spaces
- Compatible with factory audio systems for easy integration
- Start/Stop system compatible
- Includes remote bass control for on-the-fly adjustment
Performance & Control
The built-in amplifier is precisely matched to the subwoofer for efficient and consistent output. A variable low-pass crossover allows tuning between 50–120 Hz, while a fixed 25 Hz high-pass filter helps protect the subwoofer from ultra-low frequencies. A selectable 0–180° phase switch ensures optimal integration with your vehicle’s audio system.
With flexible input sensitivity for both low-level and high-level signals, this system integrates easily into a wide range of factory or aftermarket setups.
Enclosure Design
The down-firing enclosure design enhances durability by protecting the woofer while also delivering consistent bass response. Internal bracing adds structural rigidity, allowing the enclosure to withstand demanding use and tight mounting locations.
Its compact size makes it ideal for installations where space is limited without sacrificing bass performance.
Specifications
| Type | Powered Down-Firing Subwoofer |
| Woofer Size | 10" (25 cm) |
| RMS Power | 500W @ 14.4V |
| Frequency Response | 25–120 Hz |
| Signal-to-Noise Ratio | >90 dB (A-weighted) |
| Phase Switch | 0–180° |
| Input Sensitivity | Low: 125 mV–5V / High: 1V–40V |
| Crossover | Variable LPF 50–120 Hz (24 dB/octave), HPF 25 Hz |
| Enclosure Dimensions (H x D x W) | 7-1/2" x 14-3/8" x 23-3/8" |
1x Kicker 46CK8 K-Series Complete 8-AWG Amplifier Connection Kit W/ 2-Channel RCA Interconnects (46CK8)
KICKER® complete amp kits feature top-quality Hyper-Flex power, ground and turn-on cables. K Series speaker wire and interconnects are also included, as is a heavy-duty AFS fuse holder and fusing. Insulated crimp connectors and zip ties come in the kit as well.
8AWG 2-Channel Amp Kit
This Complete Eight Gauge Amp Kit comes complete with Full Spec wire, hardware, fusing and signal cable.
Hooking up an amp is easy when get everything you need in one place. The best hardware, signal and power cable comes in one convenient package.
1x Kicker 46KISL K-Series Interconnect, Speaker Wire To RCA Adapter (46KISL)
Kicker 46KISL 2 Channel Speaker Wire to RCA Converter.
K Series Interconnects feature split-pin RCAs with silver-tinned, OFC wire for superior bass response and signal clarity. The K-Grip dual-mold connectors offer sure grip and ergonomic shape for slip-free installation, and a union that’s ultra-slim for snag-free cable routing in tight places.
KISL 2-ch speaker-to-RCA converter, no LOC
KISL features 16ga speaker wire-to-RCAs and includes Female to Female adapters.
Don’t have an aftermarket radio? KICKER amplifiers accept a wide range of factory speaker signal. Use the KISL to easily connect factory speaker wires right to your amplifier. No line out converter needed!
