Description
Included in this kit
This bundle includes a Kicker 46CK8 K-Series Complete 8-AWG Amplifier Connection Kit W/ 2-Channel RCA Interconnects, and a Kicker 53PL7TDF12 PL7TDF Powered Down-Firing 12" Enclosure.
1x Kicker 46CK8 K-Series Complete 8-AWG Amplifier Connection Kit W/ 2-Channel RCA Interconnects (46CK8)
KICKER® complete amp kits feature top-quality Hyper-Flex power, ground and turn-on cables. K Series speaker wire and interconnects are also included, as is a heavy-duty AFS fuse holder and fusing. Insulated crimp connectors and zip ties come in the kit as well.
8AWG 2-Channel Amp Kit
This Complete Eight Gauge Amp Kit comes complete with Full Spec wire, hardware, fusing and signal cable.
Hooking up an amp is easy when get everything you need in one place. The best hardware, signal and power cable comes in one convenient package.

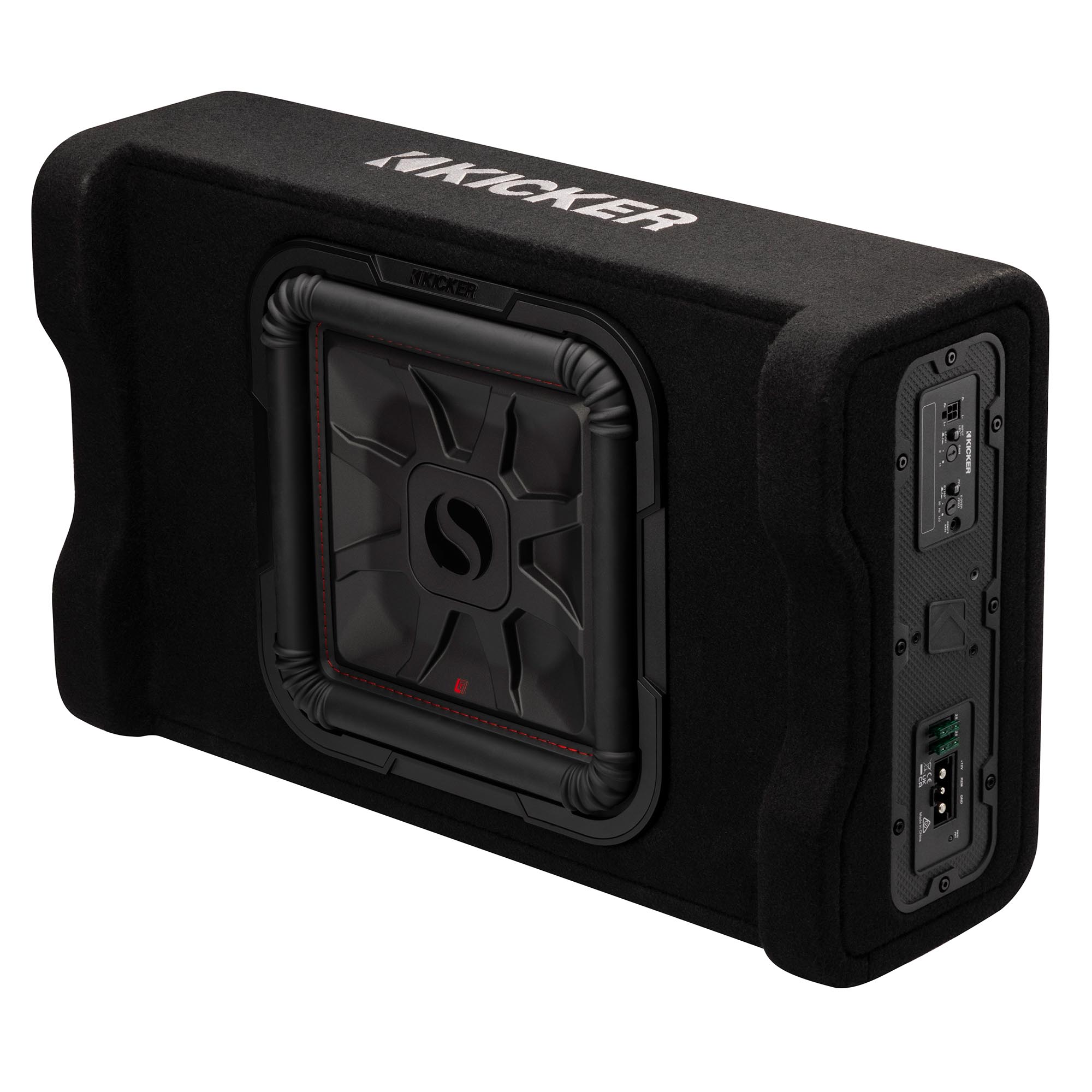

1x Kicker 53PL7TDF12 PL7TDF Powered Down-Firing 12" Enclosure (53PL7TDF12)
High-Output Powered Subwoofer System
This all-in-one powered subwoofer system features a 12" Solo-Baric L7 square subwoofer paired with a built-in, power-matched amplifier inside a compact, factory-tuned down-firing enclosure. Designed for strong, consistent bass performance, it delivers high output while maintaining a space-efficient form factor for trucks and SUVs.
Key Features
- 12" Solo-Baric L7 square subwoofer for increased air movement and output
- Integrated 600W RMS amplifier for optimized power delivery
- Down-firing enclosure design for added woofer protection
- Compact, factory-tuned enclosure for tight installation spaces
- Compatible with factory audio systems for easy integration
- Start/Stop system compatible
- Includes remote bass control for convenient level adjustment
Performance & Control
The built-in amplifier is engineered to match the subwoofer for efficient and consistent output. A variable low-pass crossover allows tuning from 50–120 Hz, while a fixed 25 Hz high-pass filter helps protect the subwoofer from damaging ultra-low frequencies. A selectable 0–180° phase switch allows better alignment with your vehicle’s audio system.
Flexible input sensitivity supports both low-level and high-level signals, making integration straightforward in a wide variety of factory or aftermarket systems.
Enclosure Design
The down-firing enclosure enhances durability by shielding the woofer from direct impact, while maintaining consistent bass performance. Thick internal bracing increases structural rigidity and helps the enclosure withstand demanding installation environments.
Its compact footprint allows installation in tight spaces without sacrificing output capability.
Specifications
| Type | Powered Down-Firing Subwoofer |
| Woofer Size | 12" (30 cm) |
| RMS Power | 600W @ 14.4V |
| Frequency Response | 25–120 Hz |
| Signal-to-Noise Ratio | >90 dB (A-weighted) |
| Phase Switch | 0–180° |
| Input Sensitivity | Low: 125 mV–5V / High: 1V–40V |
| Crossover | Variable LPF 50–120 Hz (24 dB/octave), HPF 25 Hz |
| Enclosure Dimensions (H x D x W) | 7-7/8" x 15" x 23-7/8" |
