Description
Included in this kit
This bundle includes 2x MB Quart DS2-216 - 6.5" Discus Component Car Speaker System With Aluminum Inverted Dome Tweeters And Butyl Rubber Surrounds - 280 Watts Peak, and a MB Quart DK2-116S - 6.5" Discus 2-Way Shallow Coaxial Speakers With Aluminum Inverted Dome Tweeters And Butyl Rubber Surrounds - 240 Watts Peak.

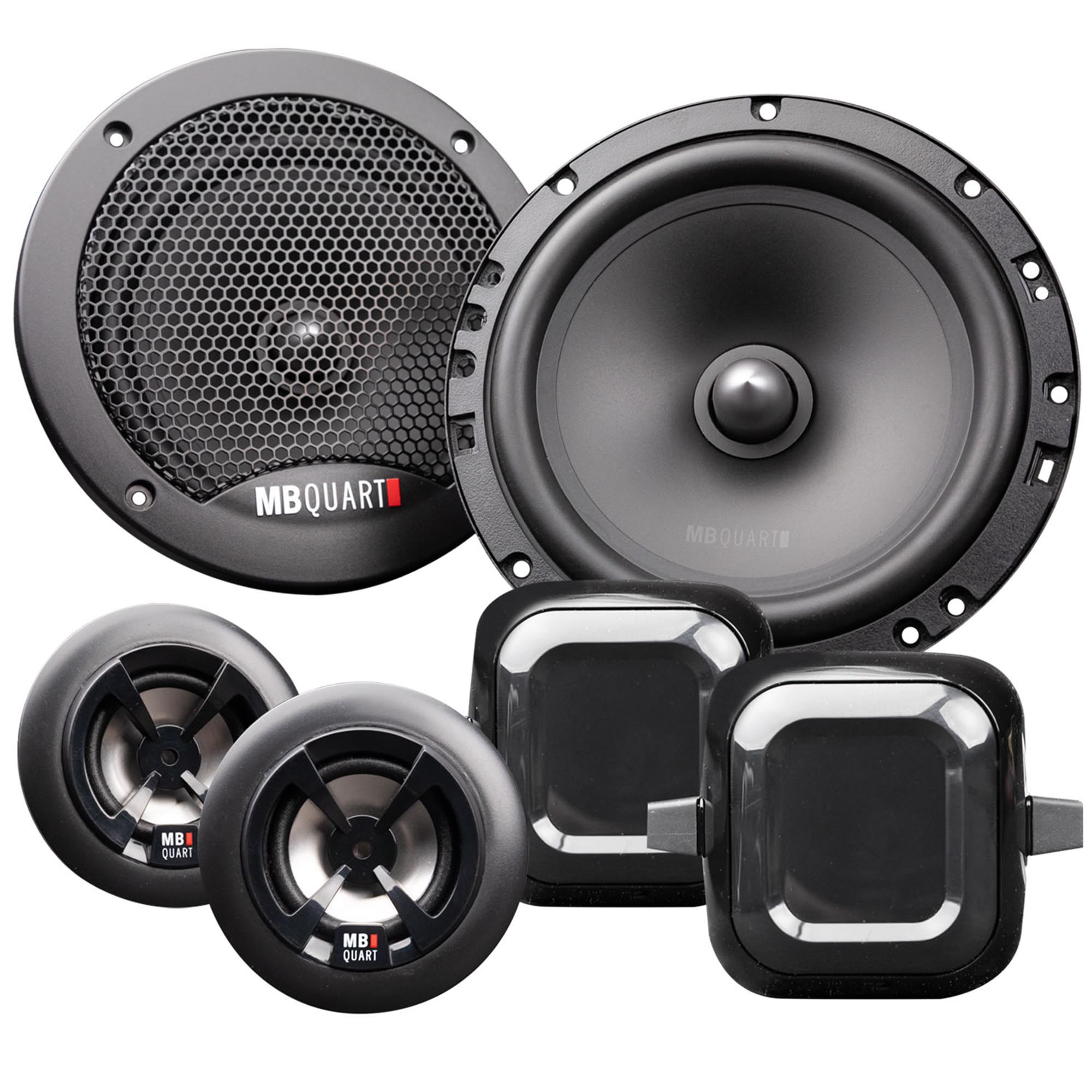

2x MB Quart DS2-216 - 6.5" Discus Component Car Speaker System With Aluminum Inverted Dome Tweeters And Butyl Rubber Surrounds - 280 Watts Peak - (DS2-216)
Features & Benefits
Compatible Vehicle Fitment: Universal
Tweeters: Aluminum inverted dome tweeters deliver great sound with increased reliability.
Cone Material: Lightweight thermal-formed polypropylene cones enable faster midrange response.
Surround / Cone Coupling: Butyl rubber surrounds provide durability and deeper mid-bass impact. The cone/surround connection utilizes a high temp adhesive which assure the cone and surround do not separate in high power uses or extremes of weather.
Voice Coil / Former Assembly: Pure Copper voice coil creates a strong magnetic field with a very thin extrusion. Kapton voice coil former is lightweight and efficiently dissipates heat.
Spider: Natural fiber allows flexibility while the infused epoxy gives strength during the manufacturing process.
Cooling System: Over-coil cooling system allows air exchange over the voice coil through the spider.
External Component Crossover: External Passive Cauer topology Butterworth filter crossover for a smooth transition of frequencies from midrange/midbass to the tweeter element designed into a compact crossover housing that can be easily hidden in the installation.
Frame: Heavy gauge progressive-die stamped steel frames for ultimate rigidity.
Connectors: Use spade connectors or solder direct for the best connection. Tinsel Leads: Highly conductive while remaining flexible during high power applications.
Details and Specs
Weight 5.55 lbs
Dimensions 16.75 × 8 × 4.25 in
Item Weight (lbs): 4.2
Item Length (in): 6.5
Item Width (in): 6.5
Item Height (in): 2.75
Series: Discus
Color: Black
Speaker RMS Power Handling (watts): 70/140 Each & System
Speaker Peak Power Handling (watts): 140/240 Each & System
Speaker Impedance (ohms): 4
Speaker Frequency Response: 55Hz-20kHz
Speaker Sensitivity: 88dB
Speaker Crossover Slope: 12dB/octave
Speaker Mounting Diameter / Cut Out (in): 5.59
Speaker Outside Diameter (in): 6.5
Speaker Mounting Depth / Chassis Depth (in): 2.12
Speaker Size (in): 6.5
1x MB Quart DK2-116S - 6.5" Discus 2-Way Shallow Coaxial Speakers With Aluminum Inverted Dome Tweeters And Butyl Rubber Surrounds - 240 Watts Peak - (DK2-116S)
Features & Benefits
Compatible Vehicle Fitment: Universal
Tweeters: Aluminum inverted dome tweeters deliver great sound with increased reliability.
Cone Material: Lightweight thermal-formed polypropylene cones enable faster midrange response.
Surround / Cone Coupling: Butyl rubber surrounds provide durability and deeper mid-bass impact. The cone/surround connection utilizes a high temp adhesive which assure the cone and surround do not separate in high power uses or extremes of weather.
Voice Coil / Former Assembly: Pure Copper voice coil creates a strong magnetic field with a very thin extrusion. Kapton voice coil former is lightweight and efficiently dissipates heat.
Spider: Natural fiber allows flexibility while the infused epoxy gives strength during the manufacturing process.
Cooling System: Over-coil cooling system allows air exchange over the voice coil through the spider
Crossover: 6dB internal crossover integrated into the design to assure smooth midrange to tweeter frequency transitions.
Frame: Heavy gauge progressive-die stamped steel frames for ultimate rigidity.
Motor: Ferrite magnet motor creates a strong magnetic field while remaining small enough to fit nearly every application.
Connectors: Use spade connectors or solder direct for the best connection. Tinsel Leads: Highly conductive while remaining flexible during high power applications.
Details and Specs
Item Weight (lbs): 2.75
Item Length (in): 6.5
Item Width (in): 6.5
Item Height (in): 2.5
Series: Discus
Color: Black
Speaker RMS Power Handling (watts): 60/120 Each & System
Speaker Peak Power Handling (watts): 120/240 Each & System
Speaker Impedance (ohms): 60Hz-20kHz
Speaker Sensitivity: 88dB
Speaker Crossover Slope: 12dB/octave
Speaker Mounting Diameter / Cut Out (in): 5.59
Speaker Outside Diameter (in): 6.5
Speaker Mounting Depth / Chassis Depth (in): 1.65
Speaker Size (in): 6.5
