Description
Included in this kit
This bundle includes a MB Quart DK2-169 - 6X9" Discus 2-Way Coaxial Speakers With Aluminum Inverted Dome Tweeters And Butyl Rubber Surrounds - 300 Watts Peak, and a MB Quart DK2-116S - 6.5" Discus 2-Way Shallow Coaxial Speakers With Aluminum Inverted Dome Tweeters And Butyl Rubber Surrounds - 240 Watts Peak.

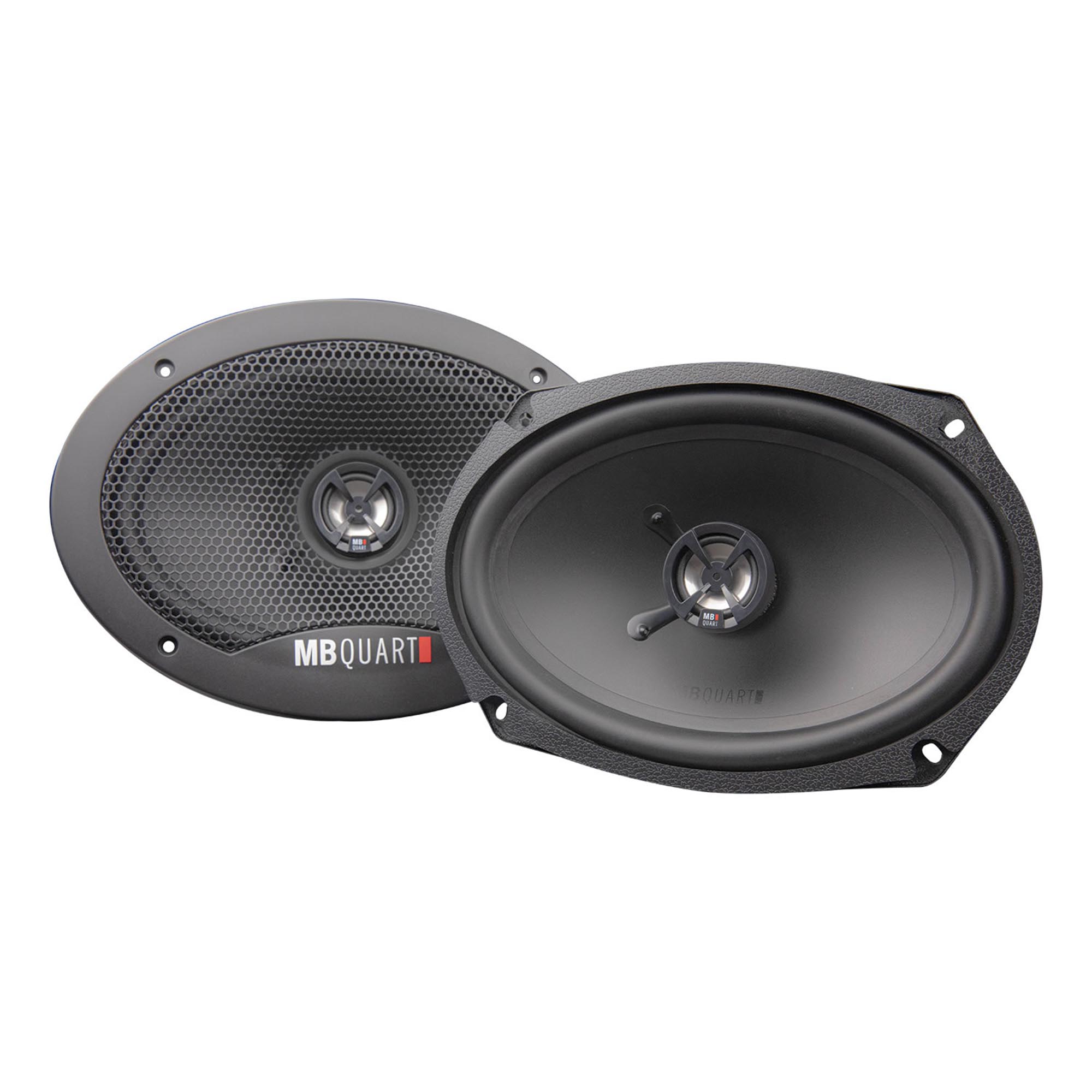

1x MB Quart DK2-169 - 6X9" Discus 2-Way Coaxial Speakers With Aluminum Inverted Dome Tweeters And Butyl Rubber Surrounds - 300 Watts Peak - (DK2-169)
Features & Benefits
Compatible Vehicle Fitment: Universal
Tweeters: Aluminum inverted dome tweeters deliver great sound with increased reliability.
Cone Material: Lightweight thermal-formed polypropylene cones enable faster midrange response.
Surround / Cone Coupling: Butyl rubber surrounds provide durability and deeper mid-bass impact. The cone/surround connection utilizes a high temp adhesive which assure the cone and surround do not separate in high power uses or extremes of weather.
Voice Coil / Former Assembly: Pure Copper voice coil creates a strong magnetic field with a very thin extrusion. Kapton voice coil former is lightweight and efficiently dissipates heat.
Spider: Natural fiber allows flexibility while the infused epoxy gives strength during the manufacturing process.
Cooling System: Over-coil cooling system allows air exchange over the voice coil through the spider
Crossover: 6dB internal crossover integrated into the design to assure smooth midrange to tweeter frequency transitions.
Frame: Heavy gauge progressive-die stamped steel frames for ultimate rigidity.
Motor: Ferrite magnet motor creates a strong magnetic field while remaining small enough to fit nearly every application.
Connectors: Use spade connectors or solder direct for the best connection. Tinsel Leads: Highly conductive while remaining flexible during high power applications.
Details and Specs
Item Weight (lbs): 7.0
Item Length (in): 9.33
Item Width (in): 6.5
Item Height (in): 3.6
Series: Discus
Color: Black
Speaker RMS Power Handling (watts): 75/150 Each & System
Speaker Peak Power Handling (watts): 150/300 Each & System
Speaker Impedance (ohms): 46Hz-20kHz
Speaker Sensitivity: 88dB
Speaker Crossover Slope: 12dB/octave
Speaker Mounting Diameter / Cut Out (in): 8.64 x 5.98
Speaker Outside Diameter (in): 9.35 x 6.5
Speaker Mounting Depth / Chassis Depth (in): 3.35
Speaker Size (in): 6 x 9

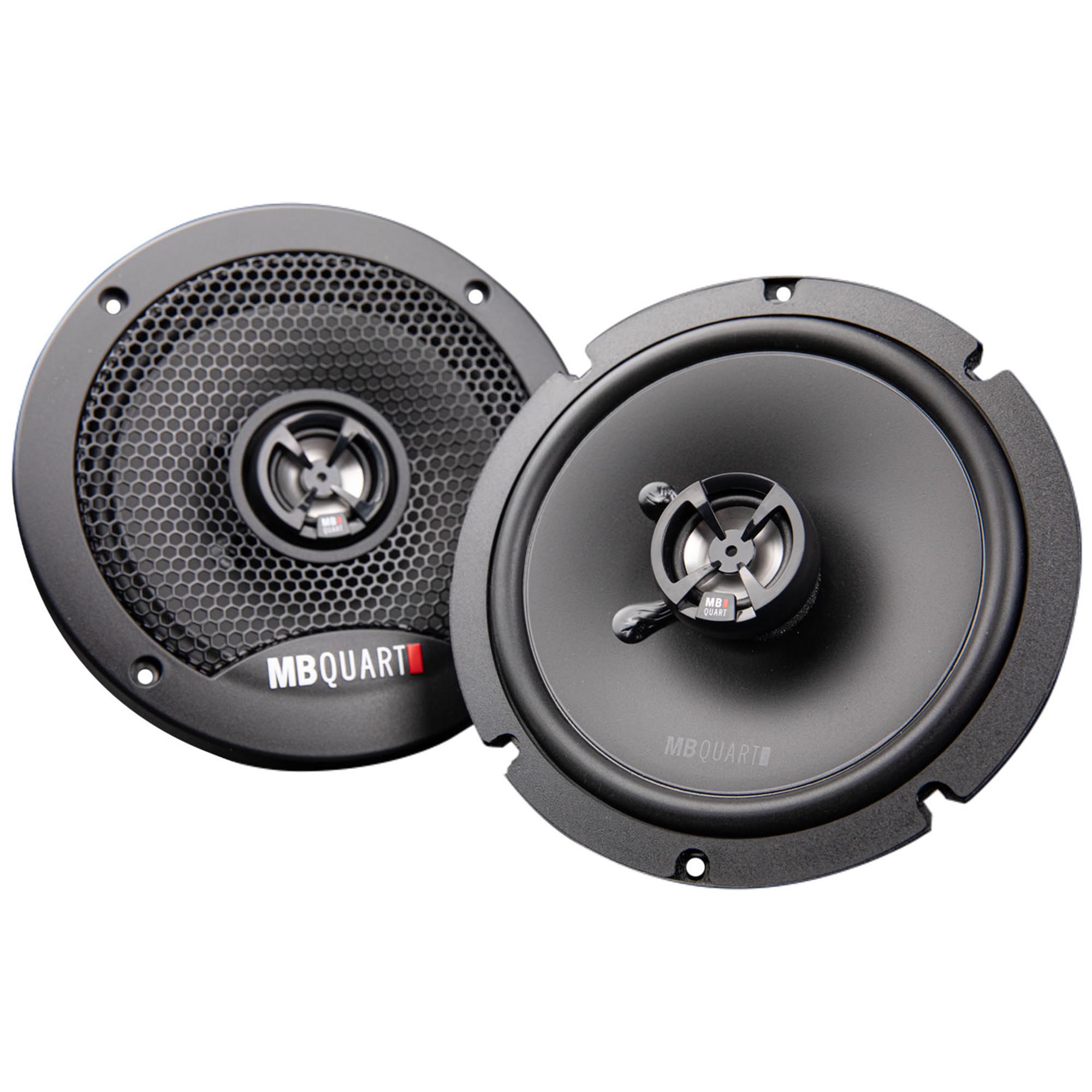

1x MB Quart DK2-116S - 6.5" Discus 2-Way Shallow Coaxial Speakers With Aluminum Inverted Dome Tweeters And Butyl Rubber Surrounds - 240 Watts Peak - (DK2-116S)
Features & Benefits
Compatible Vehicle Fitment: Universal
Tweeters: Aluminum inverted dome tweeters deliver great sound with increased reliability.
Cone Material: Lightweight thermal-formed polypropylene cones enable faster midrange response.
Surround / Cone Coupling: Butyl rubber surrounds provide durability and deeper mid-bass impact. The cone/surround connection utilizes a high temp adhesive which assure the cone and surround do not separate in high power uses or extremes of weather.
Voice Coil / Former Assembly: Pure Copper voice coil creates a strong magnetic field with a very thin extrusion. Kapton voice coil former is lightweight and efficiently dissipates heat.
Spider: Natural fiber allows flexibility while the infused epoxy gives strength during the manufacturing process.
Cooling System: Over-coil cooling system allows air exchange over the voice coil through the spider
Crossover: 6dB internal crossover integrated into the design to assure smooth midrange to tweeter frequency transitions.
Frame: Heavy gauge progressive-die stamped steel frames for ultimate rigidity.
Motor: Ferrite magnet motor creates a strong magnetic field while remaining small enough to fit nearly every application.
Connectors: Use spade connectors or solder direct for the best connection. Tinsel Leads: Highly conductive while remaining flexible during high power applications.
Details and Specs
Item Weight (lbs): 2.75
Item Length (in): 6.5
Item Width (in): 6.5
Item Height (in): 2.5
Series: Discus
Color: Black
Speaker RMS Power Handling (watts): 60/120 Each & System
Speaker Peak Power Handling (watts): 120/240 Each & System
Speaker Impedance (ohms): 60Hz-20kHz
Speaker Sensitivity: 88dB
Speaker Crossover Slope: 12dB/octave
Speaker Mounting Diameter / Cut Out (in): 5.59
Speaker Outside Diameter (in): 6.5
Speaker Mounting Depth / Chassis Depth (in): 1.65
Speaker Size (in): 6.5
