Description
Included in this kit
This bundle includes a Memphis Audio PRXE12SFT - PRX Single 12" Loaded 1 OR 2 Ohm Enclosure with RGB LEDs, a Memphis Audio PRX800.1V2 Monoblock Subwoofer Amplifier - 800 Watts RMS x 1 at 1-Ohm, a Memphis Audio 4GKIT 4-Gauge Amp Install Kit With ANL Fuse Holder With One 200A Fuse, And A Pair Of ETP-17 17-Foot RCAs, and a Memphis Audio MXRGBBTC - Phone Controlled Bluetooth RGB LED Controller.
1x Memphis Audio PRXE12SFT - PRX Single 12" Loaded 1 OR 2 Ohm Enclosure with RGB LEDs - (PRXE12SFT)

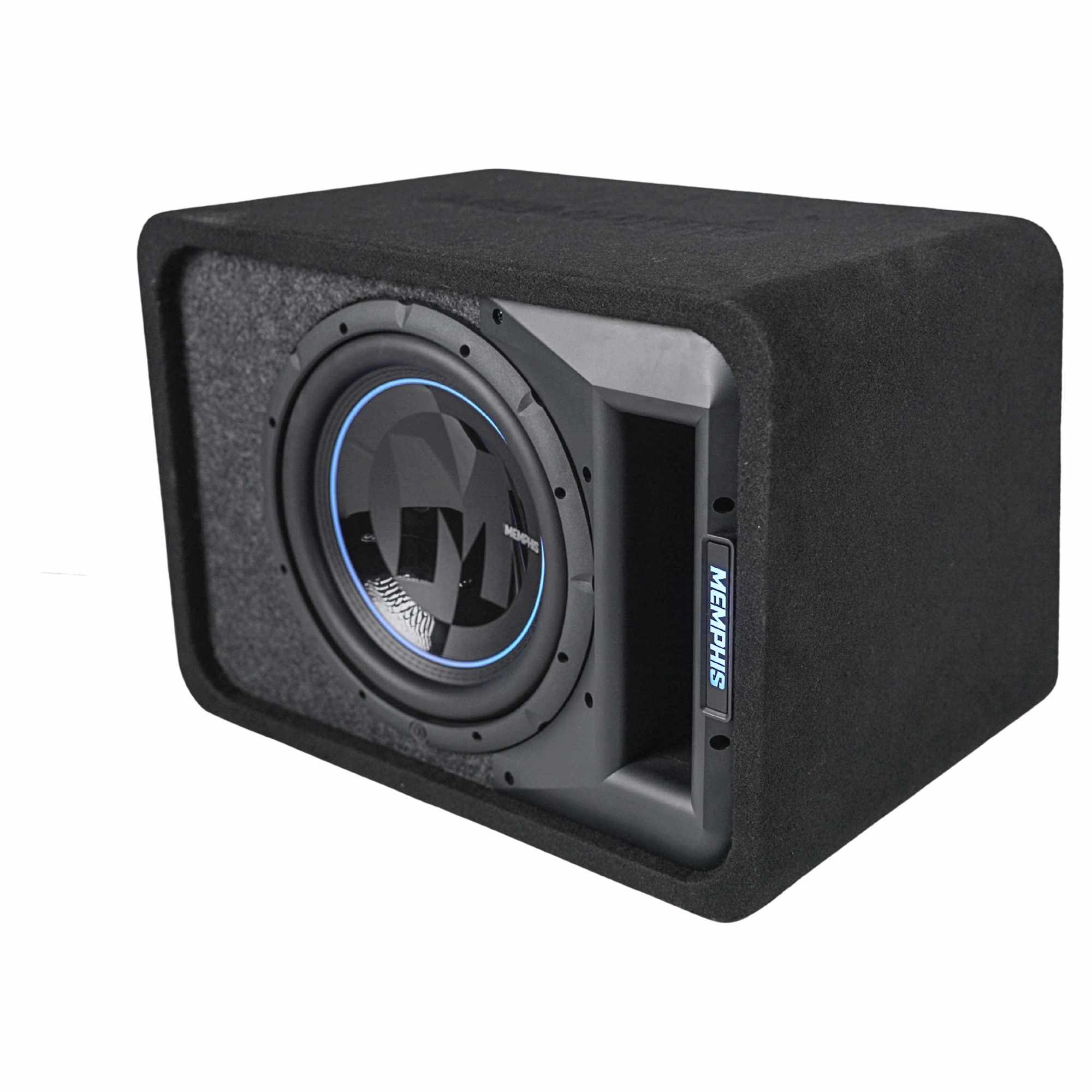

PRXE12SFT – Power Reference Single 12" Loaded Enclosure
FLEX Selectable Impedance • 400W RMS • RGB LED Styling
The PRXE12SFT delivers deep, accurate bass from a compact single 12-inch loaded enclosure. Equipped with Power Reference subwoofer technology and FLEX Selectable Impedance, this enclosure allows easy system matching with multiple wiring options. A front-firing rectangular port with a sleek plastic flare ensures smooth airflow and reduced distortion, while RGB LED cones and an illuminated Memphis logo add bold visual impact to your build.
Overview
Compact Power Reference Bass Performance
The PRXE12SFT is designed for enthusiasts who want strong bass performance without sacrificing space. Featuring a single Power Reference 12-inch subwoofer with FLEX Selectable Impedance technology, this enclosure offers flexible wiring options to match a wide range of amplifiers. The ported design enhances low-frequency output while keeping bass tight and controlled.
- Compact enclosure with big bass capability.
- Selectable impedance for easy amplifier matching.
- Optimized ported design for clean low-frequency output.
Switch between multiple impedance options from one enclosure for maximum system flexibility.
Design & Style
Built to Look as Good as It Sounds
The PRXE12SFT combines performance with visual impact. An RGB LED cone and illuminated Memphis logo make this enclosure stand out, while the front-firing rectangular port and smooth plastic port flare help minimize vent noise and airflow turbulence.
- RGB LED illuminated subwoofer cone.
- RGB LED Memphis logo.
- Sleek front-firing rectangular port design.
Features
Engineered for Flexibility & Output
| Model | PRXE12SFT |
| Woofer Configuration | Single 12" |
| Selectable Impedance | 1Ω / 2Ω / 4Ω |
| Power Handling | 400 W RMS / 800 W Peak |
| Enclosure Type | Ported, front-firing rectangular port |
| Dimensions (in) | 22 × 15.5 × 14 / 16.5 |
1x Memphis Audio PRX800.1V2 Monoblock Subwoofer Amplifier - 800 Watts RMS x 1 at 1-Ohm - (PRX800.1V2)
Memphis Audio PRX800.1V2 – Power Reference Monoblock Amplifier
Power Reference amplifiers combine space-saving design with robust, reliable performance. The PRX800.1V2 has been redesigned with a significantly smaller footprint while retaining the strong power output expected from the Power Reference lineup. LED-accented styling and top-mounted controls make tuning easy even in tight installation spaces.
Overview
Compact Power with Precise Control
The PRX800.1V2 delivers powerful subwoofer performance in a compact chassis designed to fit modern vehicles with limited mounting space. A sleek acrylic top panel with blue LED accents conceals the top-mounted controls, providing easy access for tuning while maintaining a clean, high-end look.
- Redesigned compact amplifier footprint
- High output monoblock performance
- Designed for easy adjustment in tight installs
Design & Features
Power Reference Engineering
- Extruded aluminum heatsink
- Blue LED top cover with hidden controls
- Blue LED ground (undermount) lighting
- 18dB/octave Butterworth crossovers
- Variable crossover controls
- Variable subsonic filter
- Variable EQ bass boost (0–12dB)
- Selectable amplifier turn-on
| Model | PRX800.1V2 |
| RMS Power @ 4Ω | 300W x 1 |
| RMS Power @ 2Ω | 500W x 1 |
| RMS Power @ 1Ω | 800W x 1 |
| Total Harmonic Distortion | <1% @ 4Ω |
| Frequency Response | 10Hz – 250Hz |
| Dimensions (L x W x H) | 7.8" x 5.7" x 2.16" |
| Recommended Amp Kit | 4GKIT |
Use the recommended 4GKIT wiring kit to support proper current delivery and amplifier performance.
1x Memphis Audio 4GKIT 4-Gauge Amp Install Kit With ANL Fuse Holder With One 200A Fuse, And A Pair Of ETP-17 17-Foot RCAs - (4GKIT)
Memphis Audio 4GKIT – 4 Gauge Amplifier Installation Kit
Memphis Audio amplifier installation kits are built using true standard AWG wire made from 100% pure oxygen-free copper to ensure maximum power transfer and reliable performance. The 4GKIT includes everything required to properly install your amplifier, including high-quality RCA interconnects, making it one of the highest performance 4-gauge amp kits available.
Overview
Proper Power for Maximum Amplifier Performance
Your amplifier’s performance is directly affected by the quality of the wiring and connections used. The Memphis Audio 4GKIT is engineered using true oxygen-free copper wiring and high-quality termination components to ensure consistent voltage delivery and clean signal transfer. Trusted by installers nationwide, this kit provides the foundation for dependable amplifier performance.
- True standard AWG wire for accurate current capacity
- Oxygen-free copper for improved conductivity
- Complete kit for a clean, professional installation
Included Components
Everything You Need in One Kit
- 17' 4-AWG frosted orange power wire
- 3' 4-AWG frosted black ground wire
- 17' 18-AWG blue remote turn-on wire
- (2) 17' 2-channel parallel RCA interconnects
- ANL fuse block with satin chrome plated brass
- Nickel plated 200A ANL fuse
- (4) 4-AWG nickel plated ring terminals
- (2) 4-AWG snap bushings
- (2) 22–18 AWG butt splices
- (6) 6" black cable ties
Application
Installer-Grade Reliability
Designed for performance-focused installations, the 4GKIT is ideal for powering a wide range of amplifiers where consistent current delivery and dependable connections are critical. This kit eliminates guesswork by providing matched, high-quality components trusted by professional installers.
| Model | 4GKIT |
| Power Wire Gauge | 4 AWG |
| Fuse Holder Type | ANL |
| Interconnects | (2) ETP-17 |
1x Memphis Audio MXRGBBTC - Phone Controlled Bluetooth RGB LED Controller - (MXRGBBTC)
Take complete control of your lighting with Memphis Aura RGB LED Light controller. Select from millions of color options for the perfect display using the iOS/Android app interface. The MXRGBBTC can control up to 8 Memphis LED speakers. The Memphis AURA app is capable of pairing up to 5 individual MXRGBBTC devices allowing you to sync multiple light displays to a single app. This IPX7 water resistant controller is designed for any environment allowing you to dial in the perfect lighting display for your car, boat, motorcycle or powersports machine.
FEATURES
• Optional app interface available via QR code on box pairs up to 5 MXRGBBTC controllers
• App controls: Up to 30 light colors, flash, fade, brightness & more
