Description
Included in this kit
PowerBass 1 PS-WB101 10" Sub in Ported Enclosure and 1 ASA3-300.2 ASA3 Series Amplifier - This bundle includes a PowerBass PS-WB101 - 10" Single Loaded Ported Enclosure, a PowerBass ASA3-300.2 - 150 Watt X 2 @ 2-Ohm Amplifier, a pry kit, and a Creative Audio coozy.

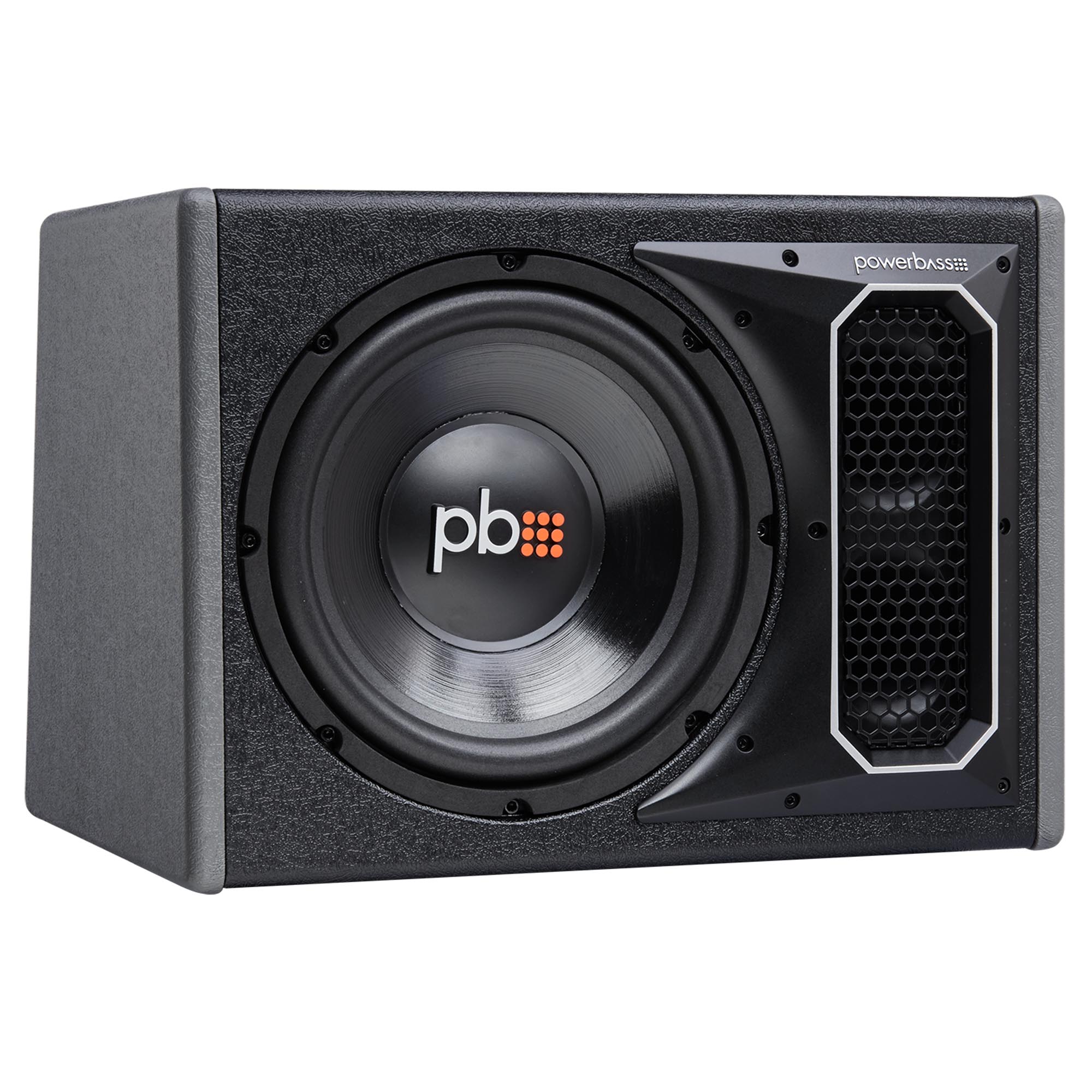

PowerBass PS-WB101 - 10" Single Loaded Ported Enclosure
Features:
Heavy Duty Single 10" Bass Reflex Box Design
Computer Optimized Acoustic Chamber
Bass Reflex Aero/Slot Port System
2-Layer DDC Coated Black Ribbed Paper Cone
2" BASV High Temperature Voice Coil
Double Pressed Treated Foam Surround
2-Tone Aircraft Grade Vinyl Finish
Single 4-ohm Input
250 Watts RMS/500 Watts Max
Specifications
Nominal Impedance: Single 4-ohm Input
Bottom Depth: 13.75"
Top Depth: 11.4"
Height: 12.25"
Width: 17"
Material: DDC coted paper
Sensitivity (1W / 1M): 96 dB
Dimensions (in Inches): 17" x 12.25 x 11.4" (top depth) x 13.75" (bottom depth)
PowerBass ASA3-300.2 - 150 Watt X 2 @ 2-Ohm Amplifier
Specifications -
• Selectable Subwoofer EQ: 0-18 dB Gain @ 45Hz
• Inputs: RCA Input/RCA Pass-Through Output
• Equalization Boost/Cut: 0 - 18 dB
• Subwoofer Frequency Range: 20 Hz - 250 Hz
• 4-ohm Mono Power: 300 watts x 1
• 4-ohm Power: 75 watts x 2
• 2-ohm Power: 150 watts x 2
• Subwoofer EQ Frequency: 45 Hz
• Variable Subwoofer EQ: 0 - 18 dB
• Low-Pass Crossover Freq: 40 Hz - 250 Hz
• High-Pass Crossover Freq: 40 Hz - 250 Hz
• Peak Power: 600 watts
• Crossover Slope: 12 dB
• Dimensions (in Inches): 9.8" x 8.3" x 2.3"
• Input Sensitivity: 0.25 V - 6.0 V
• S/N Ratio: >94 dB
• Total Harmonic Distortion: 0.05% at Rated Power
• Output Power (14.4 V) @ 4 ohm: 75 watts x 2
• Output Power (14.4 V) @ 2 ohm: 150 watts x 2
• Channels (mono): 2
• Frequency Response: 20 Hz - 22 kHz
