Description
Included in this kit
This bundle includes a PowerBass MC-150 Dual-Zone Digital Media Center with Bluetooth & Color TFT Display, and a Powerbass XL-900.5 5 Channel PowerSport Amplifier.
1x PowerBass MC-150 Dual-Zone Digital Media Center with Bluetooth & Color TFT Display - (MC-150)

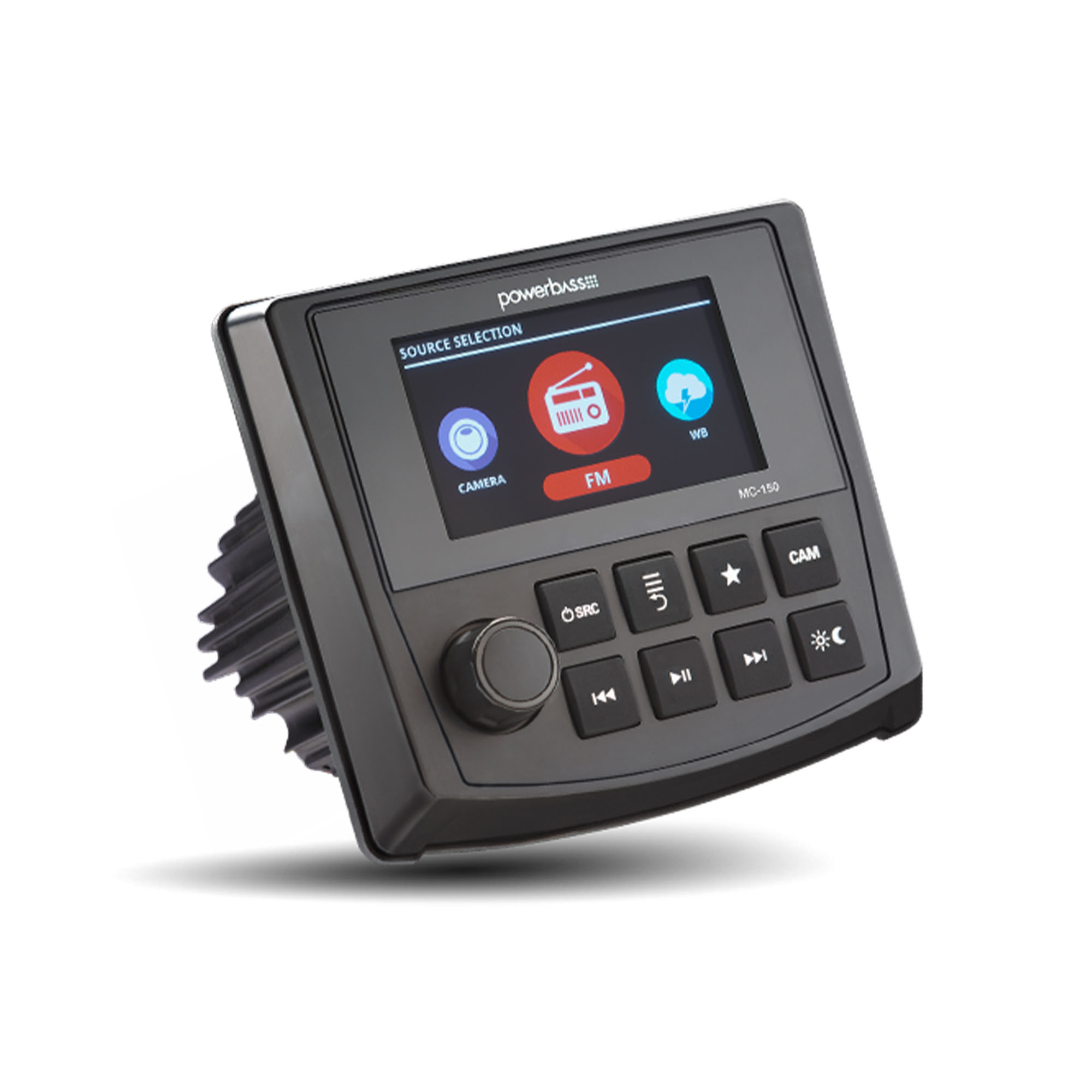

Powerbass MC-150 Dual-Zone Digital Media Center with Bluetooth & Color TFT Display -
Take control of your sound while enjoying the summer on the water or riding the trails with the new MC-150 Digital Media Center
MC-150 provides you with a user-friendly interface for easy operation that is designed to withstand the rugged off-road environment from bashing down the trails to enjoying a day out on the dunes.
Connection to your music library is simple with the built in Bluetooth mode, AUX or USB input and for users that want to hear their favorite AM/FM Station use the built-in tuner that also keeps you safe with preset Weather Band and Traffic Alert stations.
Built to Marine Grade specs the sealed face panel and 3" color TFT screen give you a flowing menu page that easily allows you to control not only your music but also the sound with preset equalization, Subwoofer Crossover, tone control, and Zone 2 output with independent volume control. Power your XL-POD's or other speakers with the buil-in Class D Amplifier providing 25W x 4 RMS and 40W x 4 MAX output to keep the tunes rocking! Backing you UTV up is made even easier with the MC-150's video input for use with most any back up camera systems.
With PowerBass Extreme Marine and Powersports products the sound track for your adventures comes alive!
Features -
• Bluetooth 5.0, AUX, USB Inputs
• AM/FM & Weather Band
• RDS Compatible
• Front , Rear, Sub RCA outputs
• Zone 2 RCA outputs
• USB Charging
• Video Input for Back Up Camera ( camera not included)
• 5 Equalizer Presets
• Subwoofer Crossover Built in 80Hz, 120Hz, 160Hz
• Bass and Treble Adjustment
• 3" Color TFT display
• 25 watts x 4 channels RMS
• 40 watts x 4 channels MAX
• Marine-rated Watertight Face
• Wired Remote input ready (remote sold separately)
1x Powerbass XL-900.5 5 Channel PowerSport Amplifier - (XL-900.5)
The XL series was developed for the growing Power Sports market including UTV and Marine applications—where electronics must withstand harsh environments. The circuit boards have been conformal coated with a layer of transparent material that protects the parts against moisture, dust and temperature extremes.
Features:
900 Watt 5 Channel High Efficiency Full-Range Class D Design
2-OHM Stable Stereo Amplifier
International Rectifier® Chip Set
Ultra Low Current Draw
Double Sided Copper Plated PCB
Conformal Coated PC Board
PWM MOSFET Power Supply
Digital Sound Optimization Circuitry
High Damping Control Circuit
High Current Voltage Ripple Rejection Circuitry
3.5mm AUX Input
Remote Soft Delay Turn On/Off Circuit
Variable Low/High Pass Electronic Crossover
Variable 18dB Bass Boost EQ
Variable Gain Control
Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
Specifications
Peak Power: 2000 watts
Power Supply: Unregulated PWM
Inputs: RCA (speaker level compatible)/3.5mm Mini Jack Input
Dimensions (in Inches): 1.6" x 11.2" x 4.5"
Depth: 4.5"
Channels (mono): 5
4-ohm Power: 100 watts x 4 + 500 watts x 1
4-ohm Mono Power: 400 watts x 2 + 500 watts x 1 2Ω
2-ohm Power: 200 watts x 4 + 500 watts x 1
1-ohm Mono Power: N/A
Selectable Subwoofer EQ: 0-18d B Gain @ 45Hz, Rear Ch.
Variable Subsonic Freq: N/A
Equalization Boost/Cut: 0 - 18 dB
Height: 1.6"
Width: 11.2"
Subwoofer EQ Frequency: 0 - 18 dB @ 45 Hz
Low-Pass Crossover Freq: 40 Hz - 400 Hz
High-Pass Crossover Freq: 40 Hz - 400 Hz
Crossover Slope: 12 dB
Input Sensitivity: 0.25 V - 10.0 V
S/N Ratio: >85 dB
Strapped Output Power @ 2ohms: N/A
Output Power (14.4 V) @ 4 ohm: 100 watts x 4 + 500 watts x 1
Output Power (14.4 V) @ 2 ohm: 200 watts x 4 + 500 watts x 1
Output Power (14.4 V) @ 1 ohm: N/A
Frequency Response: 10 Hz - 40 kHz
