Description
Included in this kit
This bundle includes a PowerBass AWK-40 - 4 Gauge A/S Complete Amplifier Wiring Kit, and a PowerBass ACS-4120 - 120 Watt x 4 @ 2-Ohm Amplifier.

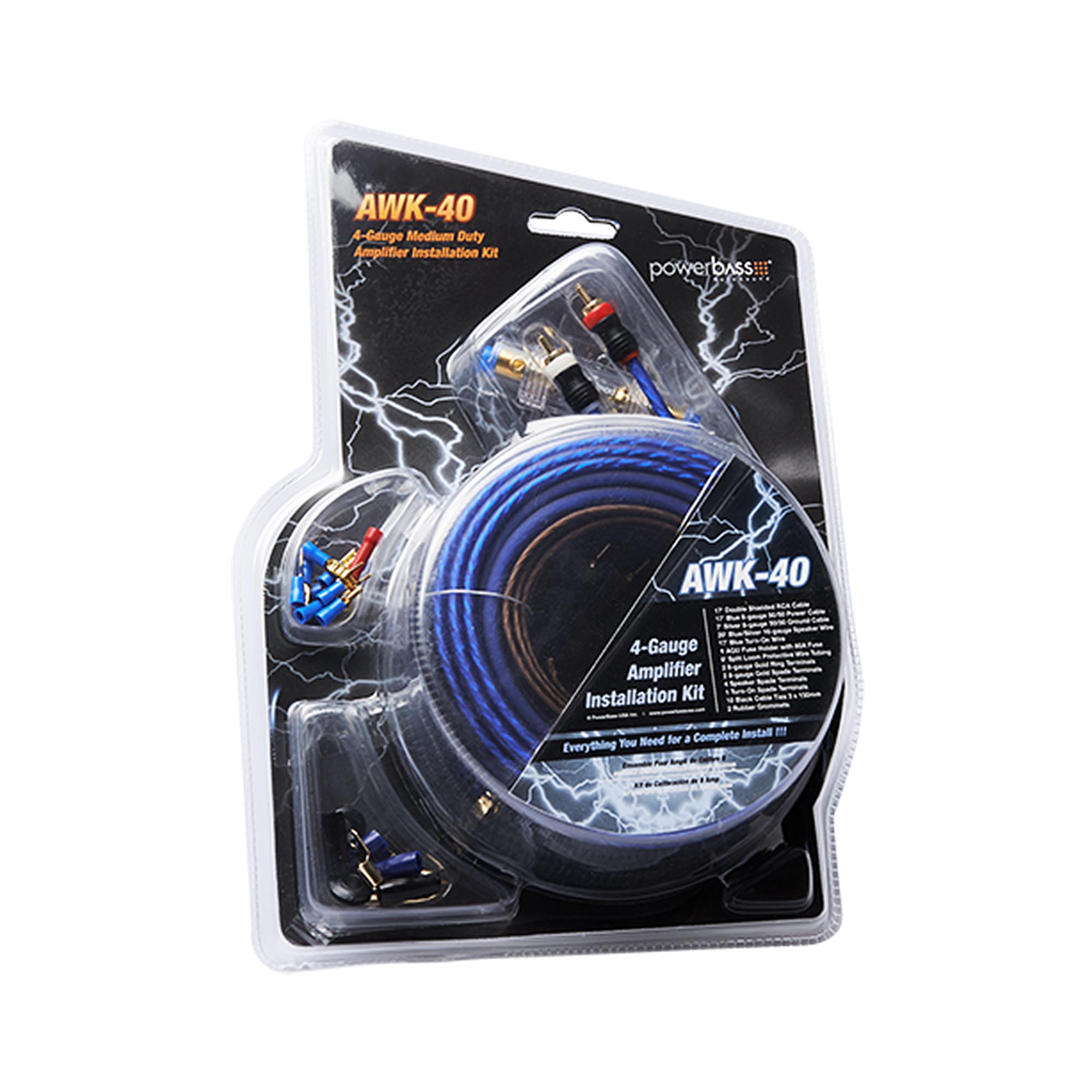

1x PowerBass AWK-40 - 4 Gauge A/S Complete Amplifier Wiring Kit - (AWK-40)
PowerBass AWK-40 HEAVY DUTY 4 GAUGE AUTOSOUND AMPLIFIER INSTALLATION KIT
Features -
• Heavy Duty 4 Gauge 50% CCA/50% OFC (Copper Clad Aluminum/Oxygen Free Copper) Blend Amplifier Installation Kit
• 80 Amp AGU Fuse W/Clear Water Proof In-Line Fuse Holder
• 17' Twisted Pair Triple Shield Braided RCA Cable
• 17' 8 Gauge Blue-Flex Power Wire
• 7' 8 Gauge Black-Flex Ground Wire
• 20' Blue-Flex Speaker Wire
• 6' Black Flex Loom Tubing
• Gold Terminal Connectors
Heavy Duty 50% CCA/50% OFC (Copper Clad Aluminum/Oxygen Free Copper) Blend Wiring Kit
Finely Stranded Rope Lay Construction with Frosted Jacket For Added Flexibility
RCA AUDIO INTERCONNECTS -
• 17' Double Shielded Ultra Flexible Twisted Pair
• Custom Tooled Channel Splitter
• Gold Plated RCA Ends
• Tapered Collar for Maximum Signal Transfer
POWER/GROUND -
• 17' Blue Frosted 4GA XtremeFlex Power Cable
• 7' Black Frosted 4GA XtremeFlex Ground Cable
• Premium 50/50 Blend Tinned for Corrosion Resistance
• Full Spec AWG (American Wire Gauge)
• 80 Amp AGU Fuse W/Clear Water Proof In-Line Fuse Holder
SPEAKER WIRE -
• 20' Premium 16GA 50/50 Blend Tinned for Maximum Current Transfer
• Frosted Blue XtremeFlex Speaker Cable
ACCESSORIES -
• (1) 17ft Blue Remote Turn-on Wire
• (1) 6ft Black Split Loom Tubing
• (2) 4GA Gold Ring Terminals
• (2) 4GA Gold Spade Terminals
• (6) Speaker Gold Spade Terminals
• (5) Turn-on Gold Spade Terminals
• (10) Black Cable Ties
• (2) Rubber Grommets

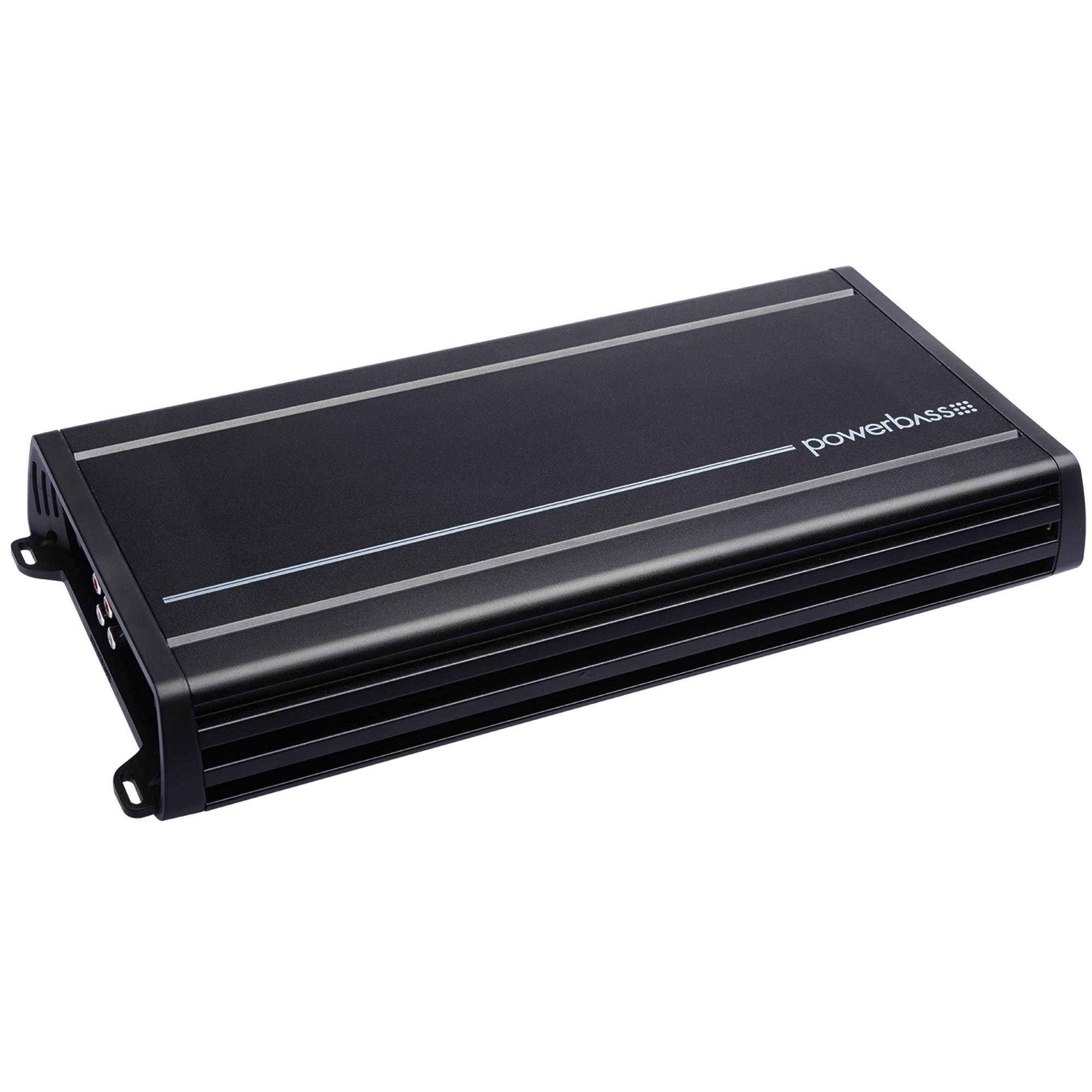

1x PowerBass ACS-4120 - 120 Watt x 4 @ 2-Ohm Amplifier - (ACS-4120)
PowerBass ACS-4120 4ch Compact Amplifier
PowerBass is pleased to introduce our newest series of Class A/B full range and Class D bass amplifiers. Borrowing from our classic ASA series, these new amplifiers offer the most desired features in the most compact chassis allowable. To accomplish this we selected SMD parts and engineered a brand new 6 oz/kg high density heat sink engineered for maximum efficiency and cooling.
The result a line-up of two, four and mono channel models that offer great performance and fantastic value. Ultra efficient, the ACS amplifiers produce plenty of low distortion high fidelity audio in a footprint small enough to fit nicely in nearly any vehicle. If you are seeking the perfect mix of performance and value look no further.
Features -
• 4-Channel 480 Watt High Efficiency Class A/B Design
• 2-ohm Stable (4-ohm in Bridged Mode)
• PWM MOSFET Power Supply
• High Level (Speaker)/Low Level (RCA) Input
• Remote Soft Delay Turn On/Off Circuit
• Variable High/Low Pass Electronic Crossover
• Selectable 12dB Bass Boost EQ
• Variable Gain Control
• Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
Specifications -
• Inputs: RCA, 2 Pairs Input, 2 Pair Speaker Level Input
• Power Supply: Unregulated PWM
• 4-ohm Mono Power: 240 watts x 2
• 4-ohm Power: 60 watts x 4
• 1-ohm Mono Power: N/A
• 2-ohm Power: 120 watts x 4
• Low-Pass Crossover Freq: Variable 30 Hz - 250 Hz
• High-Pass Crossover Freq: Variable 50 Hz - 1 kHz
• Peak Power: 960 watts
• Crossover Slope: 12 dB
• Dimensions (in Inches): 14.8" x 7.1" x 2.0"
• Input Sensitivity: 0.25 V - 6.0 V
• S/N Ratio: >100 dB
• Total Harmonic Distortion: 0.3% @ Rated Power
• Output Power (14.4 V) @ 4 ohm: 60 watts x 4
• Output Power (14.4 V) @ 2 ohm: 120 watts x 4
• Channels (mono): 4
• Frequency Response: 10 Hz - 50 kHz
