Description
Included in this kit
This bundle includes a Wavtech linkDQ - 2-Channel Line Output Converter & Line Driver with PEQ and remote capable, a Stinger SS600XS 8GA Copper 600W Complete Wiring Kit, Blue, a Rockford Fosgate T750X1BD Mono Amplifier - 500x1 @ 4-Ohm, 750x1 @ 2-Ohm, 750x1 @ 1-Ohm, and 2x Rockford Fosgate P3D4-10 10” Subwoofer - DVC (dual 4-Ohm), 500 Watts Rms, 1000 Watts Peak.
1x Wavtech linkDQ - 2-Channel Line Output Converter & Line Driver with PEQ and remote capable - (linkDQ)
How do you replace the best multifunction LOC and line driver on the market? That was the question our product development team was tasked with. It is even more challenging when you are actually replacing 3 models with 1. We took the best features of the linkD, the linkQ and the bassFREQ, and combined them. Welcome to the linkDQ.
The linkDQ has the same class leading LOC and line driver that are the core DNA of all Wāvtech products. The linkDQ features an adjustable parametric EQ with narrow or wide range selection, allowing corrections to any low frequency deficiency that may be present in a factory audio system. It features auto turn-on via DC-offset or Audio Signal Detect, either of which can be easily defeated by the convenient jumpers on the end panel.
We’ve also added an RJ45 port for easily upgrading to a remote level control (sold separately). This allows for fine tuning the systems bass output from the front of the vehicle.
linkDQ Features
2-Channel Line Driver or Line Output Converter (LOC)
Adjustable Parametric EQ
Selectable Narrow or Wide
Frequency Range 30Hz to 80Hz
Remote Level Control Ready (Sold Separately)
Differential Balanced Inputs
Low Impedance Outputs
Variable Gain Adjustment w/Clip LED
Auto Turn-On via DC-Offset or Audio Signal Detect
Generated +12V Remote Output
OEM Load Detect Compatible
Locking Detachable Power/Speaker Terminals
Professional Grade Panel Mount RCA’s
Compact Aluminum Chassis w/Detachable Mounting Tabs
linkDQ Specifications
Output Voltage (Max): >10Vrms
Output Impedance: <50Ω
Input Sensitivity
SPK: 2-20Vrms, 4-40Vrms
RCA: 0.5-5Vrms
Max Input Voltage (SPK): 40Vrms
Frequency Response: <10Hz to > 100kHz
THD+N (SPK/RCA): <0.04% / <0.04%
S/N (SPK/RCA): >115dBA / >116dBA
Parametric EQ (Boost/Freq): 0 to +12dB / 30-80Hz
Turn-On Trigger: +12V, DC-offset & Audio Detect
Generated +12V Output: >500mA
Chassis Dimensions: 1.1”x2.9”x3.5” (29x75x89.5mm)
1x Stinger SS600XS 8GA Copper 600W Complete Wiring Kit, Blue - (SS600XS)
Featuring full copper construction for excellent current transfer to power-hungry amplifiers. Quality twisted pair interconnects for noise-free signal transfer. Also includes ultra-flexible speaker wire, remote turn-on, water-resistant high current fuse holder and terminals for a complete installation package. All the necessary parts for installing your next 2 channel amplifier.
Includes:
17FT Translucent Blue Power Wire
3FT Translucent Silver Ground Wire
17FT Translucent Blue Twisted Pair RCA Interconnects
3FT Black flex loom tubing
16FT Blue Remote Turn-on Wire
20FT Translucent Speaker Wire
1pc AGU Fuseholder
1x Rockford Fosgate T750X1BD Mono Amplifier - 500x1 @ 4-Ohm, 750x1 @ 2-Ohm, 750x1 @ 1-Ohm - (T750X1BD)
Rockford Fosgate Power 750 Watt Class-bd Mono Amplifier
The Power T750X1bd is an ultra-compact, Class bd 750 Watt mono amplifier. It features high-level auto turn-on, CLEAN circuit with input/output clip detection, top mounted controls and dual fan forced induction cooling. Additionally, it has our patented Punch EQ circuit built in and Differential inputs with auto turn-on capabilities. Perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs.
The Power T750X1bd 750 Watt mono, ultra-compact amplifier is built on Rockford Fosgate’s patented Class bd technology platform. This design creates a highly efficient design that reduces the electrical impact on the vehicles charging system by using the efficient Class D technology while maintaining fidelity combining it with Class b topology.
Flexible vehicle integration is achieved via a configurable input harness with Molex style connectivity that accepts both RCA and speaker level signals while our differential input circuitry eliminates signal noise from entering the amplifier resulting in a clean audio signal. When using speaker level input signals, the amplifier also has integrated auto turn-on capabilities and converts its remote input terminal to an output that can be used to turn-on additional amplifiers.
This can eliminate the need of sourcing a separate remote turn-on signal for the amplifier from the vehicle. Top mounted controls allow easy access to the built-in low pass crossover, patented Punch EQ boost circuit and our patented C.L.E.A.N. input/output clip detection circuits. The 3-stage thermal lock extrusion with dual fan forced induction keeps everything cool while our real-time thermal/protection schemes safeguard the amplifier in the event of overheating or short circuit conditions. The unit is also compatible with our Punch PLC2 remote level controller and is ideal for those installations where you need a compact amplifier that can produce high output power.
- Class-BD
- Constant Power provides instantaneous delivery of output over varying impedance loads
- Differential inputs with high level auto turn-on feature
- Upgraded RCA connectors
- 8 AWG Power/Ground connector. 10 AWG speaker connector
- Remote-Out feature when using high level inputs
- 2013 PLC2 remote ready
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Top mounted controls
- Dual fan cooled
- Real time thermal sensing with Rollback technology
- Dual extruded heat sinks
- All other normal Rockford protection schemes
- CEA-2006 and CE compliant
- Discrete surface mount technology
- 2-Year Warranty
General Specifications
CEA-2006 Power Rating500W x 1 @ 4Ω
≤1.0% THD+N
(Sum of Rated Power)
(RMS Continuous Power)
750 Watts x 1 @ 2-Ohm
750 Watts x 1 @ 1-Ohm
(PVC/PowerCube®)
909 Watts x 1 @ 2-Ohm
990 Watts x 1 @ 1-Ohm
2-Ohm: <1.0%
1-Ohm: <1.0% above 35 Hz
Infrasonic: 28Hz @ 12dB/Octave Butterworth
Protect: Red LED
Input Clip: Red LED3
Output Clip: Blue/Violet/Red LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
(not included)
4.1 x 10.8 x 21.1 (cm)

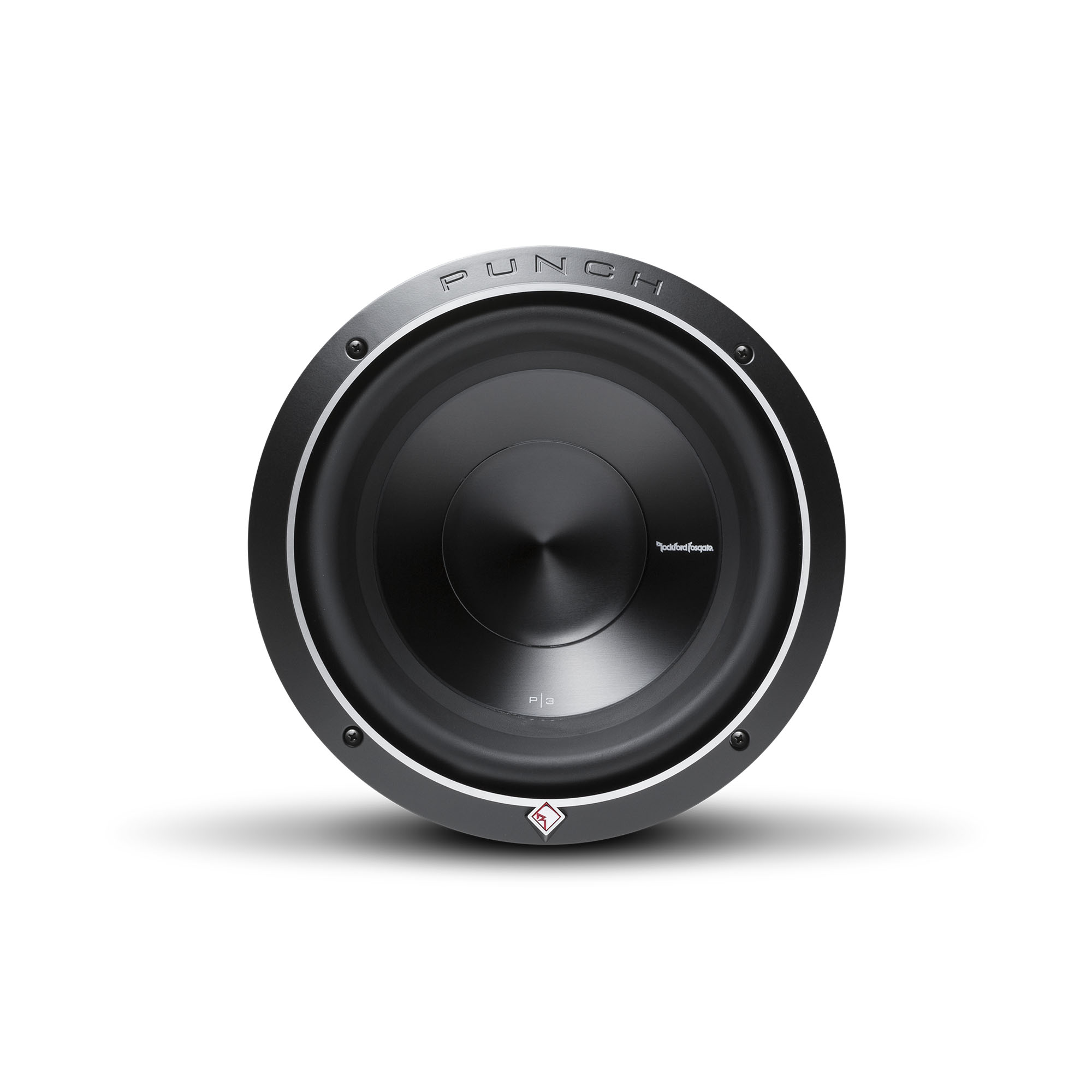

2x Rockford Fosgate P3D4-10 10” Subwoofer - DVC (dual 4-Ohm), 500 Watts Rms, 1000 Watts Peak - (P3D4-10)
Rockford Fosgate Punch 10" P3 4-Ohm DVC Subwoofer
The P3D4-10 is the best performing Rockford Fosgate Punch series subwoofer. The P3 10” features Dual 4-Ohm voice coils, 500 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring.
The P3D4-10 is Rockford Fosgate's best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.
- Custom 10-AWG nickel plated push terminals
- Rubberized over-mold for greater grip
- Extended pole piece and bumped vented backplate
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Anodized aluminum cone and dustcap
- Protective PVC textured magnet cover
- Diamond cut cast aluminum trim ring with optional grille
- StampCast basket with integrated spider venting
- 1 Year WarrantyCustom 10-AWG nickel plated push terminals
- Rubberized over-mold for greater grip
- Extended pole piece and bumped vented backplate
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Anodized aluminum cone and dustcap
- Protective PVC textured magnet cover
- Diamond cut cast aluminum trim ring with optional grille
- StampCast basket with integrated spider venting
- 1 Year Warranty
Specifications
1000 Watts Max
