Description
Included in this kit
This bundle includes 2x Rockford Fosgate RGB-Y4P 4-Pin Color Optix™ Y-Adaptor for PMX-RGB (Gen-2), 2x Rockford Fosgate RGB-25 25 Ft Color Optix Extension Cable To Be Used With Pmx-Rgb & RGB-Y4P or RGB-Y6P, 2x Rockford Fosgate M2D4-10IB 10" Color Optix Infinite Baffle Marine Subwoofer, DVC (4-Ohm)- 400 Watts Rms, 1600 Watts Peak, Black & Stainless Grilles Included, and a Rockford Fosgate PMX-RGB Color Optix Light Controller With Optional App Interface.

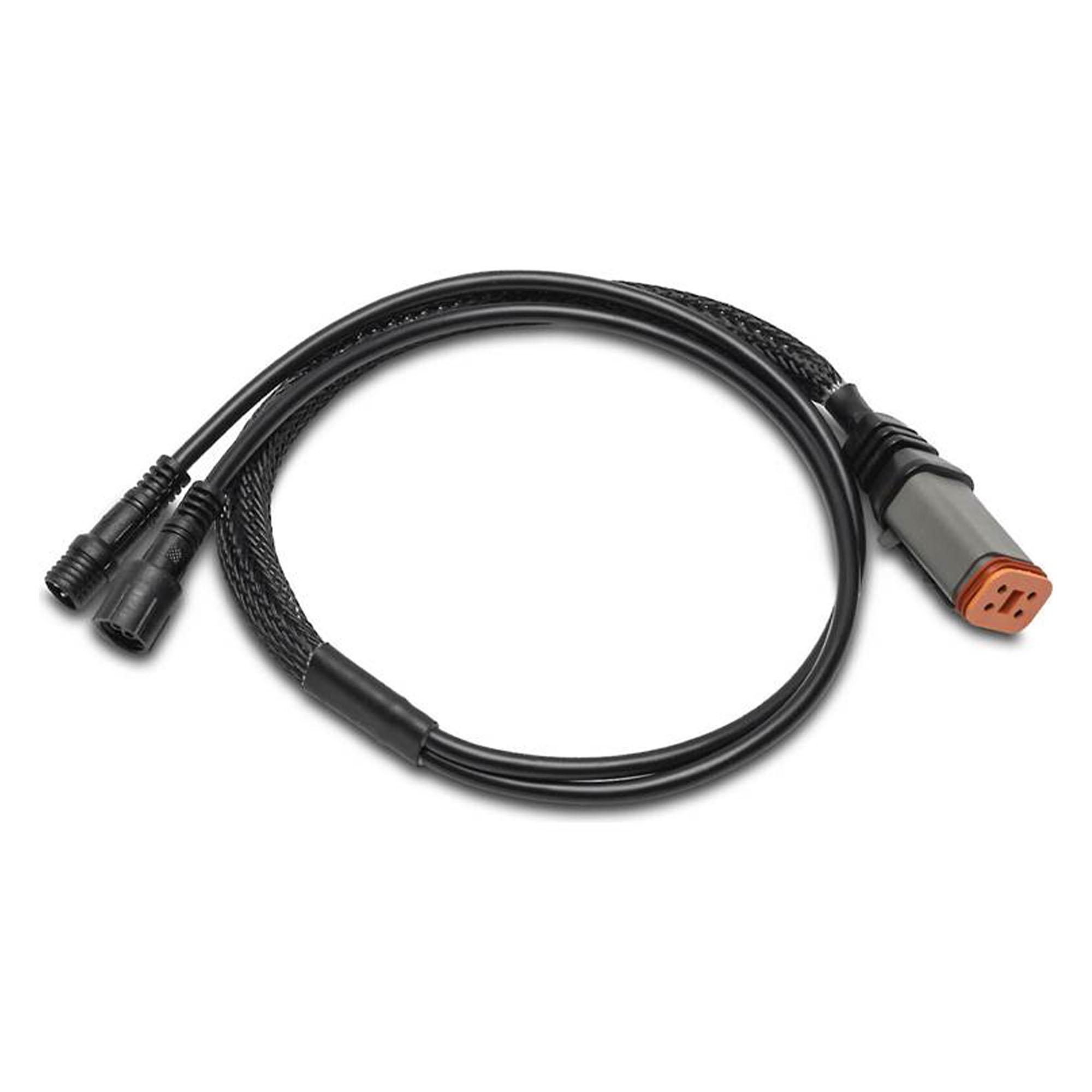

2x Rockford Fosgate RGB-Y4P 4-Pin Color Optix™ Y-Adaptor for PMX-RGB (Gen-2) - (RGB-Y4P)
Plug-and-play Y-adaptor simplifies the installation of additional Color Optix™ speakers. Simply connect this Y-adaptor to the RGB controller or RGB-6/16/25 extension cable, plug-in the speaker's Deutsch™ connector, then use the additional 4-pin female connector to daisy-chain an additional speaker. Check compatibility chart of Rockford Fosgate marine audio speakers before purchasing.
Color Optix™ cables provide a water-tight seal for electrical connections between our RGB controller and matching Color Optix™ speaker. The cable carries DC low voltage, designed to illuminate the appropriate LEDs behind the speaker grille. The IPX6 rating ensures your connections are water-tight when properly secured.
Features -
• Element Ready™ Deutsch™ / Amphenol™ connector IP7 rated
• Y-adapter allows for daisy-chaining multiple speakers on a single run
• 2 conductor leads for speaker (+) and (-)
• True Marine ecoSystem that works together with Color Optix™ controller
• Ensures connections remain waterproof and safe from elements.
• Compatible with M1/M2 speakers and subwoofers
• 2-Year Warranty
• No cutting, no splicing
2x Rockford Fosgate RGB-25 25 Ft Color Optix Extension Cable To Be Used With Pmx-Rgb & RGB-Y4P or RGB-Y6P - (RGB-25)
Plug and play extension cable that makes the installation of the PMX-RGB controller and RGB LED speakers simple. Extends distance between RGB controller to speaker by 25 feet.
Features -
• Element Ready™ Deutsch™ / Amphenol™ connector IP7 rated
• Controller illuminates up to 8 Color Optix™ speakers and/or subwoofers
• 2-Year Warranty
2x Rockford Fosgate M2D4-10IB 10" Color Optix Infinite Baffle Marine Subwoofer, DVC (4-Ohm)- 400 Watts Rms, 1600 Watts Peak, Black & Stainless Grilles Included - (M2D4-10IB)
Rockford Fosgate M2 10" DVC 4Ω Color Optix™ Infinite Baffle Marine Subwoofer - Black
The M2D4-10IB Color Optix™ 10” DVC 2-Ohm infinite baffle subwoofers deliver loud, clear, accurate bass, and light the way for your journey! M2 provides a customized look by using either the stainless-steel grille or the black “sport” grille insert. The subwoofers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IPX6 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential. This subwoofer is optimized for Infinite Baffle installations, where an enclosure is not required.
The M2 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M2 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 2 and 8 ohms as easy as flipping a switch. This subwoofer is optimized for Infinite Baffle installations, where an enclosure is not required. A mounting baffle is required to isolate any interaction between the front and rear wavelengths to prevent cancellation.
- 2" (50mm) High Temp Kapton™ Woofer Voice Coil Former
- Ultra-high temperature PA66 with 30% glass fill injection-molded frame with UV inhibitors
- Gold plated Marine grade brass terminals provide a corrosion resistant connection
- Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
- Vented motor design with water-repelling nano coated mesh screen
- 100% UV Stable Centrex plastic grill
- Linear Aramid-Polyester Composite Spider
- Fully insulated silicone tinsel leads
- Injection molded UV stable foam surround
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- Co-molded surround and mineral filled polypropylene cone body
- Optically clear UV stable RGB Lighting Encapsulation
- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
- Optimized for infinite baffle applications when an enclosure is not an option
- 2-Year Warranty
Specifications
1600 Watts PEAK
1x Rockford Fosgate PMX-RGB Color Optix Light Controller With Optional App Interface - (PMX-RGB)
Rockford Fosgate Color Optix™ Light Controller with Optional App Interface
The PMX-RGB Color Optix™ controller provides LED lighting control over M1 & M2 speakers and subwoofers. This allows you to create a true marine ecosystem that works together seamlessly. Pair this with our RF Connect™ smartphone app and give your system infinite control by customizing the color and lighting effects of your speakers. Supports up to 8 speakers or subwoofers. App supports multiple Color Optix™ controllers.
The PMX-RGB is an Element Ready™ watertight, IPX7 certified, RGB LED Light Controller. The controller features plug and play connectors that make the installation of the controller and RGB speakers simple through the use of optional extension cables and Y-adaptors. The proprietary designed RF CONNECT™ App allows quick and easy connection from compatible Apple or Android devices to the Color Optix™ controller through wireless communication. Multiple Color Optix™ modules supported. The App allows the user to choose from 30 different color scrolling options, any fixed color from the swatch panels, or any gradient from the color wheel. The speed and brightness can also be dialed in to compliment and customize every installation. The PMX-RGB can support up to 8 speakers or 8 subwoofers.
- Controller illuminates up to 8 Color Optix™ speakers and/or subwoofers
- RF Connect™ App Compatible
- Operating Voltage 9VDC – 24VDC
- Includes stainless steel mounting hardware
- 2-Year Warranty
Specifications
Slight dimming may occur end of string
Includes Y-Adaptors
