This bundle includes a Rockford Fosgate PMX-HD9813 Media Receiver Compatible With 1998-2013 Harley Davidson - 3” Color Display, Bluetooth, SiriusXM Ready, Pandora, a SiriusXM SXV300m1 Satellite Radio Tuner with RV/Marine Antenna, and a Rockford Fosgate PMX-ANT Am/Fm/Wb Amplified 12v Antenna.
1x Rockford Fosgate PMX-HD9813 Media Receiver Compatible With 1998-2013 Harley Davidson - 3” Color Display, Bluetooth, SiriusXM Ready, Pandora - (PMX-HD9813)
Rockford Fosgate Digital Media Receiver for 1998-2013 Harley-Davidson
Direct replacement digital media receiver for select 1998 - 2013 Harley-Davidson® motorcycles. Features 3-inch full color, ultra-bright display with day/night modes and oversized buttons for easy control. Engineered for the ultimate in performance and sound quality featuring 4-Volt pre-amp outputs that don't clip! Plug and play installation with OEM electrical system requires no additional wiring or cutting of existing factory harnesses or components. Retains factory thumb controls. Refer to our COMPATIBILITY chart to verify fitment before purchasing.
Plug and play installation requires factory wiring harness and connectors in order to retain functionality. Systems requiring rear speaker-line outputs will require additional harness (sold separately.) PMX source unit not compatible with factory amplified systems, CB, Intercom, rear volume controls, rear speakers on 1998-2005 Ultra’s, and factory equipped satellite radio systems. Estimated Installation Time: 1 HOUR.
- 1998-2013 Harley-Davidson® direct replacement Media Receiver
- A2DP and AVRCP Bluetooth® Wireless Streaming
- Pandora® Internet Radio Control
- SiriusXM® Ready (requires SiriusXM® SXV300 tuner)
- Digital AM / FM Tuner
- USB Input with 1.5A USB Charging
- AUX Input
- 3" Full Color TFT Display with Day/Night Mode
- Retains Factory Handle Bar Audio Controls
- Voltage gauge with Low voltage Warning
- 7-Band Graphic EQ + PEQ
- Plug and Play Installation with OEM electrical connectors
- Independent Subwoofer Level Control
- Compatible with PMX-BTUR Remote control
- Multi Region Radio Frequencies
- Selectable HP/LP/AP Crossover with Selectable 12/24 dB/Octave Slope
- Software updatable via USB
- 2-Year Warranty
- *Antenna not included
Compatibility
Plug and play installation requires factory wiring harness and connectors in order to retain functionality. Systems requiring rear speaker-line outputs will require additional harness available in the RFK-HD9813 or separately with the 1130-72997-01.
1 Not compatible with factory amplified systems, CB, Intercom, rear volume controls, rear speakers on 1998-2005 Ultra’s, and factory equipped satellite radio systems.
| YEAR | MAKE | MODEL |
|---|---|---|
| 2006-2013 | Harley Davidson® | Street Glide®1 |
| 1998-2013 | Harley Davidson® | Road Glide®1 |
| 1998-2013 | Harley Davidson® | Electra Glide®1 |
Specifications
Operating Voltage
9.5 - 16 VDC
Output Power
CEA-2006 Power Rating25W x 4 @ 4Ω RMS
50W x 4 @ 2Ω MAX
≤1.0% THD+N
Output Impedance
< 500 Ohms
Idle Current
< 2 Amps
Frequency Response
RCA: 20Hz - 20 kHz
High-Level: 20Hz - 20 kHz
High-Level: 20Hz - 20 kHz
RCA Output Voltage
Front: 4 V Max
Rear: 4 V Max
Sub: 4 V Max
Rear: 4 V Max
Sub: 4 V Max
THD+N
4-Ohms: < 1.0 %
Channel Separation
RCA: > 50 dB
High-Level: > 50 dB
High-Level: > 50 dB
Signal-to-Noise Ratio
RCA 2V: > 85 dB
High Level (CEA-2006): > 75 dB
Max Wrms: > 80 dB
High Level (CEA-2006): > 75 dB
Max Wrms: > 80 dB
AM Tuner
Range: 530 - 1710 kHz
Sensitivity: 40 dB
Frequency Response: 45 to 2.4 kHz
Sensitivity: 40 dB
Frequency Response: 45 to 2.4 kHz
FM Tuner
Range: 87.9 - 107.9 MHz
Sensitivity: 8 dB
Frequency Response: 20 - 15 kHz
Sensitivity: 8 dB
Frequency Response: 20 - 15 kHz
Bluetooth®
3.0+EDR
A2DP 1.3
A2DP 1.3
Supported Media Formats
MP3
WMA
WMA
USB Version
2.0
USB Output Current
1.5A
USB Capacity
32 Gb max
255 Folders max
999 Songs max
Format Win USB as FAT32
Format Mac USB as MS-DOS (FAT)
255 Folders max
999 Songs max
Format Win USB as FAT32
Format Mac USB as MS-DOS (FAT)
Clock
Yes
Display Size:
Nominal Size: 3" Color TFT
Resolution: 960 x 240
Brightness: 380 nits
Contrast: 400
Pixels: 320 x 240
View Angle: 120
Resolution: 960 x 240
Brightness: 380 nits
Contrast: 400
Pixels: 320 x 240
View Angle: 120
Made for iPhone Models
iPhone XS Max
iPhone XR
iPhone 8 Plus
iPhone 7 Plus
iPhone SE
iPhone 6s
iPhone 6
iPhone 5c
iPhone XS
iPhone X
iPhone 8
iPhone 7
iPhone 6s Plus
iPhone 6 Plus
iPhone 5s
iPhone 5
iPhone XR
iPhone 8 Plus
iPhone 7 Plus
iPhone SE
iPhone 6s
iPhone 6
iPhone 5c
iPhone XS
iPhone X
iPhone 8
iPhone 7
iPhone 6s Plus
iPhone 6 Plus
iPhone 5s
iPhone 5
Shipping Weight
4.75 Lbs. (2.15 Kg)
Made for iPod Models
iPod touch (5th generation)
iPod touch (6th generation)
iPod touch (6th generation)
Dimensions
(HxWxD)
(HxWxD)
Faceplate: 2.7" x 8.4" x 0.7"
(68.4 mm x 213 mm x 17.1 mm)
Chassis: 2.5" x 8.2" x 7.5"
(63.5 mm x 209.3 mm x 191 mm)
(68.4 mm x 213 mm x 17.1 mm)
Chassis: 2.5" x 8.2" x 7.5"
(63.5 mm x 209.3 mm x 191 mm)
1x SiriusXM SXV300m1 Satellite Radio Tuner with RV/Marine Antenna - (SXV300m1)
Connect, control and enjoy all the wonders of satellite radio on the sly. The compact SXV300 tuner is truly plug-and-play with compatible car stereos and installs easily and discreetly behind the dash for a fully integrated look.
Specifications:
SXV300 Connect Tuner
Dimensions: 3.42 in (W) x 2 in (H) x 0 .7 in (D), (87 mm (W) x 51.8 mm ( H) x 17.9 mm (D))
Weight: 3 oz (85 g)
Pigtail Cable Length: 25.6 in (650 mm)
Power Requirements: 12v DC, 0 .3 A (MAX) (supplied by radio/ headunit)
Operating Temperature: -4°F to +158°F (-20°C to +70°C)
Marine/RV Antenna
Type: SiriusXM approved Marine Antenna
Pigtail Cable: 6 in (152 mm), TNC female
Antenna Cable: 25 ft (7.6 m), TNC male to SMB
Waterproof Rating: IPX67

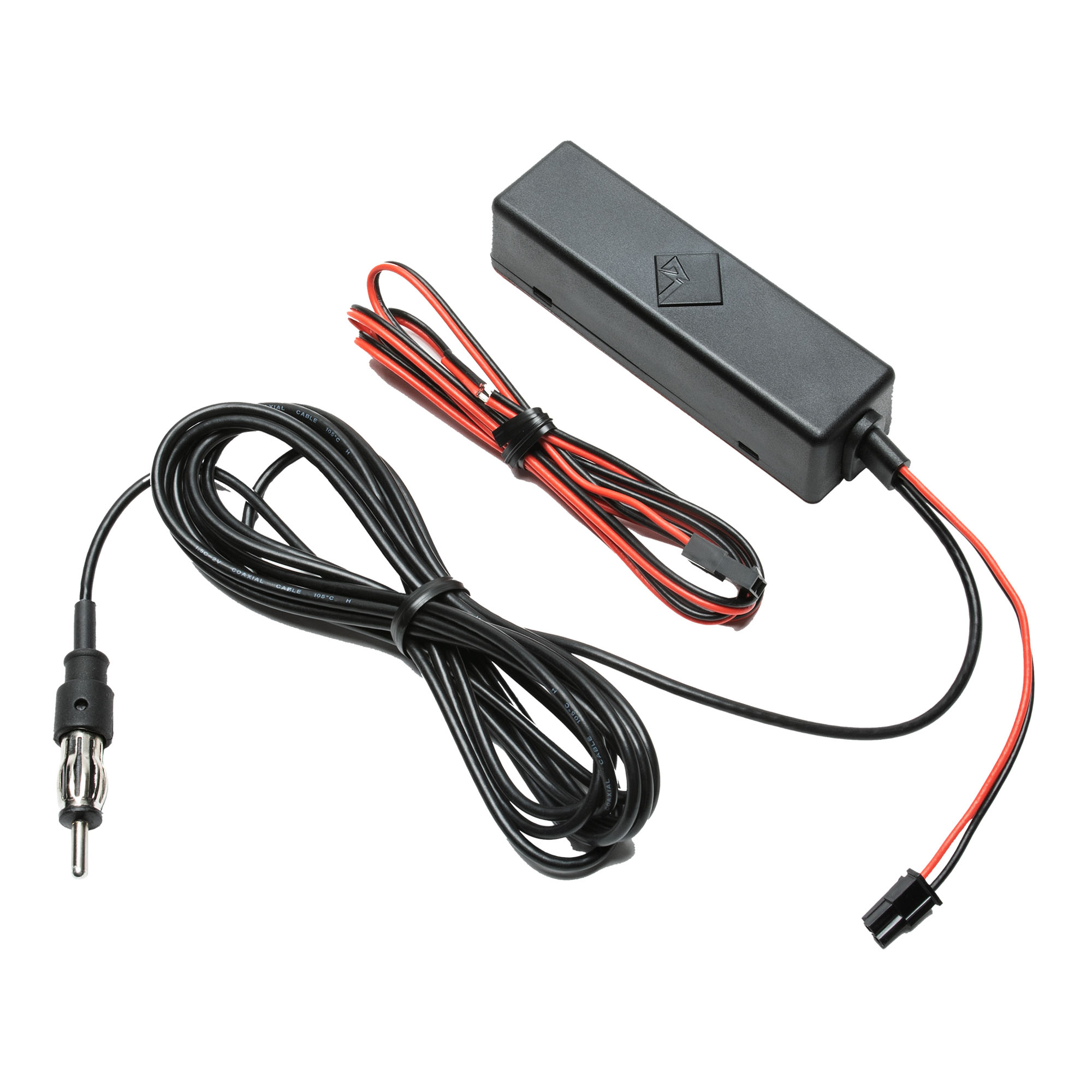

1x Rockford Fosgate PMX-ANT Am/Fm/Wb Amplified 12v Antenna - (PMX-ANT)
Rockford Fosgate AM/FM/WB Amplified 12V Antenna
The PMX-ANT is an amplified antenna for use with Rockford Fosgate PMX source units to boost radio signals in distant areas.
The PMX-ANT is a powered antenna designed to boost AM/FM and WB (weather band) stations. It's universal connectivity allows for use in Marine or UTV installation through a quick power connector.
- Universal AM/FM/WB Antenna
- 12VDC Powered for +20dB of Signal Gain
- Omnidirectional
- IP67 Water & Dust Rated
- Double Sided Tape Mounting
- Quick Power Connect for Easy Installation
Specifications
Dimensions (HxWxD)
0.96 in. x 1.11 in. x 3.89 in
(24.5 mm x 28.2 mm x 98.7 mm)
(24.5 mm x 28.2 mm x 98.7 mm)
Idle Current
< 20 mA
Signal Boost Range
Unpowered: 0 dB
Powered: 20 dB
Powered: 20 dB
Operating Voltage
9 - 16 VDC
Operating Temperature
-30℉ to 70℉
(-34℃ to 21℃)
(-34℃ to 21℃)
Cable Length
Power: 3.58 ft. (109 cm)
Antenna: 8.4 ft. (256 cm)
Antenna: 8.4 ft. (256 cm)
Shipping Weight
0.5 Lbs. (0.2 Kg.)
