Memphis Audio • Direct-Fit OEM UTV Audio
RZRPROPAK4P – Amplified 4-Speaker + Sub Plug & Play Audio System (Polaris RZR PRO 2020 & Newer)
Memphis Audio Direct Fit OEM Audio Systems are built to help you create a complete, vehicle-specific audio upgrade for your Side-By-Side. The RZRPROPAK4P combines direct-fit speaker pods, a powered 10-inch shallow subwoofer enclosure, system amplification, a multi-zone media controller, and plug-and-play harnessing for a purpose-built install.
Compatible: Polaris RZR PRO 2020 & newer
Amplified 4-speaker + powered sub system
350W amplified sub w/ remote bass knob
SMC3 multi-zone control + TFT display
RGB LED lighting
IP66 rated / sealed connectors
Plug & Play wire harness included
Overview
Direct-Fit, Weather-Ready Audio Upgrade
Designed as a complete OEM-style solution, this system pairs direct-fit speaker pods with an amplified subwoofer enclosure and dedicated system control. IP66-rated components and sealed connectors help support off-road use, while RGB lighting adds a custom look to match your build.
- Direct-fit front speaker pods plus MXA62PS rear speaker pods.
- Powered direct-fit 10" shallow subwoofer with internal 350W amplifier and remote bass knob.
- Plug & Play wire harness included for simplified installation.
- IP66 rated with sealed connectors for water/dust resistance.
- RGB LED lighting integrated across supported components.
Control Center
SMC3 Multi-Zone Media Control
The SMC3 adds multi-zone control with independent sub control, a 3" TFT wet bonded color LCD display, and a full set of modern inputs for your UTV audio system.
- Multi-zone with independent sub control.
- 3" TFT wet bonded color LCD display.
- AM/FM, USB, Bluetooth and AUX inputs.
- 4 pair RCA pre-outputs: Front / Rear / Sub / Zone 2 (5V RCA output listed).
- Built-in 4 x 50W amplifier.
- Video input, EEPROM memory, IP66 waterproof design.
- 18 FM presets / 12 AM presets; auto dimmer with day/night mode.
- Optional wired remote: MXA1MCR.
Key Features
Built for Fit, Output, and Off-Road Conditions
Powered Direct-Fit Subwoofer
10" Memphis shallow subwoofer in an HDPE (high density polyethylene) rotational molded enclosure with a powerful
internal 350W amplifier and remote bass knob.
IP66 Rated + Sealed Connectors
IP66-rated system elements with sealed connectors to help support harsh riding environments.
RGB LED Lighting
Integrated RGB LED lighting across supported components, with included RGB control hardware listed in the kit.
Plug & Play Harnessing
Plug & Play wire harness included, plus additional harness components listed for Pro-level media center and rear speakers.
Rear Pod Materials
MXA62PS rear speaker pods include a polypropylene woofer, silk dome tweeter, and adjustable aluminum hardware.
System Amplification
Includes MXA300.4 4-channel amplifier with high/low level inputs and a compact footprint for flexible mounting.
What’s Included
Kit Components (As Listed)
- Direct Fit Front Speaker Pods (system feature list)
- Powered Direct Fit Subwoofer: 10" Memphis shallow subwoofer + internal 350W amplifier + remote bass knob
- MXA62PS Rear Speaker Pods
- SMC3 Media Controller
- MXA300.4 – 4 Channel Amplifier
- MXASSKITPROPWR – Pro Level Media Center Wire Harness
- MXASSKITRRHR – Rear Speaker Harness for OEM Direct Fit Kits
- MXRGBBTC – RGB Controller
- MXSMC3RGBHR – Harness to Power RGB Controller
- RZRPRODK – Dash Kit for the SMC3
- MXAMPBK – Amp Bracket
- Plug & Play wire harness included (feature list)
Vehicle Compatibility
Listed as compatible with Polaris RZR PRO 2020 & newer. This is a direct-fit OEM-style system intended for Side-By-Side applications.
Listed as compatible with Polaris RZR PRO 2020 & newer. This is a direct-fit OEM-style system intended for Side-By-Side applications.
Enclosure / Build
Subwoofer enclosure is listed as HDPE (high density polyethylene) rotational molded, with an IP66 rating and sealed connectors.
Subwoofer enclosure is listed as HDPE (high density polyethylene) rotational molded, with an IP66 rating and sealed connectors.

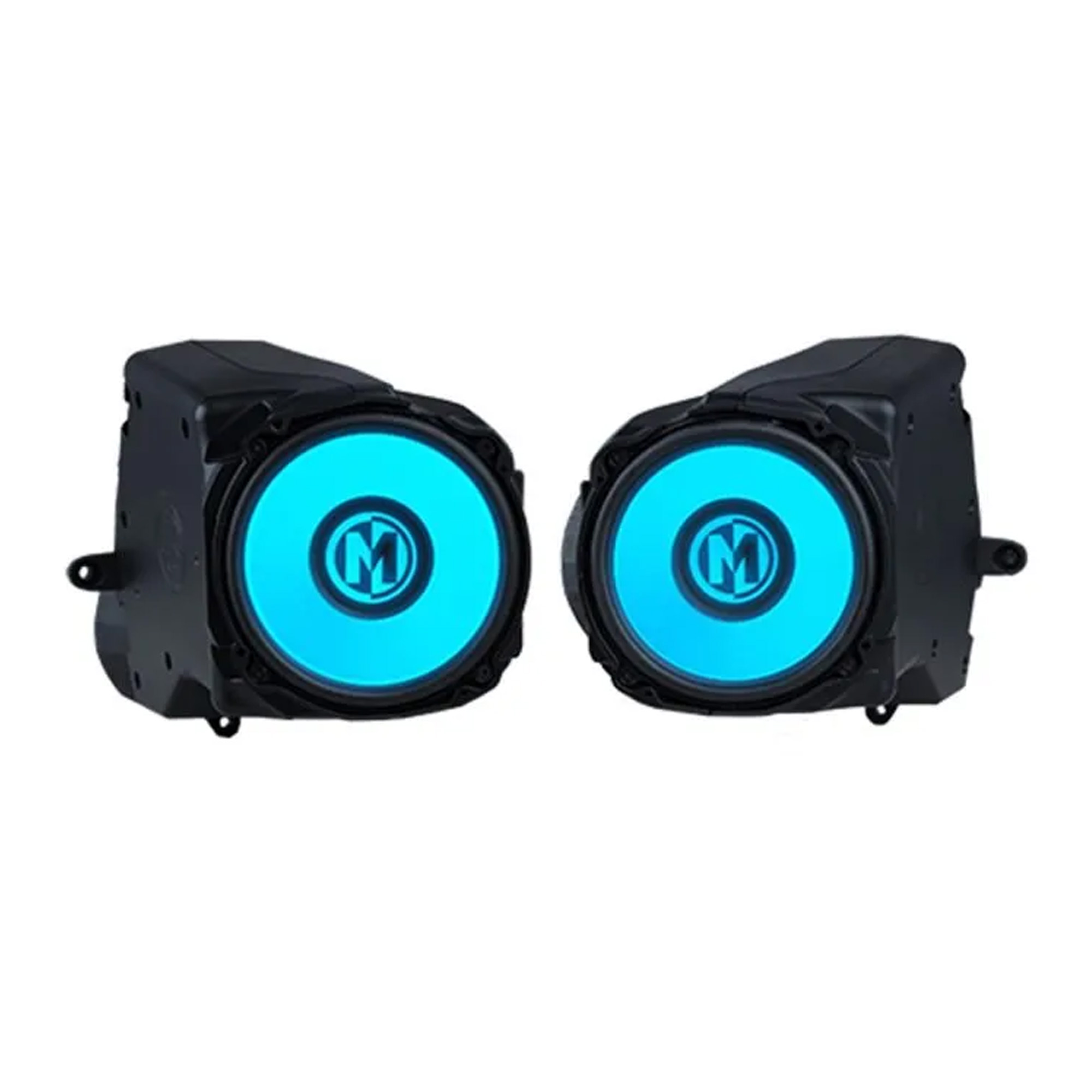

Specifications – Front Speaker System (RZRPRO65FE)
| Model | RZRPRO65FE |
| RMS Power | 75 W |
| Peak Power | 150 W |
| Sensitivity | 90 dB |

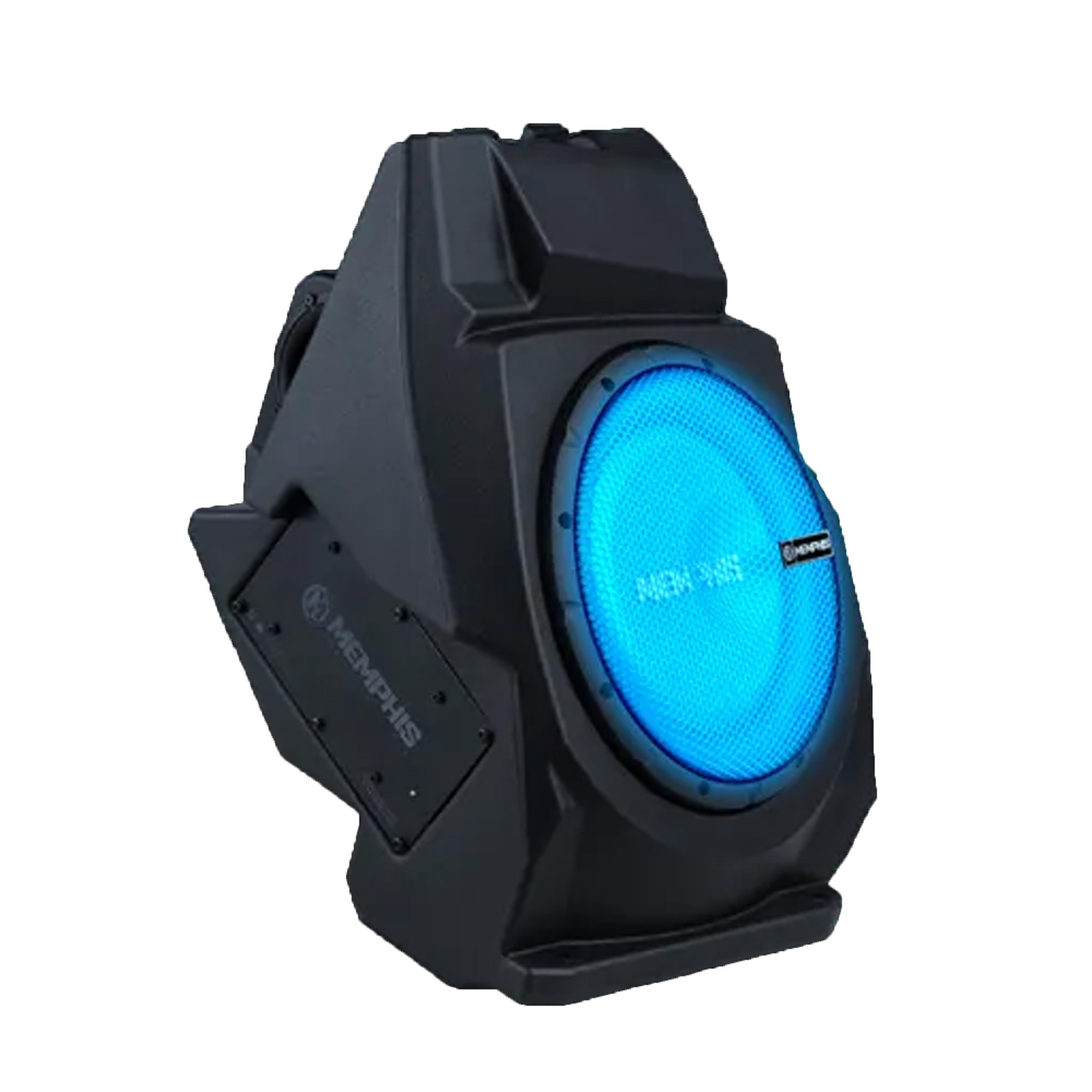

Specifications – Powered Subwoofer (RZRPRO10SE)
| Model | RZRPRO10SE |
| Subwoofer | 10" Memphis shallow subwoofer |
| RMS Power | 350 W |
| Peak Power | 600 W |
| Sensitivity | 84 dB |
| Amplifier | Powerful internal 350W amplifier w/ remote bass knob |
| Lighting | RGB LED lighting |
| Ingress Protection | IP66 rated w/ sealed connectors |
| Enclosure Material | HDPE (high density polyethylene) rotational molded enclosure |
Specifications – MXA62PS Rear Speaker Pods
| Model | MXA62PS |
| Woofer Size | 6.5" |
| Impedance | 4Ω |
| Power Handling | 75 W RMS / 150 W Peak |
| Clamp Fit | 1.5" – 2.25" bars |
| Additional Features (Listed) | Water and UV resistant; polypropylene woofer; silk dome tweeter; adjustable aluminum hardware; built-in RGB LED lighting; IP66 rated |
Specifications – MXA300.4 4-Channel Amplifier
| Model | MXA300.4 |
| RMS Power @ 4Ω | 65 W x 4 |
| RMS Power @ 2Ω | 75 W x 4 |
| THD @ 4Ω | < 1% |
| Frequency Response | 20 Hz – 20 kHz |
| Dimensions (in) | 3.25 x 1.75 x 8.6 |
| Additional Features (Listed) | IP66 water resistant; high/low level inputs; sealed connectors; compact footprint |
