Description
Included in this kit

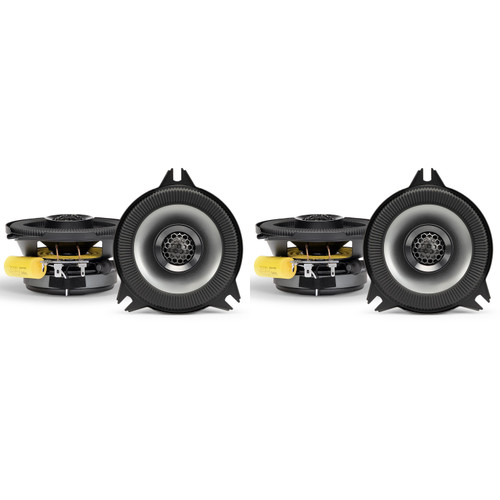

This bundle includes 2x Alpine BRV-S40 4" BassRev™ Speaker Set.
2x Alpine BRV-S40 4" BassRev™ Speaker Set - (BRV-S40)
PRODUCT OVERVIEW
Using proprietary software technology and a powerful digital sound processor, we pushed the envelope of what’s possible in a sound system, redefining how you experience your music on the road.
PRODUCT FEATURES
H.E.D.G.E. Surround – The symmetrical shape, coupled with the High Excursion Design Gathered Edge, allows the speaker to operate more symmetrically and linearly for increased output and extended low frequency.
Unique Design – The unique lapeled cone shape allows us to achieve high cone excursion for more motion and height when compared to a traditional speaker.
OPTIM Sync Technology – Using a proprietary dynamic bass boost algorithm, we can extend the bass frequency on each speaker while staying within the safe operating limits. Each speaker features a pre-EQ to enhance the tonal balance during playback.
OVERVIEW FEATURES
• High Excursion Design Gathered Edge (H.E.D.G.E.) rubber surround increases output and low frequency extension
• Unique lapel cone shape for high excursion
• OPTIM Sync Technology pre - EQ selection specific to each driver (requires 3.0 or newer update on PXE -C80-88)
• Polypropylene and Mica Cone Material for increased rigidity
• Ferrite magnet
• Gun metal chemical topcoat for premium aesthetic
SYSTEM TECH SPECS
• Woofer Size: 4”
• Tweeter Size: 0.75”
• Maximum Peak Power: 120W
• Maximum RMS Power: 40W
• Frequency Response: Without BassRev 75 Hz – 20k Hz, With BassRev 67 Hz – 20k Hz
• Impedance: 4Ω
• Sensitivity: 84dB
• 30% SPL increase for increased loudness
• 25% X-Max increase for increased cone movement
• Mounting Depth: 45mm (1.77”)
SYSTEM COMPONENTS
• 4” Component Speaker Set
• 0.75” Tweeter Set
