Included in this kit
This bundle includes a Nav-TV NTV-KIT1021 ZEN-H | Harley-Davidson A2B Audio Interface, 2x Memphis Audio ETP-3 3-Foot 2 -Channel Audio Interconnect Cables, a HDPG8K - 8 Gauge Power/Ground Kit, and a Diamond Audio MICRO4V2 - MICROV2 Series 4-Channel Full Range Class D Amplifier.
1x Nav-TV NTV-KIT1021 ZEN-H | Harley-Davidson A2B Audio Interface - (NTV-KIT1021)
NAV-TV’s ZEN-H processor seamlessly allows aftermarket amplifiers to be added to the factory Harley-Davidson headunit via its low level (8 channel) analog RCAs @5V RMS. This plug & play kit integrates with various OEM data networks to retain chimes, volume control, fader/balance, and EQ Presets (for true OEM integration).
Tech Specs:
- 24 Bit 48khz Output
- 8 x 5v RMS RCA outputs
- 113db SNR
- Burr Brown DAC
- 7 - 20v input voltage range
- <250mA idle current draw
Model
2024-2025 Harley Davidson/CVO
2024-2025 Harley Davidson/Road Glide
2024-2025 Harley Davidson/Street Glide
ZEN-H Technical Specifications
Hardware & Software
Current HW version: --1r1--
Current SW version: ZEN-H-1.2.8.ntv
Compatible SW (update) OS: Windows, macOS
INPUT
Digital Input A2B
OUTPUT
Digital Outputs: None
Digital Outputs supported: 24bit/48kHz
Frequency Response (digital): 18Hz – 24kHz
Analog Outputs: 8 channels (RCA)
Output Voltage Peak: 13.8v
Output Voltage RMS: 5v
Analog Output Type: Single-Ended
S/N Ratio (analog): 113dB
Frequency Response (analog): 18Hz – 24kHz
THD+N @ -1dBFS -94dB
DAC 192kHz 24bit
DSP 32bit Fixed Point
Power Supply
Current Consumption Stand-by <1 mA
Current Consumption Operational 250 mA MAX
Operational Voltage 7V – 20V DC
Amp Turn-On Output Automatic
Amp Turn-On Voltage V-batt
Amp Turn-On Current Limitation 500mA
Other
Dimensions: 4”x4”x1 1/2”
Weight: 5 oz'
2x Memphis Audio ETP-3 3-Foot 2 -Channel Audio Interconnect Cables - (ETP-3)
ETP RCA connections provide a sound connection for all of your audio equipment. These connectors feature molded color matched ends, flexible PVC jacket and twisted pair wires for noise rejection. Your system performance relies heavily on the connections you use. Don’t sacrifice your vehicles audio quality, use only the best connection available from Memphis Audio.
Molded color matched ends
Clear flexible PVC jacket
Twisted pair design for excellent noise rejection
End 1: 2 Male RCA
End 2: 2 Male RCA
CHANNELS: 2
LENGTH: 3ft
1x HDPG8K - 8 Gauge Power/Ground Kit - (HDPG8K)
HD 8 Gauge Power Harness Kit

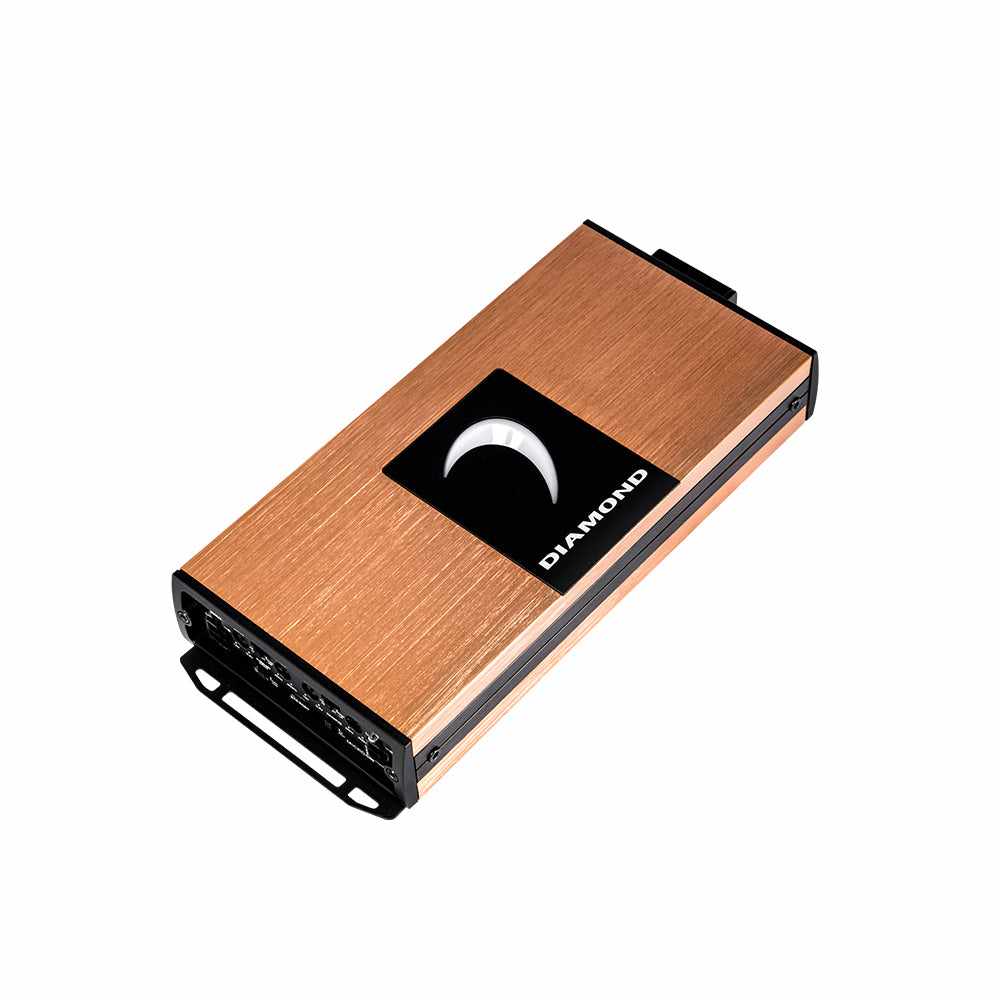

1x Diamond Audio MICRO4V2 - MICROV2 Series 4-Channel Full Range Class D Amplifier - (MICRO4V2)
MICRO4V2 - MICROV2 Series 4-Channel Full Range Class D Amplifier
Discover exceptional sound quality in a compact design with Diamond Audio’s MICROV2 series of amplifiers. Utilizing ultra-efficient full-range Class D topology, these amplifiers deliver impressive power despite their small size. The MICROV2 series also features advanced Rollback/Thermal protection, ensuring continuous and uninterrupted play without any risk of shutdown.
The installation possibilities are endless with the MICROV2 series! These amplifiers boast an ultra-compact, high-density aluminum alloy chassis, making them versatile and easy to fit in any setup. Balanced differential inputs ensure noise-free operation, while full-range digital Class D technology with Direct FET power MOSFET output stage guarantees top-notch performance.
With 12dB per octave adjustable crossovers, Diamond bass boost EQ (12dB @ 45Hz), and advanced rollback power circuitry to keep your amp cool, the MICROV2 series keeps your music playing smoothly. The selectable 3-option Auto Turn-On Mode circuit is designed to work with any OEM head unit, simplifying installation and making it more convenient.
When you need quality and performance in a small package, look no further than the MICROV2 series from Diamond Audio. Upgrade your audio system today and experience the perfect blend of power, efficiency, and flexibility.
Specifications:
- 150W x 2CH @ 2Ω
- 80W x 4CH @ 4Ω
- 300W x 2CH @ 4Ω Bridged
- Input Sensitivity: 0.2-10 Volt
- Crossover Filter : 40-400Hz, 12dB Per Octave Slope
- Frequency Response: 10-33KHz
- Selectable REM / VOX / DC Turn On Modes
- Selectable X-Over: LPF / FLAT / HPF
- Selectable 2CH / 4CH Input Modes
- Dimensions: 9.7” x 4.0” x 1.46” / 230.5 x 103 x 37.2 mm
- Disconnected RCA Input & Speaker Output Harness Kits Included
