Description
Included in this kit
This bundle includes a Diamond Audio DMDX69 - DMDX Series 6"X9"2-way Concentric Coaxial Speakers, and a Diamond Audio DMDX69C - DMDX Series 6"X9" 2-way Component Set.
1x Diamond Audio DMDX69 - DMDX Series 6"X9"2-way Concentric Coaxial Speakers - (DMDX69)
Diamond Audio DMDX 6"x9" Concentric Coaxial Speakers
The Diamond Audio DMDX Concentric Coaxial Speakers are engineered to deliver high-fidelity sound in a streamlined, full-range design. Built for drivers seeking a noticeable upgrade over factory audio, the DMDX series combines clarity, efficiency, and dynamic output in a single 6"x9" chassis.
Utilizing a concentric coaxial configuration, the tweeter and woofer are aligned to provide cohesive sound reproduction with natural staging and improved tonal balance across the frequency spectrum.
Performance Highlights
- 65 watts RMS power handling
- 195 watts maximum power handling
- 50Hz–20kHz frequency response
- 88dB sensitivity (1W/1M)
- 4-ohm nominal impedance
- 68Hz free-air resonance (Fs)
Installation & Fitment
Designed around a standard 6"x9" form factor, the DMDX coaxials provide compatibility with a wide range of factory and aftermarket speaker locations. Installation measurements are provided below to assist with proper fitment.
| Nominal Diameter | 6"x9" (152 x 228mm) |
|---|---|
| Mounting Depth | 3.17" (80.6mm) |
| Cut-Out Dimensions | 8.68" x 5.93" (220.5 x 150.5mm) |
| Overall Dimensions | 9.29" x 6.4" (236 x 162.6mm) |
| Overall Height | 3.54" (90mm) |
Specifications
| Power Handling (RMS) | 65 Watts |
|---|---|
| Power Handling (Max) | 195 Watts |
| Frequency Response | 50Hz–20kHz |
| Sensitivity (1W/1M) | 88dB |
| Nominal Impedance | 4 Ohms |
| Free-Air Resonance (Fs) | 68Hz |

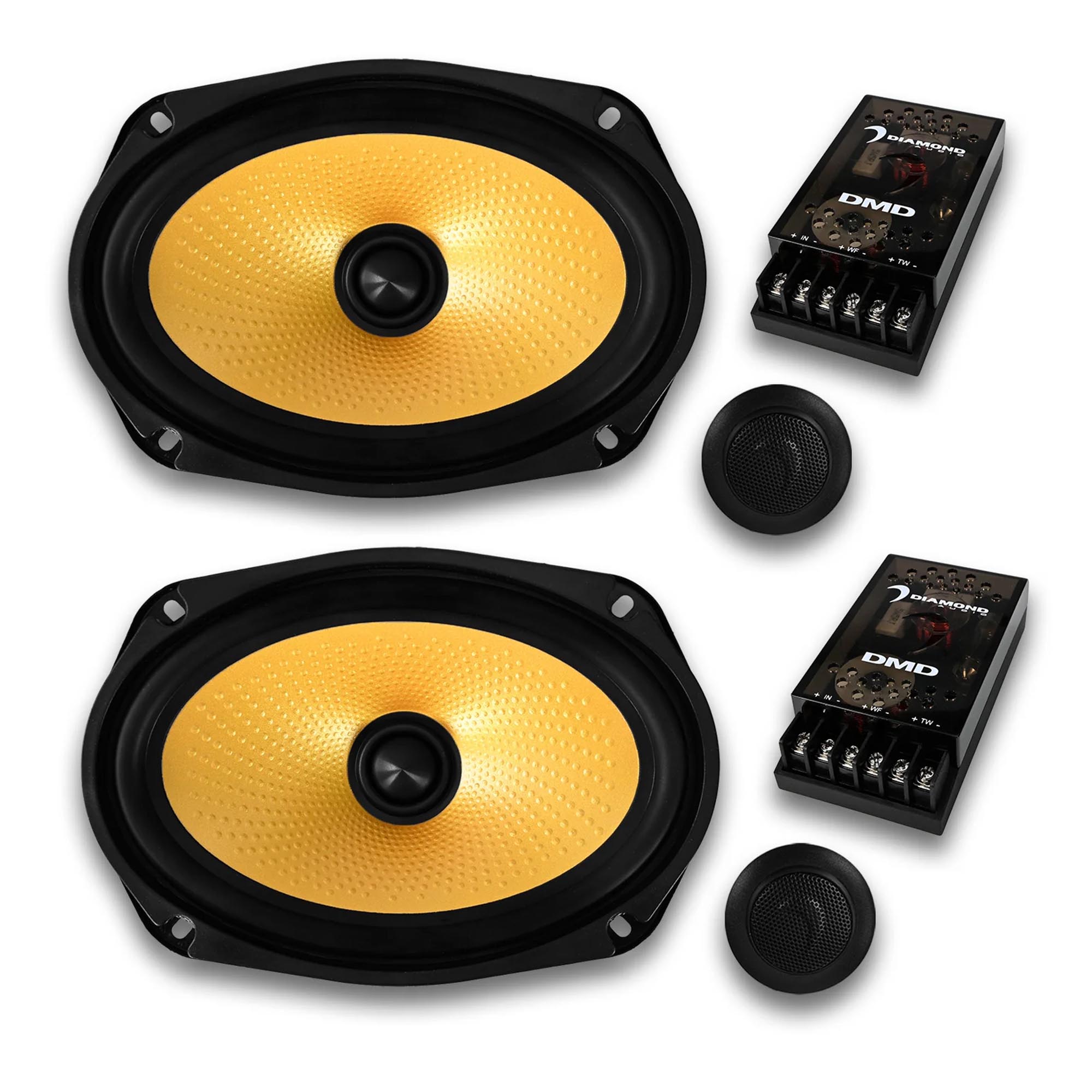

1x Diamond Audio DMDX69C - DMDX Series 6"X9" 2-way Component Set - (DMDX69C)
Diamond Audio DMDX 6"x9" Component Speakers
The Diamond Audio DMDX Component Speakers are engineered to deliver high-fidelity sound with dedicated driver separation for improved accuracy and imaging. Designed for enthusiasts seeking an upgrade over factory audio, this 6"x9" component system combines balanced frequency response, efficient performance, and precise tuning.
By separating the woofer and tweeter, the DMDX component system enhances soundstage width and placement accuracy, providing clearer highs, detailed midrange, and controlled bass response.
Performance Highlights
- 65 watts RMS power handling
- 195 watts maximum power handling
- 50Hz–20kHz frequency response
- 88dB sensitivity (1W/1M)
- 4-ohm nominal impedance
- 68Hz free-air resonance (Fs)
Installation & Fitment
Designed around a 6"x9" form factor, this component system includes installation measurements to assist with proper vehicle fitment. Verify mounting depth and cut-out dimensions prior to installation.
| Nominal Diameter | 6"x9" (152 x 228mm) |
|---|---|
| Mounting Depth | 3.17" (80.6mm) |
| Cut-Out Dimensions | 8.68" x 5.93" (220.5 x 150.5mm) |
| Overall Dimensions | 9.29" x 6.4" (236 x 162.6mm) |
| Overall Height | 3.54" (90mm) |
Specifications
| Power Handling (RMS) | 65 Watts |
|---|---|
| Power Handling (Max) | 195 Watts |
| Frequency Response | 50Hz–20kHz |
| Sensitivity (1W/1M) | 88dB |
| Nominal Impedance | 4 Ohms |
| Free-Air Resonance (Fs) | 68Hz |
